Key Features
Compatibility
Product Description

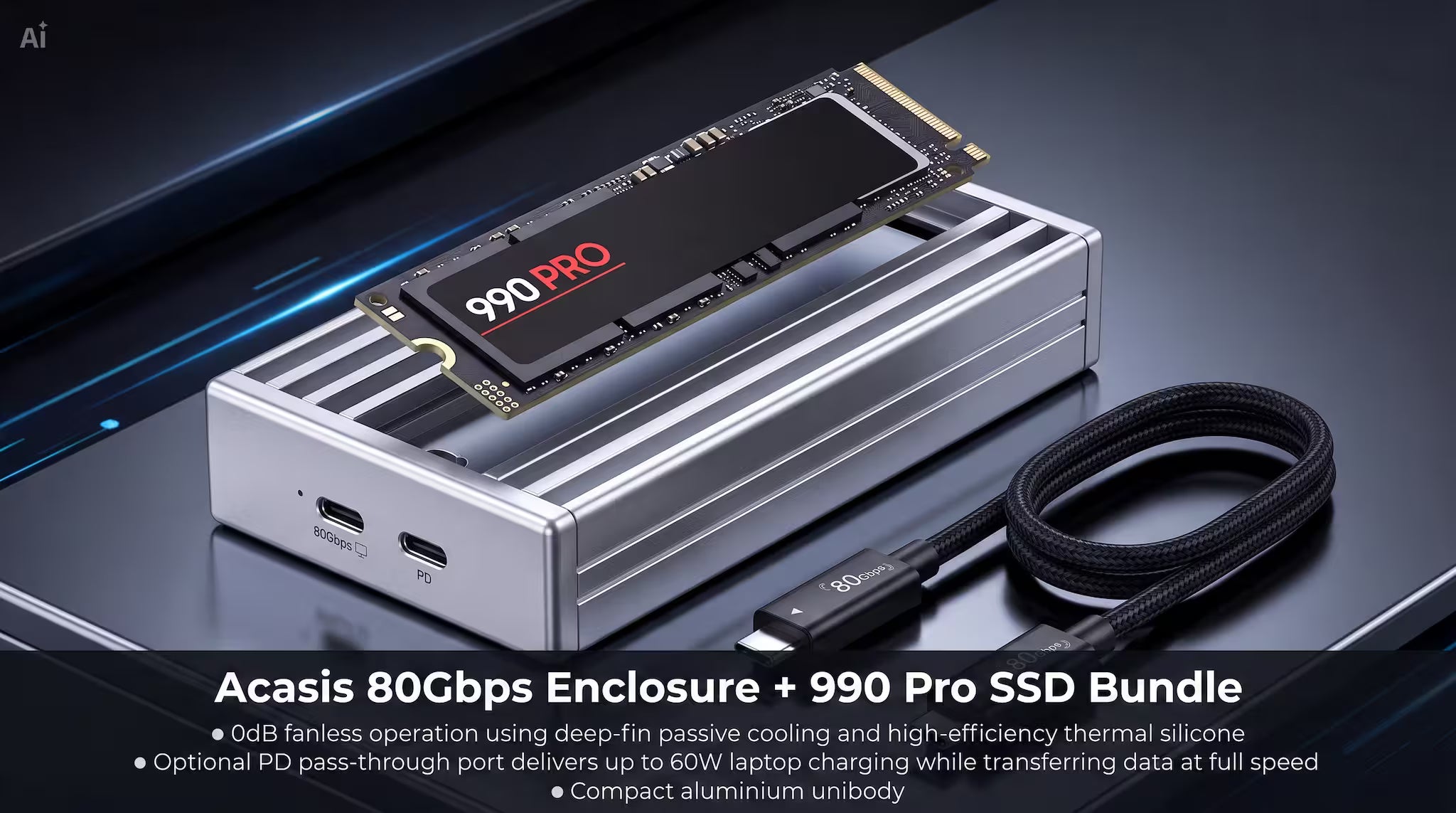

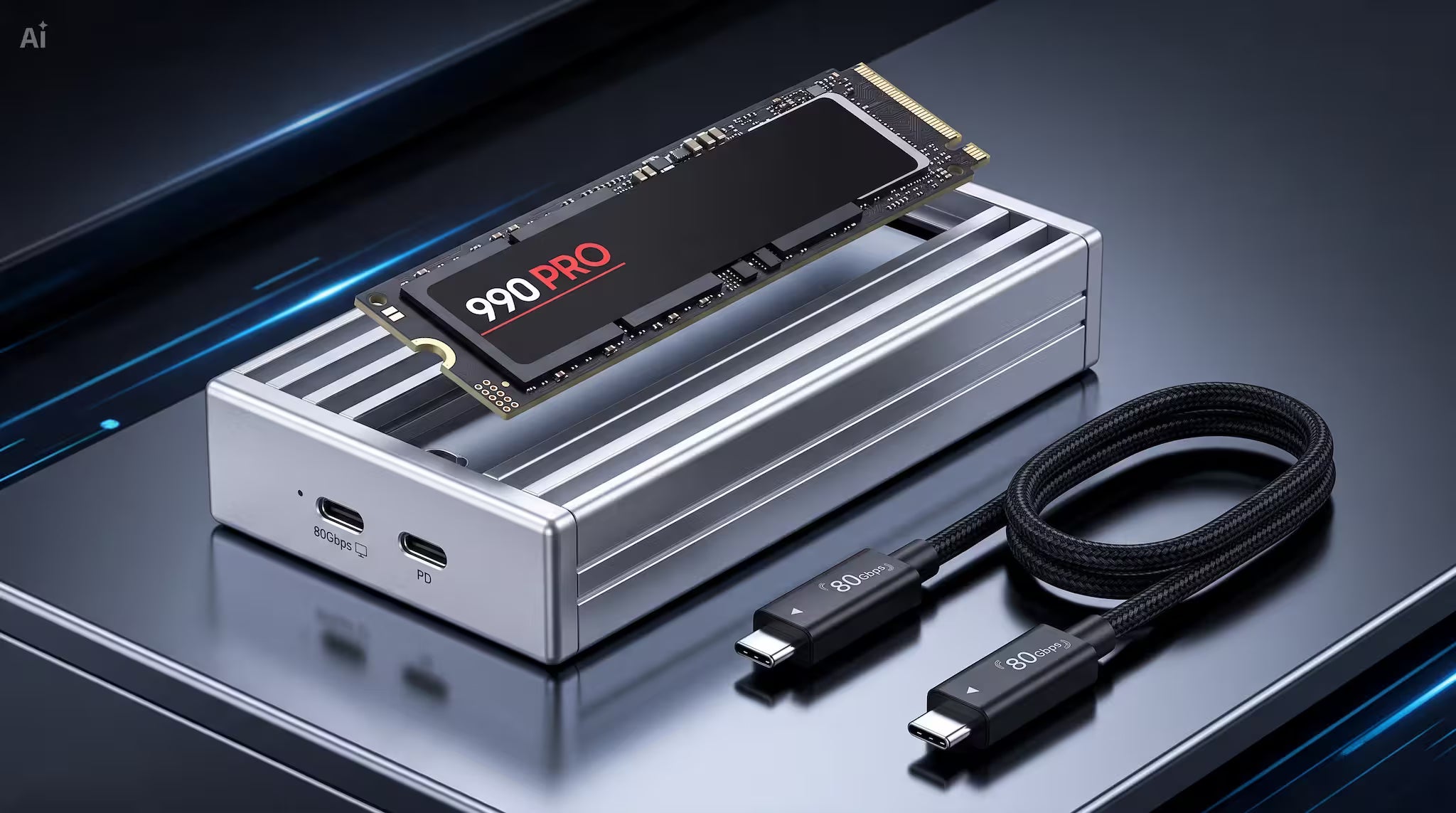

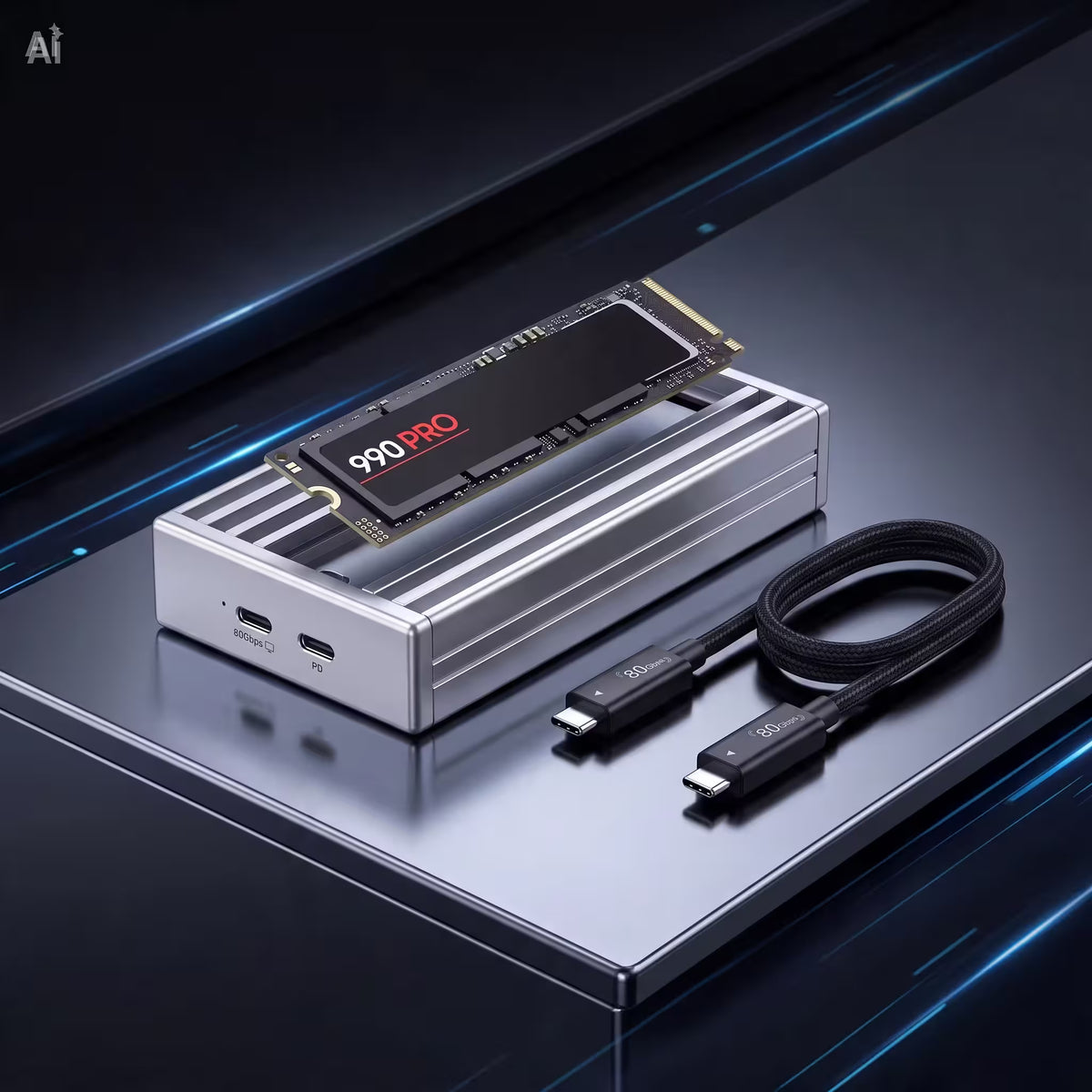

This bundle pairs the Acasis 80Gbps M.2 NVMe SSD Enclosure (TB504Mini) with a Samsung 990 Pro PCIe Gen4 NVMe SSD, giving you a complete, ready-to-use external storage solution straight out of the box. No need to source a compatible drive separately or worry about fit, the SSD is matched and ready to install in the enclosure's fanless, 0dB silent aluminium chassis.
Key Features
- Complete bundle: Acasis TB504Mini Thunderbolt 5 enclosure plus a genuine Samsung 990 Pro NVMe SSD
- 80Gbps Thunderbolt 5 enclosure with real-world transfers up to 6831 MB/s write and 6168 MB/s read
- Samsung 990 Pro delivers up to 7,450 MB/s read and 6,900 MB/s write (PCIe Gen4 NVMe)
- 0dB fanless operation using deep-fin passive cooling and high-efficiency thermal silicone
- Optional PD pass-through port delivers up to 60W laptop charging while transferring data at full speed
- Tool-free installation with included screwdriver, thermal pad and rubber plugs
- Compact aluminium unibody chassis measuring just 130 x 72.5 x 25mm
- Backed by Samsung's 5-year limited warranty on the SSD
Package Includes
- 1 x Acasis 80Gbps M.2 NVMe SSD Enclosure (TB504Mini)
- 1 x Samsung 990 Pro PCIe Gen4 NVMe SSD (pre-installed)
- 1 x 50cm Thunderbolt 5 cable
- Rubber plugs
- Thermal pad
- User manual
- Screwdriver
Will I actually get 80Gbps speeds with this bundle?
Real-world speed depends on the host device. The enclosure and SSD together are capable of up to 80Gbps Thunderbolt 5 bandwidth, but actual transfer speed is limited by your computer's own Thunderbolt/USB4 port, cabling, and system performance. On a Thunderbolt 3 or Thunderbolt 4 host, speeds will be capped at that port's own bandwidth rather than the full 80Gbps.
Does the SSD come pre-installed?
Yes. The Samsung 990 Pro is fitted into the enclosure before dispatch, so the bundle arrives ready to plug in and use.
Do I need an external power adapter?
No. The enclosure is fully bus-powered. The built-in PD pass-through port is optional and simply lets you charge a laptop at up to 60W while transferring data at full speed.
Is this compatible with my Mac or Windows laptop?
Yes. The enclosure works with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 and USB4 hosts, with backward compatibility down to USB 3.2/3.1/3.0, across both macOS and Windows.
What warranty covers the SSD?
The Samsung 990 Pro carries Samsung's standard 5-year limited warranty, rated for 1,200 TBW of endurance.
Specifications
| Enclosure (Acasis TB504Mini) | |
| Interface | Thunderbolt 5 / Thunderbolt 4 / Thunderbolt 3 / USB4 |
| Max Transfer Speed | Up to 80Gbps (real-world: 6831 MB/s write, 6168 MB/s read) |
| Chipset | Intel JHL9480 + RTL9210 |
| Cooling | Fanless deep-fin passive cooling, 0dB silent operation |
| Power Delivery | Optional PD pass-through, up to 60W laptop charging |
| Dimensions | 130 x 72.5 x 25mm |
| Build | Aluminium unibody chassis |
| SSD (Samsung 990 Pro) | |
| Interface | PCIe 4.0 x4, NVMe 2.0 |
| Sequential Read | Up to 7,450 MB/s |
| Sequential Write | Up to 6,900 MB/s |
| Endurance | 1,200 TBW |
| Warranty | 5-year limited |
Note: actual transfer speeds achieved will depend on your computer's own Thunderbolt/USB4 port, cable, and overall system performance. The figures above represent the maximum capability of the enclosure and SSD, not a guaranteed real-world result on every device.
Compatibility
| Interface Protocols | Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, USB4 (backward compatible with USB 3.2/3.1/3.0) |
| Mac | Apple Silicon (M-Series) MacBook Pro/Air, Mac mini, Mac Studio, iMac and Intel Mac with Thunderbolt |
| Windows | Dell XPS, Razer Blade, HP ZBook, Lenovo ThinkPad and Legion series, and other Thunderbolt/USB4-equipped laptops and desktops |
| Operating Systems | macOS, Windows, Linux |
