Product Description

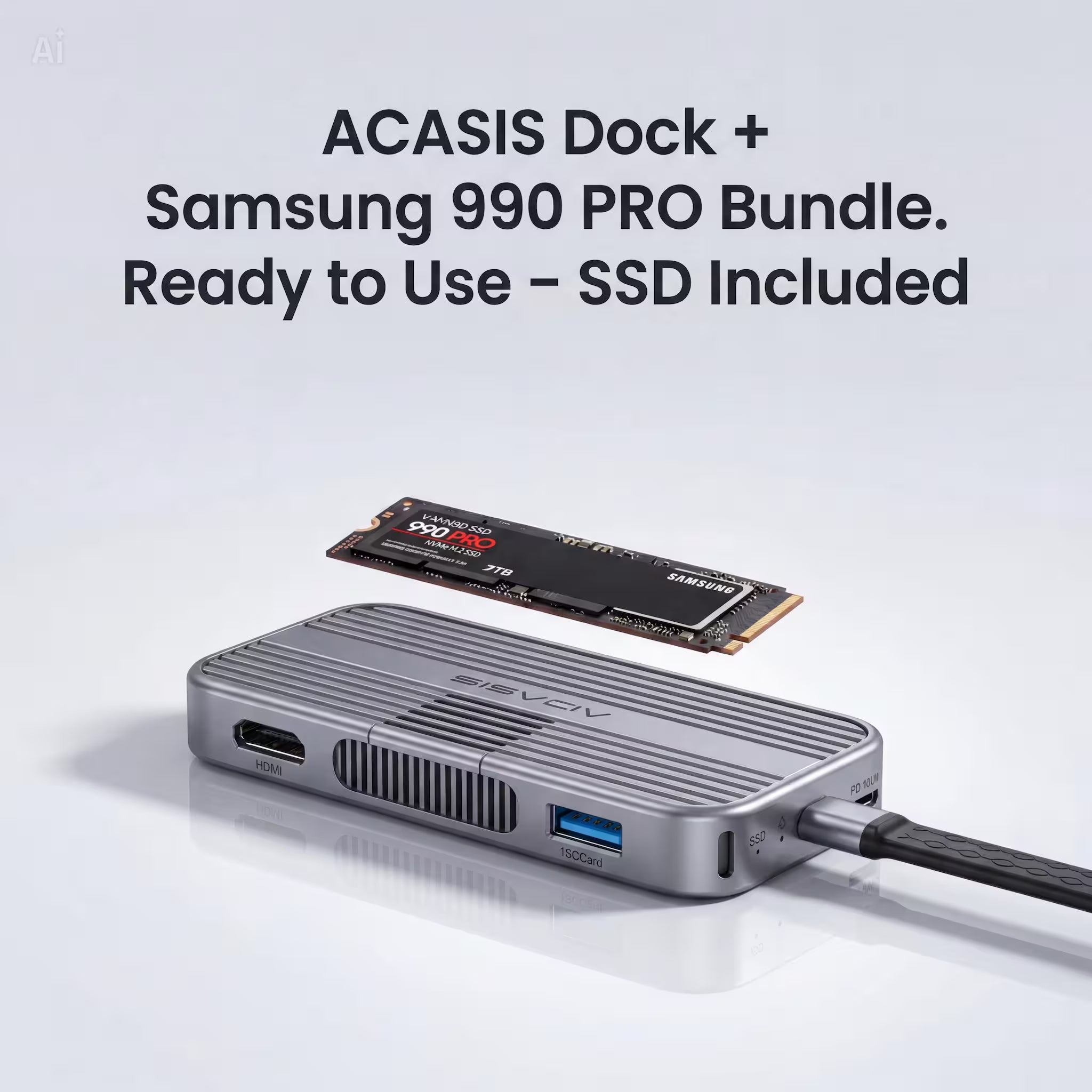

The Acasis Magnetic SSD Dock is one of those products that makes you wonder why it took this long to exist. It magnetically attaches to the back of your iPhone 15 or 16, connects via USB-C, and turns your phone into a proper mobile capture and editing workstation with its own SSD, 4K HDMI output, SD card reader, and 100W passthrough charging — all in one 110g aluminium unit. This bundle pairs it with a Samsung 990 Pro M.2 NVMe SSD already installed, so you get everything you need out of the box, ready to shoot.
The Samsung 990 Pro is the right drive for this enclosure. It's PCIe 4.0 NVMe internally, but over the Acasis's USB 3.2 10Gbps connection it runs at up to 10Gbps — which is exactly what the enclosure is rated for. No bottlenecks, no mismatched specs. The 990 Pro's sustained write performance means it handles continuous 4K ProRes recording without stuttering, and its reliability track record (1.5M hour MTBF, 5-year warranty) means it's not going to let you down on set.
The magnetic dock design isn't just a gimmick — it snaps on firmly enough for handheld shooting, and the built-in cooling fan keeps both the dock and the SSD at stable temperatures during extended recording sessions. HDMI 2.0 output means you can mirror to a 4K monitor while recording. The SD/TF 3.0 slot means you can offload cards at full speed without a separate reader. PD 100W means your laptop stays charged while everything else runs off the same port.
Key Features
- Samsung 990 Pro M.2 NVMe SSD pre-installed — available in 1TB, 2TB, and 4TB
- 10Gbps USB 3.2 Gen 2 connection — full speed data transfer between phone, dock, and SSD
- Magnetic attachment — snaps securely to iPhone 15/16 for hands-free shooting
- 4K 60Hz ProRes recording direct to SSD from iPhone 15/16 Pro
- HDMI 2.0 output — 4K monitor mirroring while recording
- SD/TF 3.0 card reader — fast media offload without a separate adapter
- PD 100W passthrough charging — keep your laptop or phone charged simultaneously
- Built-in cooling fan — sustained performance during long recording sessions
- Supports M.2 2230 / 2242 / 2260 / 2280 NVMe SSDs up to 8TB
- Compatible with iPhone 16/15, iPad, MacBook, Android, laptops, Nintendo Switch, Steam Deck
What's in the Box
- (1) Acasis 10Gbps Magnetic SSD Dock & Enclosure
- (1) Samsung 990 Pro M.2 NVMe PCIe 4.0 SSD (pre-installed, capacity as selected)
- (1) Data Cable (USB-C)
- (1) Thermal Pad
- (1) Silicon Stopper
- (1) Magnetic Attractor Ring
- (1) User Manual
Does the SSD come pre-installed or do I have to fit it myself?
The Samsung 990 Pro SSD comes pre-installed in the Acasis dock — the bundle is ready to use straight out of the box. You just need to format the SSD on first use (your device will prompt you to do this automatically when you connect it).
Will this work with my iPhone for 4K ProRes recording?
Yes — the dock connects via USB-C at 10Gbps, which is sufficient bandwidth for 4K 60Hz ProRes recording. This works on iPhone 15 Pro, iPhone 15 Pro Max, iPhone 16 Pro, and iPhone 16 Pro Max. Standard iPhone 15 and 16 models support external storage recording but at lower ProRes resolutions. You'll need iOS 17 or later.
Can I use the HDMI and record to SSD at the same time?
Yes. The HDMI 2.0 output and the SSD recording run simultaneously — you can mirror your iPhone screen to a 4K monitor while recording ProRes directly to the SSD. PD 100W passthrough also works at the same time, so your phone (or connected laptop) stays charged throughout.
Is the Samsung 990 Pro the right drive for this enclosure?
Yes, and deliberately so. The Acasis dock uses USB 3.2 Gen 2 (10Gbps), not Thunderbolt or USB4. The Samsung 990 Pro's raw PCIe 4.0 speed is far above what the interface can use, but what matters here is sustained write performance — the 990 Pro handles continuous sequential writes without throttling, which is exactly what 4K ProRes recording demands. It's reliable, well-cooled by the dock's built-in fan, and covered by Samsung's 5-year warranty.
Does this work with MacBook and Windows laptops too?
Yes — the Acasis dock works with any USB-C laptop (Mac or Windows). On MacBook it provides extra storage, a 4K HDMI display output, SD card reader, USB-A and USB-C ports, and 100W charging passthrough. It's essentially a compact hub with built-in SSD storage. macOS, Windows, and Linux are all supported.
Specifications
Acasis 10Gbps Magnetic SSD Dock
| SKU | EC-1401 |
|---|---|
| Case Material | Aluminium |
| Colour | Silver |
| Weight | 110g |
| Dimensions | 97 × 60 × 17 mm |
| Host Interface | USB 3.2 Gen 2 (USB-C) — 10Gbps |
| HDMI Output | HDMI 2.0 × 1 (up to 4K 60Hz) |
| USB-A Port | USB-A 3.1 × 1 |
| USB-C Port | USB-C 3.1 × 1 |
| Card Reader | SD / TF 3.0 |
| Charging Passthrough | PD 100W |
| Cooling | Built-in cooling fan |
| Magnetic Dock | Yes — MagSafe-style magnetic attachment |
| SSD Type Supported | M.2 NVMe |
| SSD Form Factors | 2230 / 2242 / 2260 / 2280 |
| Max SSD Capacity | 8TB |
| Compatible OS | macOS, Windows, Linux |
Samsung 990 Pro M.2 NVMe SSD
| Form Factor | M.2 2280 |
|---|---|
| Interface | PCIe Gen 4.0 x4, NVMe 2.0 |
| NAND | Samsung V-NAND 3-bit MLC (TLC) |
| Controller | Samsung in-house |
| Sequential Read | Up to 7,450 MB/s |
| Sequential Write | Up to 6,900 MB/s |
| Random Read (QD32) | 1TB: 1,200K IOPS | 2TB: 1,400K IOPS | 4TB: 1,600K IOPS |
| Random Write (QD32) | Up to 1,550K IOPS |
| DRAM Cache | 1TB: 1GB LPDDR4 | 2TB: 2GB LPDDR4 | 4TB: 4GB LPDDR4 |
| Encryption | AES 256-bit, TCG/Opal, IEEE 1667 |
| MTBF | 1.5 Million Hours |
| Endurance (TBW) | 1TB: 600 TBW | 2TB: 1,200 TBW | 4TB: 2,400 TBW |
| Operating Temperature | 0°C to 70°C |
| Weight | Max 9.0g |
| Warranty | 5-year Samsung Limited Warranty |
| Management Software | Samsung Magician (free download) |
* Native PCIe 4.0 speeds apply when installed in a PCIe 4.0 host. In this bundle, the SSD operates via the Acasis USB 3.2 10Gbps interface — maximum throughput is limited to ~1,000 MB/s as set by the enclosure's host connection.
Compatibility
Mobile Devices (Magnetic Dock)
- iPhone 16 / 16 Plus / 16 Pro / 16 Pro Max
- iPhone 15 / 15 Plus / 15 Pro / 15 Pro Max
- iPad with USB-C (all models)
- Android smartphones with USB-C full-function port
Computers & Other Devices
- MacBook with USB-C or Thunderbolt (all generations)
- Windows and Linux laptops with USB-C
- Nintendo Switch
- Steam Deck
Operating Systems
- iOS 17 or later (for 4K ProRes external recording on iPhone 15/16 Pro)
- macOS (all current versions)
- Windows 10 / 11
- Linux
