Product Description

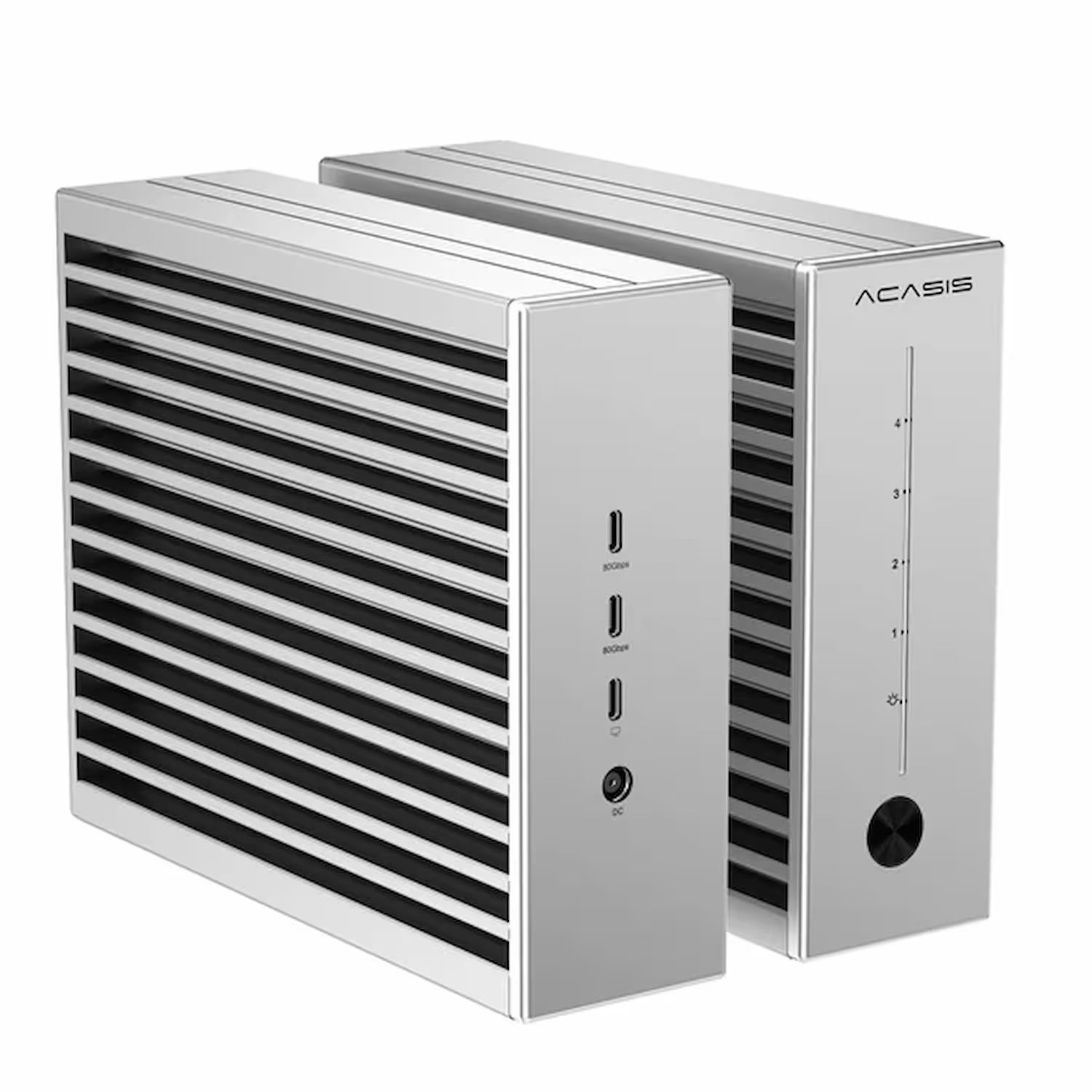

The Acasis TB504 is an 80Gbps Thunderbolt 5 4-bay M.2 NVMe SSD enclosure built for creators and AI workflows that need serious, expandable storage without the noise or bulk of a traditional NAS. Fit up to four NVMe SSDs and run them independently or in RAID for up to 32TB of blazing-fast, portable storage.
Key Features

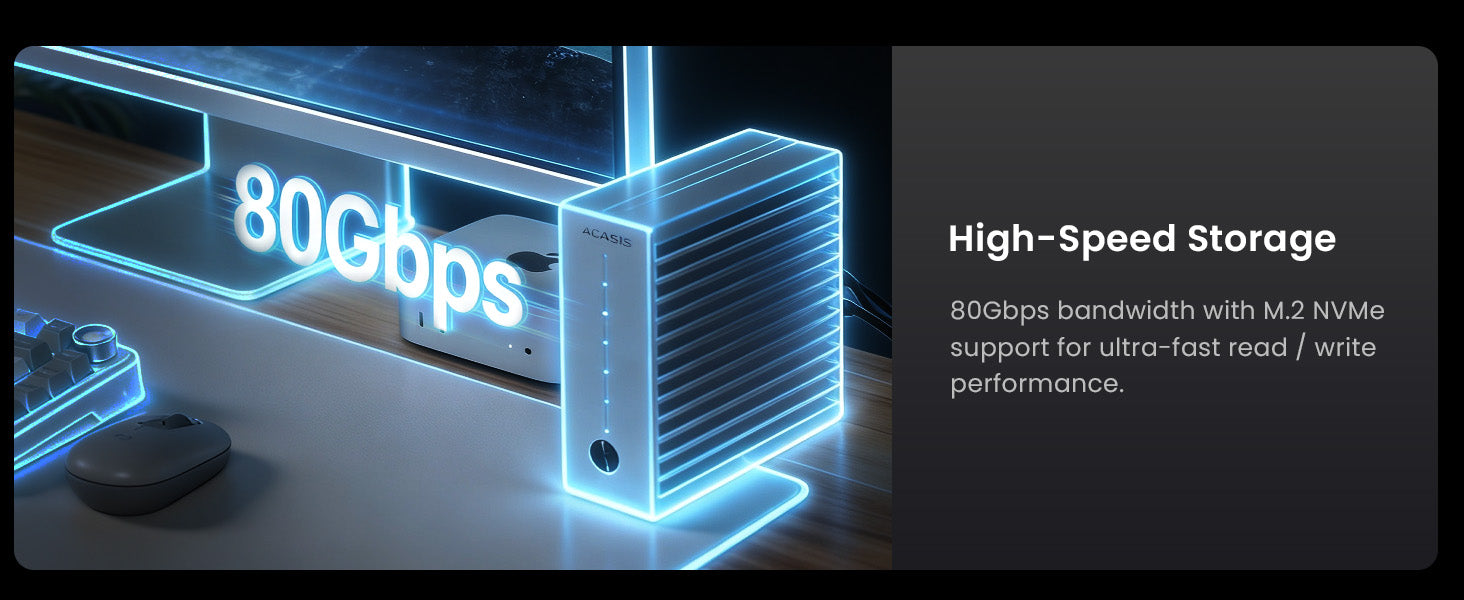

- 80Gbps Thunderbolt 5 host connection, backwards compatible with Thunderbolt 4/3 and USB4

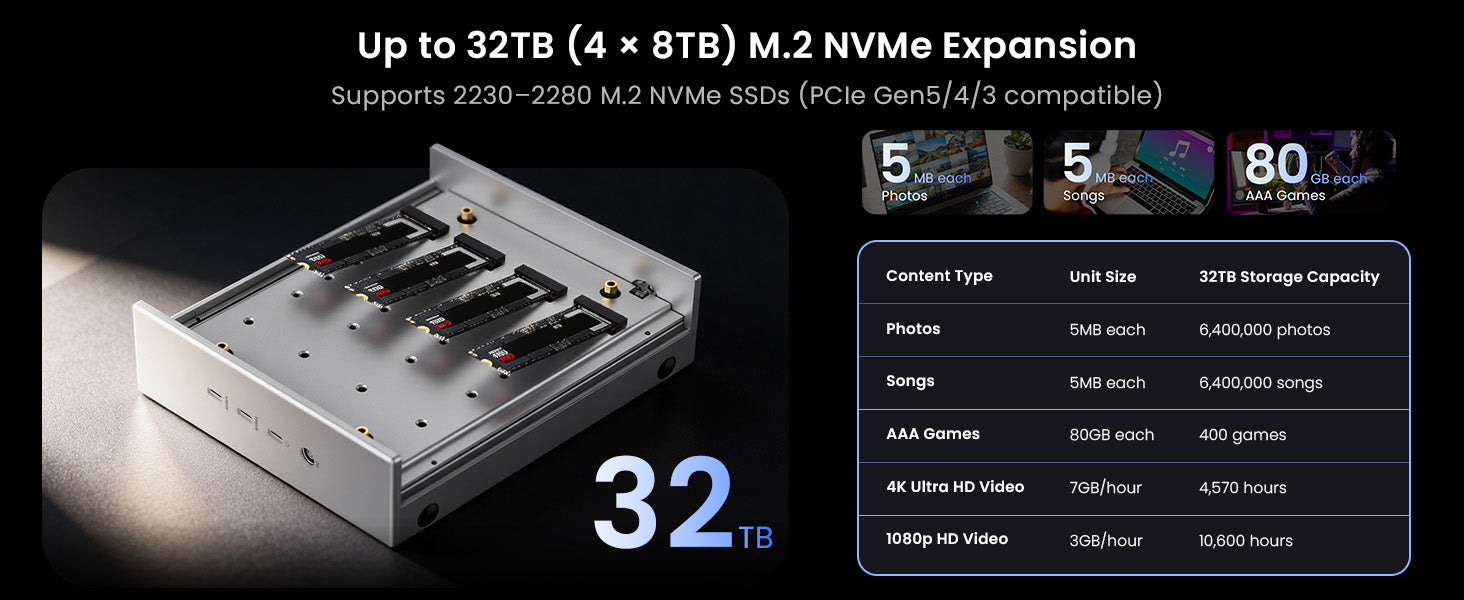

- 4x M.2 NVMe bays supporting 2230, 2242, 2260 and 2280 form factors
- Up to 32TB total capacity (4 x 8TB per bay)
- Software RAID 0, RAID 1, RAID 10, Large and JBOD modes
- Independent PCIe bandwidth per bay so all four SSDs can run at full speed at once
- Two downstream Thunderbolt 5 ports for dual 8K@60Hz displays or daisy-chaining, with power delivery
- Fanless, silent aluminium chassis with passive cooling fins
Package Includes:
Acasis TB504 80Gbps 4-Bay Enclosure
Thunderbolt 5 cable
Power adapter
User manual
Do I need to buy RAID software separately?
No. The TB504 supports software RAID 0, RAID 1, RAID 10, Large and JBOD modes out of the box using your operating system's built-in disk utilities (Disk Utility on macOS, Disk Management or Storage Spaces on Windows).
Can I use PCIe Gen5 SSDs in this enclosure?
Yes, PCIe Gen5 NVMe SSDs are supported, though they will run at the enclosure's available Thunderbolt 5 bandwidth rather than their full rated Gen5 speed.
Does this enclosure include SSDs?
No, the TB504 is sold as an empty enclosure. You'll need to fit your own M.2 NVMe SSDs (2230/2242/2260/2280, PCIe/NVMe only, SATA M.2 drives are not supported).
Specifications
| Host Interface | Thunderbolt 5 (80Gbps), backwards compatible with Thunderbolt 4/3 and USB4 |
| Drive Bays | 4x M.2 NVMe SSD (2230/2242/2260/2280/22110) |
| Maximum Capacity | Up to 32TB (4 x 8TB) |
| RAID Modes | RAID 0, RAID 1, RAID 10, Large, JBOD (software RAID) |
| Downstream Ports | 2x Thunderbolt 5 (80Gbps, dual 8K@60Hz display support, power delivery) |
| Chassis | CNC-machined aluminium alloy, passive fanless cooling |
| Dimensions | 19.1 x 5.5 x 15.5 cm |
| Weight | 2.19 kg |
Acasis reserves the right to replace or upgrade to equivalent or better components.
Compatibility
| Mac (Thunderbolt/USB-C) | Compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 and USB4 Macs running macOS |
| Windows PC | Compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 and USB4 Windows laptops and desktops |
| Linux | Compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 and USB4 Linux systems |
| SSDs | M.2 NVMe SSDs, 2230/2242/2260/2280 form factors (PCIe/NVMe only, no SATA M.2) |
