AngelShark Carrier board™ for Mac Pro late 2013 cylinder storage upgrade by M.2 PCIe SSD

How to upgrade storage capacity (the SSD) on a Mac Pro (Late 2013) cylinder?

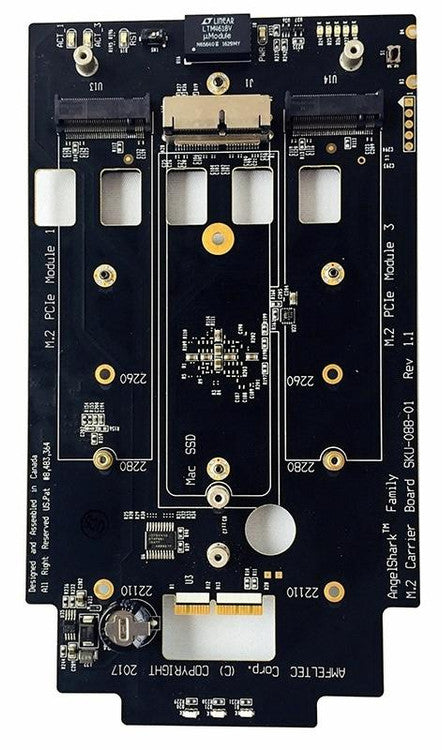

It is possible with the AngelShark Carrier board™. Carrier board is located internally between the Mac and the original SSD module. It supports any M.2 PCI Express (M-key) SSD modules with standard lengths 2280 and 2260, 22110 (optional).

Overview:

• Expands MacPro storage capacity
• Located inside Mac Pro (Late 2013) cylinder
• x4 PCI Express Gen3 connection to each SSD module
• Supports up to 2 M.2 PCI Express SSD modules (AHCI or NVMe)
• Supports any M.2 PCI Express modules (M-key)
• Supports M.2 module sizes 2280 and 2260, 22110 (optional)
• Compliant with PCIe Specification 3.0
• Compliant with M.2 Specification 1.1
• RoHS compliant

Carrier Board supports x4 PCI Express Gen 3 connection on each M.2 circuit, and it is compliant with PCI Express Specification 3.0 and M.2 Specification 1.1.

The AngelShark Carrier board™ for Apple Mac Pro Cylinder (Late 2013) allows expansion of internal original SSD capacity of Apple Mac Pro (cylinder) with popular M.2 SSD by keeping the original SSD intact. The internal upgrade is required by many users of Mac Pro, struggling with limited SSD capacity and desiring to increase it.

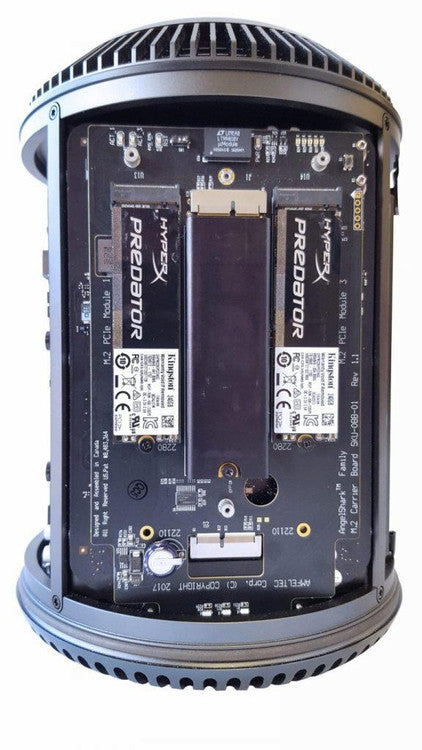

Carrier board was designed for Mac Pro (Late 2013) users to significantly increase the internal storage capacity by allowing the addition of up to 2 M.2 PCI Express SSD modules, while keeping the factory-installed original SSD.

The AngelShark Carrier board™ for M.2 SSD modules is the first product in the AngelShark Carrier Boards™ family.

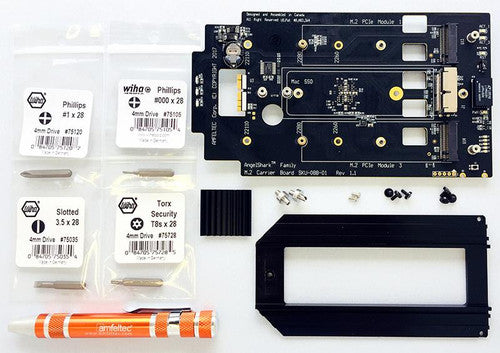

Standard Package Includes:

• AngelShark Carrier Board™

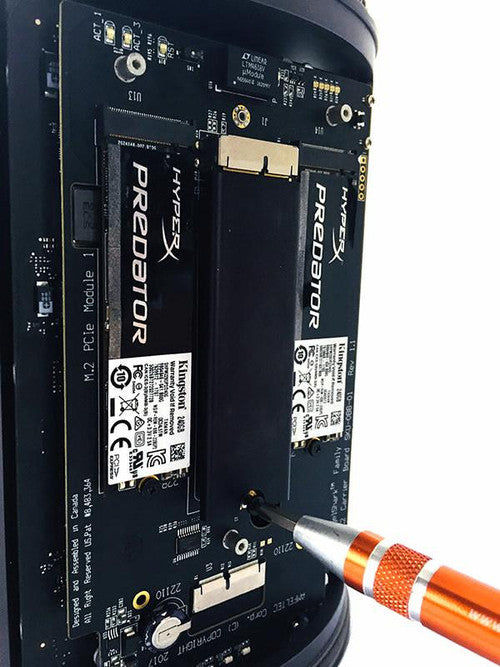

• Screwdriver with bit set for Carrier board installation
• Power Standoffs (2 pcs)
• Power Screws (2 pcs + 1 extra)
• Mounting Screws (6 pcs)
• Heat Sink for both M.2 SSD modules
• Heat Sink for original SSD module
