Key Features
Compatibility
Product Description

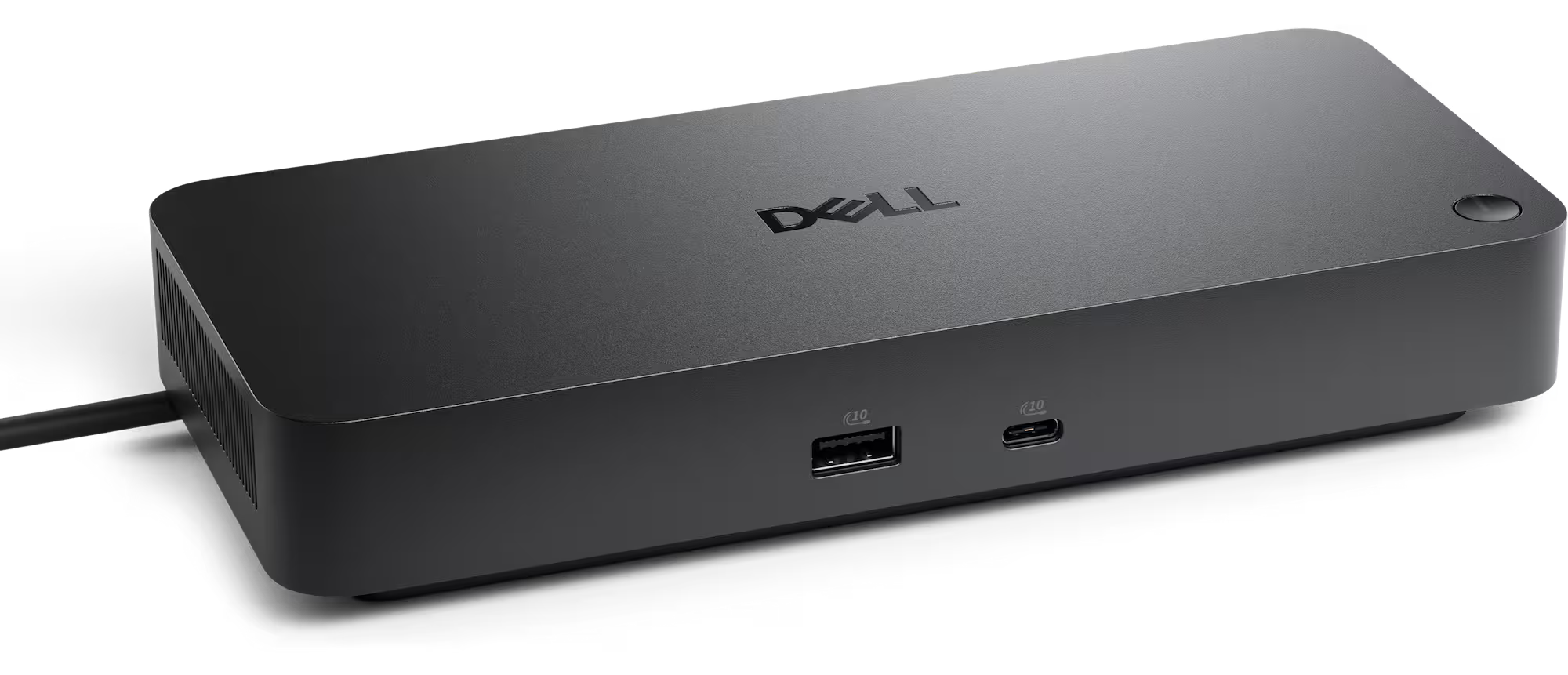

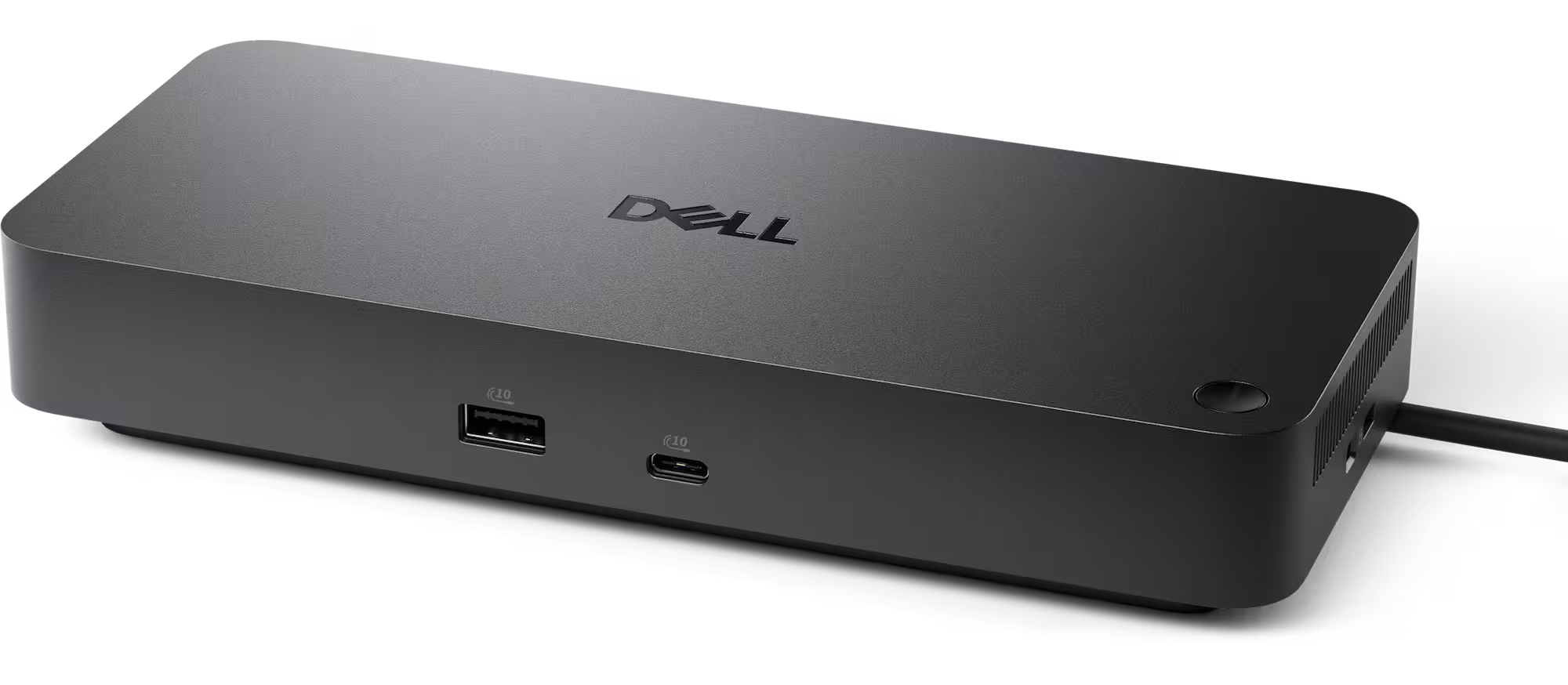

Dell Pro Thunderbolt 5 Dock WD25TB5
The Dell Pro Thunderbolt 5 Dock WD25TB5 is a high-performance docking station designed for demanding professional workspaces. With Thunderbolt 5 connectivity, multi-display support, high-speed USB expansion, 2.5 Gigabit Ethernet, and powerful laptop charging, it turns a single cable connection into a complete workstation setup.
Built for modern Dell, Windows, macOS, Linux, and ChromeOS environments, this dock is ideal for users who need reliable connectivity, fast data transfer, multiple displays, and enterprise management features in one compact desktop solution.
Dell Pro Thunderbolt 5 Dock WD25TB5 docking station with up to 330W power delivery for Dell systems, 2.5 Gigabit Ethernet, HDMI 2.1, DisplayPort 2.1, USB-C, USB-A and multi-display support for professional workstation setups.
Key Features
- Thunderbolt 5 docking station for high-performance workstation setups
- Supports up to four displays depending on host system capability
- Up to 330W power delivery for Dell systems and up to 240W for non-Dell systems
- 2.5 Gigabit Ethernet for fast wired networking
- Multiple USB-A, USB-C, DisplayPort, HDMI, and Thunderbolt ports
- Enterprise management features including PXE Boot, Wake-on-LAN and MAC Address Pass-through
- 3 Year Limited Hardware Warranty
Included
- Dell Pro Dock WD25TB5 Docking Station
- Power Adapter
- Power Cord
- Documentation
Product Q&A
Q: What is the maximum power delivery supported?
A: The dock supports up to 330W power delivery for Dell systems and up to 240W for non-Dell systems.
Q: How many displays can this dock support?
A: It supports up to four displays, depending on the connected computer and display configuration.
Q: Does it include Ethernet?
A: Yes. It includes 2.5 Gigabit Ethernet for fast wired networking.
Q: Is this compatible with macOS?
A: Yes. macOS is listed as a supported operating system, although some management features may be Windows or Dell-system specific.
Q: Does it support enterprise management features?
A: Yes. It supports features such as MAC Address Pass-through, PXE Boot, Wake-on-LAN, Dock Power Button Sync, firmware updates and port disablement.
Specifications
-
Product:
Dell Pro Thunderbolt 5 Dock - WD25TB5 -
Dell Part:
210-BTHZ -
Manufacturer Part:
3G8VF -
Connectivity Technology:
Wired -
Host Interface:
Thunderbolt 5 -
Device Supported:
Notebook
Desktop PC -
Cable Length:
83 cm -
Number of Displays Supported:
4 -
Supported Resolutions:
3840 x 2160
5120 x 2160
2560 x 1440
3440 x 1440
7680 x 4320
6144 x 3456 -
Screen Mode Supported:
QHD @ 60Hz
WQHD @ 60Hz
4K @ 60Hz
5K @ 60Hz
6K @ 60Hz
8K @ 60Hz
4K @ 120Hz -
Video Resolution Details:
QHD - 60 Hz (Quad Display)
WQHD - 60 Hz (Triple Display)
4K - 60 Hz (Dual Display)
5K - 60 Hz (Single Display)
4K - 60 Hz (Quad Display)
4K - 60 Hz (Triple Display)
6K - 60 Hz (Dual Display)
8K - 60 Hz (Single Display)
4K - 120 Hz (Quad Display)
4K - 120 Hz (Triple Display) -
Maximum Data Transfer Rate:
1.25 GB/s -
Ethernet Technology:
2.5 Gigabit Ethernet -
Total Number of USB Ports:
6 -
USB Type-A:
Yes -
Number of USB 3.2 Gen 2 Type-A Ports:
4 -
USB Type-C:
Yes -
USB Type-C Detail:
1 x USB-C 3.2 Gen 2 (10 Gbps), (15W)
1 x USB-C Multi-function DisplayPort (7.5W) -
Number of USB Type-C Ports:
2 -
Network (RJ-45):
Yes -
DisplayPort:
Yes -
Number of DisplayPorts:
2 -
DisplayPort Version:
2.1 -
HDMI:
Yes -
Number of HDMI Ports:
1 -
HDMI Version:
2.1 -
Thunderbolt:
Yes -
Thunderbolt Ports Quantity:
2 -

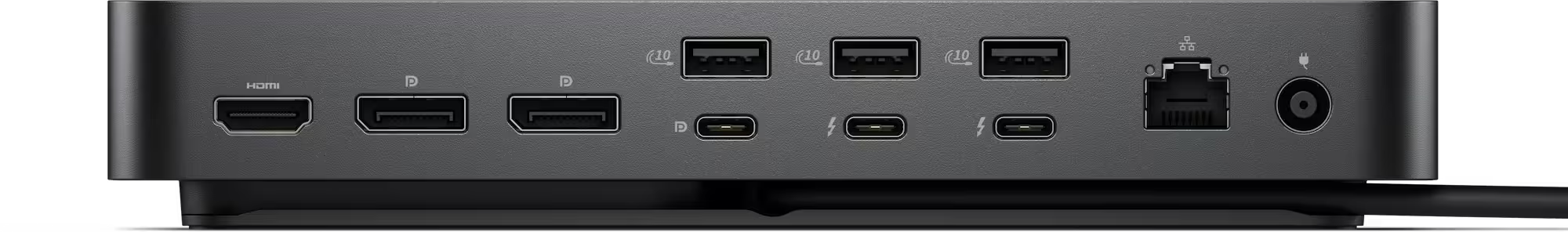

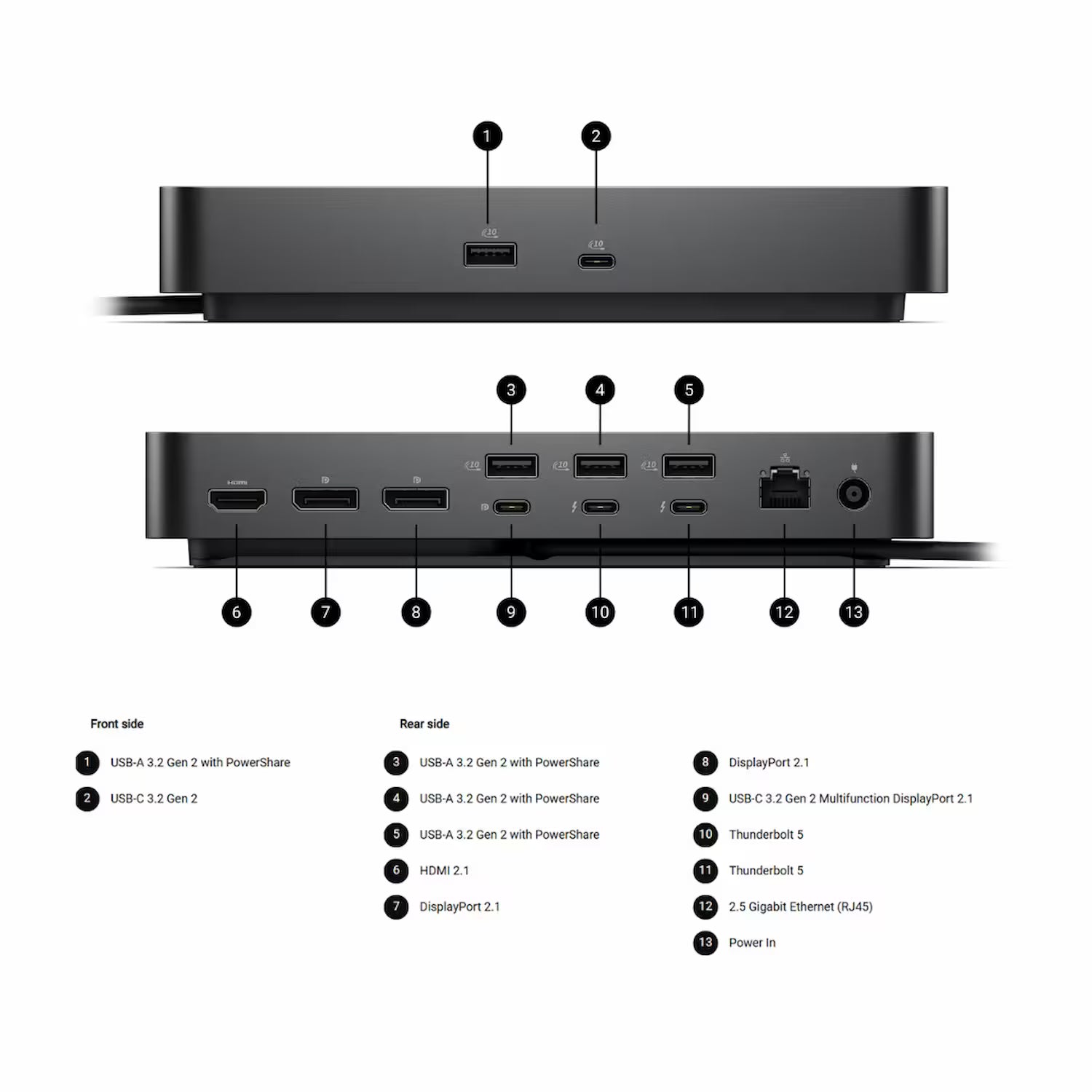

Interfaces:
2 x DP2.1
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1
2 x Thunderbolt 5 -
Power Delivery Details:
4 x USB-A 3.2 Gen 2 (4.5W each)
1 x USB-C 3.2 Gen 2 (15W)
1 x USB-C Multi-function DisplayPort (7.5W)
2 x Thunderbolt 5 (15W each)
All deliver power with or without PC -
Power Delivery:
Up to 330W (Dell Systems)
Up to 240W (non-Dell Systems) -
Maximum Power Supply Wattage:
330 W -
Power Source Type:
Power Adapter -
Management Features:
Intel AMT over Thunderbolt with select Intel vPro PCs
MAC Address Pass-through
PXE Boot
Dock Power Button Sync
Wake-on-LAN
WLAN to LAN Switch
Kernel Direct Memory Access (DMA) Protection
Dell Command Update (DCU)
Port Disablement
Host PC based firmware update
Firmware update on disconnect -
Host Software (Windows):
Dell Firmware Utility
Dell Display and Peripheral Manager
Dell Command Update -
Cloud Management:
Dell Device Management Console enables automatic firmware updates, firmware version control, downgrade support, peripheral inventory and status -
Security Slot Type:
Kensington Security Slot
Noble Wedge Security Slot -
Height:
35.3 mm -
Width:
205 mm -
Depth:
90 mm -
Weight:
620 g -
Warranty:
3 Year Limited Hardware Warranty with Advanced Exchange
Compatibility
-
Operating System Supported:
Windows 10
Windows 11
Ubuntu 24.04
Red Hat Enterprise Linux 9.7
ChromeOS 141
macOS -
Compatible Systems:
Thunderbolt 5 enabled laptops and desktop PCs
Compatible Dell systems
Compatible non-Dell Thunderbolt systems -
Important Note:
Power delivery, display support and management features may vary depending on host system capability, operating system, drivers and firmware.
