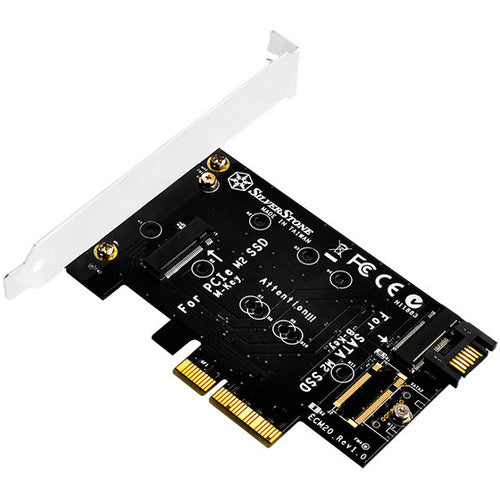

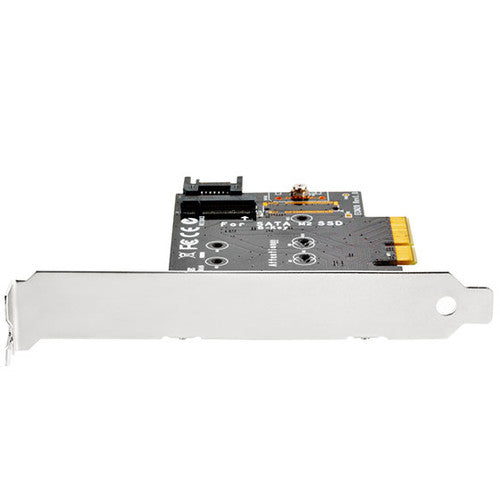

Dual M.2 NVME to PCIe x4 and M.2 SATA 6G SSD to SATA interface adapter card
- Description
- Specifications
- Compatibility
- Reviews
Highlights

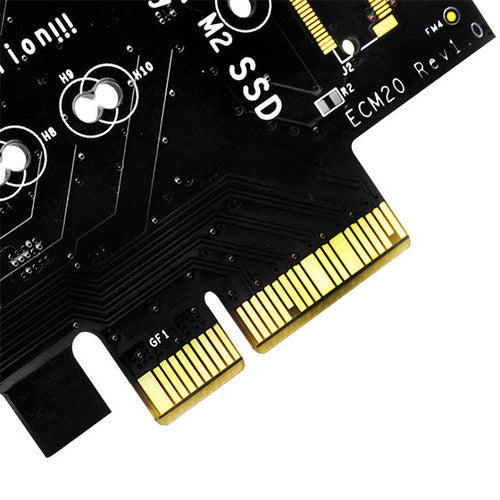

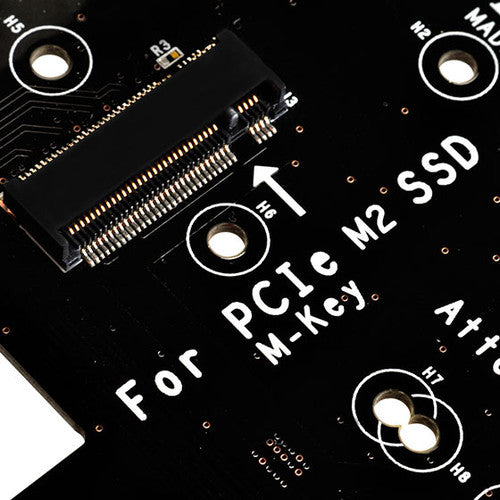

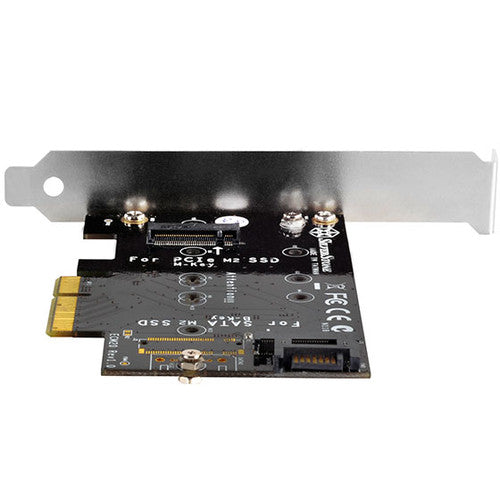

- Converts one M.2 port (M key) into one PCI-E x4 interface

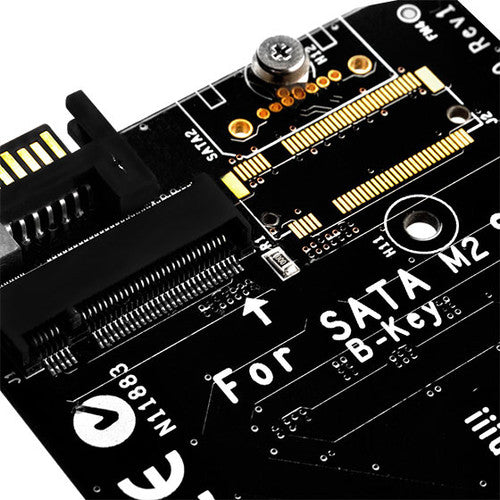

- Converts a second M.2 port (B key) into SATA interface
- Supports two M.2 SSD simultaneously

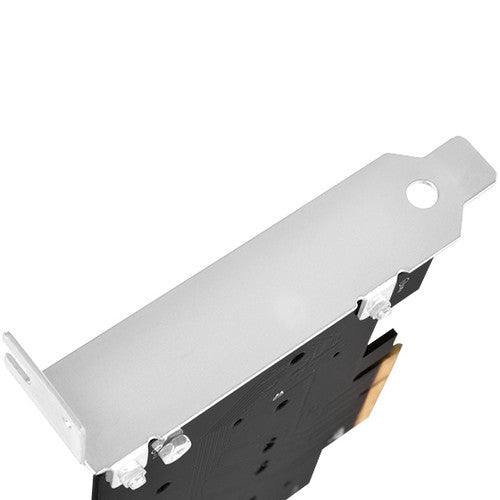

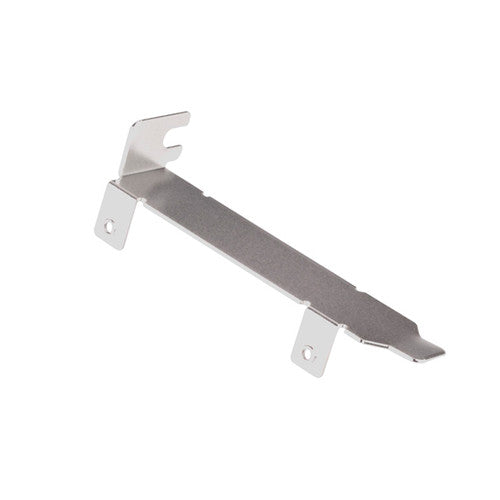

- Includes optional low-profile expansion slot
- No driver installation required
SATA (B key)
Used for SATA SSDs, and interfaced through the AHCI driver and SATA 3.0 (6 Gbit/s) port exposed through the M.2 connector.
PCI Express using AHCI (M key)
Used for PCI Express SSDs and interfaced through the AHCI driver and provided PCI Express lanes, providing backward compatibility with widespread SATA support in operating systems at the cost of not delivering optimal performance by using AHCI for accessing PCI Express SSDs.
PCI Express using NVMe (M key)
Used for PCI Express SSDs and interfaced through the NVMe driver and provided PCI Express lanes, as a high-performance and scalable host controller interface designed and optimized especially for interfacing with PCI Express SSDs. NVMe has been designed from the ground up, capitalizing on the low latency and parallelism of PCI Express SSDs, and complementing the parallelism of contemporary CPUs, platforms and applications.
- Model No: SST-ECM20
- SSD Interface: M.2 (NGFF)
- Interface: PCI Express X4 / SATA 6Gbps
- Number of Drives Supported: 2
- Supported M.2 SSD Lengths: 22x30mm, 22x42mm, 22x60mm, 22x80mm
- Module Key:
- SATA-based B key
- PCI-E 4X-based M key
- ECM20’s 'M' key is for use only with PCI-E SSD, 'B' key is for use with only SATA SSD.

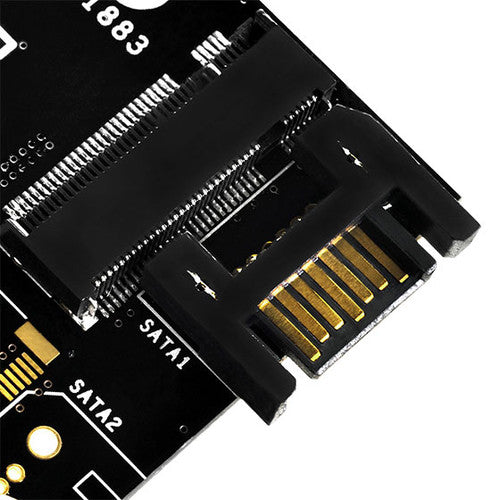

- B key SSD requires SATA 7 pin cable connected to motherboard to function.
- Note: M.2 PCIe-NVMe mode SSD requires the use of Intel® 9 series (Z97 H97 Z170 X99) / AMD 300 series (A320 B350 X370) or higher version chipset motherboard with Windows 8 or higher version operating system.
- Note: If your operating system is incompatible with the expansion cards developed by SilverStone, such that your device cannot be detected or recognized, please update your motherboard’s driver or BIOS to the latest version. You may also try executing compatible mode in your operating system and select previous versions of the operating system to install the driver required by the expansion cards.
- There are three types of M.2 SSDs; please make sure you know the difference between them and whether your system/motherboard supports them before pairing these with your SilverStone product.
- SATA (B key): Used for SATA SSDs, interfaced through the AHCI driver and SATA 3.0 (6 Gbit/s) port exposed through the M.2 connector.
- PCI Express using AHCI (M key): Used for PCI Express SSDs, interfaced through the AHCI driver and provided PCI Express lanes, offering backward compatibility but not delivering optimal performance.
- PCI Express using NVMe (M key): Designed for high-performance PCI Express SSDs, interfaced through the NVMe driver and optimized for low latency and parallelism, complementing modern CPUs and applications.
