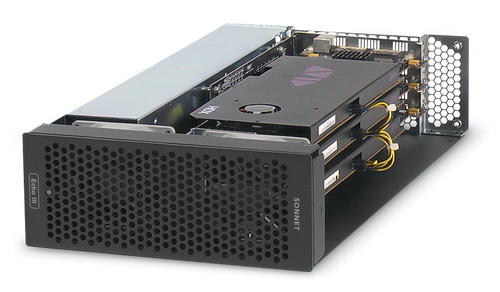

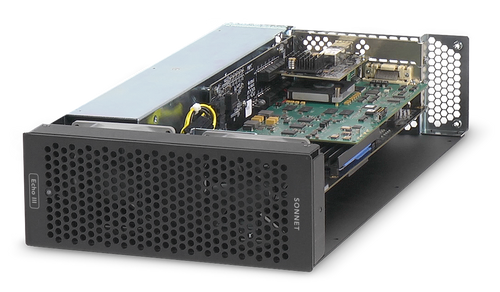

The DuoModo Echo III Module connects up to three PCIe cards to computers without card slots.

The module supports three full-height, full-length Thunderbolt-compatible non-GPU PCIe cards; provides 400W of power for the most demanding of PCIe cards, including qualification from Avid for Pro Tools | HDX PCIe cards; features quiet, dual temperature-controlled Noctua fans rated at 17 dbA; and connects through super fast 40Gbps Thunderbolt interface.

Key Features

Three Versatile PCIe Slots
Supports Three Full-height, Full-length PCIe Cards
One x16 Plus Two x8 PCIe 3.0 Slots
Supports Every Thunderbolt-compatible non-GPU Card
AVID QUALIFIED - Supports up to Three Avid Pro Tools | HDX PCIe Cards
View PDF of Supported PCIe Cards

400W of Power

Built-in 400W Power Supply with 75W Auxiliary Power Connector
Supports Power-hungry, non-GPU Cards, Including Avid HDX
Powers On and Off Automatically with Connected Computer

Quiet Fans

Dual Noctua Fans Offer Ultra-quiet Operation
Temperature-controlled, Variable-speed
Rated at 17 dbA

Thunderbolt 3 Interface

Two Thunderbolt 3 Ports
40Gbps Thunderbolt Interface Offers 3000 MB/s of PCIe Bandwidth with Thunderbolt 4 computers; 2570 MB/s with Thunderbolt 3 computers
Compatible with Apple® M1 Series and Intel® Thunderbolt 4 and Thunderbolt 3
Thunderbolt Cable Included
ThunderLok 3 Thunderbolt Connector Retainer Clip Included

Why Sonnet?

2-year Product Warranty
Free Lifetime Customer Technical Support
Designed and Made In the USA

Part Number: DM-MOD-E3
Warranty: 2-year
Form Factor: Expansion system module
External Connectors:

Two Thunderbolt ports
Power (C14-type)

Internal Connector: 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard, provides up to 75W of power for PCIe cards that require supplemental power)
Expansion Slots (Facing Rear, Left to Right)(1):

One x8 mechanical (x8 electrical) PCIe 3.0
One x16 mechanical (x8 electrical) PCIe 3.0
One x8 mechanical (x4 electrical) PCIe 3.0

PCIe Cards Supported:

One full-length, full-height, double-width PCIe card, plus one single-width card or
Three full-length, full-height, single-width PCIe cards

Power Supply: Universal 400W, 115-230V AC, 50-60 Hz(8)
Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF)
Dimensions (WxDxH): 3.3 x 16.6 x 8.5 in. (8.4 x 42.2 x 21.7 cm)
Weight: 4.95 lbs (2.25 kg)
Compliance: RoHS 3 (Directive 2015/863), IEC62368-1 and IEC62368-2 Safety
Package Contents:

Echo III Module
Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK
6-pin auxiliary power cable
Thunderbolt 3 cable
ThunderLok 3 Thunderbolt connector retainer clip(2)
Mounting screws
Documentation

Product Manual: PDF
Technical Notes:

When set to HDX compatibility mode, PCIe slots operate in PCIe 2.0 mode and the chassis’ bandwidth is limited to 1750 MB/s.
ThunderLok 3 compatible specifically with Sonnet 0.5- and 0.7-meter Thunderbolt 3 cables.
While the Echo III features a 40Gbps Thunderbolt interface, some computers equipped with Thunderbolt 3 use an x2 PCIe lane implementation of Thunderbolt 3 technology that limits PCIe performance to 20Gbps.
Full performance requires the use of the included or comparable 40Gbps Thunderbolt cables, look for the Thunderbolt icon AND the number 3 on the connector housings to identify these cables. Full performance supported by any Thunderbolt 4 cable.
Second Thunderbolt port supports Thunderbolt 2 and Thunderbolt peripheral devices on Macs when used with the Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter, sold separately.
Second Thunderbolt port supports USB 3.2 Gen 1 (5Gb) or Gen 2 (10Gb) devices when connected with proper cable or adapter (sold separately).
Assuming that a 40Gbps Thunderbolt connection is established, all Thunderbolt 3 computers support one 4K monitor directly attached to the pass-through Thunderbolt port, without affecting PCIe bandwidth to the device. Using two 4K monitors or a single 5K monitor attached to the pass-through Thunderbolt port reduces available PCIe bandwidth to the device. Two 4K monitors requires either:

for Thunderbolt 3 Macs or for Windows Thunderbolt 3 PCs that support two monitors—a Thunderbolt to Dual DisplayPort adapter, - https://flexxmemory.co.uk/products/sonnet-thunderbolt-3-to-dual-displayport-adapter or
for Windows Thunderbolt 3 PCs that support two monitors—a 4K monitor with multi-stream transport support (DP out).

Power supply will operate as low as 90VAC, with linear power derating from 400W @ 115VAC to 320W @ 90VAC.

Mac Compatibility:

Mac (M series) with PCIe cards that have compatible drivers
Mac (Intel) with Thunderbolt 3 ports
Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately)
macOS® 10.12.6+
macOS Monterey compatible

Windows Compatibility:

Windows 10 computer with Thunderbolt 4 or Thunderbolt 3 ports
Windows 11 does not support multiple-slot Thunderbolt expansion systems. We are working with Microsoft to resolve the issue.

Linux Compatibility:

Linux® computer with Thunderbolt 3 ports
Linux Kernel 5.0+

PCIe Cards Compatibility: For a list of compatible PCIe cards, see the following PDF
