Product Description

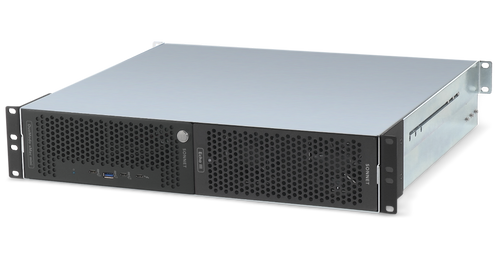

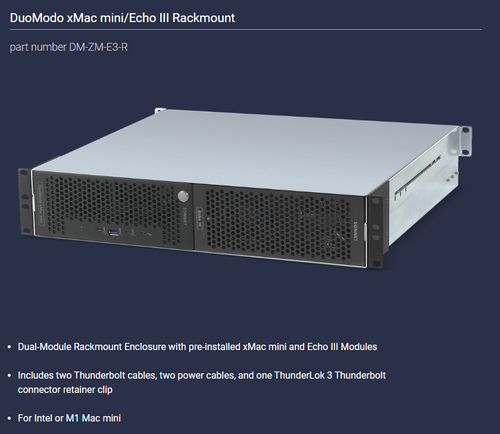

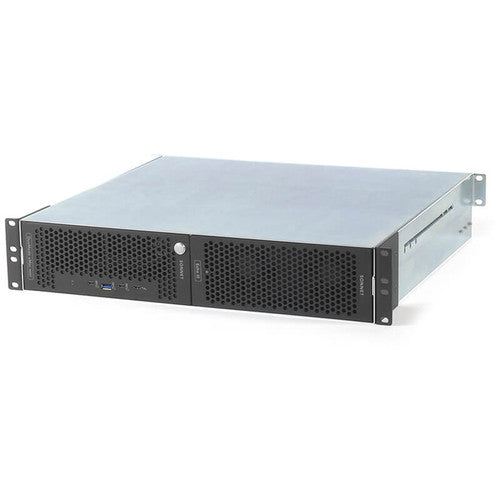

DuoModo xMac mini/Echo III Rackmount System. Mac mini Integration + Three PCIe Slots

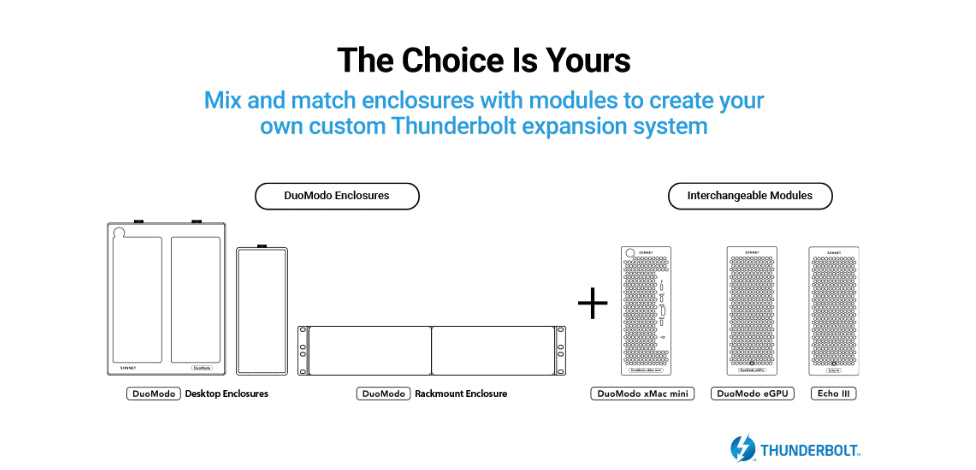

The pre-configured DuoModo™ xMac™ mini/Echo™ III Rackmount System integrates a Dual-Module Rackmount Enclosure with one xMac mini module and one Echo III module.
Key Features
System Configuration: For Intel® or M1/M2 Mac mini
Dual-Module Desktop Enclosure
- Dual-module Enclosure
- Rugged Aluminum Housing
- 6.9 inches Wide x 16.7 inches Deep x 9.1 inches High
xMac mini Module
- Securely Holds an Intel (2018) or M1/M2 Mac mini (2020 or 2023 - sold separately) in a Rugged Steel Frame
- Open Access to the Computer’s Ports in Back
- Built-in Thunderbolt™ 3 Dock
- Four Front Panel Ports Include One Thunderbolt 3 (40Gbps) Port, Two USB 3.2 (10Gbps) Type-C Ports, and One USB 3.2 (10Gbps) Type A Port
- Two Internal M.2 NVMe SSD Sockets – Add up to 16TB (SSDs sold separately)
- One Internal USB 3.2 (10Gbps) Type A port (for Securely Connecting an iLok USB-A, Thumb Drive, or Bus-powered USB Storage Drive)
- Internal Thunderbolt 3 (40Gbps) Port Connects Dock to the Mac mini
- Temperature-controlled, Variable-Speed Fan Offers Quiet Operation
- Power Cable Included
- Thunderbolt 3 (40Gbps) Cable Included
Echo III Module
- Three Versatile PCIe Slots
- One x16 plus Two x8 PCIe Slots
- Supports Three Full-height, Full-length Thunderbolt-compatible, non-GPU PCIe Cards ( View PDF of supported PCIe Cards)
- AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards
- Built-in 400W Power Supply with 75W Auxiliary Power Connector
- Powers On and Off Automatically with Connected Computer
- Dual Temperature-controlled, Variable-Speed Noctua fans rated at 17 dbA
- Two Thunderbolt 3 Ports
- 40Gbps Thunderbolt 3 Interface Offers 2750 MB/s of PCIe Bandwidth to the Installed PCIe Cards
- Power Cable Included
- Thunderbolt 3 (40Gbps) Cable Included
- ThunderLok 3 Thunderbolt Connector Retainer Clip Included
Why Sonnet?
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed and Made in the USA
Specifications
- Part Number: DM-ZM-E3-R
- Warranty: 2-year
- Form Factor: 2U rackmount expansion system
- Dimensions (WxDxH): 19 x 16.5 x 3.5 in (48.3 x 41.9 x 8.9 cm)
- Weight: 24 lbs (10.9 kg)
-
Compliance:
- RoHS 3 (Directive 2015/863)
- IEC62368-1 and IEC62368-2 Safety
-
Package Contents:
- Dual-Module Rackmount Enclosure
- xMac mini Module
- Echo III Module
- Region-specific power cable x2 (for US, Australia, Europe, Japan, Switzerland, or UK)
- 0.5-meter Thunderbolt cable x2
- ThunderLok 3 Thunderbolt connector retainer clip
- Extension rails for rack depth 16-24 inches
- Documentation
Compatibility
- For 2018 Intel or M1/M2 series Mac mini 2020 or 2023
