Elgato Game Capture 4K X - Ultra Low Latency 4K144 HDR10 Capture Card

Product SKU: 10GBH9901

Available:

Only 0 item in stock

0 item in stock

In stock

Pre-order

Out of stock

£230.40

Want it delivered by

Description
Specifications
Compatibility
Reviews

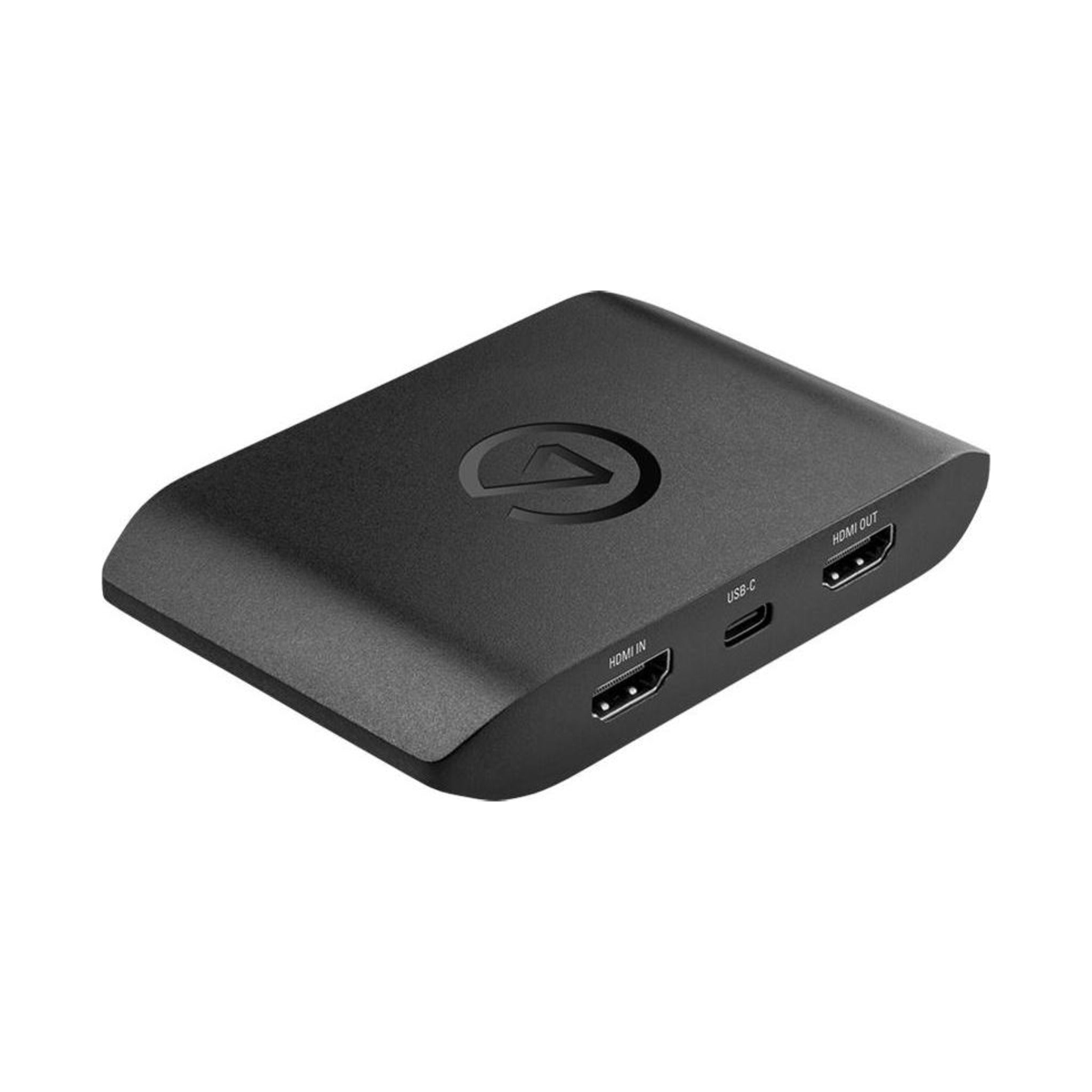

The Elgato 4K X is the most powerful USB capture card Elgato has ever built. Where most capture cards force a compromise between resolution and frame rate, the 4K X refuses to choose — HDMI 2.1 input and output mean you can passthrough and capture up to 4K at 144Hz, with full HDR10 colour and Variable Refresh Rate support, all over a single USB-C connection.

It's built for creators who have already outgrown entry-level capture cards: streamers running native 4K144 monitors, editors who need pristine HDR footage straight off a PS5 Pro or Xbox Series X, and anyone capturing from a PC or Mac who refuses to drop resolution just to keep frame rate. Plug it in, select it in OBS, Streamlabs, or Elgato's own Capture software, and you're recording — no fiddly setup required.

Key Features

HDMI 2.1 input and output for true next-gen capture
Passthrough up to 4K144, 1440p240, or 1080p240 with zero added lag
Capture up to 2160p144 SDR or 2160p30 HDR10, plus multiple high frame rate modes down to 1080p120 HDR
Variable Refresh Rate (VRR) passthrough for stutter-free, tear-free gameplay
USB 3.2 Gen 2 (10Gbps) Type-C connection for maximum throughput

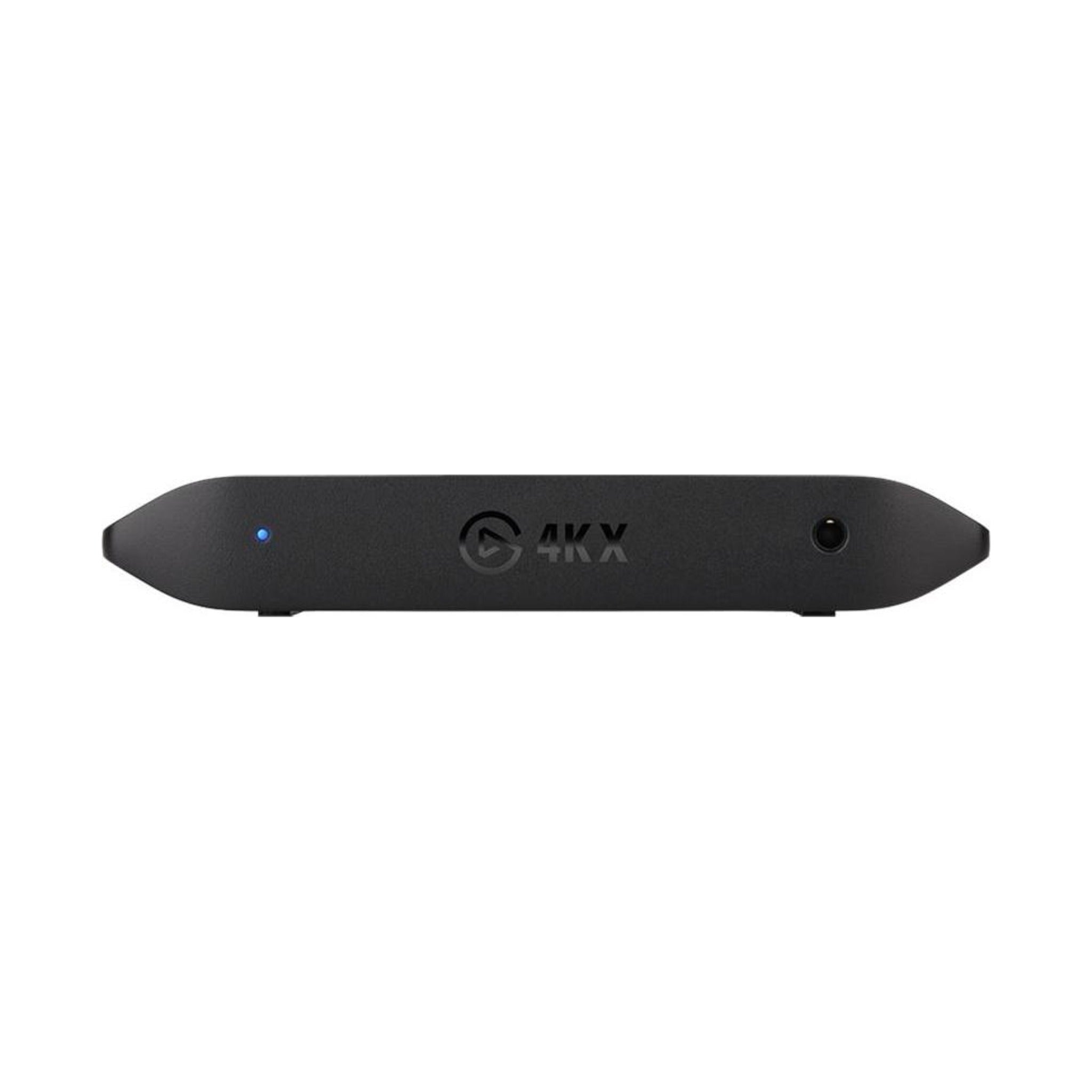

3.5mm TRS line-in port for adding a separate microphone audio track
Works with PS5, PS5 Pro, PS4, Xbox Series X/S, Xbox One, Nintendo Switch, Steam Deck, ROG Ally, PC, Mac, and even iPad with a USB-C port
Compatible with OBS Studio, Streamlabs Desktop, Twitch Studio, vMix, Meld Studio, and Elgato's own 4K Capture Utility
Unlimited recording with no watermarks and no time limits
Exports separate video and audio tracks as AAF files for editing in Premiere, Vegas Pro, and more

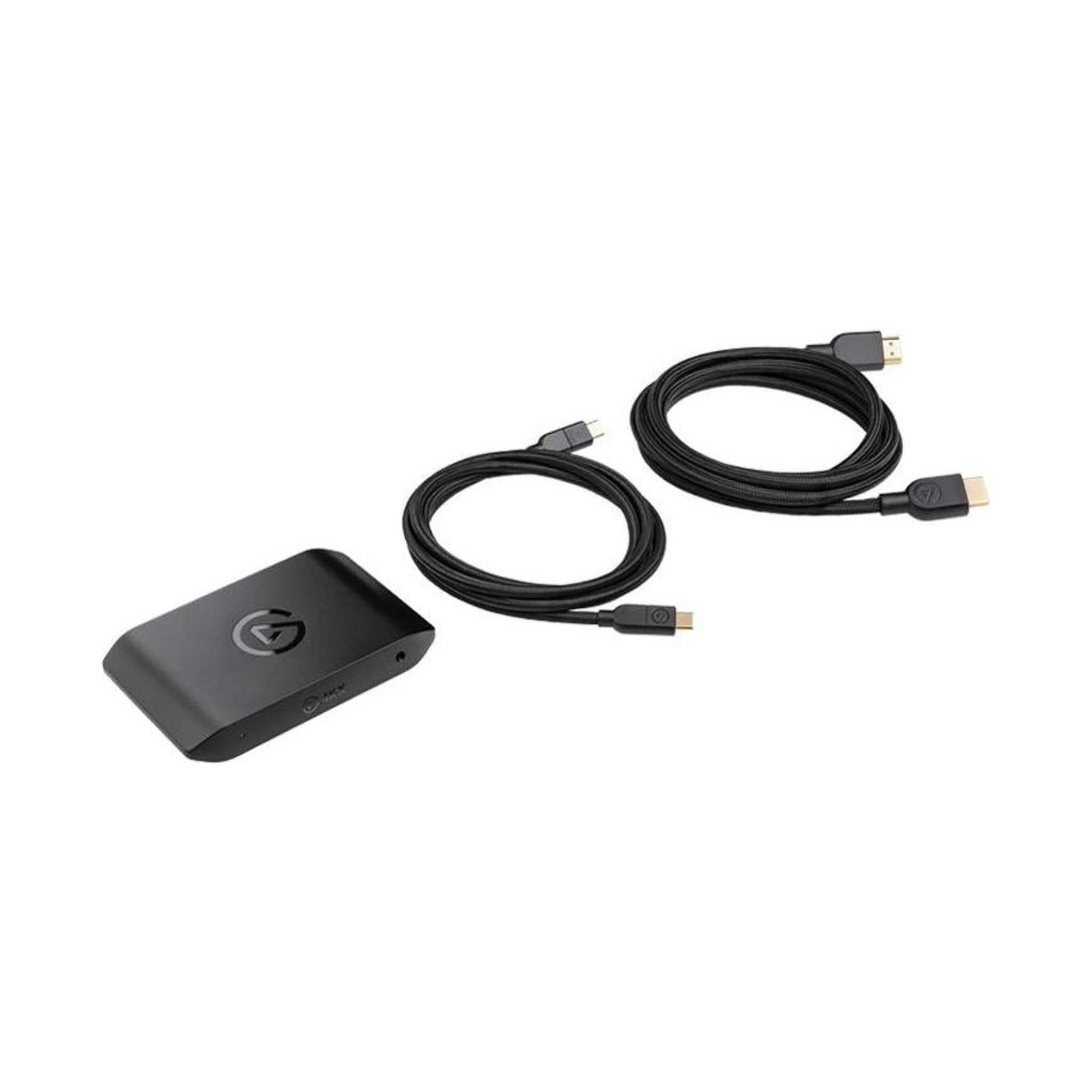

What's in the Box

Elgato Game Capture 4K X
USB 3.2 C-to-C cable (150cm)
8K HDMI cable (200cm)

Does the 4K X work with a Mac?

Yes. The 4K X is fully plug-and-play on macOS using Elgato's Capture Utility, and also works with OBS Studio and other supported third-party software on Mac.

Can I capture in 4K144, or is that only for passthrough?

Both. The 4K X can passthrough up to 4K144 to your monitor and separately capture up to 2160p144 SDR, or 2160p30 in full HDR10. HDR capture currently requires Windows; HDR passthrough works on any platform.

Do I need a USB 3.2 Gen 2 port, or will any USB-C port work?

A USB 3.2 Gen 2 (10Gbps) port delivers full performance. The 4K X will still work on USB 3.2 Gen 1 ports, but capture resolution will be reduced.

Will this work with unencrypted sources only, or can I capture from streaming apps too?

The HDMI input is unencrypted only, so it will not capture HDCP-protected content such as Blu-ray players or some streaming apps. It works perfectly with consoles, PCs, and other standard unencrypted HDMI sources.

Is a separate power supply needed?

No. The 4K X is fully USB bus-powered, so no external power adapter is required.

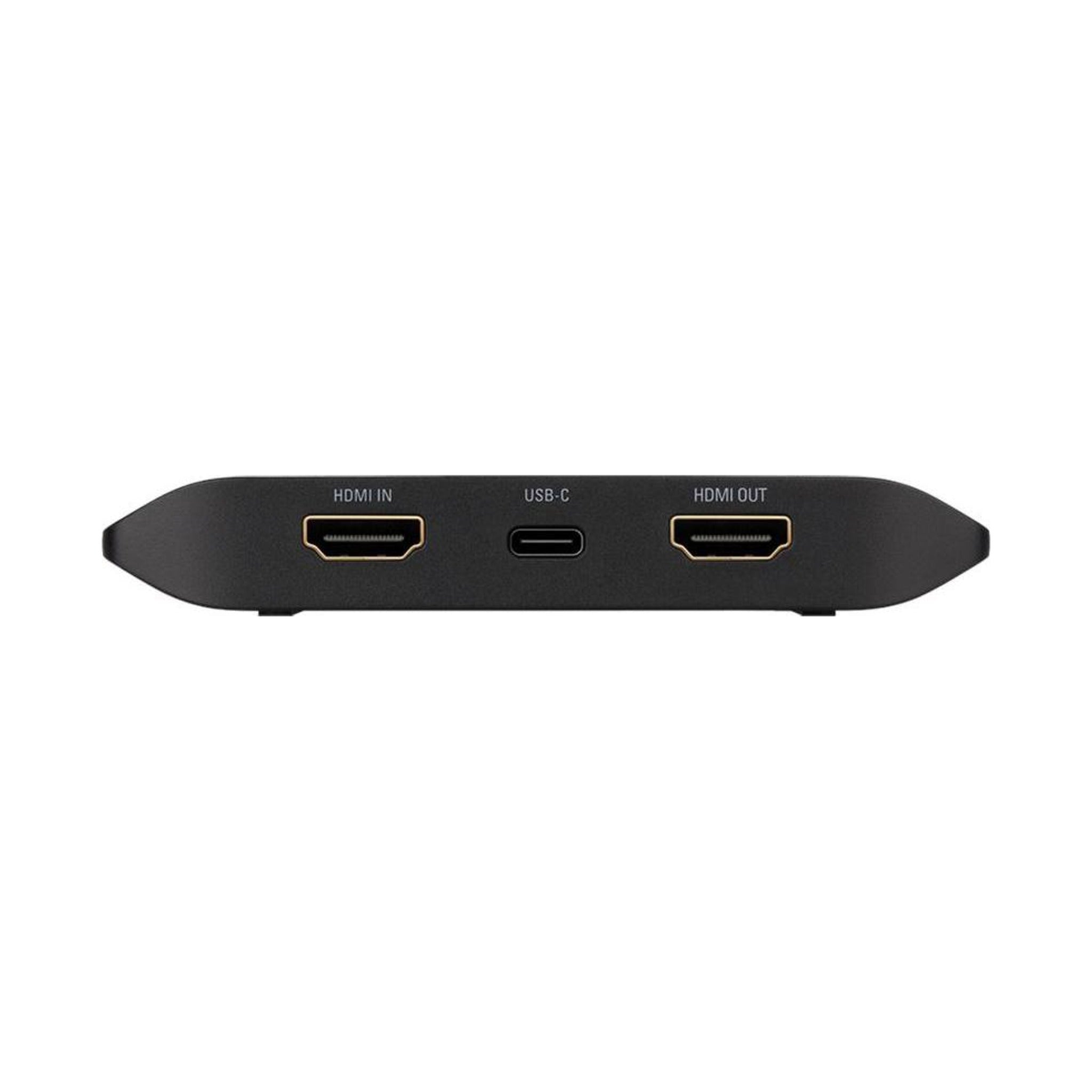

Interface	USB 3.2 Gen 2 (10Gbps) Type-C, HDMI 2.1 in/out, 3.5mm TRS line-in
Passthrough	Up to 2160p144, 2160p60, 1440p240, 1080p240, VRR, HDR
Capture	Up to 2160p144 SDR, 2160p30 HDR, 1440p144, 1440p60 HDR, 1080p240, 1080p144, 1080p120 HDR
Dimensions	112 x 72 x 18mm
Weight	91g
In the box	4K X, USB 3.2 C-to-C cable (150cm), 8K HDMI cable (200cm)

Consoles	PlayStation 5/Pro, PlayStation 4/Pro, Xbox Series X/S, Xbox One X/S, Nintendo Switch
Handhelds	Steam Deck, ROG Ally
Computers	PC, Mac, and iPad (USB-C models) using the Elgato Capture app
Capture Software	OBS Studio 27.2.4+, Streamlabs Desktop, Twitch Studio, vMix, Meld Studio, Discord
Elgato Software	4K Capture Utility 1.7.11+ (Windows only for HDR capture)
