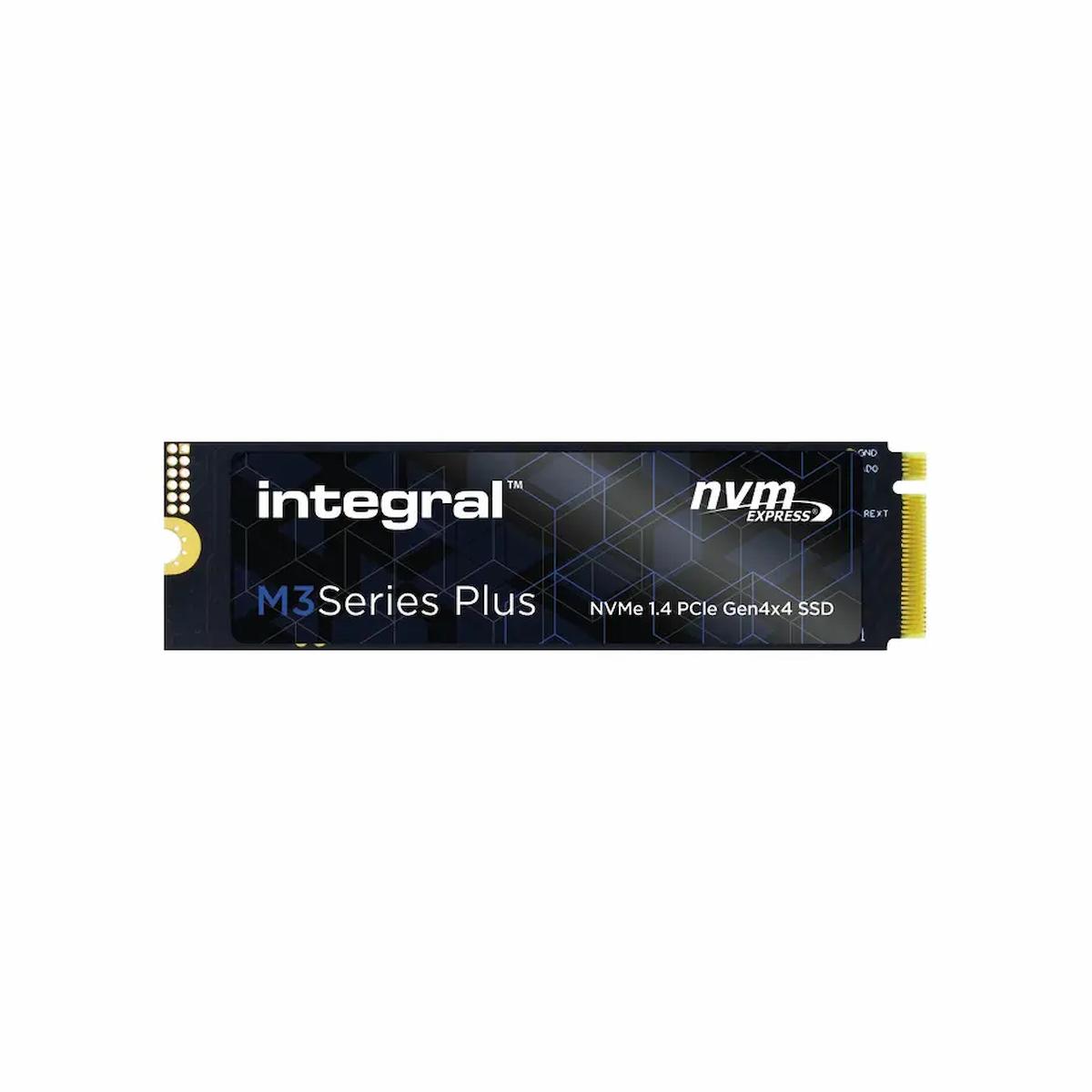

- Integral M3 Plus Series M.2 2280 PCIe Gen4 NVMe SSD Integral M3 Plus Series M.2 2280 PCIe Gen4 NVMe SSD
- Description
- Specifications
- Compatibility
- Reviews
Key Features:
- Blazing-Fast Speeds: Up to 5000MB/s read and 4500MB/s write speeds, delivering next-level performance for gaming, content creation, and multitasking.
- PCIe Gen4 Technology: Leverages the latest PCIe Gen4 interface for ultra-fast data transfer, making it ideal for cutting-edge systems and high-performance applications.
- Compact M.2 2280 Form Factor: Slim design perfect for desktops, laptops, and ultrabooks, maximizing performance without taking up extra space.
- Advanced NAND Flash Technology: Built with high-quality NAND flash for exceptional reliability, durability, and endurance.
- Efficient Power Consumption: Optimized power usage for cooler operation and longer battery life in portable devices.
The M3 Series Plus is a high-performance Gen4 SSD range that delivers exceptional loading times and responsiveness for extreme gaming, video and photo editing, 3D rendering, machine and deep learning. These SSDs reach speeds of up to 5000MB/s read, 4500MB/s write (Sequential Speed), and 650K IOPS read, 850K write (Random Speed).
- Install and boot in seconds - Supports M.2 NVMe PCIe Gen4 x4 connection
- Extremely small and sleek - Perfect for all customised gaming builds
- 5 year warranty or TBW - whichever is earlier applies
- Capacities: 500 GB/ 1TB/ 2TB
- Component for: PC
- Form factor: M.2
- Mean time between failures (MTBF): 1500000 hours
- TBW rating: 500GB - 1024/ 1TB - 2048/ 2TB - 4096
- Flash type: TLC
- Controller type: MAS
- S.M.A.R.T. support: Yes
- TRIM support: Yes
- Speed:
- 500GB
- Read speed: 5000 MB/s
- Write speed: 2600 MB/s
- Random read (4KB): 360000 IOPS
- Random write (4KB): 520000 IOPS
- 1TB
- Read speed: 5000 MB/s
- Write speed: 4500 MB/s
- Random read (4KB): 650000 IOPS
- Random write (4KB): 850000 IOPS
- 2TB
- Read speed: 4850 MB/s
- Write speed: 4400 MB/s
- Random read (4KB): 620000 IOPS
- Random write (4KB): 630000 IOPS
- Operating voltage: 3.3V
- Power consumption (read): 3.4W
- Power consumption (write): 3.1W
- Hardware encryption: No
- Protection features: Shock resistant
- Interface: PCIe Gen4x4
- Operating temperature (T-T): 0 - 70°C
- Storage temperature (T-T): -40 - 85°C
- Operating relative humidity (H-H): 5 - 95%
- Sustainability certificates: RoHS
- Certification: UKCA, CE, FCC, RoHS
- Product data sheet: - 500GB / 1TB / 2TB
- Compatible with PC and laptops.
- It is ideal for extreme gaming, video and photo editing, 3D rendering, and machine & deep learning.
