Key Features
Compatibility
Product Description
Most docking stations make you choose: high resolution or a lot of ports. The Kensington SD5760T doesn't ask you to compromise. One Thunderbolt 4 cable connects your laptop to dual 4K displays via two HDMI 2.0 ports, while simultaneously giving you six USB ports, Gigabit Ethernet, UHS-II SD and microSD card readers, a 3.5mm audio combo jack, and 96W of power delivery back to your laptop. That's a fully kitted-out desk in a single cable connection from a chassis that's 225mm wide and 22mm thin.
The Thunderbolt 4 host connection means 40Gbps of bandwidth - enough that you won't notice any compromise in performance across any of those ports. There's also a downstream Thunderbolt 4 port for daisy-chaining additional Thunderbolt devices or connecting a single 8K display (with DSC enabled), a USB-C 3.2 Gen 2 port running at 10Gbps, and two USB-A Gen 2 ports at the back also running 10Gbps. The two front USB-A ports run at 5Gbps for everyday peripherals. Everything has dedicated bandwidth. Nothing is sharing a bottleneck.
The 96W dynamic Power Delivery adjusts automatically depending on what you have connected - your laptop gets what it needs and the dock manages the rest. Zero-footprint mounting keeps the dock off your desk entirely if you want a clean setup, and Kensington Nano and standard security lock slots mean it's not going anywhere. Intel VT-d DMA protection blocks unauthorised peripheral access to system memory. For IT buyers, DockWorks software adds remote management on Windows. Backed by a 3-year limited warranty and an included 0.8m Thunderbolt 4 cable.
- Thunderbolt 4 connection — 40Gbps data, video and audio over one cable
- Dual 4K @ 60Hz via 2x HDMI 2.0 ports (or single 8K @ 60Hz with DSC)
- 96W dynamic Power Delivery — automatically adjusts for optimal performance
- 1x Thunderbolt 4 downstream port for daisy-chaining
- 1x USB-C 3.2 Gen 2 (10Gbps) + 2x USB-A 3.2 Gen 2 (10Gbps) + 2x USB-A 3.2 Gen 1 (5Gbps)
- Gigabit Ethernet (10/100/1000Mbps)
- UHS-II SD 4.0 and Micro SD card readers
- 3.5mm combo microphone and headphone jack (front)
- Zero-footprint mounting option — mounting bracket sold separately (K34050WW)
- Kensington Nano + standard security lock slots
- Intel VT-d DMA protection
- DockWorks software support (Windows)
- 0.8m Thunderbolt 4 cable included
- 3-year limited warranty
What's in the Box
- Kensington SD5760T Thunderbolt 4 Dual 4K Docking Station
- 0.8m (2.6') Thunderbolt 4 cable
- Power adapter
- Quick start guide
Product Q&A
Q: Does this dock work with MacBook Pro and MacBook Air?
A: Yes, with important caveats depending on your chip. MacBooks with M1/M2/M3/M4 Pro, Max, or M4/M5 Base chipsets support dual 4K @ 60Hz via the two HDMI ports. MacBooks with M1/M2 Base chipsets are limited to a single external display only. All recent MacBooks running macOS 11 or later are supported. Thunderbolt 4, Thunderbolt 3 and USB4 laptops are also compatible.
Q: Can I connect two 4K monitors at 60Hz?
A: Yes — dual 4K @ 60Hz via the two HDMI 2.0 ports is supported for Thunderbolt 4 and compatible MacBook models. Alternatively, you can connect a single 8K display at 60Hz via the Thunderbolt 4 downstream port when DSC (Display Stream Compression) is enabled on both the dock and monitor. USB-C Alt Mode laptops are limited to a single external display.
Q: How much power does the dock deliver to my laptop?
A: Up to 96W via dynamic Power Delivery. The dock automatically adjusts the power output based on what peripherals are connected, ensuring your laptop always receives the optimal charge. This is sufficient for charging most high-performance laptops including MacBook Pro 14" and 16".
Q: Can I mount the dock under my desk or on a monitor arm?
A: Yes. The SD5760T has a zero-footprint mounting design compatible with the Kensington Docking Station Mounting Bracket (K34050WW, sold separately). This lets you mount the dock on a monitor stand, under the desk, or on a wall mount to eliminate desktop clutter entirely.
Q: Does this work with Windows laptops too?
A: Yes. The dock is compatible with Windows 10 and later, macOS 11 and later, and Chrome OS 91 and later — on any Thunderbolt 4, Thunderbolt 3, USB4, or USB-C device. DockWorks software for remote management and driver updates is available for Windows only.
Specifications
| Specification | Detail |
|---|---|
| Connection Technology | Thunderbolt 4 |
| Host Port | 1x Thunderbolt 4 (upstream) |
| Data Transfer Speed | Up to 40Gbps |
| Video Ports | 2x HDMI 2.0, 1x Thunderbolt 4 (downstream) |
| Maximum Resolution | Single 8K @ 60Hz (DSC) or Dual 4K @ 60Hz |
| Number of Screen Outputs | 2 (or 1 for M1/M2 Base MacBook / USB-C Alt Mode) |
| USB-C Ports | 1x USB-C 3.2 Gen 2 (10Gbps, 5V/1.5A) |
| USB-A Ports | 2x USB-A 3.2 Gen 2 (10Gbps, 5V/0.9A) + 2x USB-A 3.2 Gen 1 (5Gbps, 5V/0.9A) |
| Total USB Ports | 6 (4x USB-A + 1x USB-C + 1x Thunderbolt 4) |
| Ethernet | Gigabit Ethernet (10/100/1000Mbps) |
| Card Reader | UHS-II SD 4.0 + Micro SD |
| Audio | 1x 3.5mm combo microphone & headphone jack (front) |
| Power Delivery | Up to 96W Dynamic PD (host) |
| USB Fast Charging | Yes |
| Security | Kensington Nano Security Slot + Kensington Security Slot; Intel VT-d DMA protection |
| Mounting | Zero-footprint mounting option (bracket K34050WW sold separately) |
| DockWorks Support | Yes (Windows only) |
| Plug & Play | Yes — no drivers required |
| Included Cable | 0.8m (2.6') Thunderbolt 4 cable |
| Dimensions (WxDxH) | 225 x 85 x 22mm (8.86 x 3.35 x 0.87 in) |
| Weight | 0.360kg (0.79lb) |
| Colour | Grey |
| Compliance | CE, FCC, RoHS |
| Warranty | 3-year limited warranty |
| SKU | K34110EU |
| EAN | 5028252638555 |
Compatibility
Required Host Connection
- Thunderbolt 4 port (full feature support — dual 4K, 40Gbps, 96W PD)
- Thunderbolt 3 or USB4 port (full feature support)
- USB-C 3.2 Gen 2 (single display only, reduced data speeds)
- USB-C 3.2 Gen 1 (single display only, reduced data speeds)
Compatible Operating Systems
- Windows 10 or later
- macOS 11 (Big Sur) or later
- Chrome OS 91 or later

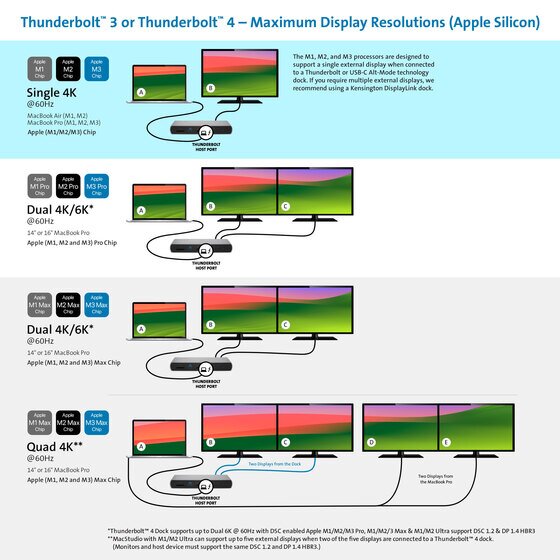

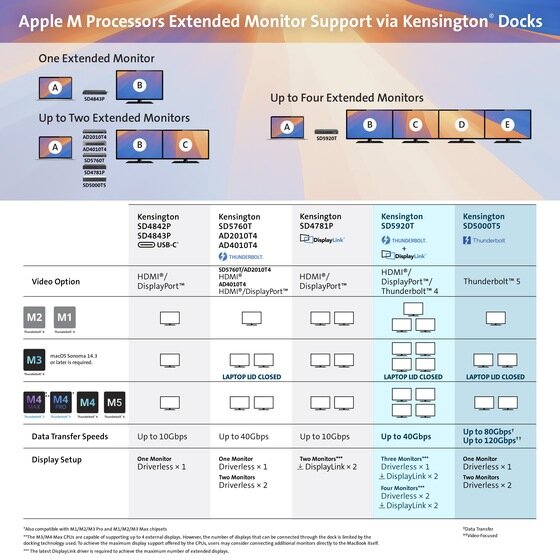

MacBook Display Support Notes

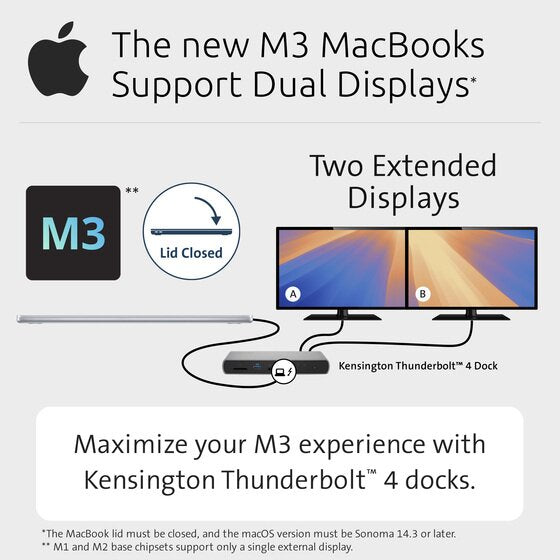

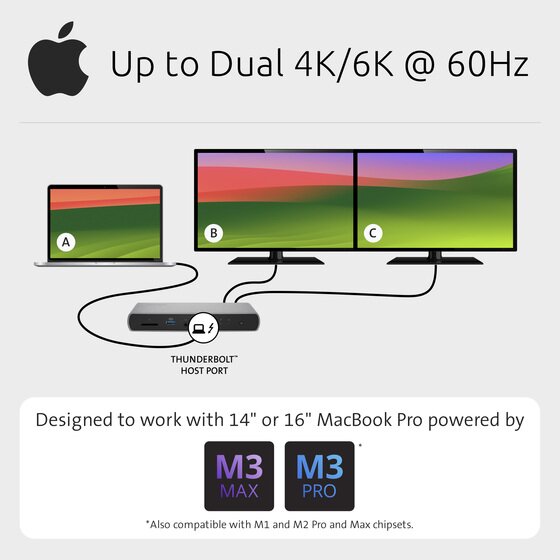

- M1/M2/M3/M4 Pro or Max chipsets — Dual 4K @ 60Hz ✓
- M4/M5 Base chipsets — Dual 4K @ 60Hz ✓

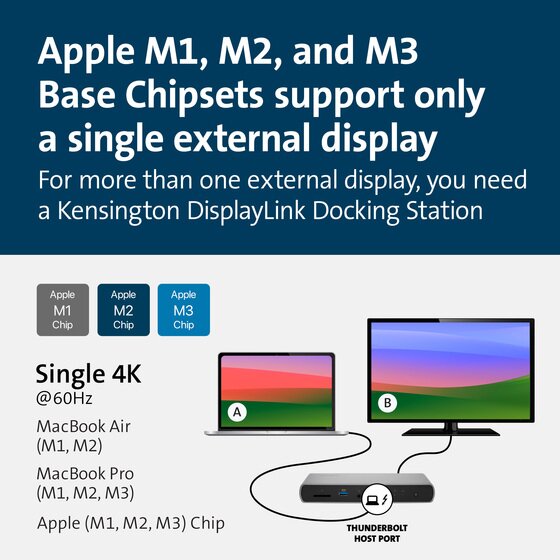

- M1/M2 Base chipsets — Single external display only

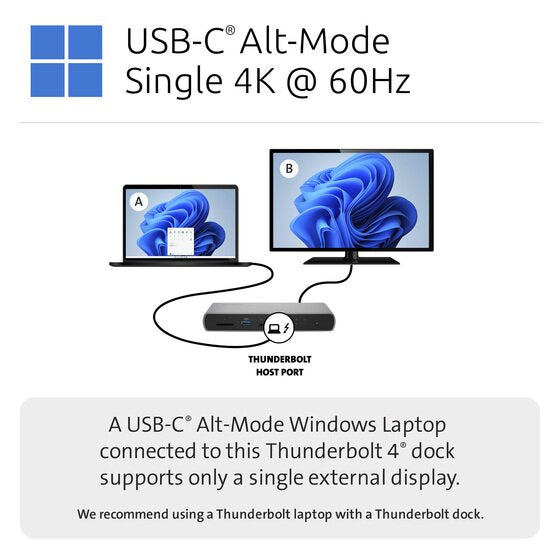

- USB-C Alt Mode laptops — Single external display only
Compatible Devices
- Apple MacBook Pro (Thunderbolt 4 / Thunderbolt 3 models)
- Apple MacBook Air (Thunderbolt 4 / Thunderbolt 3 models)
- Microsoft Surface (Thunderbolt 4 models)
- Dell XPS, HP EliteBook, Lenovo ThinkPad, and other TB4/TB3/USB4 laptops
Note: Single 8K @ 60Hz display requires DSC (Display Stream Compression) support on both the dock and the connected monitor. Thunderbolt cable must support 40Gbps — use the included cable or a certified Thunderbolt 4 cable.
