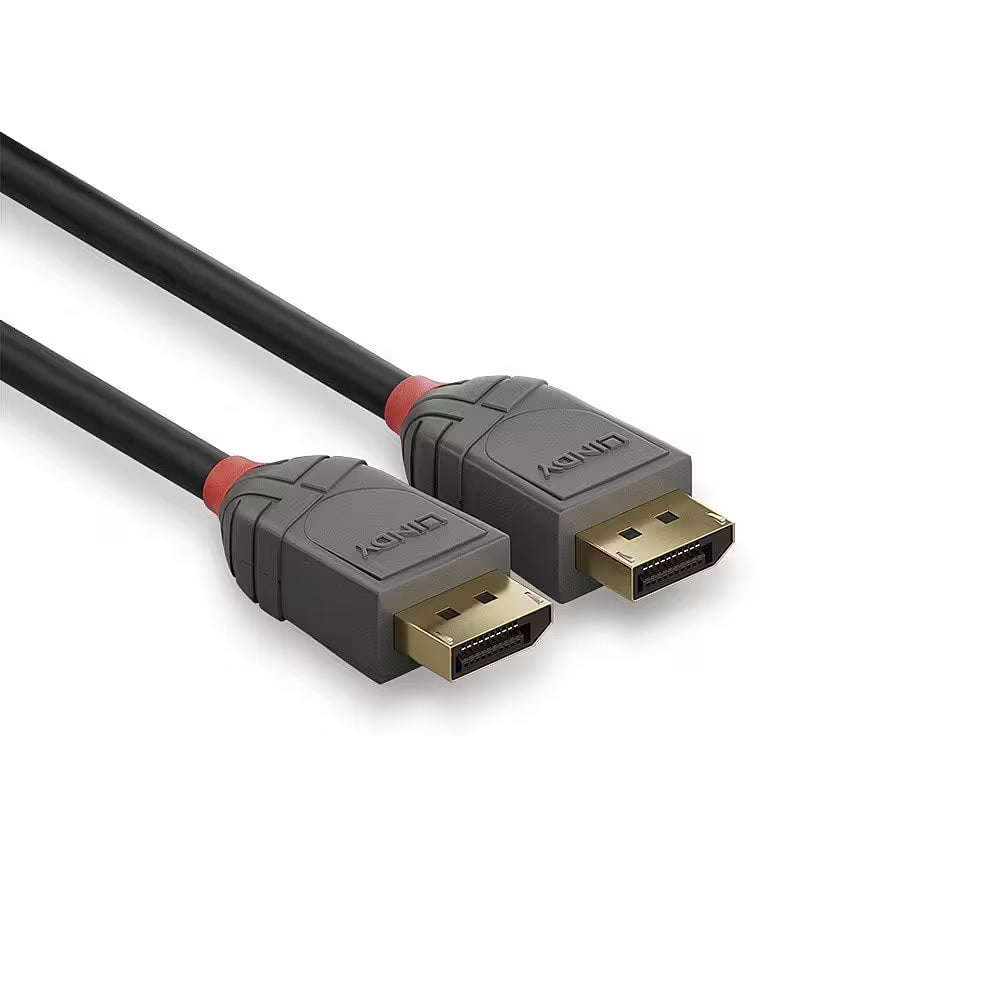

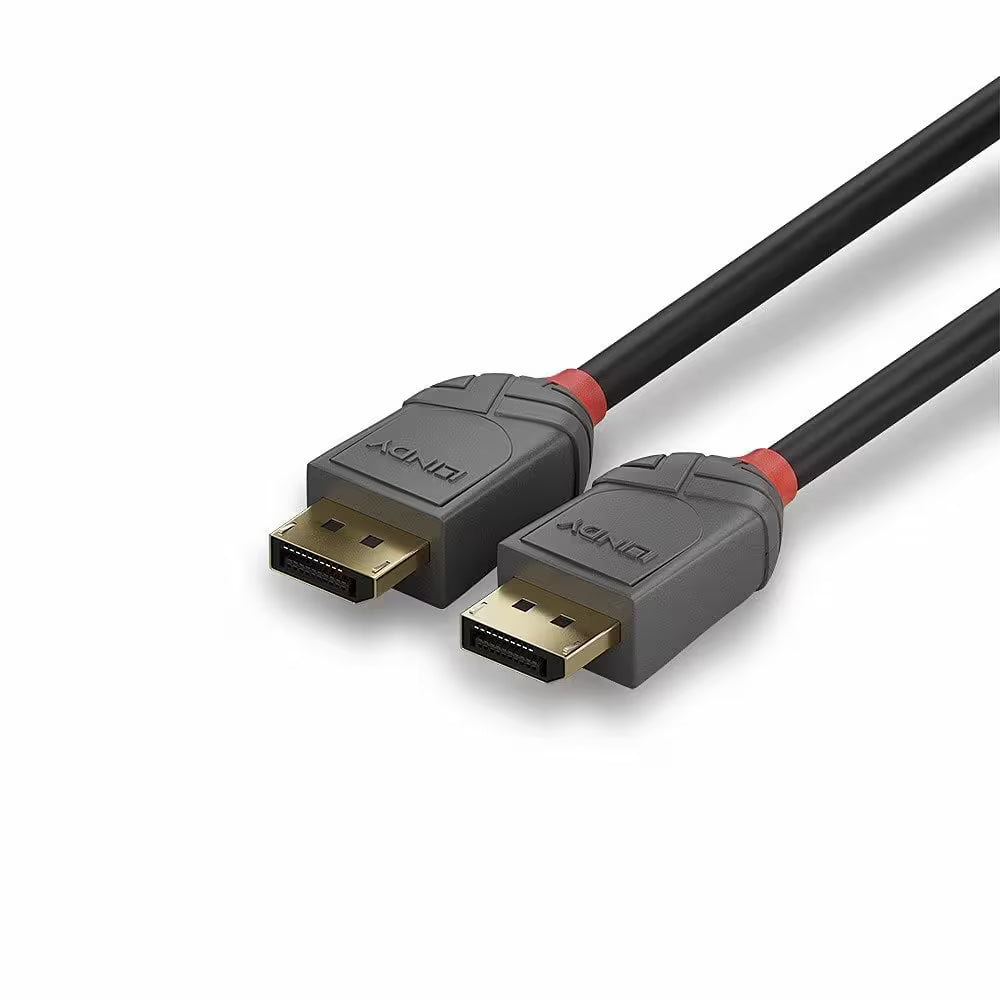

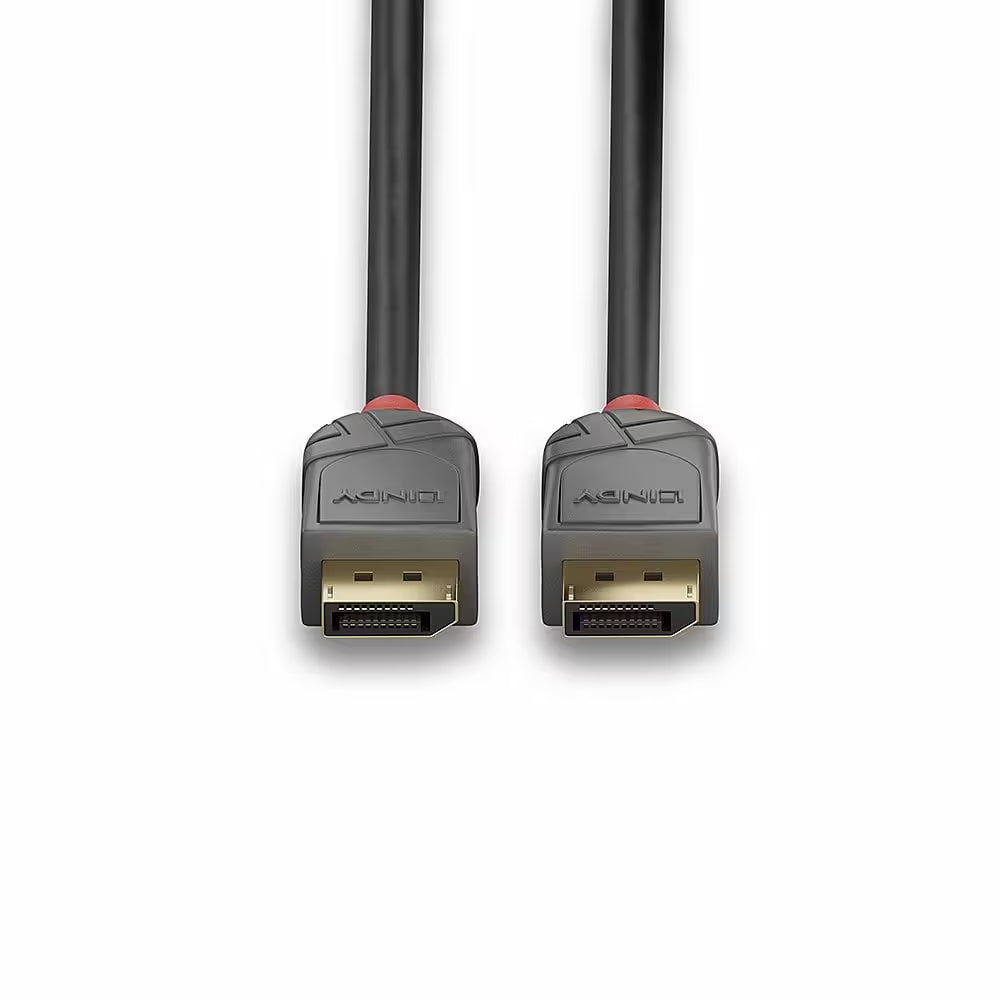

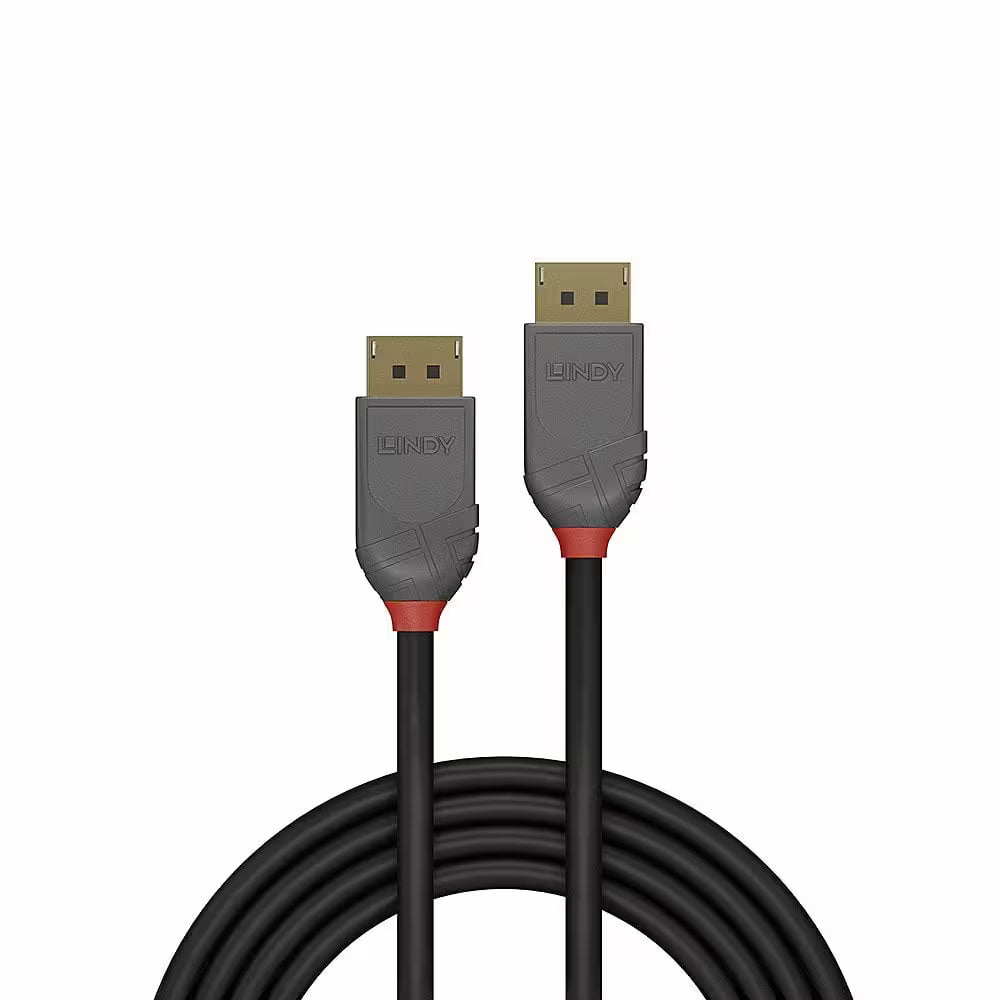

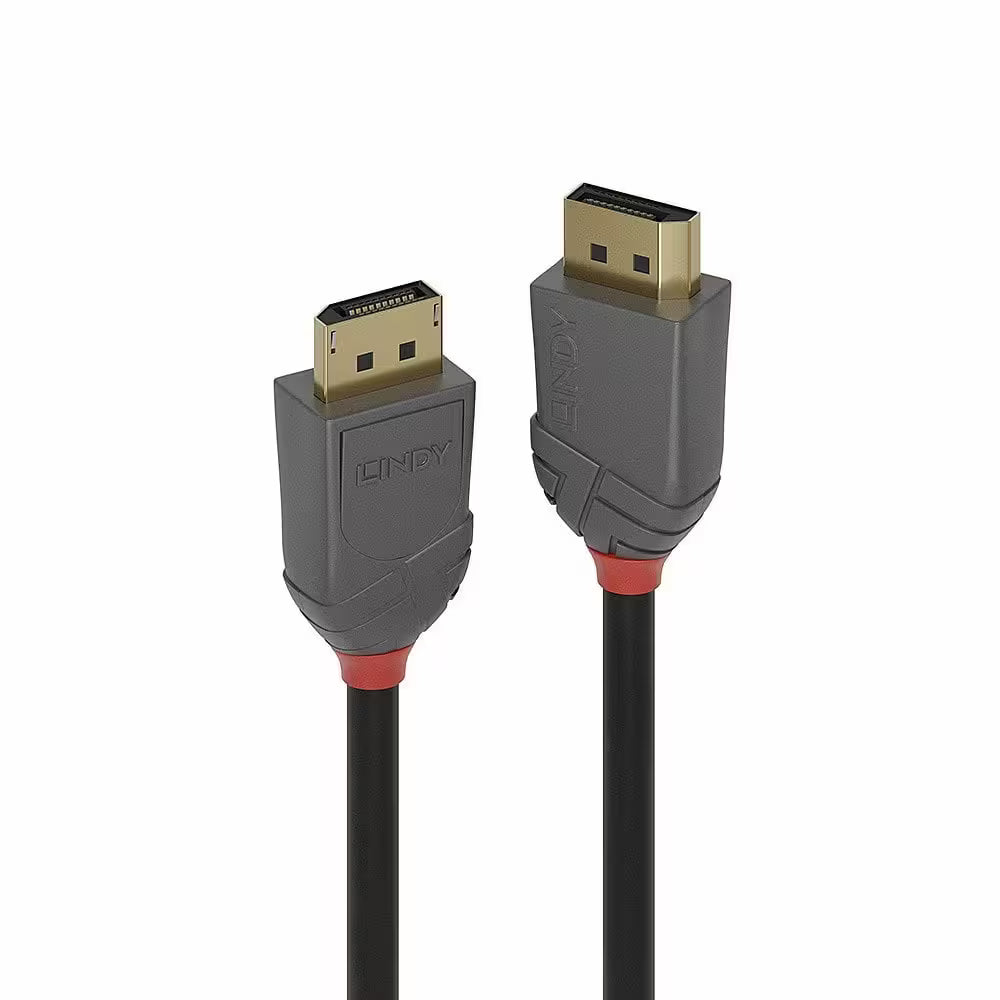

- Lindy 15m DisplayPort 1.1 Anthra Line Cable – 1920x1200@60Hz, Triple Shielded, Gold Plated Lindy 15m DisplayPort 1.1 Anthra Line Cable – 1920x1200@60Hz, Triple Shielded, Gold Plated
- Description
- Specifications
- Compatibility
- Reviews
The Lindy Anthra Line DisplayPort 1.1 Cable – 15m is a premium long-run solution for commercial AV and IT deployments. Triple shielding with 26AWG tinned-copper conductors preserves signal integrity, while gold-plated connectors and contacts ensure a stable, corrosion-resistant connection. Supporting up to 1920×1200 @ 60Hz and a DP 1.1 bandwidth of 10.8Gbps, it’s ideal for conference rooms, signage, control rooms and pro desktops. A robust PVC housing completes a cable designed for install-and-forget reliability.
Highlights
- Professional grade: DisplayPort 1.1 cable for commercial AV & IT
- Resolution support: up to 1920×1200 @ 60Hz
- Build quality: robust PVC housing, gold-plated connectors & contacts
- Signal integrity: triple-shielded, 26AWG tinned-copper conductors
- Spec: DP 1.1 (10.8Gbps), 10-year warranty
- Cable Type: DisplayPort to DisplayPort
- Version: DisplayPort 1.1 (10.8Gbps)
- Length: 15 m
- Resolution Support: up to 1920 × 1200 @ 60 Hz (Full HD supported)
- Conductors: 26AWG tinned copper
- Shielding: Triple-shielded cable design
- Contacts/Connectors: Gold-plated
- Jacket/Housing: Robust PVC housing
- Product Line: Lindy Anthra Line
- Warranty: 10-Year Lindy Warranty
- Color: Anthra Line (dark/anthracite)
-
Connectors:
Connector A: DP Male
Connector B: DP Male
Housing Material: ABS
Connector Plating: Gold
Pin Construction: Copper Alloy
Pin Plating: Gold
Dimensions (approx.) WxDxH: 20.4x36.0x12.7mm (0.8x1.42x0.5in) -
Cable construction:
Length: 15m (49.21ft)
Standard: DP 1.1
Colour: Black
Type: Round
Jacket Diameter: 8.5mm (0.34in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 26AWG
Shielding: Aluminium Magnesium Braid 50% -
Specifications:
Supported Bandwidth: 10.8Gbps
Maximum Resolution: 1920x1200@60Hz
Nominal Attenuation: 100MHz - 450MHz > -2.44dB
450MHz - 8100MHZ > -5.094dB"
Minimum Bend Radius: 85mm (3.35in)
Operating Temperature: -10°C - 80°C (14°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F) -
Miscellaneous:
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL - Product Safety Information: PDF
- Devices: DisplayPort-enabled source and display devices
- Use Cases: Commercial AV, digital signage, conference rooms, control rooms, pro workstations
- Backward Compatibility: Works with DisplayPort 1.1 devices (and DP-ready hosts/displays)
