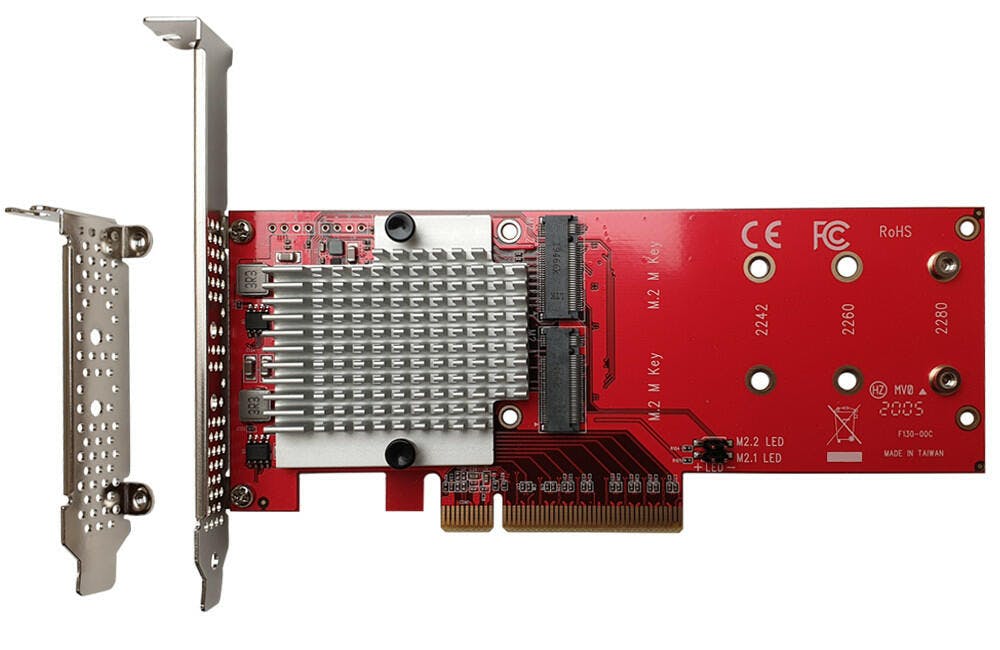

Lycom DT-130 Dual PCIe NVMe M.2 SSD Carrier Adapter
Best & Easy Solution to install 2x Extremely High-Performance Enterprise-Class PCIe 3.0 x4 NVMe or PCIe-AHCI M.2 SSD onboard for Enthusiast Gaming and Workstation User! Also MacPro5,1 and 7,1 compatible.
Includes
- Lycom DT-130 adapter
- 2 x SSD mounting screws
- Regular size PCIe bracket on board and Low Profile bracket
- Installation guide
To be used with NVME SSD ONLY. SATA-based SSD will not work with this adapter.
- Highlights
- Dual PCIe-NVMe or PCIe-AHCI M.2 SSDs work in main board PCIe x8 bus slot
- PCI Express 3.0 x8 Lane Host adapter
- Supports PCIe Gen3 M.2 NGFF 80mm, 60mm, 42mm SSD
- Boot two different versions of macOS from each SSD separately (MacPro5,1 and MacPro7,1)
- Not bootable on macOS when set up as RAID
- 2x M.2 NGFF type 2280-D5-M M Key socket onboard
- Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 SSD
- Supports dual-sided SSD module 1.5mm component height on the top and bottom side
- Compliant with PCI Express 3.0
- Pin header on board for drive LED connection
- Support L1 Power Management Substates with CLKREQ
- Low Profile PCIe Form Factor
- Regular size PCIe bracket on board and Low Profile bracket included
- Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support PCIe-NVMe & PCIe-AHCI SSD, no driver required
- Fully RoHS compliant
- Compatible with any Windows PC or motherboard with PCI Express 3.0 slot and also with MacPro5,1 and MacPro7,1
- 2010 | MacPro5,1 - A1289 - EMC2314
- 2012 | MacPro5,1 - A1289 - EMC2629
- 2019 | MacPro7,1 - A1991 - EMC3203
Customer Reviews
Arrived in good time.
The packaging does not mention Lycom DT-130 at all. The box mention "Serial Technologies Expander" and there's no mention of DT-130. The PCB itself mentions "F130". So looks like a generic board.
Installed a Samsung 980Pro 2TB Nvme blade. and installed the board into an Apple MacPro 4,1/5.1 with the latest firmware.
Drive was recognised and formatted fine. Boots Monterey 12.6.3 fine (using OpenCore).
Speed tests give around 2700MB/s R/W as expected for PCIe x8 board. The Samsung drive is limited in performance by the PCIe-x8 interface of this board. I expected this before I bought the board.
Still, this is much better than using a simple PCIe-to-NVMe adapter which was limited to around 1400MB/s.
Later, I added a second NVMe and that too performed as expected
Very happy with the price-performance.
In PC and working as expected. Great
The card is excellent the speed on both nvme drive is as expected at there top speed or close to it.how ever i currently have a problem with z97-Gd65 gaming when i try to activate furmark the computer shuts down.at the moment i am not if it a compatabily problem of the DT-130 with all z97 motherboards or spesifice to my own motherboard i will now once i get z97 asus formula vii i orderded in a few weeks.
