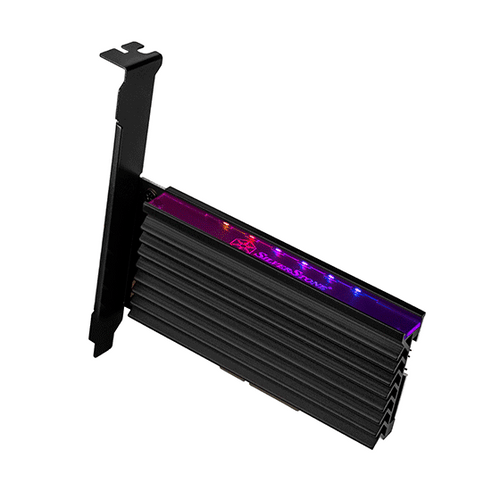

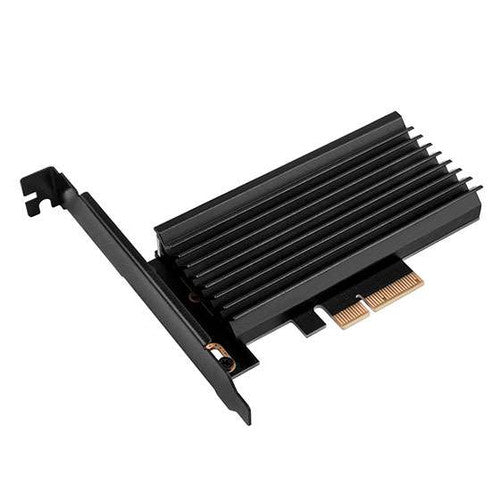

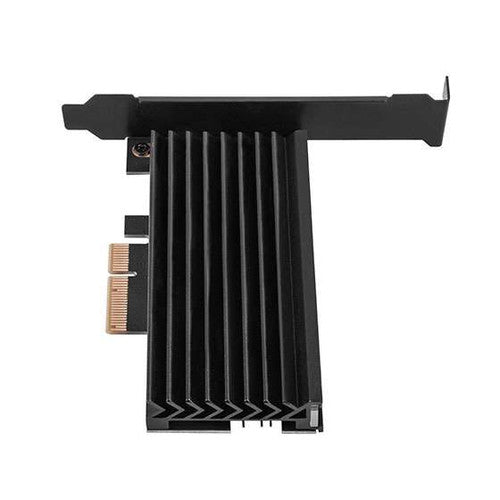

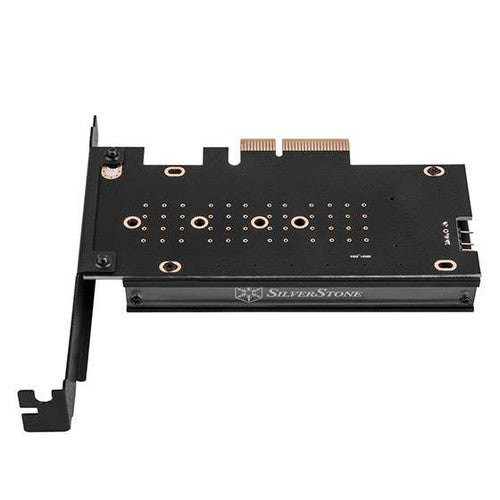

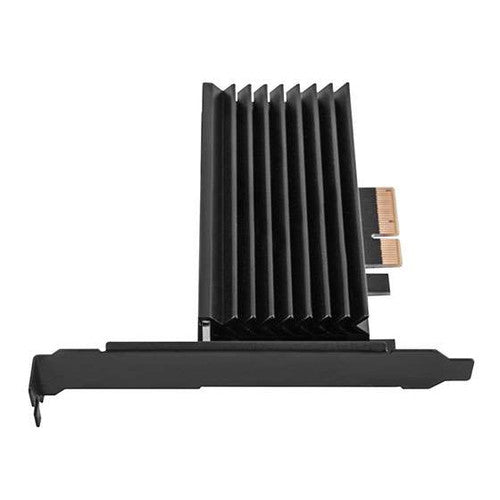

M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad
SilverStone

M.2 NVMe SSD M key to PCIe x4 ARGB adapter card with heatsink and thermal pad

Product SKU: SST-ECM24-ARGB
Available:
Only 1 item in stock
1 item in stock
In stock
Pre-order
Out of stock
£36.49
Want it delivered by
  • Description
  • Specifications
  • Compatibility
  • Product Videos

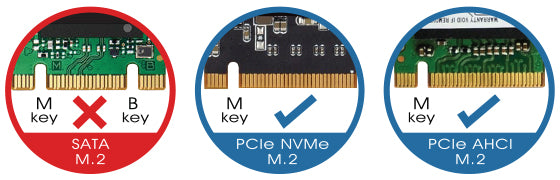

There are three types of M.2 SSDs. Please make sure you know the difference between them and whether your system/motherboard supports them before pairing these with your SilverStone product.

  • SATA (B key)
    Used for SATA SSDs, and interfaced through the AHCI driver and SATA 3.0 (6 Gbit/s) port exposed through the M.2 connector.
  • PCI Express using AHCI (M key) only support to install this type Used for PCI Express SSDs and interfaced through the AHCI driver and provided PCI Express lanes, providing backward compatibility with widespread SATA support in operating systems at the cost of not delivering optimal performance by using AHCI for accessing PCI Express SSDs.
  • PCI Express using NVMe (M key) only support to install this type Used for PCI Express SSDs and interfaced through the NVMe driver and provided PCI Express lanes, as a high-performance and scalable host controller interface designed and optimized especially for interfacing with PCI Express SSDs. NVMe has been designed from the ground up, capitalizing on the low latency and parallelism of PCI Express SSDs, and complementing the parallelism of contemporary CPUs, platforms and applications.

Highlights

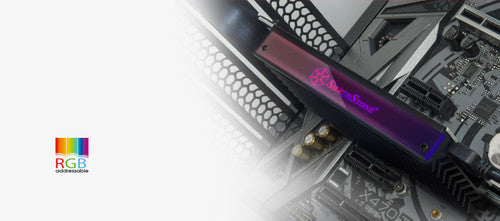

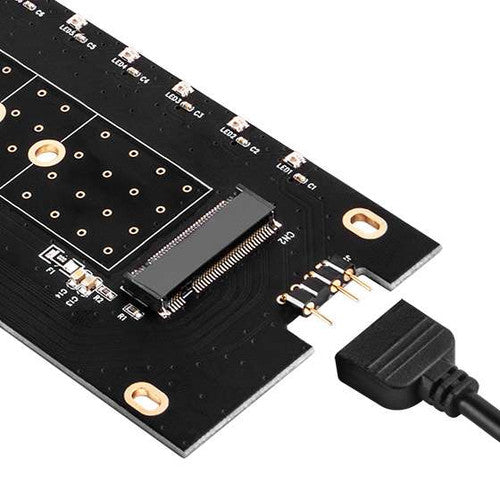

  • ARGB LED flashing design includes 4-1pin ARGB cable

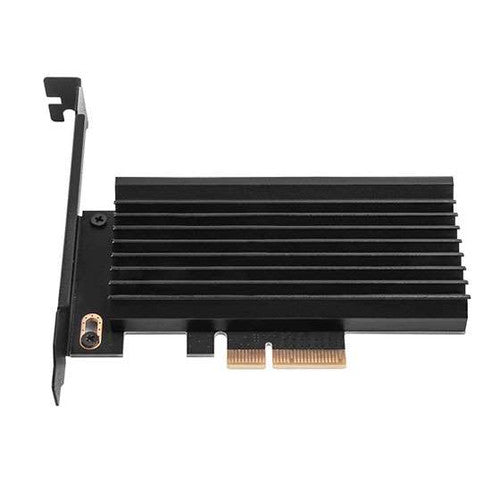

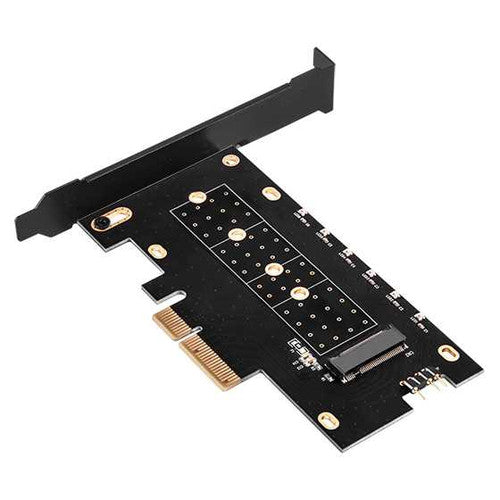

  • Converts one M.2 port (M key) into one PCIe x4 interface

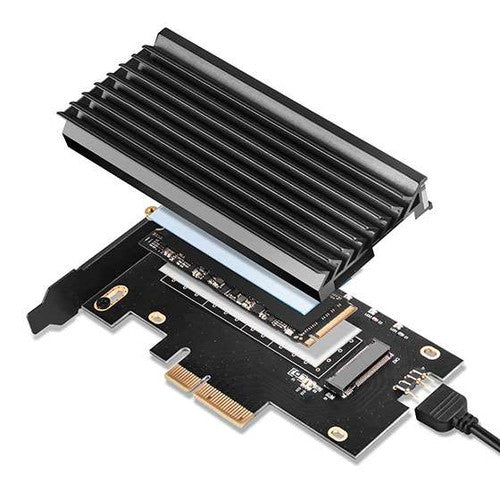

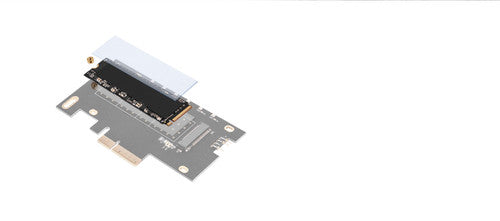

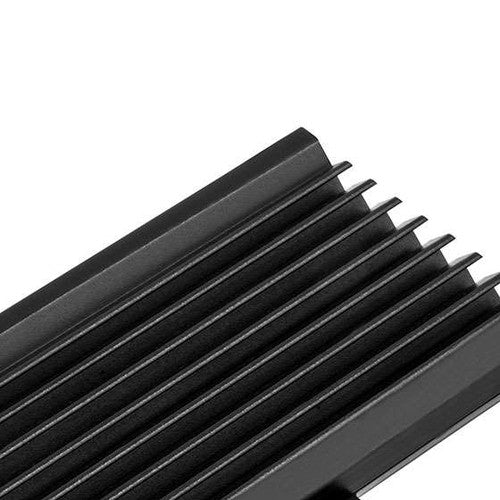

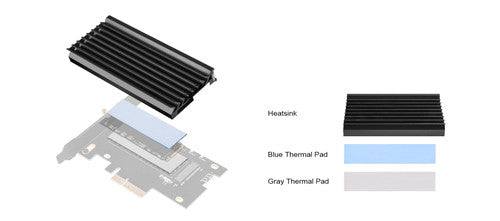

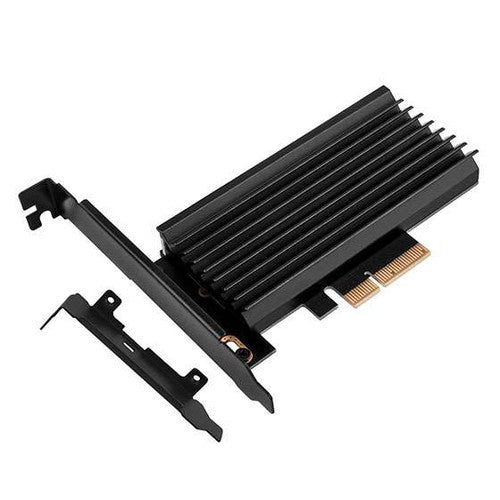

  • Includes aluminum heatsink and thermal pad for enhanced M.2 SSD cooling

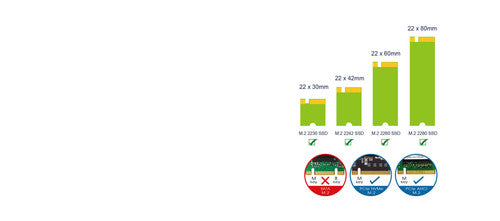

  • Supports 2230,2242,2260 and 2280 length M.2 PCIe/NVMe SSD

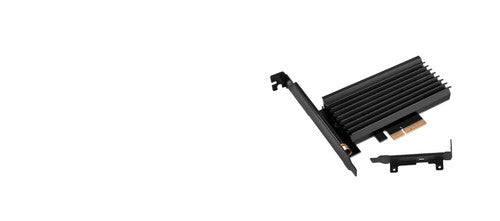

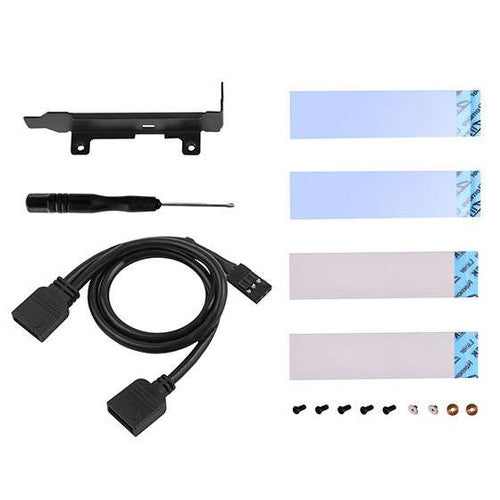

  • Includes an optional low-profile expansion slot
  • No driver installation required
  • Model No: SST-ECM24-ARGB
  • Interface: PCI Express x 4
  • Connectors: 4-1 Pin 5V ARGB
  • SSD Interface: M.2 (NGFF)
  • Support Length of M.2 SSD: 30mm, 42mm, 60mm, 80mm
  • Module Key: PCIe x4 NVMe-based M key
  • Dimension: Heatsink with PCB: 121mm (W) x 20mm (H) x 130mm (D), 110g; Heatsink with PCB: 4.76" (W) x 0.79" (H) x 5.12" (D), 110g
  • Note: If you wish to boot using M.2 SSD, your motherboard must support it. Due to BIOS limitations, not all motherboards support booting from M.2 SSD; consult your motherboard manual or vendor for details on enabling this feature. M.2 PCIe-NVMe mode SSD requires Intel® 9 series (Z97, H97, Z170, X99) / AMD 300 series (A320, B350, X370) or higher version chipset with Windows 8 or later.
  • Product Manual PDF: Download Manual
  • Product Sheet PDF: Download Product Sheet
  • Motherboard Requirement: Requires a PCIe x16 slot.
  • Tested SSD Models: Adata XPG GAMMIX S50 Series, Corsair Force Series MP600, Gigabyte AORUS NVMe Gen4 M.2, Intel NVMe SSD 660p series, Intel NVMe SSD 760p Series, Pioneer APS-SE20G series, Samsung NVMe SSD 970 EVO M.2, Samsung NVMe SSD 970 PRO M.2, Samsung NVMe SSD SM951/961 M.2, Samsung NVMe SSD 960 EVO M.2, Samsung NVMe SSD 960 PRO M.2, Samsung 980 PRO PCIe 4.0 NVMe SSD, Samsung 980 PCIe 3.0 NVMe SSD, WD_BLACK SN850 NVMe SSD, WD_BLACK SN750 NVMe SSD
