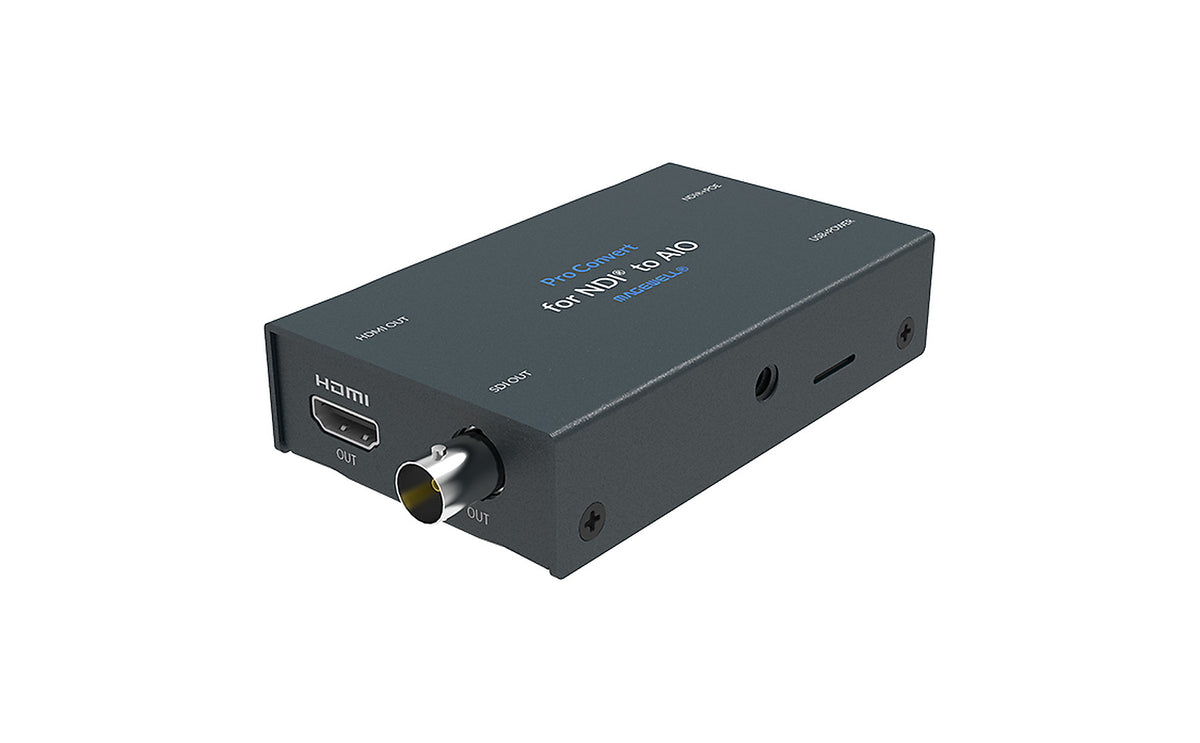

Magewell Pro Convert for NDI to AIO

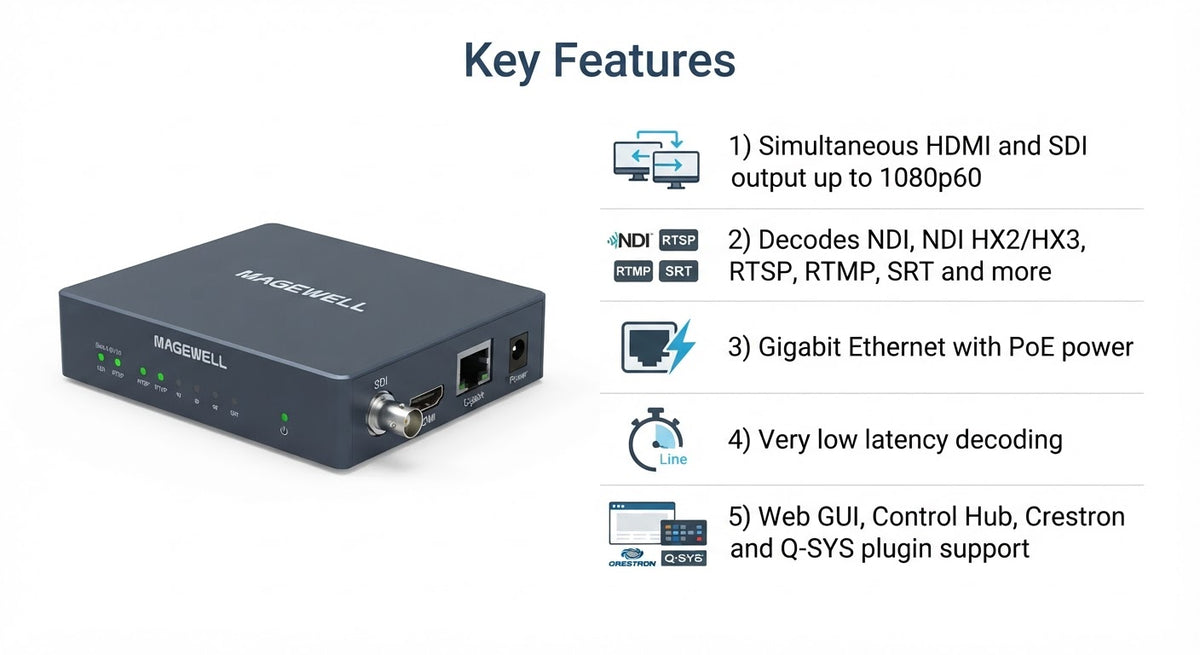

A: It receives a live NDI or IP video stream from your network and converts it into HDMI and SDI signals at the same time, so you can feed a single NDI source (a camera, a switcher output, a media player, or streaming software) straight into both an HDMI display and an SDI-based switcher or recorder simultaneously, without needing two separate decoders.

A: Both outputs run simultaneously from the same decoded stream, up to 1920x1080 60fps on each, so you can feed HDMI and SDI equipment from a single unit without switching between them.

A: Both are supported. You can power it with the included power adapter via the USB Type B port, or run a single Ethernet cable from a PoE (IEEE 802.3af) switch or injector for combined power and network in one connection.

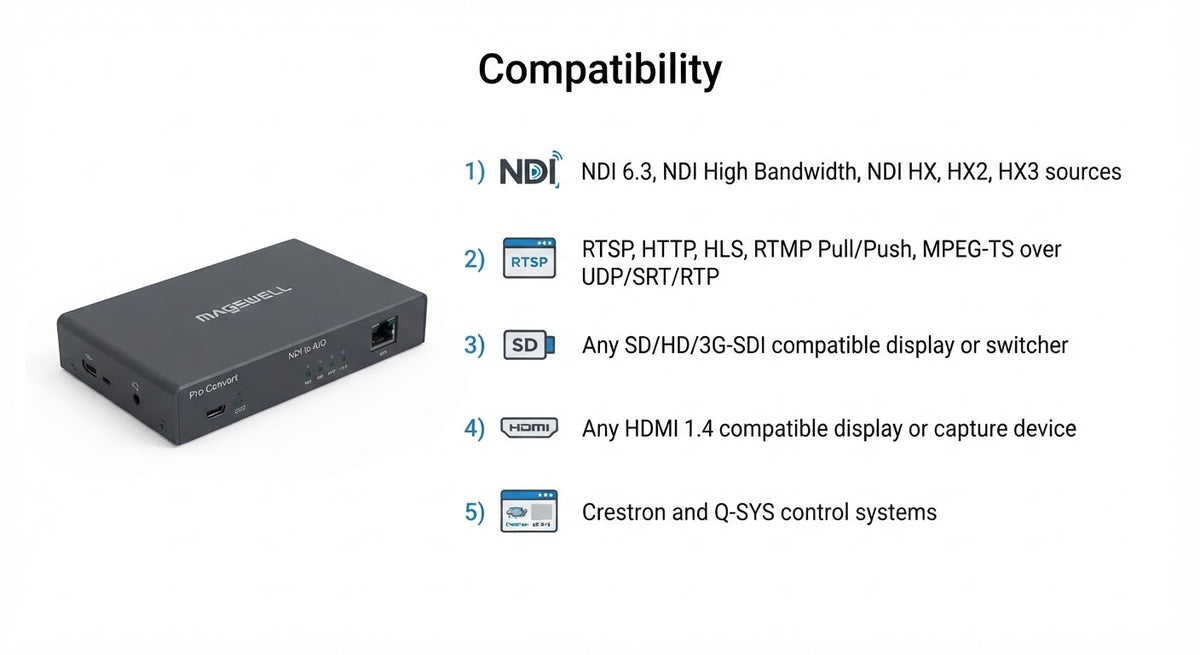

A: It decodes NDI 6.3, NDI High Bandwidth, NDI HX, NDI HX2, and NDI HX3, along with RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP, so it works with most NDI-enabled software and hardware as well as many common streaming sources.

A: Yes. Each unit has a 16-position rotary DIP switch to set a board index, and the on-board MENU/SELECT buttons or the Web GUI let you pick which NDI source it decodes, so multiple units can be configured and told apart easily in larger installs.
