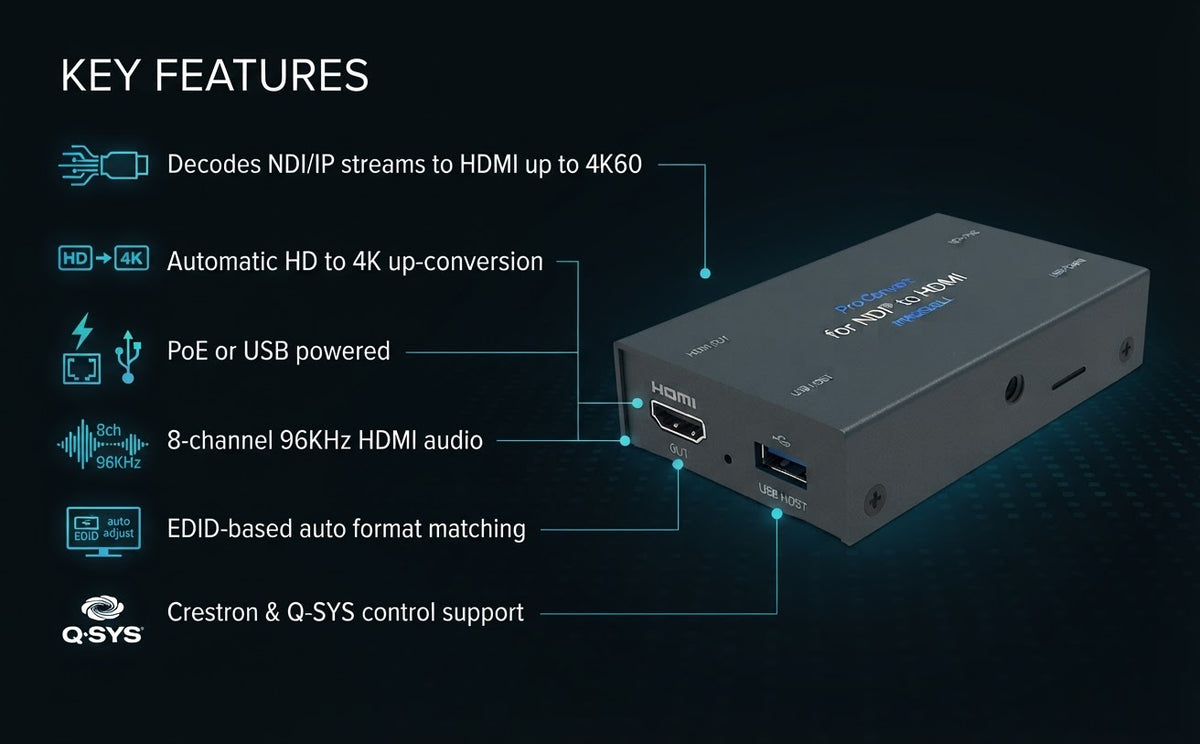

Key Features
Compatibility
Product Description

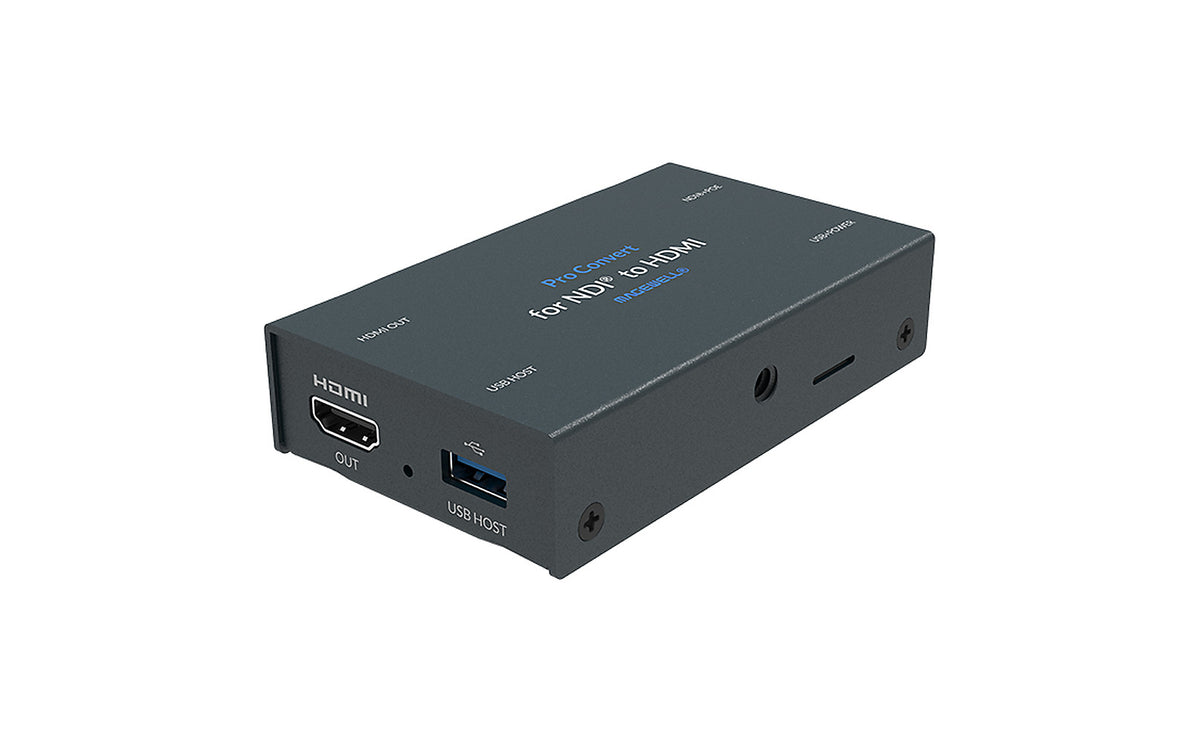

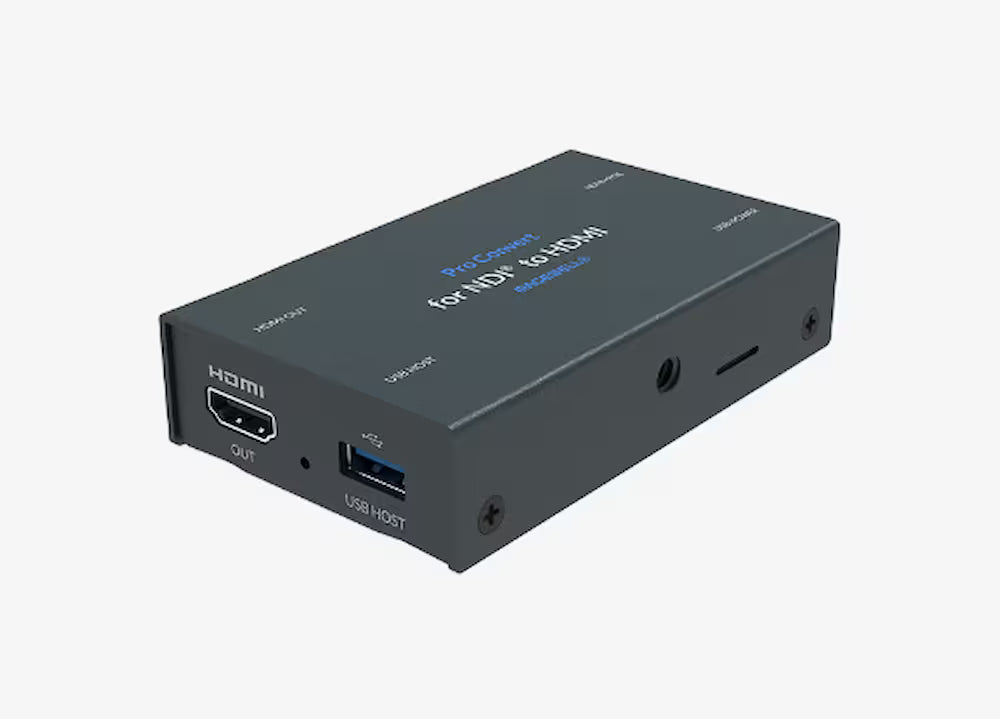

The Magewell Pro Convert for NDI to HDMI is a compact NDI decoder that converts a live NDI or IP video stream into an HD HDMI signal, connecting your IP-based media network into baseband presentation or distribution equipment. It decodes NDI High Bandwidth, NDI HX, NDI HX2, and NDI HX3 streams, along with RTSP, HTTP, HLS, RTMP, and MPEG-TS over UDP/SRT/RTP, so a single decoder can pull from a wide range of NDI and streaming sources.

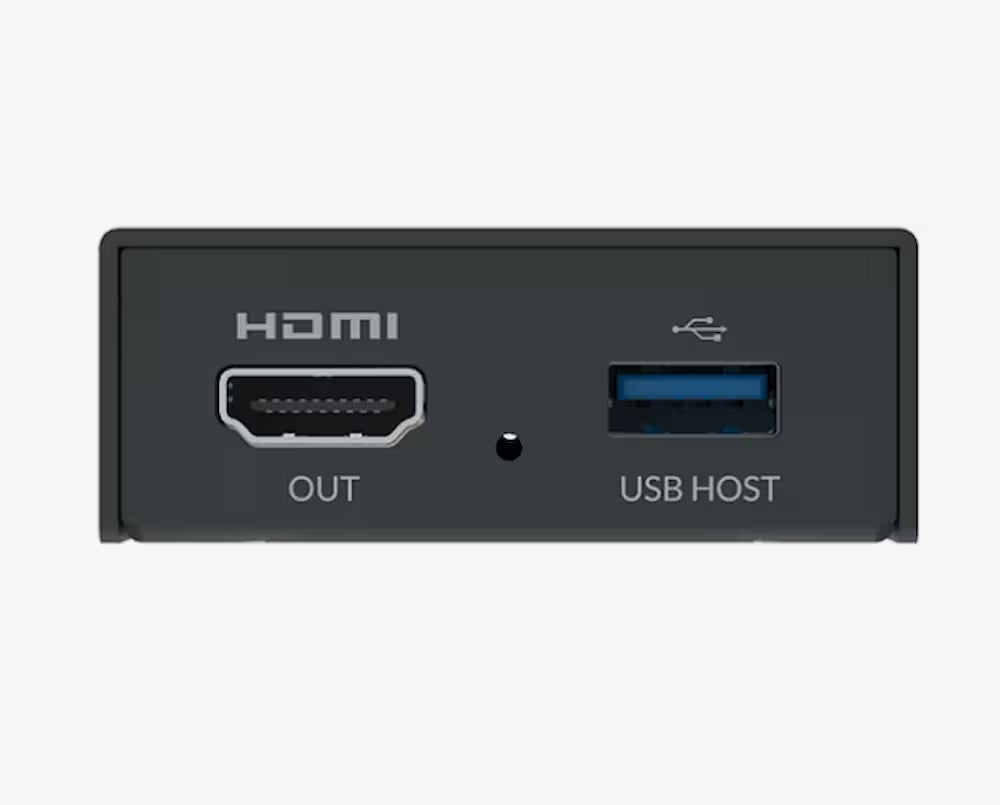

Output runs up to 4096x2160 60fps over HDMI, with the decoder automatically up-converting HD sources to 4K for Ultra HD displays and reading the connected monitor's EDID to deliver the preferred format. 8-channel 96KHz audio is carried over the same HDMI connection. The device can be powered over its network connection via PoE, or via the included USB power adapter, and a 1/4-20 threaded mounting hole on the base accepts standard tripod and camera mounting hardware. Magewell also offers a 1RU rackmount accessory for this model.
Product Q&A
Q: What does this device actually do?
A: It receives a live NDI or IP video stream from your network and converts it into an HD HDMI signal, so you can feed an NDI source (a camera, a switcher output, a media player, or streaming software) straight into HDMI-based displays or distribution equipment that doesn't understand NDI natively.
Q: Does it need a separate power supply, or can it run on PoE?

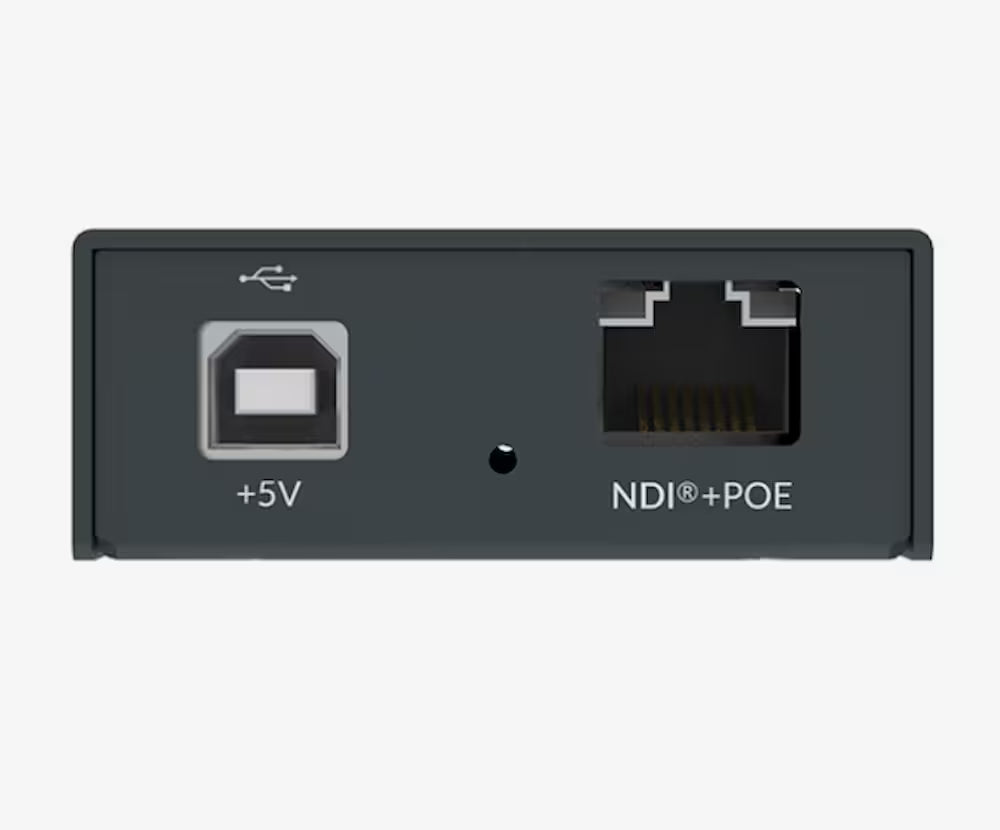

A: Both are supported. You can power it with the included power adapter via the USB Type B port, or run a single Ethernet cable from a PoE (IEEE 802.3af) switch or injector for combined power and network in one connection.
Q: Can it output 4K even if my NDI source is only HD?
A: Yes. The decoder automatically up-converts decoded HD signals to 4K for Ultra HD displays, and it reads the EDID of the connected monitor to deliver the format that display prefers.
Q: What NDI sources and streaming protocols can it decode?
A: It decodes NDI 6.3, NDI High Bandwidth, NDI HX, NDI HX2, and NDI HX3, along with RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP, so it works with most NDI-enabled software and hardware as well as many common streaming sources.
Q: How do I control or configure it if I don't want to use the Web GUI?
A: It can be configured through Magewell's Control Hub, the on-board MENU/SELECT buttons, HTTP-based APIs for custom integration, or native Crestron and Q-SYS Control Plugins for existing AV control systems.
Specifications
| SKU | 641000000 |
| Function | NDI / IP stream to HDMI decoder |
| Max Output Resolution | 4096x2160 60fps 4:4:4 8-bit (integrated up-conversion from HD sources) |
| HDMI Interface | HDMI 1.4 / 2.0 |
| Supported Output Formats | 4096x2160p/3840x2160p 23.98-60, 2560x1440p 60/100, 2560x1080p 23.98-60, 1920x1080p 23.98-120, 1920x1080i 50/59.94/60, 1280x720p 23.98-60, 720x576p/i50, 720x480p/i 59.94/60 |
| Output Optimization | Automatic format selection based on connected display's EDID |
| Audio Output | 96KHz, 16-bit, 8-channel |
| Decoding Formats | Up to 2Kp60: NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP |
| Video / Audio Decoders | SpeedHQ / H.264 / H.265 video, AAC / MP3 audio |
| NDI Version | NDI 6.3 |
| Network Interface | 10/100/1000Mbps Ethernet with IEEE 802.3af PoE |
| USB Interfaces | USB2.0 Type B (5V/2.1A power, USB RNDIS/ECM), USB3.0 Type A (peripheral keyboard/mouse) |

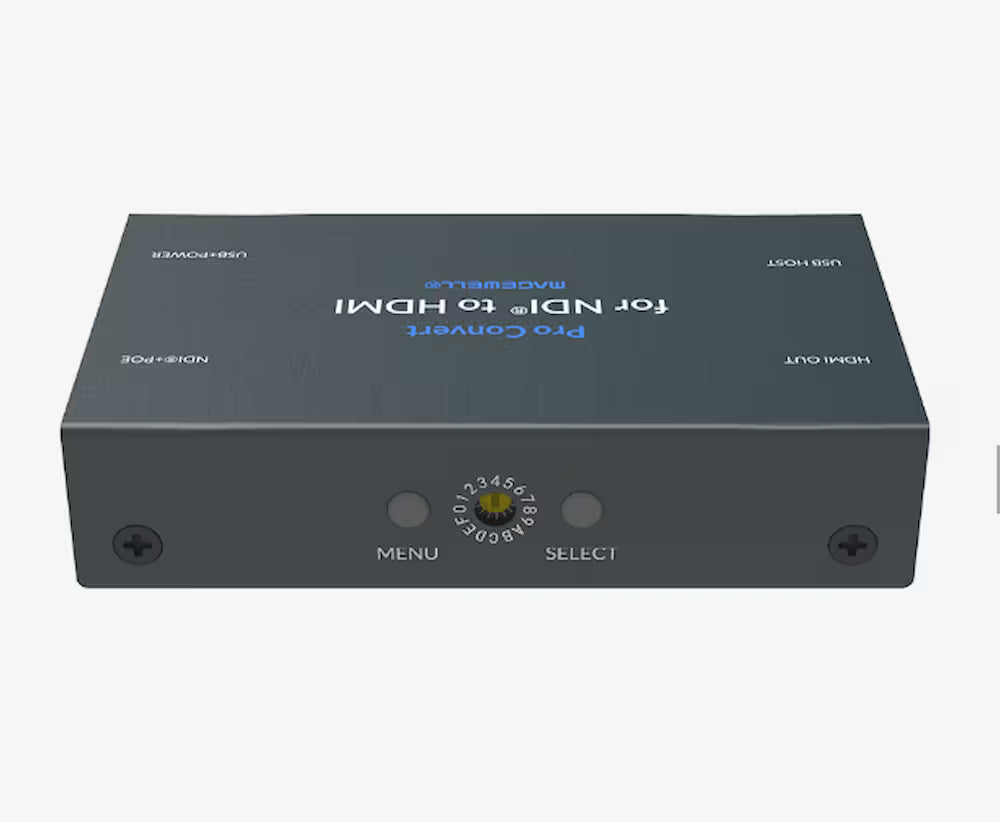

| On-Board Controls | MENU and SELECT buttons, 16-position rotary DIP switch (board-index 0-F) |
| LED Indicators | Power LED (on = connected), Decode LED (on = decoding, blinks = error, off = no source selected) |
| Mounting | 1/4-20 threaded mounting hole, optional 1RU rackmount accessory |
| Dimensions | 100.9 x 60.2 x 23.3mm (L x W x H) |
| Power Consumption | ~5W max (5V, ~1.1A) |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90%, non-condensing |
| Included Accessories | Power adapter (US/EU/UK/AU/JP), USB Type A to Type B cable, L-bracket |
| Warranty | 2 years |
| Country of Origin | China |
| User Manual | |
| Quick Start Guide |

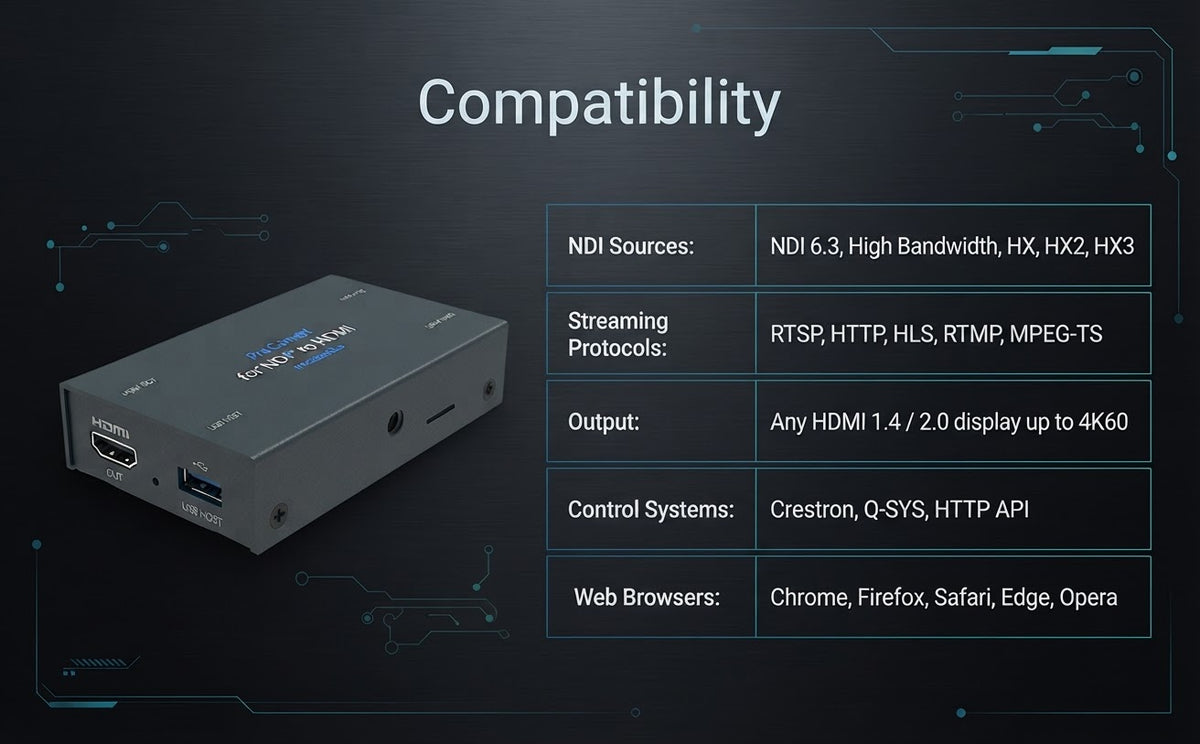

Compatibility
Decodes NDI and IP streams from any source supporting NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP, or MPEG-TS over UDP/SRT/RTP, and outputs to any HDMI 1.4/2.0 compatible display or distribution device, with automatic EDID-based format matching.
| NDI Source Compatibility | NDI 6.3, NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3 |
| Streaming Protocol Compatibility | RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP |
| Output Compatibility | Any HDMI 1.4 or HDMI 2.0 compatible display or distribution device, including Ultra HD displays via automatic up-conversion |
| Web Browser Compatibility | Internet Explorer, Edge, Firefox, Chrome, Safari, Opera |
| Control System Compatibility | Crestron Plugins, Q-SYS Control Plugins, HTTP-based APIs, Magewell Control Hub |
