Product Description

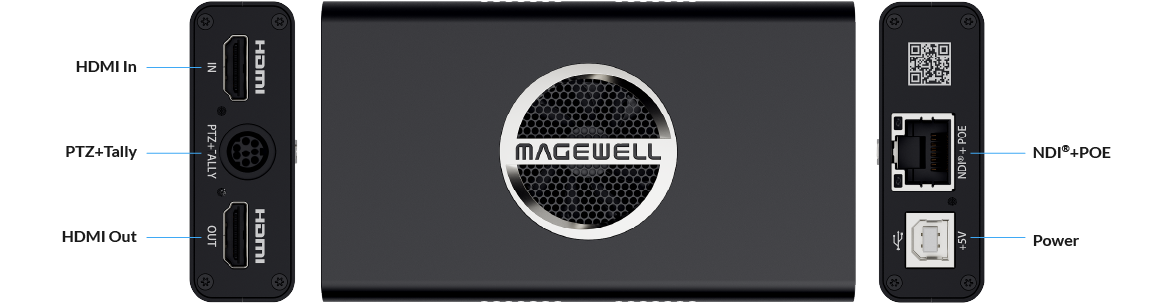

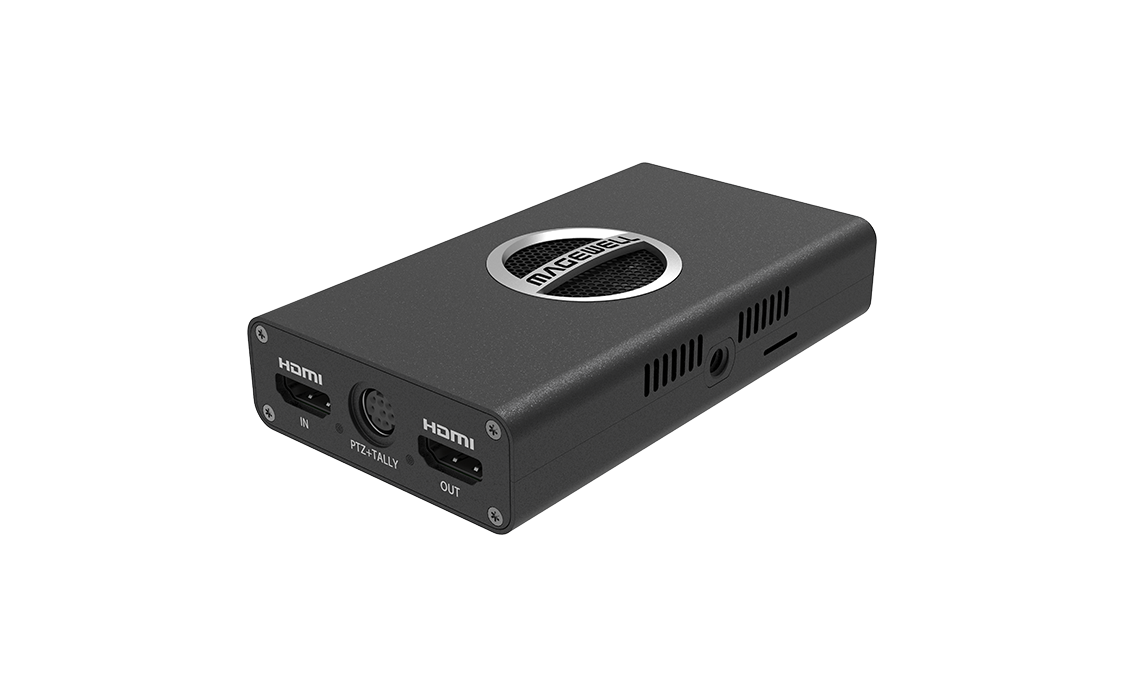

The Magewell Pro Convert HDMI 4K Plus turns any HDMI source into a full NDI video stream, ready to feed straight into your production switcher, video conferencing platform, or live streaming workflow over a standard Ethernet network. It accepts 4K HDMI input up to 4096x2160 at 60fps and encodes it as high-quality NDI, with HDMI loop-through so your original display stays live while the stream goes out.
Setup is genuinely simple. Connect HDMI in, plug in Ethernet (with PoE support so a single cable can power the unit), and it appears immediately as an NDI source on your network. The included WebUI, Magewell Control Hub, and HTTP APIs give you full remote control, while native Crestron and Q-SYS plugins mean it drops straight into existing AV control systems without custom integration work. On-board PTZ control (VISCA, PELCO-P/D) and a shared tally light input round it out for professional broadcast and conferencing setups.
Key Features

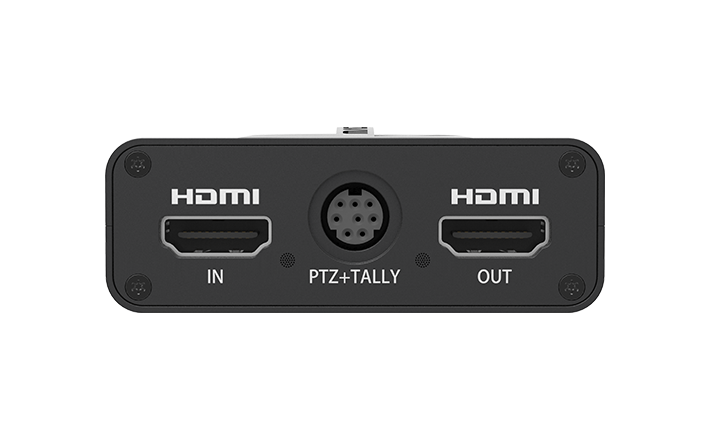

- Converts 4K HDMI input (up to 4096x2160 60fps 4:4:4 8-bit) to full NDI
- HDMI loop-through keeps your local display live while streaming
- NDI encoding up to 4096x2160 60fps 4:2:2 8-bit, or 1920x1080 240fps 4:2:2 8-bit
- NDI 6.2 support with flexible output frame rate (full, 1/2, 1/3 or 1/4 of input)

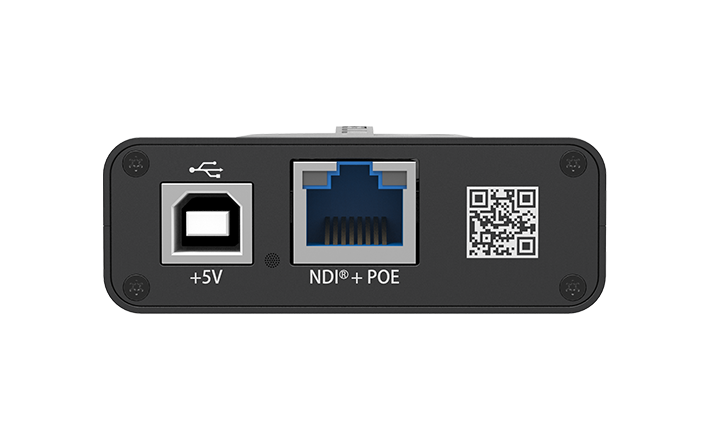

- Gigabit Ethernet with PoE (IEEE 802.3af) — single-cable power and network
- WebUI, Magewell Control Hub, and HTTP API remote control and configuration
- Native Crestron and Q-SYS control plugins for AV integration
- PTZ camera control via VISCA, VISCA UDP and PELCO-P/D over NDI

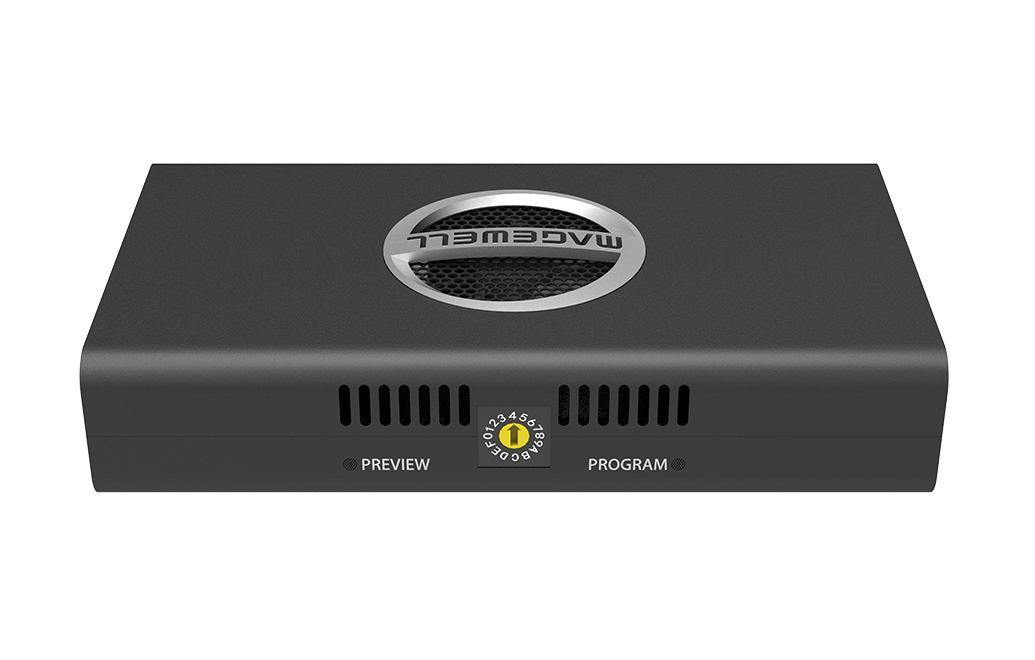

- Shared Mini-DIN-8 jack for PTZ control and tally light output
- Up to 8-channel HDMI-embedded audio, EDID customisation, 16-position DIP switch board addressing
- USB Type-B port with RNDIS/ECM support for direct computer configuration
- Compact desktop form factor with 1/4-20 threaded mounting hole; optional 1RU rack-mount kit available
Package Includes
- Magewell Pro Convert HDMI 4K Plus x1
- Power adapter (UK/EU/US/AU/JP) x1
- USB Type A to B cable x1
- Mini-DIN-8 to DIN8 + DB9 breakout cable x1
- Tally light x1
- L-bracket x1
Product Q&A
Q: What is NDI and why would I need this?
A: NDI (Network Device Interface) lets you send high-quality video over a standard Ethernet network instead of running dedicated SDI or HDMI cabling. The Pro Convert HDMI 4K Plus takes any HDMI source, cameras, laptops, media players, and turns it into an NDI stream that any NDI-enabled software or hardware on your network can receive instantly, no capture card or PC required at the source end.
Q: Does it need a separate power supply, or can it run on PoE?
A: Both are supported. You can power it with the included power adapter, or run a single Ethernet cable from a PoE (IEEE 802.3af) switch or injector for combined power and network in one connection, ideal for ceiling or wall-mounted camera setups.
Q: Can I still see the HDMI source locally while it's streaming over NDI?
A: Yes. The HDMI loop-through output passes the original signal straight to a connected display or monitor at full quality, completely independent of the NDI stream being sent out over the network.
Q: What software can receive the NDI stream?
A: Any NDI-enabled application or device, including OBS Studio (with the NDI plugin), vMix, Wirecast, NDI Studio Monitor, PTZ camera controllers, and most modern video switchers and production software.
Q: Can I control a PTZ camera through this device?
A: Yes. It supports PTZ control over VISCA, VISCA UDP and PELCO-P/D protocols via NDI, using the shared Mini-DIN-8 jack (also used for the tally light output) to connect to your PTZ camera.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 64010 |
| SKU | 640100000 |
| Input Interface | 1x HDMI (1.4/2.0, DVI-D compatible) |
| Max Input Resolution | 4096x2160 @ 60fps 4:4:4 8-bit |
| Loop-through | HDMI loop-through output (same max resolution as input) |
| Max NDI Output | 4096x2160 @ 60fps 4:2:2 8-bit, or 1920x1080 @ 240fps 4:2:2 8-bit |
| NDI Version | NDI 6.2 |
| Audio | Up to 8-channel HDMI-embedded audio |
| Network | 10/100/1000Mbps Ethernet with PoE (IEEE 802.3af) |
| USB Port | USB 2.0 Type B, RNDIS/ECM support |
| PTZ / Tally | Mini-DIN-8 shared jack — VISCA, VISCA UDP, PELCO-P/D over NDI |
| Control | WebUI, Magewell Control Hub, HTTP API, Crestron and Q-SYS plugins |
| Form Factor | 117.5 x 66.7 x 23.4 mm |
| Power Consumption | Max ~10W (~2A @ 5V) |
| Operating Temperature | 0 to 45°C |
| Mounting | 1/4-20 threaded hole; optional 1RU rack-mount kit |
Compatibility
The Pro Convert HDMI 4K Plus works with any HDMI source device and integrates with any NDI-enabled receiving software or hardware on the same network.
Compatible Source Devices
- Cameras, camcorders and PTZ cameras with HDMI output
- Laptops and computers with HDMI output
- Media players, set-top boxes and presentation devices
- Hardware video switchers and mixers with HDMI output
Compatible NDI Software and Hardware
- OBS Studio (with NDI plugin), vMix, Wirecast, NDI Studio Monitor
- Crestron and Q-SYS AV control systems (native plugins)
- Any NDI 5/6-compatible switcher, encoder, decoder or production system
