Product Description

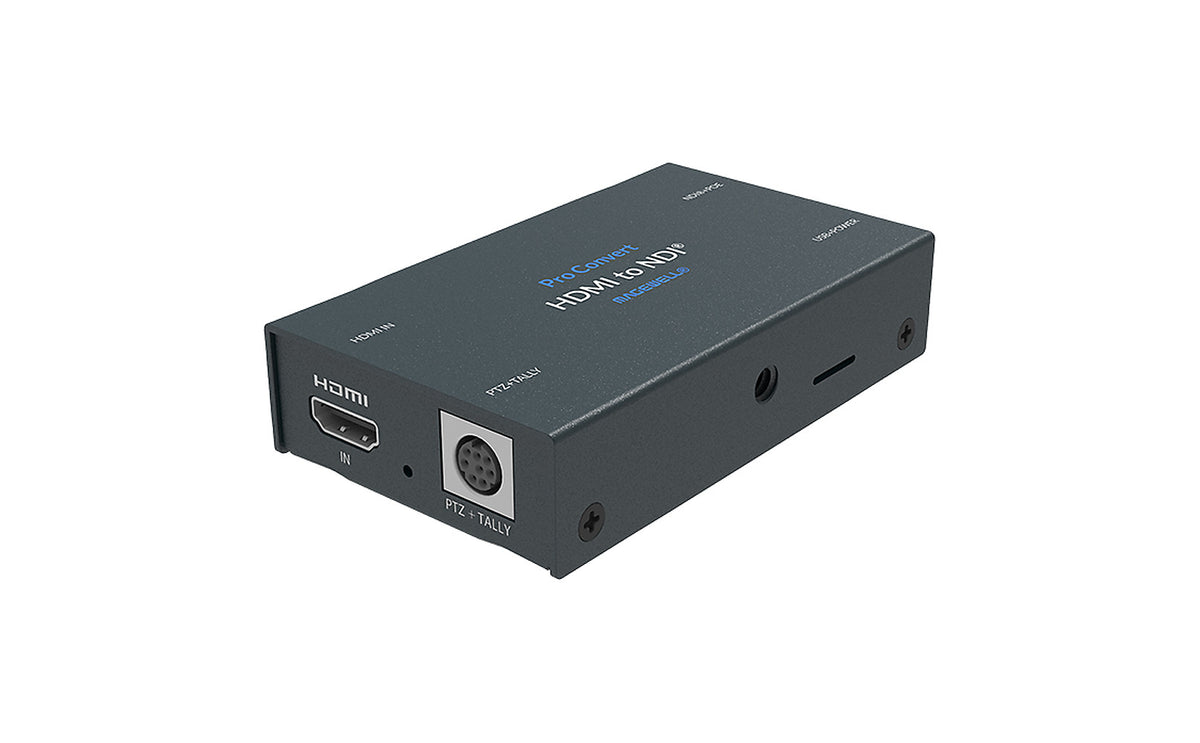

The Magewell Pro Convert HDMI TX turns an HD HDMI source into a full NDI video stream, feeding it straight into your production switcher, video conferencing platform, or live streaming workflow over a standard Ethernet network. It accepts HDMI input up to 2048x1200 60fps 4:4:4/4:2:2, encoding it as NDI High Bandwidth for any NDI-enabled software or hardware to receive.

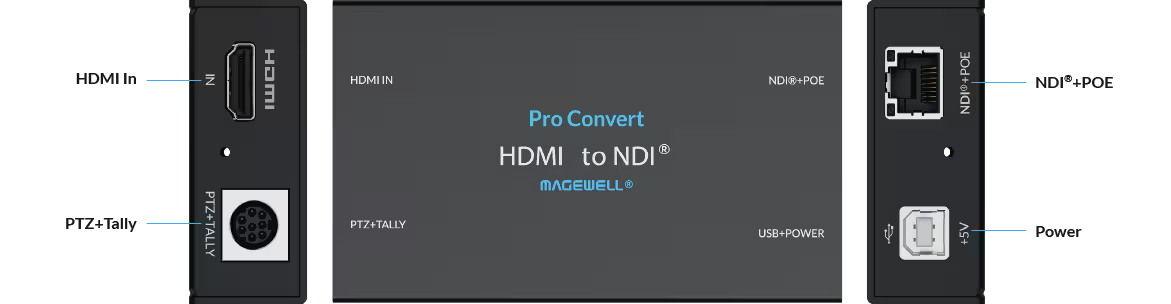

Setup is plug-and-play with automatic input format detection and DHCP network configuration. Connect HDMI in, plug in Ethernet (with PoE support so a single cable can power the unit), and it appears as an NDI source on your network. A shared Mini-DIN-8 jack handles both PTZ camera control (VISCA, VISCA UDP, VISCA UDP2rs232, PELCO-P, PELCO-D over NDI) and tally light output, making it a compact fit for live production and conferencing setups.
Product Q&A
Q: What does this device actually do?
A: It takes an HDMI source, a camera, laptop, or media player, and encodes it into a full NDI stream that any NDI-enabled software or hardware on your network can receive instantly, no capture card or PC required at the source end.
Q: Does it need a separate power supply, or can it run on PoE?
A: Both are supported. You can power it with the included power adapter via the USB Type B port, or run a single Ethernet cable from a PoE (IEEE 802.3af) switch or injector for combined power and network in one connection.
Q: What resolution and frame rate does it support?
A: It accepts HDMI input up to 2048x1200 at 60fps in 4:4:4 or 4:2:2, and encodes NDI High Bandwidth output at the same resolution, or a custom resolution, at up to 2048x1200 60fps 4:2:2 8-bit.
Q: Can I control a PTZ camera through this device?

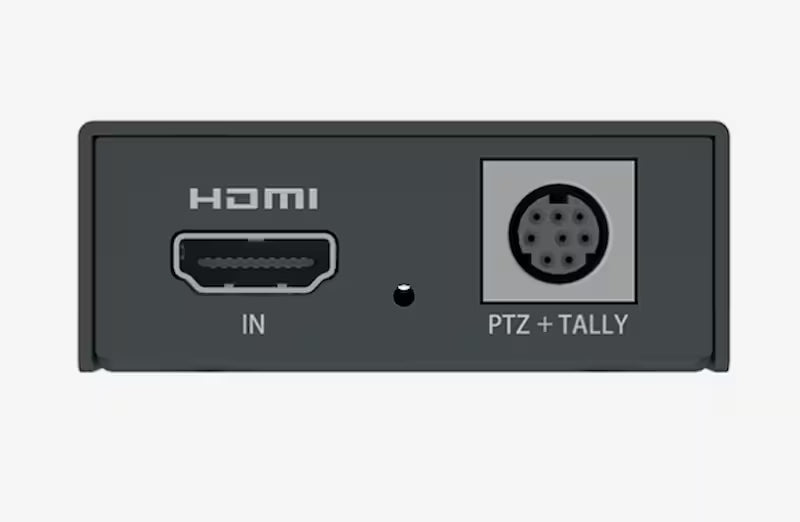

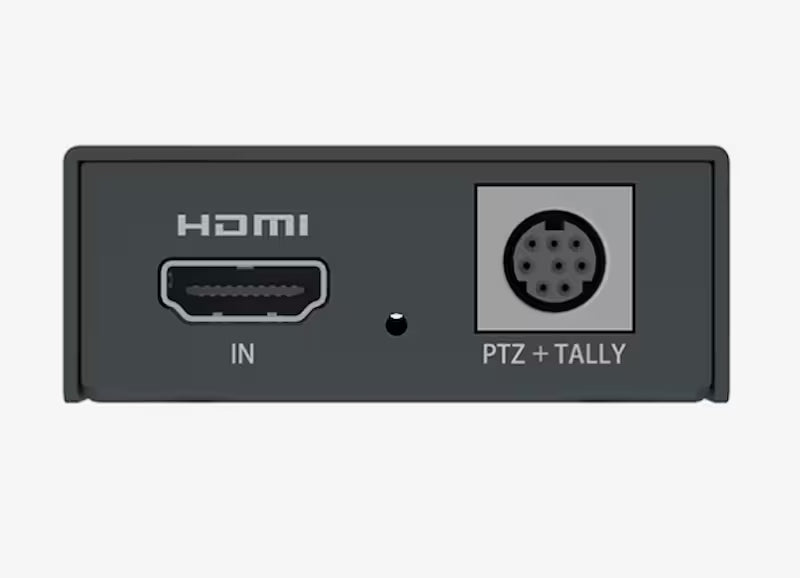

A: Yes. It supports PTZ control over VISCA, VISCA UDP, VISCA UDP2rs232, PELCO-P, and PELCO-D via NDI, using the shared Mini-DIN-8 jack (also used for the included tally light output).
Q: How do I control or configure it if I don't want to use the Web GUI?
A: It can be configured through Magewell's Control Hub, HTTP-based APIs for custom integration, or native Crestron and Q-SYS Control Plugins for existing AV control systems.
Specifications
| SKU | 640500000 |
| Function | HDMI to NDI encoder |
| Max Video Input | 2048x1200 60fps, 4:4:4 or 4:2:2 |
| Input Interface | 1x HDMI (HDMI 1.4, DVI-D compatible), custom EDID |
| Input Video Formats | RGB, YUV BT.601/709/2020 |
| Input Audio | 8-channel HDMI-embedded audio |
| NDI Encoding | NDI High Bandwidth, up to 2048x1200 60fps 4:2:2 8-bit |
| Output Resolution | Same as input, or any custom resolution (typical: 2048x1080p/1920x1080p, 1920x1080i, 1280x720p, 720x480p/i, 720x576p/i at various frame rates up to 120fps) |
| Output Frame Rate | Same as input, or 1/2, 1/3, 1/4 of input frame rate |
| Output Audio | 2-channel NDI-embedded audio |
| NDI Version | NDI 6.2 |
| Network Interface | 10/100/1000Mbps Ethernet with IEEE 802.3af PoE |
| USB Interface | USB2.0 Type B (5V/2.1A power, USB RNDIS/ECM) |
| PTZ Control | VISCA, VISCA UDP, VISCA UDP2rs232, PELCO-P, PELCO-D via NDI, shared Mini-DIN-8 jack with tally light |

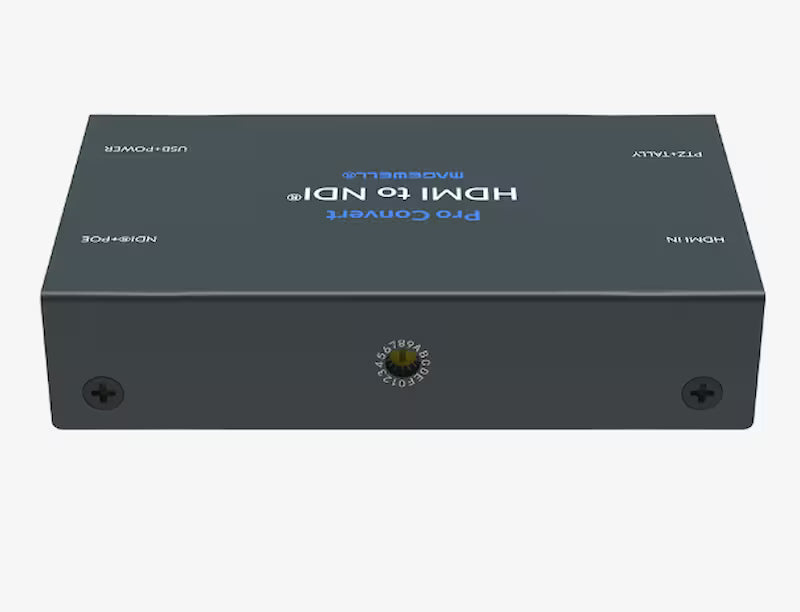

| On-Board Controls | 16-position rotary DIP switch (board-index 0-F) |
| Mounting | 1/4-20 threaded mounting hole |
| Dimensions | 100.9 x 60.2 x 23.3mm (L x W x H) |
| Power Consumption | ~6W max (5V, ~1.5A) |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 90%, non-condensing |
| Included Accessories | Power adapter (US/EU/UK/AU/JP), USB Type A to Type B cable, Mini-DIN 8 to DIN8 + DB9 breakout cable, tally light, L-bracket |
| Warranty | 2 years |
| Country of Origin | China |
Compatibility
Encodes any HDMI 1.4 or DVI-D source into NDI High Bandwidth, receivable by any NDI-enabled software or hardware on the same network.
| Input Compatibility | Any HDMI 1.4 or DVI-D compatible source (camera, laptop, media player, switcher output) |
| NDI Output Compatibility | NDI 6.2, NDI High Bandwidth, receivable by any NDI-enabled application or hardware |
| PTZ Camera Compatibility | VISCA, VISCA UDP, VISCA UDP2rs232, PELCO-P, PELCO-D protocol cameras via NDI |
| Web Browser Compatibility | Internet Explorer, Edge, Firefox, Chrome, Safari, Opera |
| Control System Compatibility | Crestron Plugins, Q-SYS Control Plugins, HTTP-based APIs, Magewell Control Hub |
