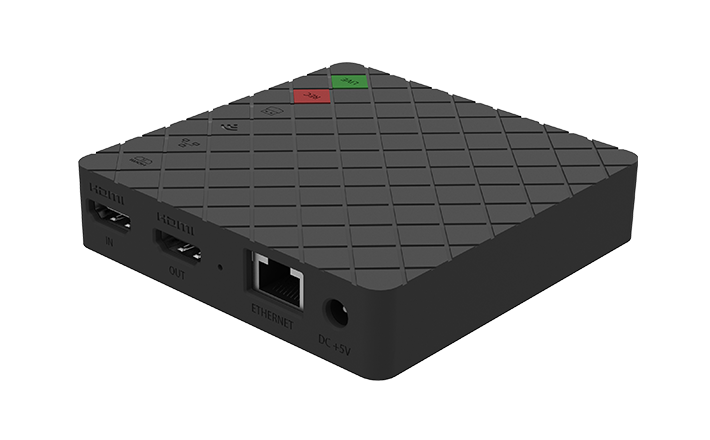

The Magewell Ultra Stream HDMI is a standalone streaming and recording encoder that takes any HDMI source straight to Facebook Live, YouTube, Twitch, or your own RTMP/RTMPS server, no computer required. Connect your camera, switcher, or other HDMI source, tap a button (or use the app), and you are live. HDMI loop-through means your local display keeps showing the source at full quality throughout.
Beyond live streaming, the Ultra Stream HDMI doubles as a standalone recorder, saving H.264 or HEVC encoded MP4 or MOV files to its internal 32GB storage, a connected USB flash drive, or a paired smartphone, simultaneously if needed. It connects to the network over wired Ethernet, Wi-Fi, or an optional 3G/4G USB modem, so it works equally well tethered to a router or completely wireless in the field. A dedicated smartphone app and browser-based Web UI give you full control, and HTTP APIs are available for custom integration into existing production workflows.
Key Features
- HDMI input up to 4096x2160 4:2:0 60fps or 4:4:4/4:2:2 30fps, with loop-through
- Streams natively to Facebook, Twitch and YouTube, or any custom RTMP/RTMPS/RTSP endpoint
- Up to 2 simultaneous streaming sessions
- Records to internal 32GB storage, a USB flash drive, or a paired smartphone at the same time
- H.264 or HEVC video encoding with AAC audio, bitrates up to 8Mbps
- Records as MP4 or MOV, with auto-recording and loop-recording modes
- Auto-upload recordings to FTP, Dropbox or Google Drive
- Wired Ethernet, Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.0, and optional 3G/4G USB modem connectivity

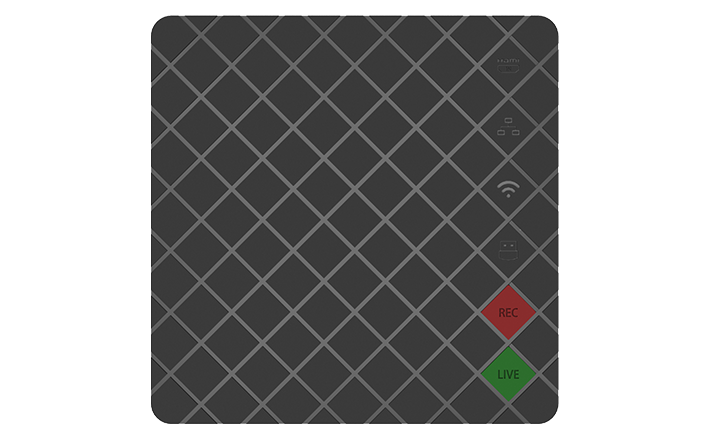

- Control via on-device buttons, the Magewell smartphone app, or the browser-based Web UI
- Analogue microphone input for narration and headphone output for monitoring
- HTTP-based APIs for custom integration
- Compact, portable form factor for field and studio use
Package Includes
- Magewell Ultra Stream HDMI x1
- Power adapter (UK/EU/US/AU/JP) x1
- USB power cable x1
- HDMI cable x1
Product Q&A
Q: Do I need a computer to stream with this?
A: No. The Ultra Stream HDMI is a fully standalone encoder. Connect your HDMI source and a network connection (wired, Wi-Fi, or 3G/4G), and it streams directly to Facebook Live, YouTube, Twitch, or a custom RTMP/RTMPS server without a computer in the loop.
Q: Can it record and stream at the same time?
A: Yes. It can simultaneously stream to up to 2 destinations while also recording to its internal 32GB storage, a connected USB flash drive, and a paired smartphone.
Q: How do I control it, is there an app?
A: Yes, Magewell provides a free smartphone app for iOS and Android, plus a browser-based Web UI accessible from any device on the same network. On-device buttons also let you start and stop streaming or recording directly.
Q: Can I use it without Wi-Fi or Ethernet, like out in the field?
A: Yes. It supports an optional USB 3G/4G mobile broadband modem (sold separately) for fully wireless, network-independent streaming and recording in the field.
Q: Does the local display stay connected while streaming?
A: Yes. The HDMI loop-through output passes your source through to a connected monitor or display at full quality, independent of whatever is being streamed or recorded.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 53010 |
| SKU | 530100000 |

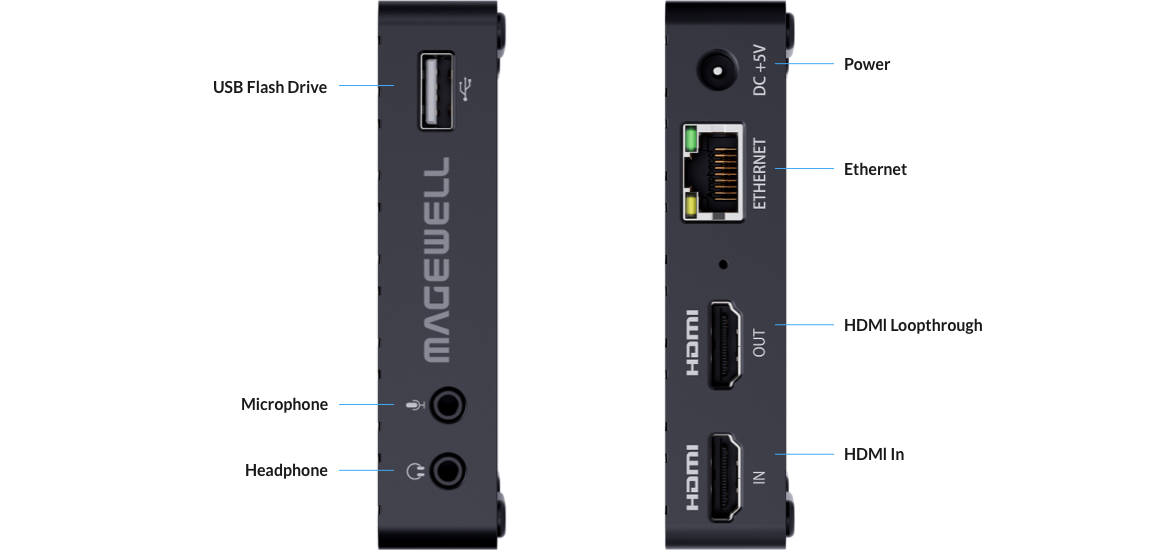

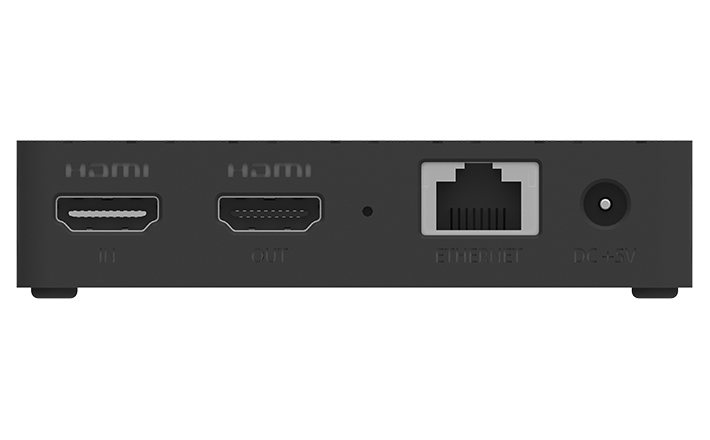

| Input Interface | 1x HDMI 1.4a / DVI-D compatible, with loop-through |
| Max Input Resolution | 4096x2160 4:2:0 60fps, or 4096x2160 4:4:4/4:2:2 30fps |
| Video Encoding | H.264 or HEVC, up to 8Mbps bitrate |
| Audio Encoding | 2-channel AAC, 48kHz 16-bit |
| Streaming Protocols | RTMP, RTMPS, RTSP; native Facebook, Twitch and YouTube support; up to 2 sessions simultaneously |
| Recording | MP4 or MOV to internal 32GB storage, USB flash drive, or paired smartphone |
| Network | 10/100/1000Mbps Ethernet, Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.0 BLE, optional 3G/4G USB modem |

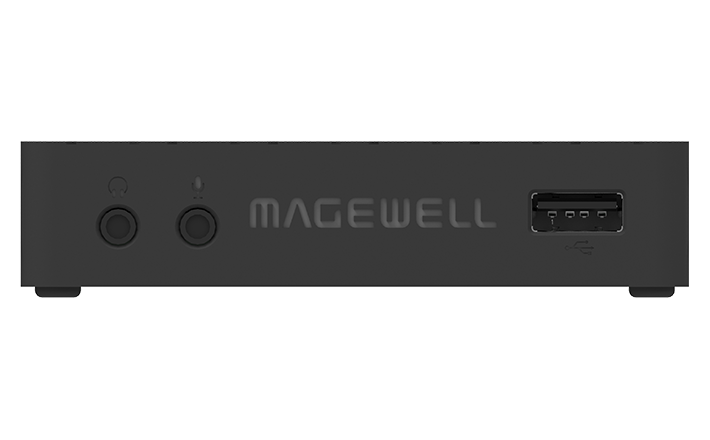

| Audio I/O | 3.5mm analogue microphone input, 3.5mm headphone output |
| Control | On-device buttons, smartphone app, Web UI, HTTP API |
| Form Factor | 94.2 x 94.2 x 22.3 mm |
| Power Consumption | DC 5V/2A, max ~9.6W |
| Operating Temperature | 0 to 40°C |
Compatibility
The Ultra Stream HDMI works with any HDMI source device and streams directly to major platforms or your own server infrastructure, no computer required.
Compatible Source Devices
- Cameras and camcorders with HDMI output
- Hardware video switchers and mixers with HDMI output
- Laptops, computers and media players with HDMI output
Compatible Streaming Destinations
- Facebook Live, YouTube and Twitch (native support)
- Any custom RTMP or RTMPS server or CDN
- RTSP-compatible receiving systems
