Key Features
Compatibility
Product Description
The Magewell Ultra Stream SDI is a standalone streaming and recording encoder that takes an SD/HD/3G-SDI source straight to Facebook Live, YouTube, Twitch, or your own RTMP/RTMPS server, no computer required. Connect your camera, switcher, or other SDI source, tap a button (or use the app), and you are live. SDI loop-through means your existing signal chain keeps receiving the source at full quality throughout.
Beyond live streaming, the Ultra Stream SDI doubles as a standalone recorder, saving H.264 or HEVC encoded MP4 or MOV files to its internal 32GB storage, a connected USB flash drive, or a paired smartphone, simultaneously if needed. It connects to the network over wired Ethernet, Wi-Fi, or an optional 3G/4G USB modem, so it works equally well tethered to a router or completely wireless in the field. A dedicated smartphone app and browser-based Web UI give you full control, and HTTP APIs are available for custom integration into existing production workflows.
Key Features
- SD/HD/3G-SDI input up to 2048x1080 60fps, with loop-through
- Streams natively to Facebook, Twitch and YouTube, or any custom RTMP/RTMPS/RTSP endpoint
- Up to 2 simultaneous streaming sessions with dual-stream encoding (main and sub stream)
- Records to internal 32GB storage, a USB flash drive, or a paired smartphone at the same time
- H.264 or HEVC video encoding with AAC audio, bitrates up to 8Mbps
- Records as MP4 or MOV, with auto-recording and loop-recording modes
- Up to 16-channel SDI-embedded audio input
- Wired Ethernet, Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.0, and optional 3G/4G USB modem connectivity
- Control via on-device buttons, the Magewell smartphone app, or the browser-based Web UI
- Analogue microphone input for narration and headphone output for monitoring
- HTTP-based APIs for custom integration
- Compact, portable form factor for field and studio use
Package Includes
- Magewell Ultra Stream SDI x1
- Power adapter (UK/EU/US/AU/JP) x1
Product Q&A
Q: Do I need a computer to stream with this?
A: No. The Ultra Stream SDI is a fully standalone encoder. Connect your SDI source and a network connection (wired, Wi-Fi, or 3G/4G), and it streams directly to Facebook Live, YouTube, Twitch, or a custom RTMP/RTMPS server without a computer in the loop.
Q: What SDI standards does it support?
A: It supports SD (SMPTE ST 259), HD (ST 292) and 3Ga/3Gb (ST 425) SDI standards, with input and loop-through up to 2048x1080 60fps. It does not support 6G or 12G SDI, for those you would need the Pro Convert SDI 4K Plus.
Q: Can it record and stream at the same time?
A: Yes. It can simultaneously stream to up to 2 destinations while also recording to its internal 32GB storage, a connected USB flash drive, and a paired smartphone.
Q: How do I control it, is there an app?
A: Yes, Magewell provides a free smartphone app for iOS and Android, plus a browser-based Web UI accessible from any device on the same network. On-device buttons also let you start and stop streaming or recording directly.
Q: Can I use it without Wi-Fi or Ethernet, like out in the field?
A: Yes. It supports an optional USB 3G/4G mobile broadband modem (sold separately) for fully wireless, network-independent streaming and recording in the field.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 53020 |
| SKU | 530200000 |

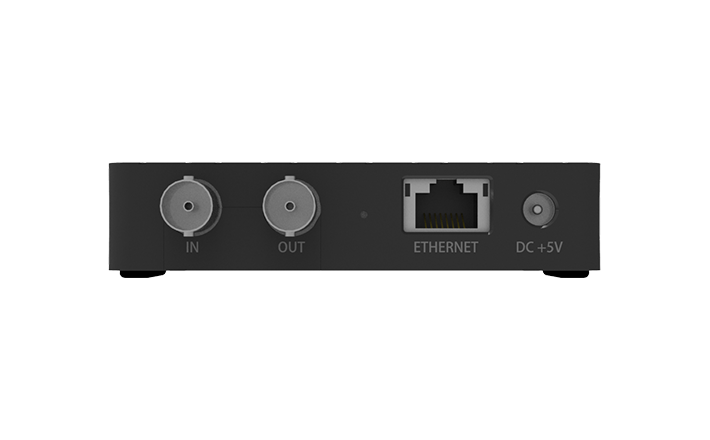

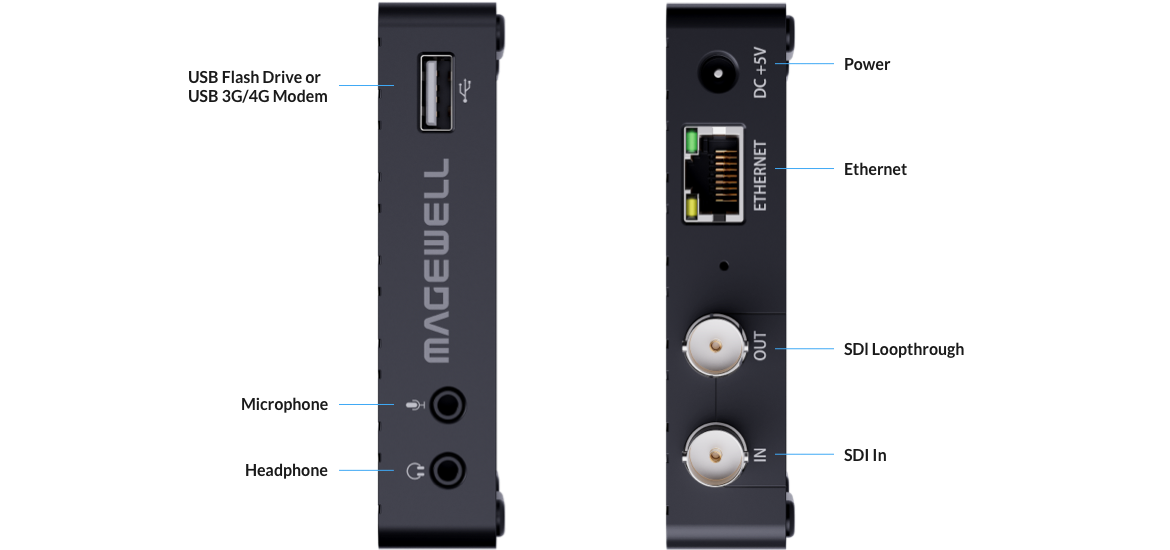

| Input Interface | 1x SD/HD/3G-SDI, with loop-through |
| Max Input Resolution | 2048x1080 @ 60fps |
| SDI Standards | SD (ST 259), HD (ST 292), 3Ga/3Gb/3Gb-DL/3Gb-DS (ST 425) |
| Video Encoding | H.264 or HEVC, up to 8Mbps main stream bitrate, 2Mbps sub stream |
| Audio Encoding | 2-channel AAC, 48kHz 16-bit; up to 16-channel SDI-embedded audio input |
| Streaming Protocols | RTMP, RTMPS, RTSP; native Facebook, Twitch and YouTube support; up to 2 sessions simultaneously |
| Recording | MP4 or MOV to internal 32GB storage, USB flash drive, or paired smartphone |
| Network | 10/100/1000Mbps Ethernet, Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.0 BLE, optional 3G/4G USB modem |

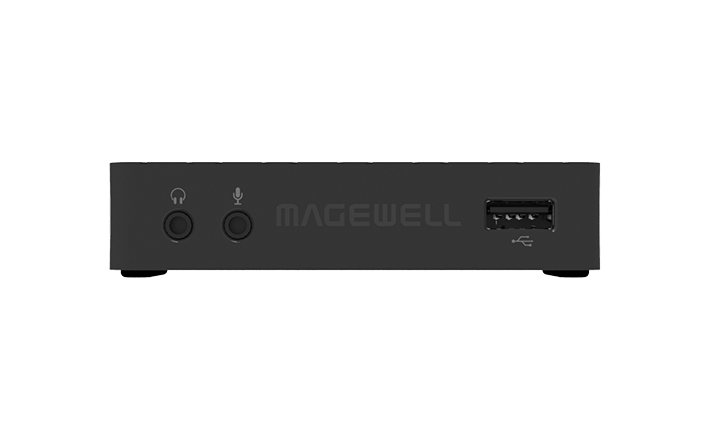

| Audio I/O | 3.5mm analogue microphone input, 3.5mm headphone output |
| Control | On-device buttons, smartphone app, Web UI, HTTP API |
| Form Factor | 94.2 x 94.2 x 22.3 mm |
| Power Consumption | DC 5V/2A, max ~7.2W |
| Operating Temperature | 0 to 40°C |
Compatibility
The Ultra Stream SDI works with any SD/HD/3G-SDI source device and streams directly to major platforms or your own server infrastructure, no computer required.
Compatible Source Devices
- Broadcast and production cameras with SDI output
- Hardware video switchers and mixers with SDI output
- Media servers and playback devices with SDI output
Compatible Streaming Destinations
- Facebook Live, YouTube and Twitch (native support)
- Any custom RTMP or RTMPS server or CDN
- RTSP-compatible receiving systems
