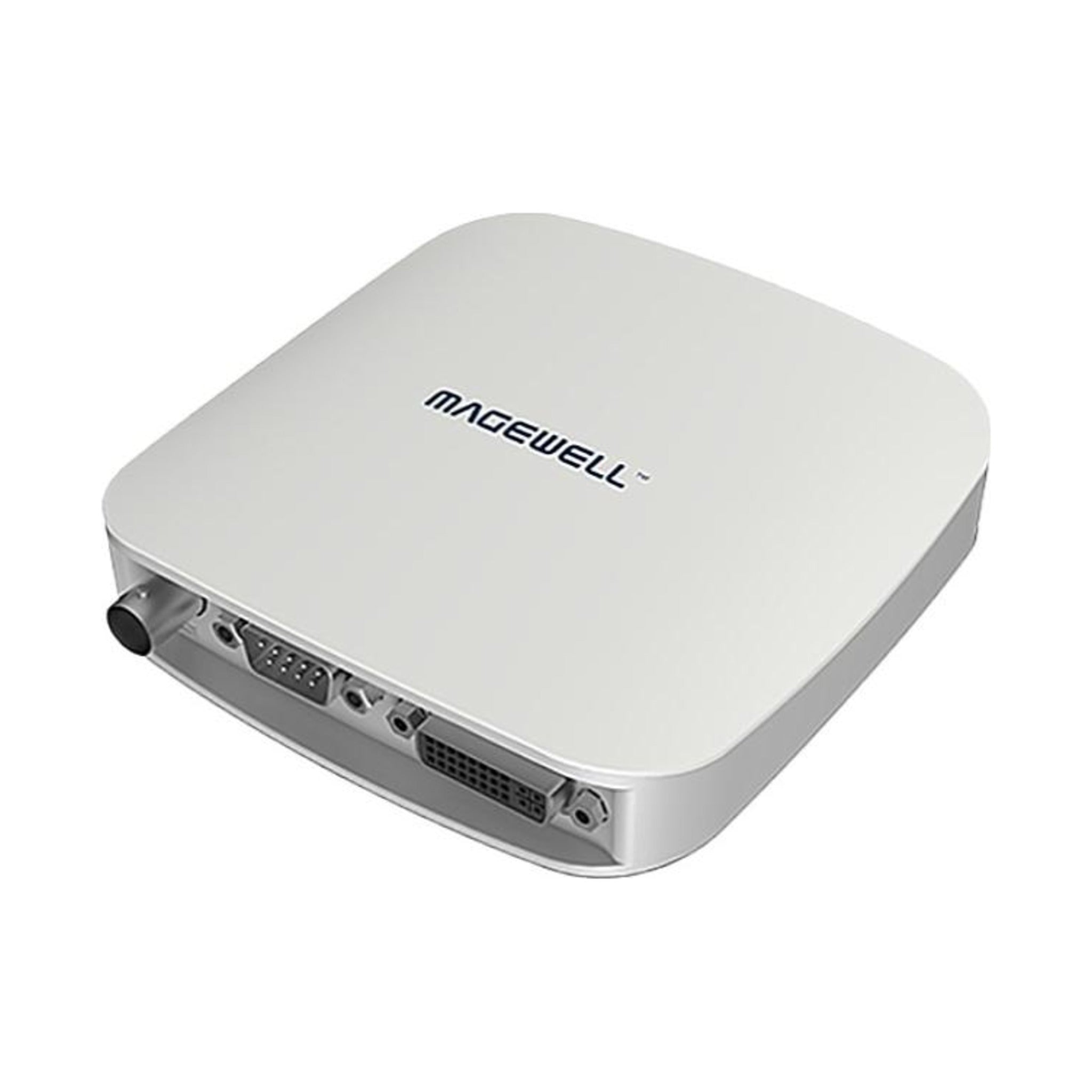

The Magewell USB Capture AIO is the "just get it in" solution for mixed-signal environments — one box that accepts HDMI, SDI, VGA, DVI, component, S-video and composite, and turns whatever you plug in into a clean USB feed for your Mac or PC. If your setup involves legacy AV equipment alongside modern sources, this is the single device that replaces a shelf of individual converters.
Built around Magewell's FPGA capture pipeline, the AIO captures up to 2048x2160 resolution with hardware scaling, de-interlacing and format conversion handled entirely on-device — no CPU load, no dropped frames from an overworked processor. HDMI input takes up to 2048x1080 at 60fps with 8-channel embedded audio at 192kHz, while the SDI input covers SD/HD/3G-SDI up to the same resolution with embedded audio. The VGA, DVI, component, S-video and composite inputs round it out for classrooms, lecture capture, hybrid meeting rooms, and any environment where you can't guarantee what cable someone's going to show up with.
It's genuinely all-in-one: the box ships with a DVI-to-VGA adapter, a DVI-I to HDMI + component breakout, and a DB9 to YC + composite + analog audio + component breakout, so you're covered for practically any legacy or modern signal without hunting down extra cables. Bus-powered over USB 3.0 (backward compatible with USB 2.0), driver-free on Windows, macOS, Linux and Chrome OS, and works natively with OBS, Teams, Zoom Rooms and any DirectShow/V4L2/AVCaptureSession application.
Key Features
- Universal input: HDMI, SD/HD/3G-SDI, VGA, DVI, component, S-video, composite
- HDMI input up to 2048x1080 @ 60fps 4:4:4 with 8-channel embedded audio at 192kHz
- SDI input up to 2048x1080 @ 60fps 4:2:2 10-bit with embedded audio
- Capture resolutions up to 2048x2160, frame rates up to 120fps
- Up to 160 Mpixels/s FPGA processing — hardware scaling and de-interlacing, zero CPU load
- 12-bit ADC for VGA/component with support for DMT, CEA, CVT, GTF timings
- Auto-detects NTSC, PAL and SECAM for S-video and composite sources
- Driver-free plug-and-play on Mac, Windows, Linux and Chrome OS
- Bus-powered via USB — no external power supply required
- Includes DVI-to-VGA, DVI-I to HDMI+component, and DB9 breakout adapters
What's in the Box
- Magewell USB Capture AIO x1
- USB 3.0 cable (101.5cm) x1
- DVI to VGA connector x1
- DVI-I to HDMI + Component breakout cable x1
- DB9 to YC + Composite + Analog Audio + Component breakout cable x1
Product Q&A
Q: What signal types does this actually support?
A: HDMI (via DVI-I port with the included breakout), SD/HD/3G-SDI (via BNC), VGA (via the included DVI-to-VGA adapter), DVI, component video, S-video, and composite video. It covers essentially every consumer and professional analog/digital video standard in one device.
Q: Can I capture two sources at once?
A: No, the AIO captures one input at a time — you select the active source in the USB Capture Utility or your capture software. It's built for flexibility across different equipment, not simultaneous multi-source capture.
Q: Does it work with old S-video or composite sources like VHS players?
A: Yes. It auto-detects NTSC, PAL, and SECAM standards for S-video and composite inputs via the included DB9 breakout cable, making it suitable for digitising legacy analog equipment.
Q: Is it compatible with Mac?
A: Yes. Fully driver-free on macOS 10.9 and above, including Apple Silicon Macs, via AVCaptureSession.
Q: Does it need external power?
A: No. It's bus-powered entirely from a USB 3.0 port, drawing a maximum of around 5W.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 32110 |
| SKU | 321100000 |

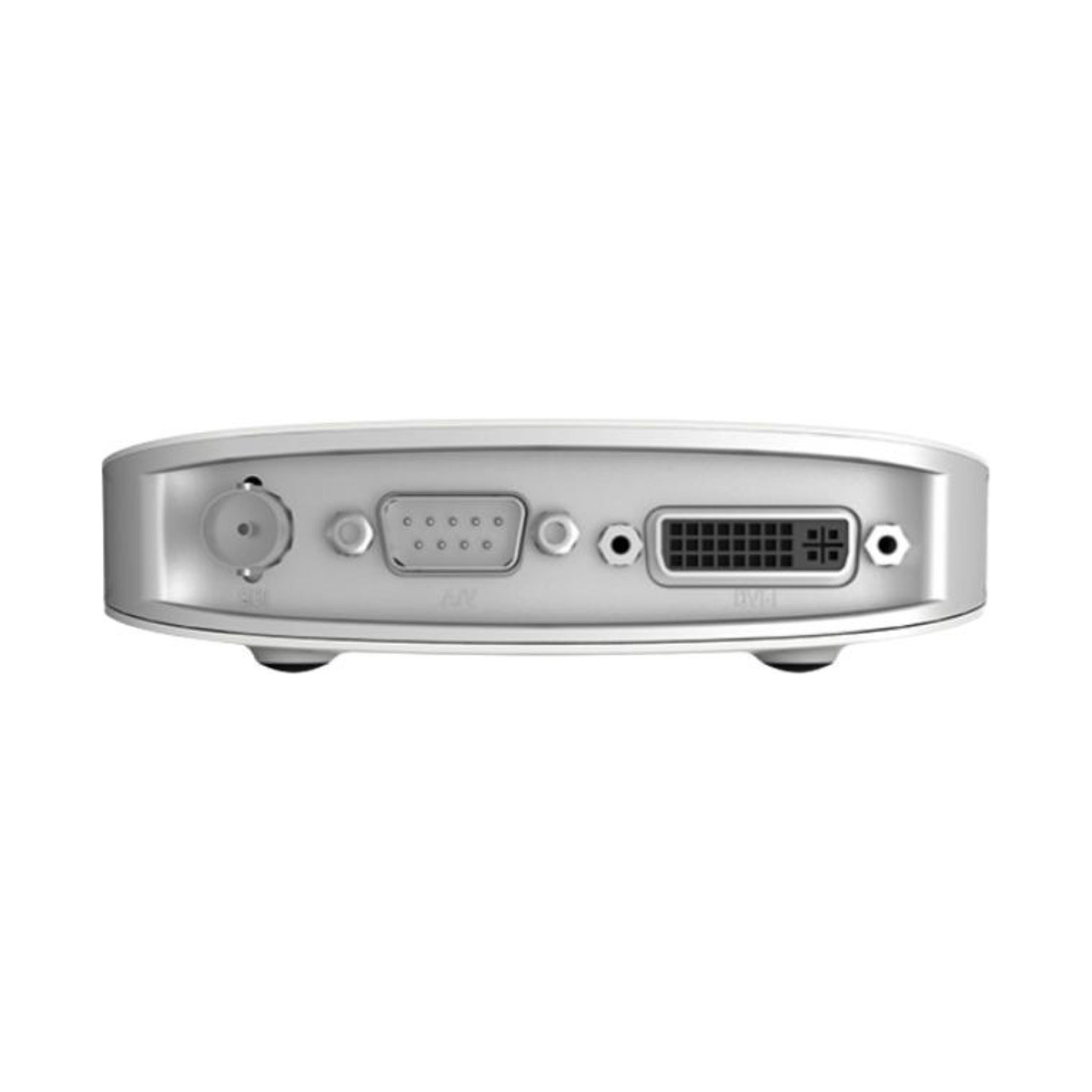

| Input Interfaces | DVI-I (HDMI/DVI/VGA/Component via adapters), BNC SD/HD/3G-SDI, DB9 (S-video/Composite/Component/Analog audio) |
| Max HDMI Input | 2048x1080 @ 60fps 4:4:4 |
| Max SDI Input | 2048x1080 @ 60fps 4:2:2 10-bit |
| Max Capture Resolution | 2048x2160, frame rates up to 120fps |
| Processing Bandwidth | ~160 Mpixels/s (FPGA-based, 0% CPU usage) |
| Audio Input (HDMI) | Up to 8-channel 24-bit embedded audio at 192kHz |
| Audio Input (SDI) | Up to 8-channel embedded audio, captured at 48kHz |
| Analog Video Support | VGA, component, S-video, composite (NTSC/PAL/SECAM auto-detect) |

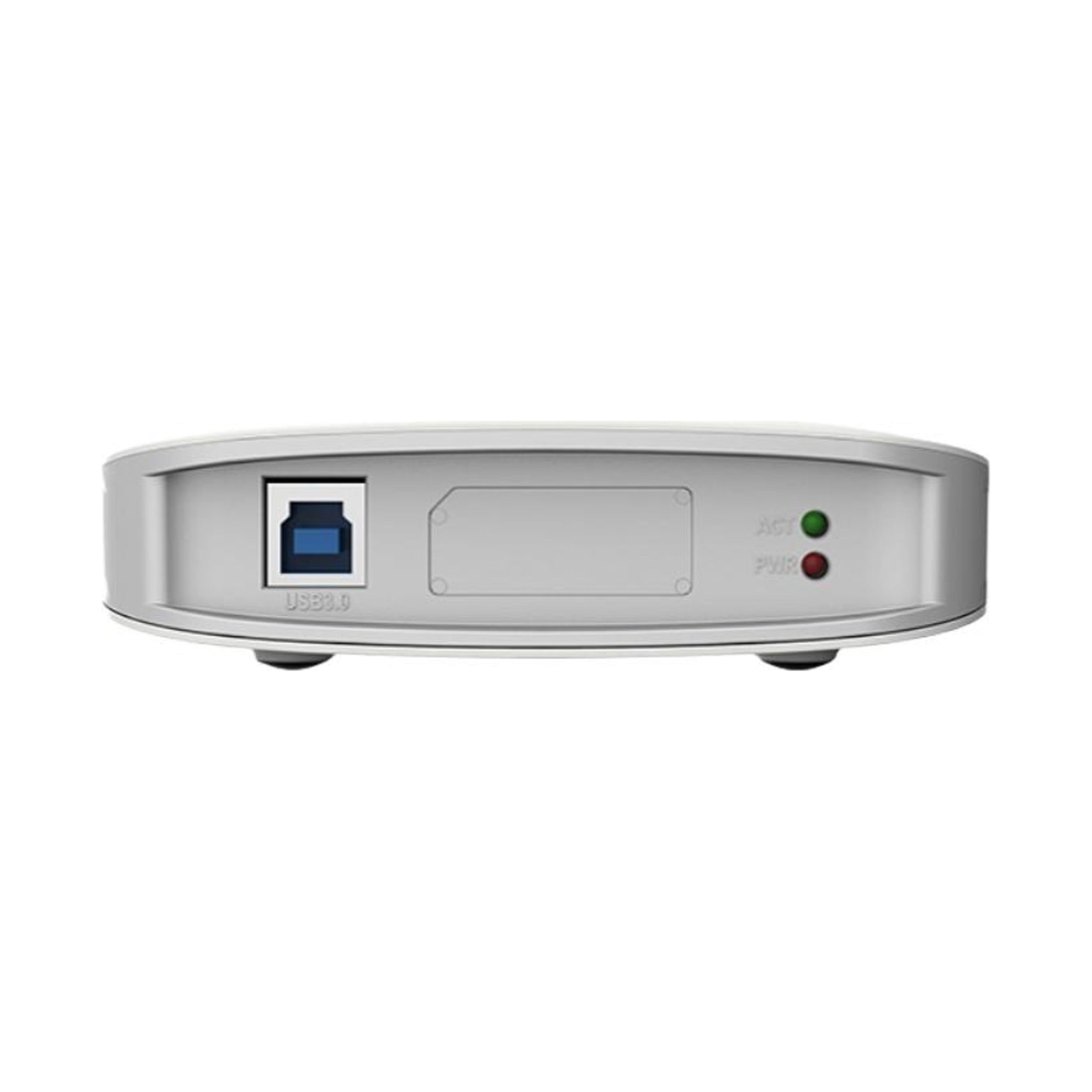

| Host Interface | USB 3.0 (compatible with USB 2.0 and USB 3.1 Gen 1) |
| Compatible OS | Windows 10/11, Linux (kernel 2.6.35+), macOS 10.9+, Chrome OS |
| Compatible Software | OBS Studio, Zoom Rooms, Microsoft Teams, QuickTime, XSplit, VLC, GStreamer |
| Form Factor | 116 x 116 x 32mm |
| Power Consumption | Max ~5W (bus-powered via USB) |
| Operating Temperature | 0 to 45°C |
| Warranty | 2 years |
Compatibility
The Magewell USB Capture AIO is designed for mixed-signal environments where source equipment varies — classrooms, lecture halls, hybrid meeting rooms, and legacy AV integration.
Compatible Source Devices
- HDMI sources: laptops, cameras, media players, set-top boxes
- SDI sources: broadcast cameras, production switchers
- VGA/DVI sources: older laptops, projectors, desktop PCs
- Component/S-video/composite sources: DVD players, VHS decks, legacy AV equipment
Compatible Operating Systems
- Windows 10/11 and Windows Server 2016/2019/2022/2025
- macOS 10.9 (Mavericks) and above, including Apple Silicon
- Linux x86, x64 and ARM (kernel 2.6.35 and above)
- Chrome OS
