Key Features
Compatibility
Product Description

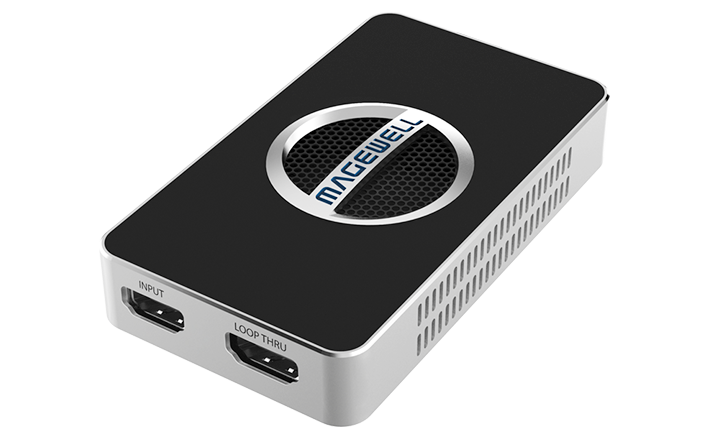

The Magewell USB Capture HDMI 4K Plus takes everything the HDMI Plus does and adds genuine 4K capture output. Where the standard Plus accepts 4K input but outputs at 2K, the 4K Plus captures all the way up to 4096x2160 — so what goes in comes out, at full resolution. For 4K content creators, educators recording in 4K, or production environments where resolution integrity matters, this is the right device.
The 600MHz HDMI receiver handles HDMI 2.0 signals at full bandwidth — 4Kp60 4:4:4 on input and loop-through, with 4K30 capture output over USB 3.0. The FPGA processing engine delivers ~640 Mpixels/s bandwidth — four times the HDMI Plus — handling all scaling, de-interlacing, and format conversion without touching your CPU. The same plug-and-play simplicity applies: connect, and your software sees it instantly.
Same compact form factor as the HDMI Plus. Same broad OS and software compatibility. Same bus-powered USB operation. Just significantly more resolution headroom and processing power under the hood.
Key Features

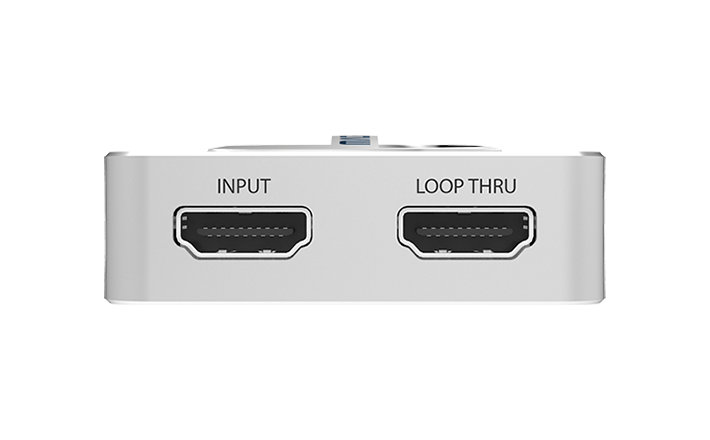

- HDMI 2.0 input up to 4096x2160 @ 60fps 4:4:4
- HDMI loop-through at full 4K60 4:4:4
- 4K capture output up to 4096x2160 @ 30fps via USB 3.0
- ~640 Mpixels/s FPGA processing — 4x the bandwidth of the HDMI Plus
- Up to 8-channel 24-bit HDMI-embedded audio at 192kHz

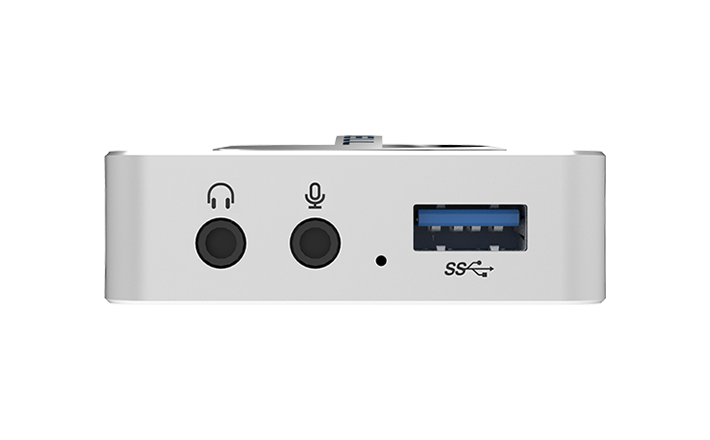

- 3.5mm mic input and headphone output
- Driver-free plug-and-play on Mac, Windows, Linux and Chrome OS
- Compatible with OBS Studio, Zoom Rooms, Teams, QuickTime, XSplit and more
- Bus-powered via USB — no external power required
- 3-year warranty
What's in the Box
- Magewell USB Capture HDMI 4K Plus x1
- USB 3.0 cable (63cm) x1
Product Q&A
Q: What is the difference between the HDMI Plus and the HDMI 4K Plus?
A: The key difference is capture output resolution. The HDMI Plus accepts 4K input but can only capture up to 2K — it downscales automatically. The HDMI 4K Plus can capture the full 4K signal, up to 4096x2160 at 30fps. If you need to archive or stream at 4K, the 4K Plus is the right choice. For 1080p streaming and recording, the standard HDMI Plus is sufficient and more affordable.
Q: Does it capture 4K at 60fps?
A: The HDMI input and loop-through support 4K60 at full 4:4:4 quality. Capture output via USB 3.0 is limited to 4K30 — the bandwidth of USB 3.0 (5Gbps) is the constraint. For 4K60 capture output, you need the HDMI 4K Pro which uses USB 3.2 Gen 2x2 at 20Gbps.
Q: Does it work with Mac?
A: Yes — fully compatible with macOS 10.9 and above on both Intel and Apple Silicon. No drivers required. Works natively via AVCaptureSession with QuickTime, OBS Studio, Zoom Rooms and any other capture application.
Q: Can I use this for video conferencing alongside 4K recording?
A: Yes. The device presents as a standard USB webcam/capture device, so it works simultaneously with conferencing software and recording applications. Most systems will need you to select it as the camera source in each application.
Q: Does it require external power?
A: No. Bus-powered via USB — draws up to 7W from your USB 3.0 port. No separate power supply needed.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 32090 |
| SKU | 320900000 |
| Input Interface | HDMI 2.0 (DVI-D compatible) |
| Max Input Resolution | 4096x2160 @ 60fps 4:4:4 |
| Loop-through | HDMI loop-through at 4096x2160 @ 60fps 4:4:4 |
| Max Capture Resolution | 4096x2160 @ 30fps |
| Capture Output at 1080p | 1920x1080p up to 60fps |
| Processing Bandwidth | ~640 Mpixels/s (FPGA-based, 0% CPU usage) |
| Audio Input | Up to 8-channel 24-bit HDMI embedded audio at 192kHz; 3.5mm mic input |
| Audio Output | 3.5mm headphone output |
| Host Interface | USB 3.0 (compatible with USB 2.0) |
| Compatible OS | Windows 10/11, Linux (kernel 2.6.35+), macOS 10.9+, Chrome OS |
| Compatible Software | OBS Studio, Zoom Rooms, Microsoft Teams, QuickTime, XSplit, VLC, GStreamer |
| Form Factor | 98.1 x 56.8 x 17 mm |
| Power Consumption | Max ~7W (bus-powered via USB) |
| Operating Temperature | 0 to 45°C |
| Warranty | 3 years |
Compatibility
The Magewell USB Capture HDMI 4K Plus is compatible with any HDMI 2.0 source device. Driver-free operation on all major operating systems.
Compatible Source Devices
- 4K cameras and camcorders with HDMI 2.0 output
- Gaming consoles with 4K HDMI output (PS5, Xbox Series X)
- Hardware video switchers and mixers with HDMI 2.0 output
- Laptops and computers with HDMI 2.0 output
- 4K media players and set-top boxes
Compatible Operating Systems
- Windows 10/11 and Windows Server 2016/2019/2022/2025
- macOS 10.9 (Mavericks) and above, including macOS Sonoma and Sequoia
- Linux x86, x64 and ARM (kernel 2.6.35 and above)
- Chrome OS
