The Magewell USB Capture HDMI 4K Pro is the top of the HDMI capture range — the device you reach for when 4K30 isn't fast enough. Using USB 3.2 Gen 2x2 (20Gbps), it doubles the available bandwidth over standard USB 3.0, enabling 4K60 capture at full 4:4:4 colour. For live production teams, broadcast engineers, and professional content creators who need the absolute maximum from an HDMI capture device, this is it.
The 4K Pro shares the same 600MHz HDMI 2.0 receiver and ~700 Mpixels/s FPGA processing engine, but the USB connection is fundamentally different. While the 4K Plus tops out at 4K30 due to USB 3.0 bandwidth limits, the 4K Pro's USB 3.2 Gen 2x2 interface provides enough headroom for 4096x2160 at 60fps — capturing what you see on screen without any frame rate compromise. It includes both USB-C to USB-C and USB-C to USB-A cables, plus an HDMI cable, so you can connect to modern USB-C ports or legacy USB-A hosts.
Same plug-and-play driver-free operation. Same broad software compatibility. Same HDMI loop-through. Just no compromise on capture frame rate.
Key Features
- 4K60 capture output at full 4:4:4 quality — no frame rate compromise
- USB 3.2 Gen 2x2 (20Gbps) — double the bandwidth of USB 3.0

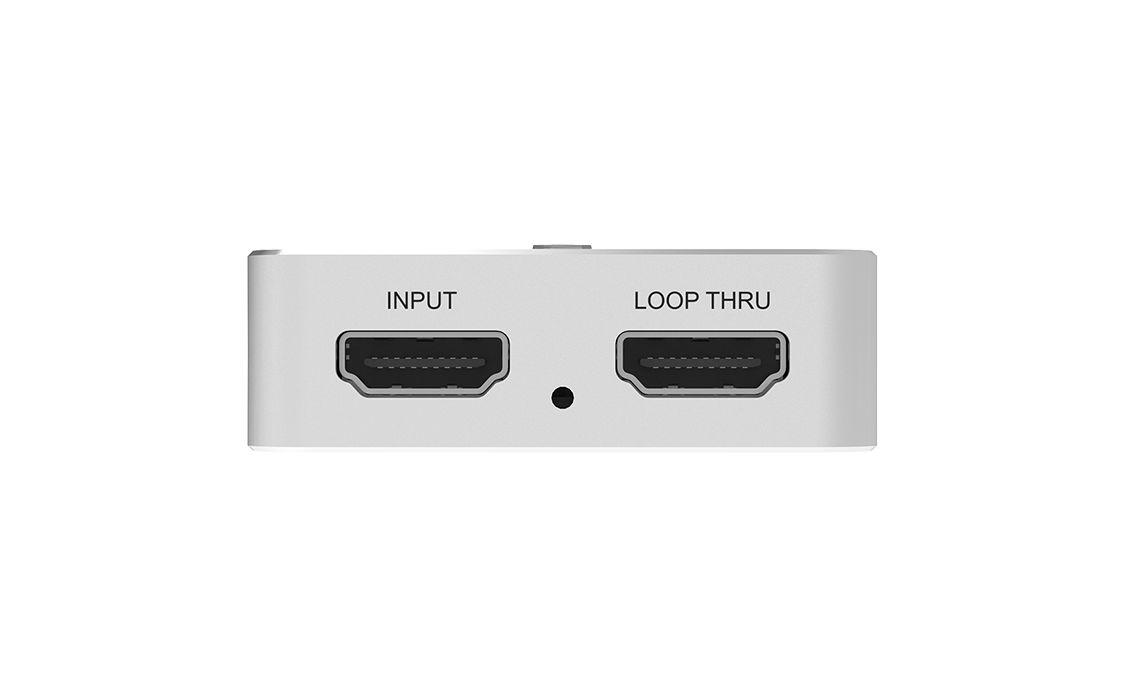

- HDMI 2.0 input and loop-through up to 4096x2160 @ 60fps 4:4:4
- ~700 Mpixels/s FPGA processing bandwidth
- Up to 10-bit colour depth capture
- Up to 8-channel 24-bit HDMI-embedded audio at 192kHz

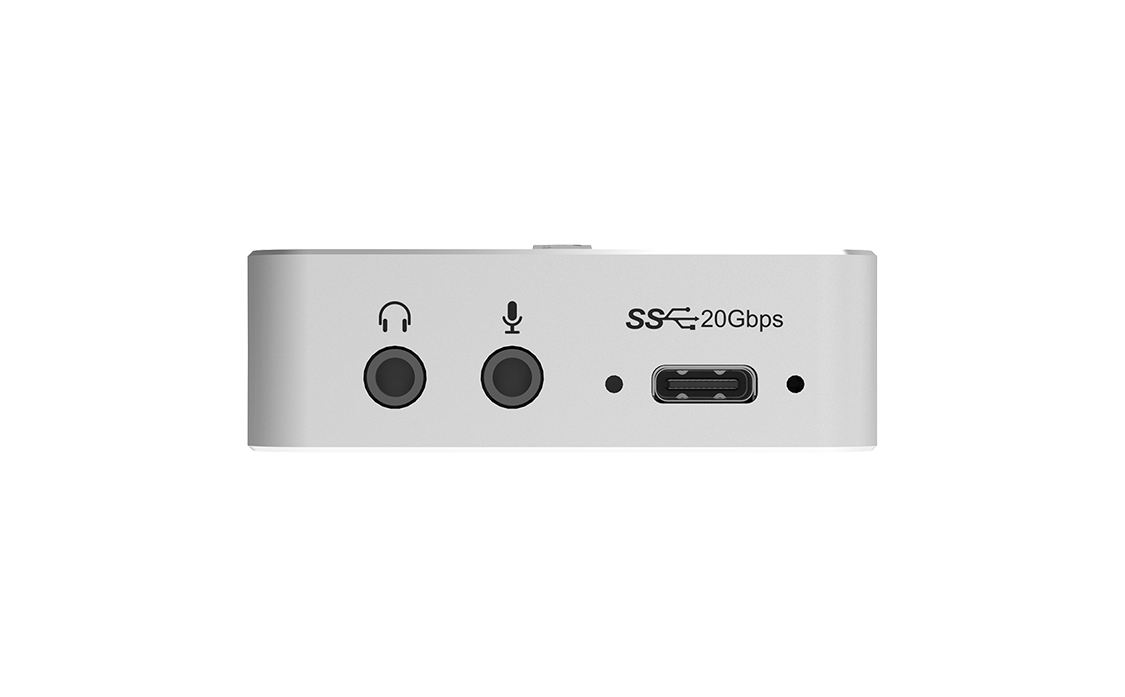

- 3.5mm mic input and headphone output
- Driver-free plug-and-play on Mac, Windows, Linux and Chrome OS
- Includes USB-C to USB-C cable, USB-C to USB-A cable, and HDMI cable
- 3-year warranty
What's in the Box
- Magewell USB Capture HDMI 4K Pro x1
- USB 3.2 Type-C to Type-C cable (80cm) x1
- USB 3.2 Type-C to Type-A cable (80cm) x1
- HDMI cable x1
Product Q&A
Q: What is the difference between the HDMI 4K Plus and the HDMI 4K Pro?
A: The 4K Pro uses USB 3.2 Gen 2x2 (20Gbps) instead of USB 3.0 (5Gbps). This doubles the available bandwidth, enabling 4K60 capture output versus the 4K Plus's 4K30 limit. If you need to capture 4K at 60fps — for high-frame-rate live events, esports, or broadcast production — the 4K Pro is the only choice in this range. For 4K30 or lower frame rates, the 4K Plus is fully sufficient and more affordable.
Q: Does my computer need a USB 3.2 Gen 2x2 port to use this?
A: For 4K60 capture, yes — you need a USB 3.2 Gen 2x2 port (Thunderbolt 3/4 ports also work, as they are backwards compatible). If connected to a standard USB 3.0 or USB 3.1 port, the device will still work but capture frame rate will be limited, similar to the 4K Plus. Most modern Mac and PC laptops from 2021 onwards have Thunderbolt/USB 3.2 ports.
Q: Does it work with Apple Silicon Macs?
A: Yes. Fully compatible with all Apple Silicon Macs (M1, M2, M3, M4) on macOS 10.12 and above. No drivers needed — recognised natively via AVCaptureSession.
Q: Is the HDMI loop-through also at 4K60?
A: Yes. The HDMI loop-through passes the full 4096x2160 @ 60fps 4:4:4 signal to your display — identical to the input. There is no quality loss through the loop-through.
Q: Does it require external power?
A: No. The 4K Pro is bus-powered via USB, drawing approximately 7.2W. No external power supply is required.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 32150 |
| SKU | 321500000 |
| Input Interface | HDMI 2.0 (DVI-D compatible) |
| Max Input Resolution | 4096x2160 @ 60fps 4:4:4 |
| Loop-through | HDMI loop-through at 4096x2160 @ 60fps 4:4:4 |
| Max Capture Resolution | 4096x2160 @ 60fps (4:4:4, 10-bit) |
| Capture Output at 1080p | 1920x1080p up to 60fps |
| Processing Bandwidth | ~700 Mpixels/s (FPGA-based, 0% CPU usage) |
| Colour Depth | Up to 10-bit |
| Audio Input | Up to 8-channel 24-bit HDMI embedded audio at 192kHz; 3.5mm mic input |
| Audio Output | 3.5mm headphone output |
| Host Interface | USB 3.2 Gen 2x2 (20Gbps, USB-C) |
| Compatible OS | Windows 10/11, Linux (kernel 2.6.35+), macOS 10.12+, Chrome OS |
| Compatible Software | OBS Studio, Zoom Rooms, Microsoft Teams, QuickTime, XSplit, VLC, GStreamer |
| Form Factor | 98.1 x 56.8 x 18 mm |
| Power Consumption | Max ~7.2W (bus-powered via USB) |
| Operating Temperature | 0 to 45°C |
| Included Cables | USB-C to USB-C (80cm), USB-C to USB-A (80cm), HDMI cable |
| Warranty | 3 years |
Compatibility
The Magewell USB Capture HDMI 4K Pro requires a USB 3.2 Gen 2x2 or Thunderbolt port for maximum 4K60 capture performance. Compatible with any HDMI 2.0 source.
Compatible Source Devices
- 4K60 cameras and camcorders with HDMI 2.0 output
- Gaming consoles with 4K60 HDMI output (PS5, Xbox Series X)
- Professional broadcast cameras and hardware switchers
- Laptops and computers with HDMI 2.0 output
Compatible Operating Systems
- Windows 10/11 and Windows Server 2016/2019/2022/2025
- macOS 10.12 and above, including macOS Sonoma and Sequoia (Apple Silicon and Intel)
- Linux x86, x64 and ARM (kernel 2.6.35 and above)
- Chrome OS
