The Magewell USB Capture SDI Gen 2 is the simplest way to bring an SDI signal into any Mac or PC over USB. It's the entry point into Magewell's SDI capture range — smaller, lighter, and more affordable than the SDI Plus, built for anyone who needs reliable SDI-to-USB capture without paying for features they won't use.
Connect any SD-SDI, HD-SDI, or 3G-SDI source — broadcast cameras, production switchers, distribution amps — via the locking BNC connector, and the signal is recognised instantly on Windows, macOS, Linux or Chrome OS. No drivers, no install, no fuss. SDI's biggest advantage over HDMI is reach: this device supports cable runs up to 150m at 3G-SDI, so you're not limited to a few metres like a typical HDMI lead.

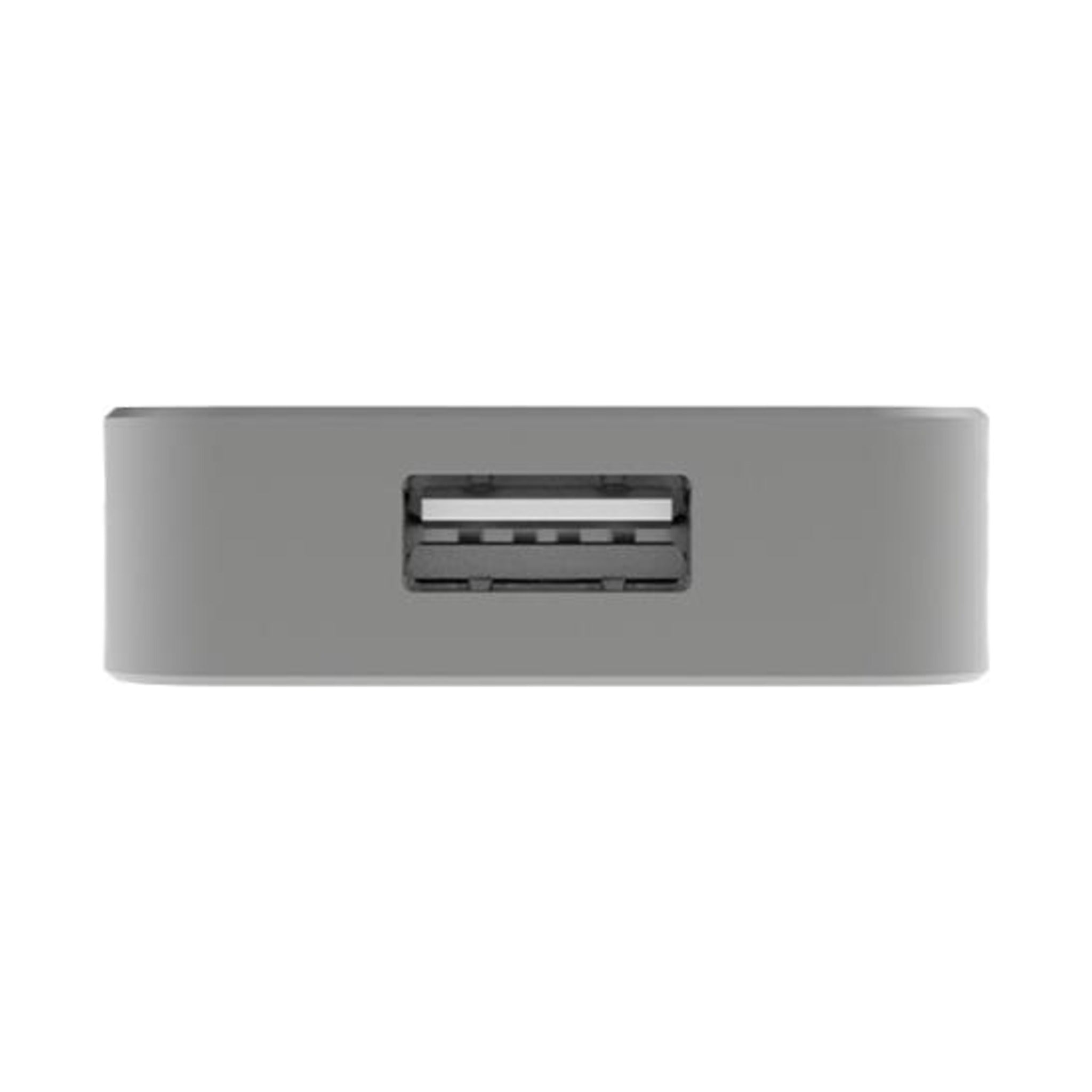

All video and audio processing happens on the onboard FPGA, not your CPU, so capture is smooth even on modest machines. Bus-powered entirely over USB 3.0 (backward compatible with USB 2.0), it's genuinely plug-and-play with OBS Studio, Zoom Rooms, Microsoft Teams, VLC, QuickTime and any other DirectShow/V4L2/AVCaptureSession-based software.
Key Features
- SD/HD/3G-SDI input up to 2048x1080 @ 60fps 4:2:2 10-bit
- Supports SD-SDI (ST 259), HD-SDI (ST 292), and 3G-SDI (ST 425) standards
- SDI cable runs up to 150m at 3G-SDI signal
- Up to 160 Mpixels/s FPGA processing — zero CPU usage
- Up to 8-channel embedded SDI audio, 2 channels captured at 48kHz
- Compact dongle form factor — 92.2 x 40.2 x 12.3mm
- Driver-free plug-and-play on Mac, Windows, Linux and Chrome OS
- Locking BNC input connector — broadcast-grade, won't pull out mid-recording
- Bus-powered via USB — no external power supply required
- Compatible with OBS, Teams, Zoom Rooms, QuickTime, XSplit, VLC, GStreamer
What's in the Box
- Magewell USB Capture SDI Gen 2 x1
- USB 3.0 cable (63cm) x1
- MCX to BNC cable (33cm) x1
Product Q&A
Q: What's the difference between this and the USB Capture SDI Plus?
A: The SDI Gen 2 is Magewell's entry-level SDI capture device — smaller, lighter, and without the 3.5mm audio line I/O or BNC loop-through of the SDI Plus. If you just need to get an SDI signal into your computer, the Gen 2 covers it. If you need loop-through to a monitor or mixed analog/embedded audio, step up to the SDI Plus.
Q: Does this support 4K SDI capture?
A: No. Maximum input resolution is 2048x1080 (2K) via 3G-SDI. For 12G-SDI 4K capture, you'd need the USB Capture SDI 4K Pro.
Q: Is it compatible with Mac?
A: Yes. Fully driver-free on macOS 10.9 and above, including Apple Silicon Macs, via AVCaptureSession.
Q: Does it need external power?
A: No. It's fully bus-powered from a single USB 3.0 port, drawing a maximum of around 2.5W.
Q: What cable comes included for connecting to my SDI source?

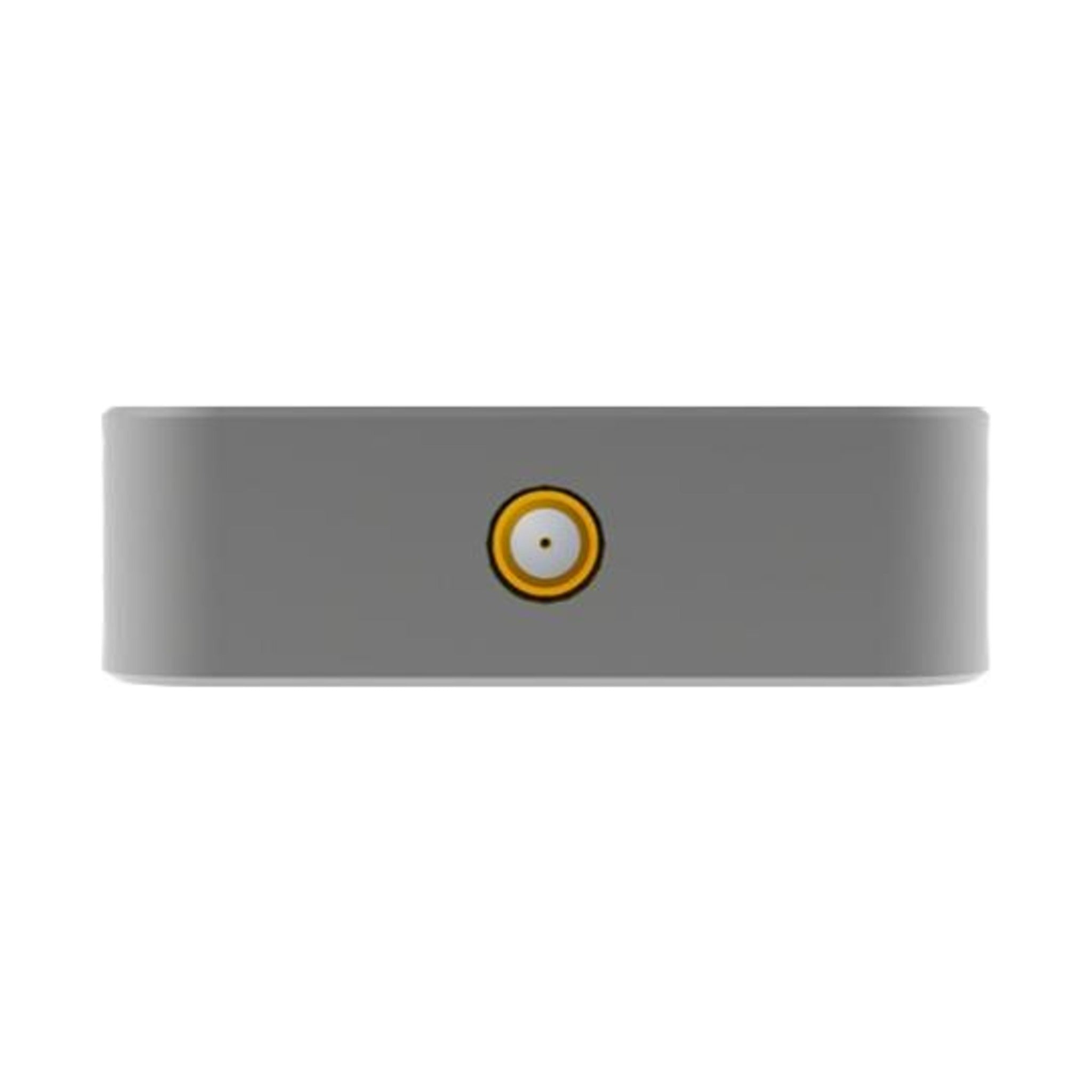

A: The box includes an MCX to BNC cable (33cm), which connects the device's compact MCX port to a standard BNC SDI cable or source.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 32070 |
| SKU | 320700000 |
| Input Interface | SD/HD/3G-SDI (via included MCX to BNC cable) |
| SDI Standards | SD (ST 259), HD (ST 292), 3Ga/3Gb-DL/3Gb-DS (ST 425) |
| Max Input Resolution | 2048x1080 @ 60fps 4:2:2 10-bit |
| Max Capture Resolution | 1920x1080p, frame rates up to 120fps |
| Max SDI Cable Run | Up to 150m (3G-SDI signal) |
| Processing Bandwidth | ~160 Mpixels/s (FPGA-based, 0% CPU usage) |
| Audio Input | Up to 8-channel embedded SDI audio; 2 channels captured at 48kHz |
| Host Interface | USB 3.0 (compatible with USB 2.0 and USB 3.1 Gen 1) |
| Compatible OS | Windows 10/11, Linux (kernel 2.6.35+), macOS 10.9+, Chrome OS |
| Compatible Software | OBS Studio, Zoom Rooms, Microsoft Teams, QuickTime, XSplit, VLC, GStreamer |
| Form Factor | 92.2 x 40.2 x 12.3mm |
| Power Consumption | Max ~2.5W (bus-powered via USB) |
| Operating Temperature | 0 to 50°C |
| Warranty | 2 years |
Compatibility
The Magewell USB Capture SDI Gen 2 works with any SD-SDI, HD-SDI, or 3G-SDI source device, and is driver-free on all major operating systems.
Compatible Source Devices
- Broadcast cameras with SDI output (Sony, Canon, Blackmagic, JVC)
- Live production switchers with SDI output (Blackmagic ATEM, Roland, NewTek)
- SDI distribution amplifiers and routers
- Any SD-SDI, HD-SDI, or 3G-SDI source device
Compatible Operating Systems
- Windows 10/11 and Windows Server 2016/2019/2022/2025
- macOS 10.9 (Mavericks) and above, including Apple Silicon
- Linux x86, x64 and ARM (kernel 2.6.35 and above)
- Chrome OS
