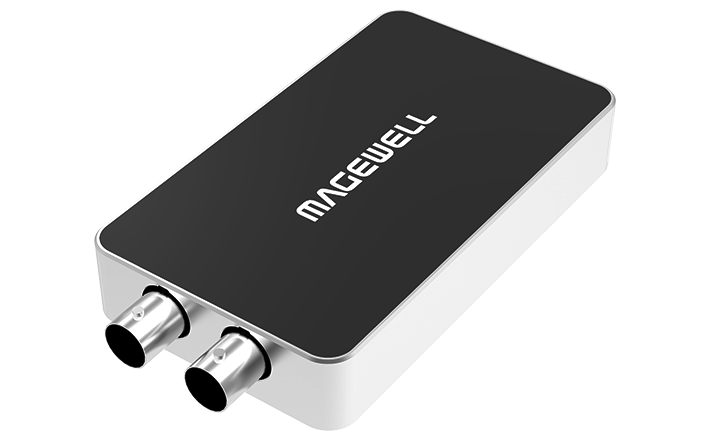

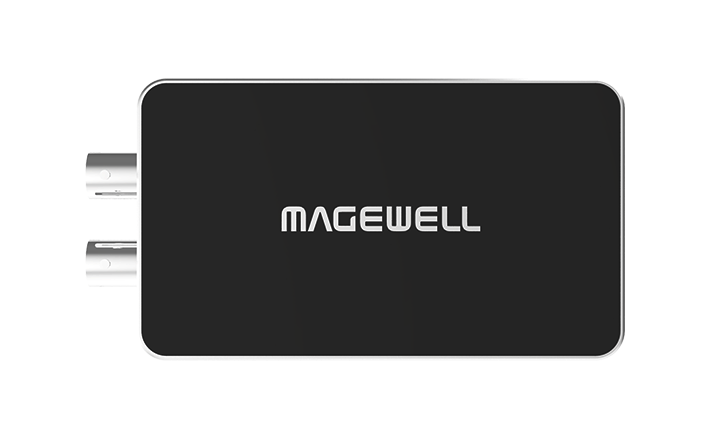

Magewell USB Capture SDI Plus

The Magewell USB Capture SDI Plus brings professional SDI capture to any computer via USB 3.0. If you're working with broadcast cameras, professional video switchers, or any SDI-based production equipment, this is the bridge between your professional signal chain and your Mac or PC. Plug it in, connect your SDI source, and it's recognised instantly — no drivers, no configuration, no fuss.

SDI is the signal standard of professional broadcast: more robust than HDMI over long cable runs, with embedded audio and a locking BNC connector that doesn't fall out mid-recording. The USB Capture SDI Plus handles SD, HD, and 3G-SDI signals up to 2048x1080 at 60fps, covers all standard broadcast frame rates, and passes the signal through to downstream SDI equipment via its BNC loop-through output. A 3.5mm line input lets you mix in analog audio from a mixer or other source alongside the SDI-embedded audio.

Same FPGA processing architecture as the HDMI Plus — zero CPU overhead, with full scaling, de-interlacing, and format conversion handled on-device. Works on Mac, Windows, Linux and Chrome OS with OBS, Teams, Zoom Rooms, QuickTime and any other DirectShow/V4L2/AVCaptureSession application.

Key Features

• 3G-SDI input up to 2048x1080 @ 60fps 4:2:2 10-bit

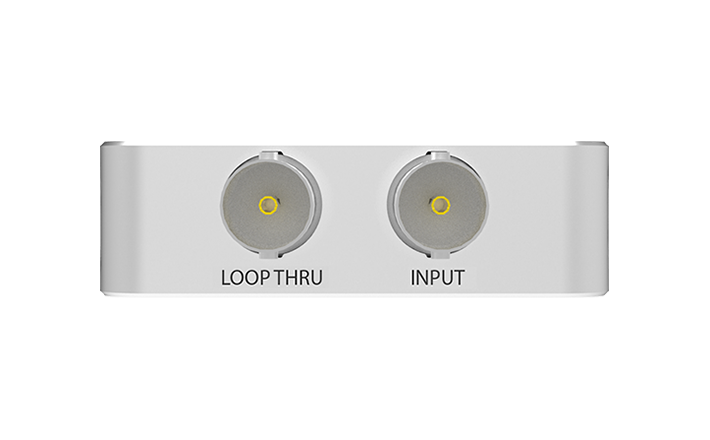

• SDI BNC loop-through — passes signal downstream to other SDI equipment
• Supports SD-SDI (ST 259), HD-SDI (ST 292), and 3G-SDI (ST 425) standards
• SDI cable runs up to 150m at 3G-SDI signal
• ~160 Mpixels/s FPGA processing — zero CPU usage
• Up to 8-channel embedded SDI audio

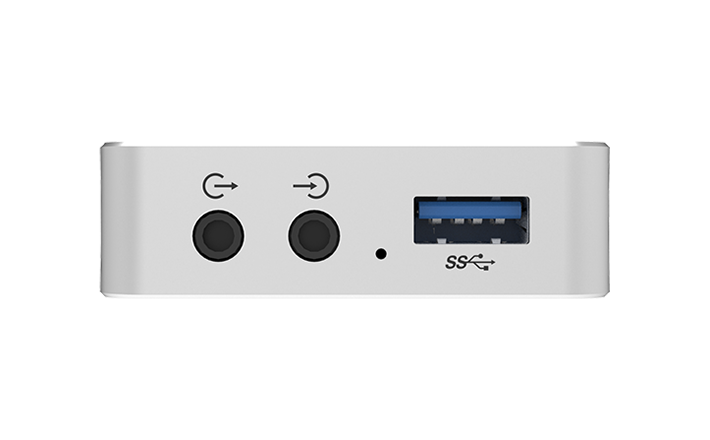

• 3.5mm line input for analog audio
• Driver-free plug-and-play on Mac, Windows, Linux and Chrome OS
• BNC input connector — locking, broadcast-grade
• Bus-powered via USB — no external power required
• 3-year warranty

What's in the Box

• Magewell USB Capture SDI Plus x1
• USB 3.0 cable (63cm) x1
