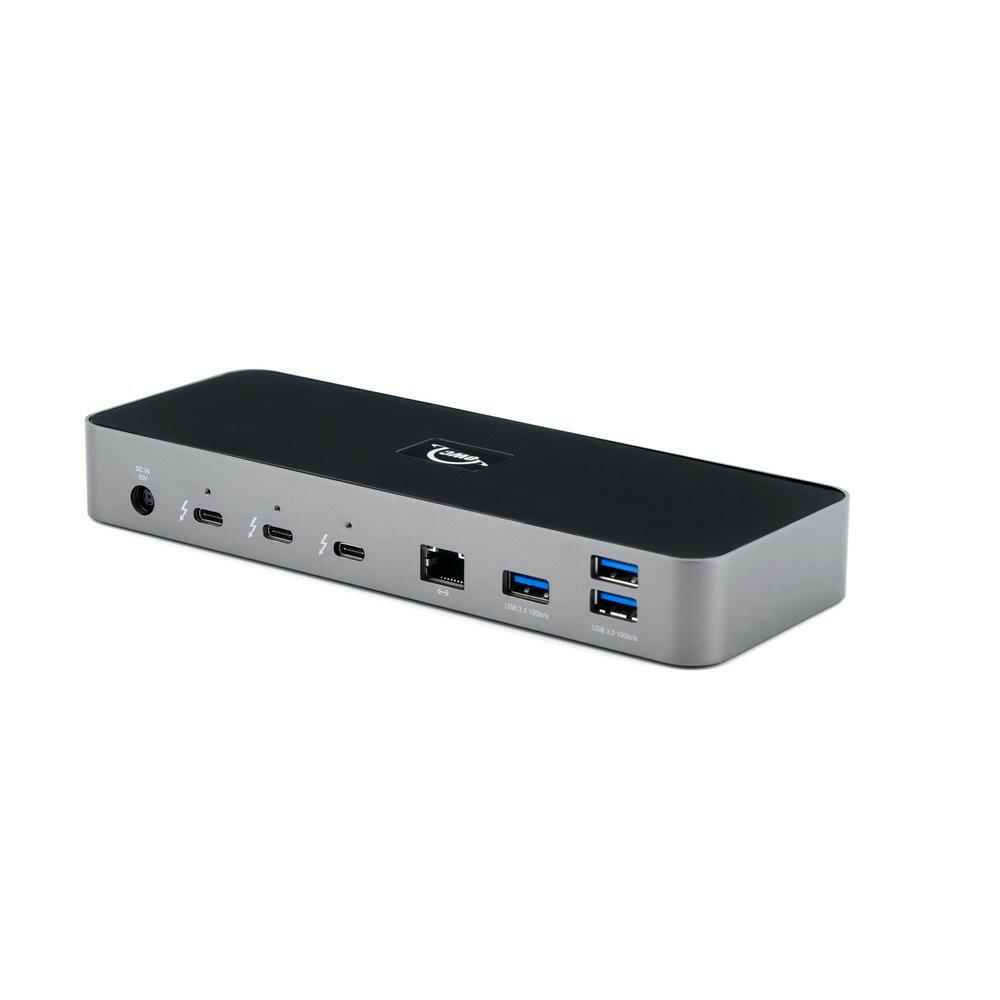

OWC 11-Port Thunderbolt 4 Dock – Ultimate Connectivity with 96W Power Delivery and Dual 4K Display Support

• Memory Card Slots:
• (1) SD
• Power Delivery:
• Thunderbolt 4 host port provides up to 96W of power to the host computer.

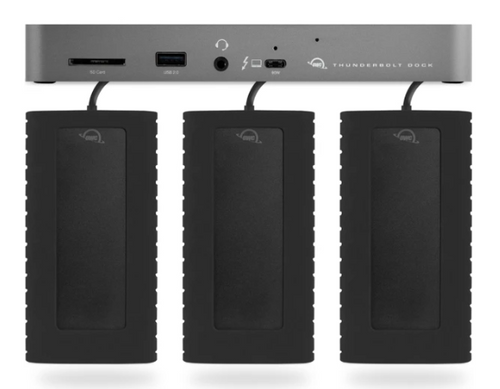

• Thunderbolt 4 device ports (for external drives and other devices) provide 15W of power.
• USB port provides up to 1.5A of power for bus-powered drives and device charging.

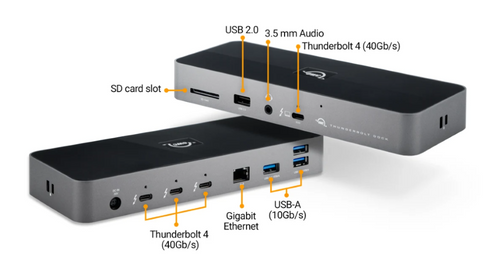

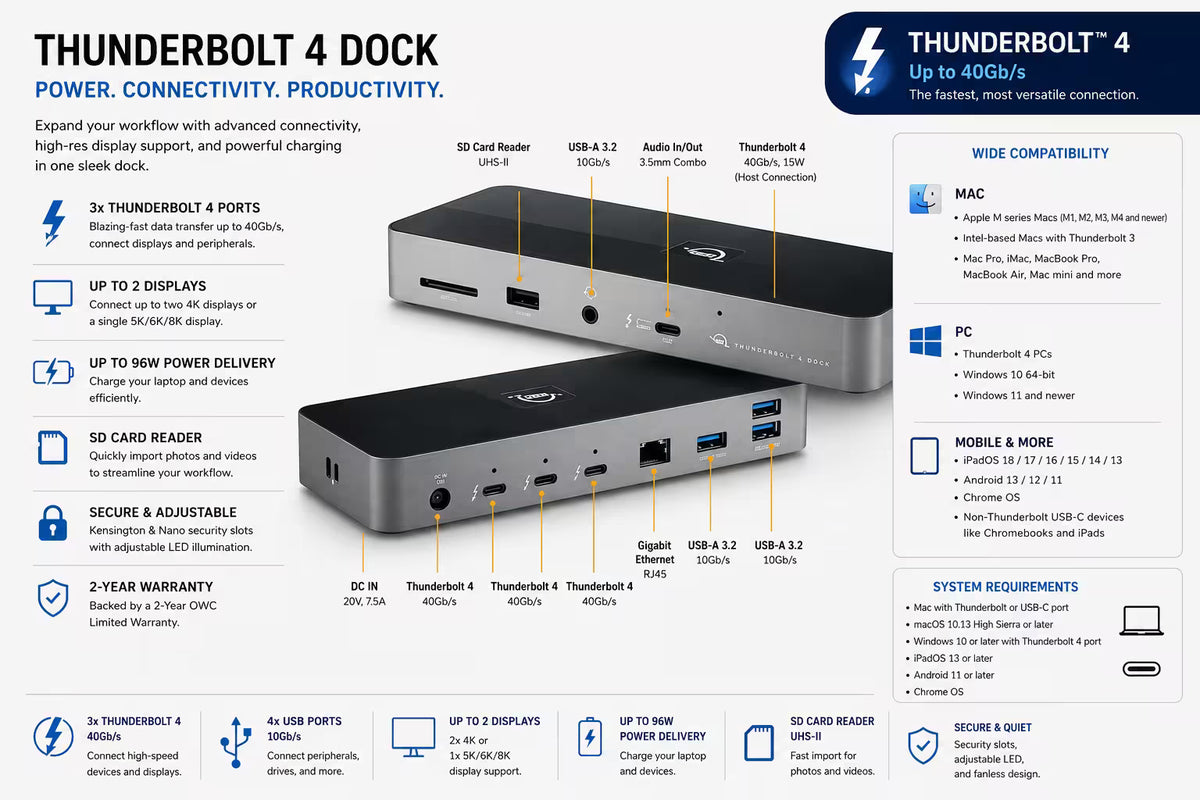

• Device Ports:
• (1) Host Port - Thunderbolt 4 (USB-C) up to 40Gb/s (5000MB/s)
• (3) Thunderbolt 4 (USB-C) Ports

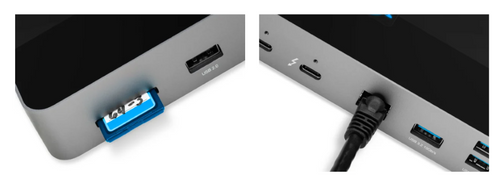

• (3) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
• (1) USB 2.0 Port
• (1) Gigabit Ethernet (GbE) RJ-45 Port
• (1) 3.5mm Stereo Audio Input/Output Combo Port

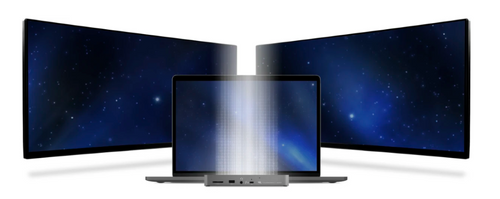

• Display Support:
• Up to one 8K display @ 60Hz
• or two 4K displays @ 60Hz
• or one 4K display @ 120Hz
• or two 5K displays @ 60Hz
• Display Support by Port:
• Thunderbolt 4: Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 4 display or other display that supports USB-C connections and DisplayPort 1.4
• Ethernet Speeds (RJ-45):
• 1Gb/s "Gigabit" (1000BASE-T)
• 100Mb/s (100BASE-T)
• 10Mb/s (10BASE-T)
• Data Rate: Up to 40Gb/s
• Chipset / Controller:
• Thunderbolt: Goshen Ridge
• USB: Cypress/HX3PD
• Ethernet: RTL8153B
• SD Reader: GL3226
• Host Interface Requirements: Thunderbolt (USB-C) or USB (USB-C or USB-A1) port
• External Power Adapter: Yes
• Power Supply: External UL-listed universal auto-switching power supply
• AC Input: 100-240V, 50-60Hz, 2.5A
• DC Output: +20V, 6.75A
• Wattage: 135W
• Security Slot: Yes
• Housing:
• Color: Chassis: Space Gray; Covers: Black
• Material: Chassis: Aluminum; Covers: Polycarbonate
• Dimensions:
• Height: 2.6 cm (1.0 in)
• Length: 7.3 cm (2.9 in)
• Width: 19.8 cm (7.8 in)
• Weight: 400.0 g (0.88 lbs)
• Certifications:
• BSMI
• CE
• FCC
• RCM
• VCCI
• RoHS Compliant: Yes
• Reach Certification: Yes
• Ambient Temperature:
• Operating: 32°F to 86°F (0°C to 30°C)
• Non-Operating: -4°F to 140°F (-20°C to 60°C)
• Altitude:
• Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
• Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
• Humidity:
• Operating: 5% to 95% non-condensing
• Non-Operating: 5% to 95% non-condensing

Notes

• Works with Thunderbolt 4, Thunderbolt 3, USB4, and USB host computers and mobile devices. Thunderbolt/Thunderbolt 2 Mac models are supported via USB-A host connection. Thunderbolt/Thunderbolt 2 host connection is not supported.
• With a USB host (such as a USB-C equipped MacBook, iPad, Chromebook, Android device, or PC), this device works as a USB hub. Bandwidth is reduced to USB speeds, Thunderbolt devices are not supported, and additional functionality will vary depending upon the host port's capabilities.
• With a USB-C host, displays and power delivery support will depend upon the host port's capabilities.
• With a USB-A host, displays and power delivery are not supported. Requires a USB-C to USB-A adapter (available separately).
• Works with Thunderbolt (USB-C), Thunderbolt/Thunderbolt 2 (mDP), and USB devices. Thunderbolt/Thunderbolt 2 (mDP) device support requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (available separately) and provides data transfer at up to 20Gb/s.
• Dual display support, including available resolution and refresh rates, is dependent on host hardware and drivers.
• Apple silicon M1/M2/M3 Pro, M1/M2/M3 Max, and M1/M2 Ultra Mac models, Apple Intel-based Mac models, and Thunderbolt 4 PCs can support up to two displays at up to 4K @ 60Hz via Thunderbolt.
• Apple silicon M1/M2/M3 Mac models can support one external display up to 4K @ 60Hz via Thunderbolt.
• The following Apple silicon M1/M2/M3 Mac models support a single display over a Thunderbolt port:
• MacBook Pro (14-inch, M3, 2023)
• MacBook Pro (13-inch, M1, 2020) - MacBookPro17,1
• MacBook Pro (13-inch, M2, 2022) - Mac14,7
• MacBook Air (M1, 2020) - MacBookAir10,1
• MacBook Air (M2, 2022) - Mac14,2
• Mac mini (M1, 2020) - Macmini9,1
• The following Mac models provide only partial support for DisplayPort 1.4, limiting resolution to 5K or 6K at 60Hz:
• MacBook Pro (15-inch, 2018) - MacBookPro15,1
• MacBook Pro (13-inch, 2018, Four Thunderbolt 3 ports) - MacBookPro15,2
• MacBook Pro (13-inch, 2019, Four Thunderbolt 3 ports) - MacBookPro15,2
• MacBook Pro (15-inch, 2019) - MacBookPro15,1 and MacBookPro15,3
• MacBook Pro (13-inch, 2019, Two Thunderbolt 3 ports) - MacBookPro15,4
• MacBook Pro (16-inch, 2019) - MacBookPro16,1 and MacBookPro16,4
• MacBook Pro (13-inch, 2020, Four Thunderbolt 3 ports) - MacBookPro16,2
• MacBook Pro (13-inch, 2020, Two Thunderbolt 3 ports) - MacBookPro16,3
• MacBook Air (Retina, 13-inch, 2018) - MacBookAir8,1
• MacBook Air (Retina, 13-inch, 2019) - MacBookAir8,2
• MacBook Air (Retina, 13-inch, 2020) - MacBookAir9,1
• iMac (Retina 5K, 27-inch, 2019) - iMac19,1
• iMac (Retina 4K, 21.5-inch, 2019) - iMac19,2
• iMac (Retina 5K, 27-inch, 2020) - iMac20,1 and iMac20,2
• Mac mini (2018) - Macmini8,1
• Mac Pro (2019) - MacPro7,1
• Mac Pro (Rack, 2019) - MacPro7,1
• Mac Users: A software driver is required to enable Apple Super Drive, Apple USB Keyboard, and for charging iPad generations 1, 2 and 3. This driver is included in the OWC Dock Ejector software download package.
• Recorded sound input playback will be quiet. Adjusting the input volume in System Preferences does not improve the softness of the recording playback. Connecting the desired input directly into the computer system will improve the recorded sound input.
• The UltraStudio Recorder 3G is not compatible with the OWC 11-Port Thunderbolt Dock.
• A firmware update is required to use OWC 11-Port Thunderbolt Dock with OWC Innergize software. Consult the "Innergize for PC: Firmware Update" or "Innergize for Mac: Firmware Update" guide for instructions.
• No jumbo frame support.
• Apple's Pro 6K XDR Display is not supported. Apple recommends connecting the included Thunderbolt 3 Pro Cable directly to your Mac, not daisy-chained through another Thunderbolt device.

• Mac OS Compatibility:
• macOS 11.x Big Sur
• macOS 12.x Monterey
• macOS 13.x Ventura
• macOS 14.x Sonoma
• macOS 15.x Sequoia and newer
• PC OS Compatibility:
• Windows 10 64-bit Edition
• Windows 11 and newer
• Mobile OS Compatibility:
• iPadOS 18
• iPadOS 17
• iPadOS 16
• iPadOS 15
• iPadOS 14
• iPadOS 13
• Android 13.x
• Android 12.x
• Android 11.x
• Other OS Compatibility:
• Chrome OS
• Device Compatibility:
• Mac: Apple M1/M2/M3/M4 Macs, Intel-based Macs with Thunderbolt 3
• PC: Thunderbolt 4 PCs
• Other Devices: Non-Thunderbolt USB-C devices like Chromebooks and iPads
