Key Features
Compatibility
Product Description
If you're running a Mac Pro or a PCIe expansion chassis and you're still hitting storage bottlenecks, the OWC Accelsior 8M2 is what you've been waiting for. Eight M.2 NVMe slots, a PCIe 4.0 x16 interface, and up to 64TB of raw NVMe capacity — all on a single half-height, full-length card. It's the kind of internal storage upgrade that makes your workflow forget what "waiting" feels like.
Whether you're cutting 8K RED footage, running large-scale AI workloads, or managing climate research datasets that would make a normal drive weep, the Accelsior 8M2 handles it without blinking. Real-world RAID 0 speeds on a Mac Pro 2023 with PCIe 4.0 x16 hit around 12,000 MB/s — and that's without breaking a sweat. With PCIe Gen 4 fully utilised on a future-ready system, the card's theoretical ceiling is over 26,000 MB/s.
OWC's intelligent PCIe bandwidth allocation gives each drive up to four dedicated lanes via an advanced switch — all sixteen PCIe 4.0 lanes distributed dynamically across eight drives. No bottlenecking, no lane sharing, no artificial limits. Supports single- and double-sided M.2 2280 "M Key" NVMe drives, so you're not locked into one configuration as capacities grow.
SoftRAID Premium is included — three years of access, licensed per computer, with the serial number printed right on the back of the card. RAID 0, 1, 4, 5, and 1+0 on Mac. RAID 0 and 1 on Windows. If you just need basic volume access without RAID management, the free SoftRAID Standard version works too. OWC backs it all with a 5-year limited warranty.
Key Features
- 8-bay M.2 NVMe card — up to 64TB total capacity in a single PCIe slot
- PCIe 4.0 x16 interface with advanced bandwidth switch — up to 4 lanes per drive
- Real-world speeds up to ~12,000 MB/s in RAID 0 on Mac Pro 2023 (PCIe 4.0 x16)
- Supports single- and double-sided M.2 2280 "M Key" NVMe SSDs
- Compatible with Mac Pro (Late 2019 and current), PC towers, and Thunderbolt PCIe expansion chassis
- SoftRAID Premium included — 3-year licence, RAID 0/1/4/5/1+0 on Mac, RAID 0/1 on Windows
- PCIe x16 full height, full length form factor — fits any PCIe x16 slot
- Activity LED for power and drive status monitoring
- 5-year OWC limited warranty
What's in the Box
- (1) OWC Accelsior 8M2 Internal Storage Solution (with SSDs installed)
- (1) OWC Accelsior 8M2 Getting Started QR Insert Card
- (1) Support Manual for OWC Accelsior 8M2
- (1) 3 Years of SoftRAID Premium Access (licence located on device)
- (1) Quick Start Guide for OWC SoftRAID (Digital)
- 5 Year OWC Limited Warranty
Which Mac Pro models is this compatible with?
The Accelsior 8M2 is compatible with Mac Pro (Late 2019) and Mac Pro (2023 — M2 Ultra). It requires a PCIe x16 slot and macOS 10.13 High Sierra or later. M1 Macs using the card inside a Thunderbolt PCIe expansion chassis require macOS 11.3 or later. It is also compatible with Windows 10/11 and Windows Server 2016/2019/2022 in a compatible PC tower.
Does it come with SSDs already installed?
Yes — this listing is for the card with OWC Aura Ultra IV PCIe 4.0 NVMe M.2 2280 SSDs already installed. The number and size of SSDs depends on the capacity you choose: 8TB = 8×1TB, 16TB = 8×2TB, 32TB = 8×4TB, 64TB = 8×8TB. If you'd prefer to supply your own SSDs, we also stock the bare Accelsior 8M2 card without drives.
What RAID levels are supported?
On Mac, SoftRAID Premium supports RAID 0, 1, 4, 5, and 1+0. On Windows, RAID 0 and RAID 1 are available. SoftRAID works with macOS 10.14 or later and Windows 10 or later (Windows Server 2019+). Your purchase includes 3 years of SoftRAID Premium access. You can also use the free SoftRAID Standard for basic volume access without RAID management.
Can I use this in a Thunderbolt expansion chassis?
Yes — the Accelsior 8M2 works in Thunderbolt PCIe expansion chassis such as the OWC Helios 3 or AKiTiO Node. Performance will be limited by the Thunderbolt bandwidth rather than the full PCIe 4.0 x16 spec, but you'll still see impressive speeds for external NVMe storage. On Mac, Thunderbolt usage requires macOS 11.3 or later with Apple Silicon.
Is there anything I need to do before installing?

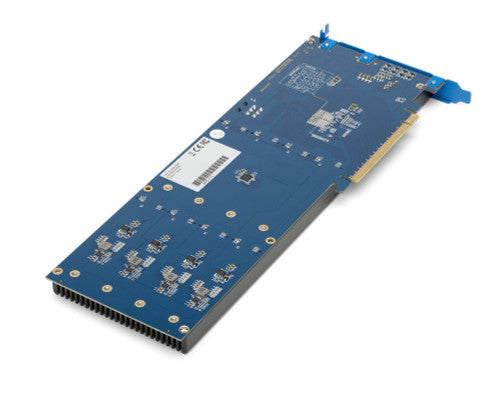

Yes — before installing the card in your system, write down the SoftRAID serial number printed on the back of the PCIe card. You'll need it to activate SoftRAID. Once the card is seated, install the SoftRAID application and enter the serial number to unlock Premium access. Performance will vary based on SSDs used, CPU speed, RAID configuration, and PCIe slot version.
Specifications
| Drive Bays | 8 × M.2 NVMe (M Key, 2280 form factor) |
|---|---|
| Drive Support | Single- and double-sided M.2 2280 "M Key" NVMe SSDs |
| Drive Interface | PCIe 4.0 x16, NVMe 1.3 |
| PCIe Bus Interface | PCI Express 4.0 x16 |
| PCIe Form Factor | PCIe x16 full height, full length |
| PCIe Slot Compatibility | Compatible with PCIe x16 slots |
| PCIe Bandwidth | Advanced switch — 16 lanes total, up to 4 lanes per drive |
| RAID | Software RAID via SoftRAID (included) |
| RAID Levels — Mac | RAID 0, 1, 4, 5, 1+0 |
| RAID Levels — Windows | RAID 0, 1 |
| Activity LED | Yes |
| Dimensions | 127 mm H × 325 mm L × 22 mm W (5.0 in × 12.8 in × 0.9 in) |
| Weight | 806 g (1.78 lbs) |
| Ambient Temperature (Operating) | 5°C to 35°C (41°F to 95°F) |
| Ambient Temperature (Non-Operating) | -20°C to 60°C (-4°F to 140°F) |
| Humidity (Operating) | 8% to 90% non-condensing |
| Humidity (Non-Operating) | 5% to 95% non-condensing |
| Altitude (Operating) | -304.8 m to 3,048 m |
| Acoustics (Idle / Seek) | 2.0 bels / 2.0 bels |
| Warranty | 5-year OWC Limited Warranty |
| Included Software | OWC SoftRAID Premium (3-year licence, licensed per computer) |
Drive Configuration by Capacity
| Capacity | Drive Configuration | Drive Model |
|---|---|---|
| 8TB | 8 × 1TB | OWC Aura Ultra IV PCIe 4.0 NVMe M.2 2280 |
| 16TB | 8 × 2TB | OWC Aura Ultra IV PCIe 4.0 NVMe M.2 2280 |
| 32TB | 8 × 4TB | OWC Aura Ultra IV PCIe 4.0 NVMe M.2 2280 |
| 64TB | 8 × 8TB | OWC Aura Ultra IV PCIe 4.0 NVMe M.2 2280 |
* OWC reserves the right to replace or upgrade to equivalent or better components. Performance varies by RAID level, PCIe slot version, and CPU.
Compatibility
Mac
- Mac Pro (Late 2019) — MacPro7,1
- Mac Pro (2023) — Mac14,8 (M2 Ultra)
- Compatible Thunderbolt PCIe expansion chassis (e.g. OWC Helios 3, AKiTiO Node)
macOS
- macOS 10.13 High Sierra
- macOS 10.14 Mojave
- macOS 10.15 Catalina
- macOS 11.x Big Sur (M1 Macs require macOS 11.3 or later)
- macOS 12.x Monterey
- macOS 13.x Ventura
- macOS 14.x Sonoma
- macOS 15.x Sequoia
- macOS 26.x Tahoe
Windows
- Windows 10 (32-bit and 64-bit)
- Windows 11
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
Note: SoftRAID requires macOS 10.14 or later, or Windows 10+ / Windows Server 2019+. On Windows, the device may display as "Mass Storage Controller" in Device Manager — this does not affect performance.
