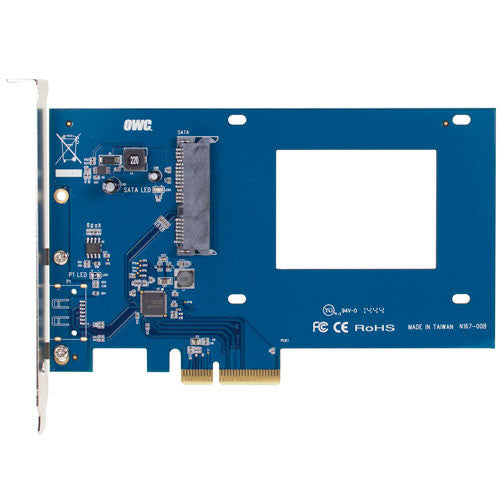

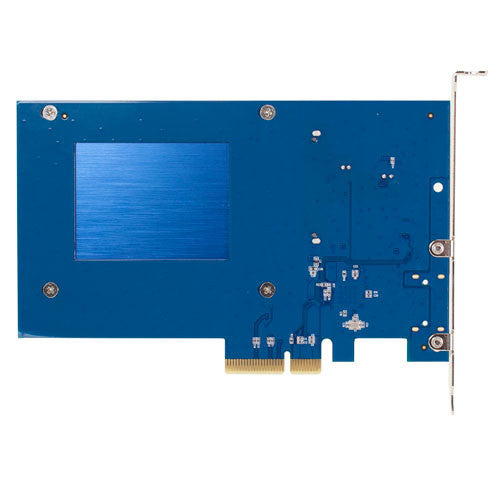

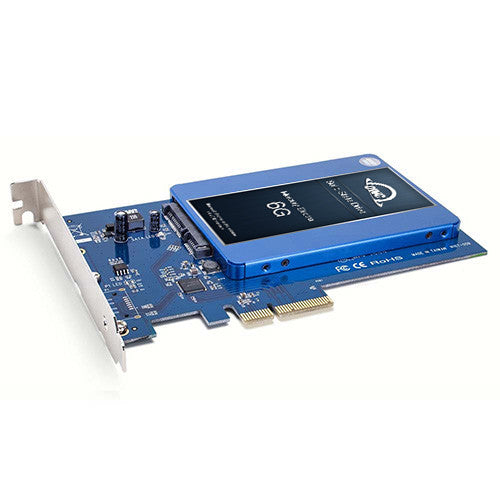

OWC Accelsior S and Mercury Extreme Pro 6G SSD bundle for Mac Pro and PC Towers

• Controller: Phison PS3112-S12 with 7% over-provisioning
• NAND: Synchronous Triple-Level Cell (TLC) 3D NAND Flash
• Form Factor: Standard 7mm 2.5-inch
• Capacity: 240GB/ 480GB/ 1TB/ 2TB/ 4TB
• Manufacturer part numbers:
  • OWCS3D7P6G240/ OWCS3D7P6G480/ OWCS3D7P6G960/ OWCS3D7P6GS2.0/ OWCS3D7P6GS4.0
• Manufacturer part numbers bundles:
  • OWCSSDACL6G240/ OWCSSDACL6G480/ OWCSSDACL6G1TB/ OWCSSDACL6G2TB/ OWCSSDACL6G4TB
• Interface: SATA III 6Gb/s
• RAID Support: Yes
• SMART Attributes: Standard
• Data Reliability: Built-in BCH ECC: Up to 66 bits correctable per 1024 bytes
• Security: Chip-Based Data Encryption: 256-bit AES-compliant
• Nonrecoverable Read Errors: Less than 1 sector per 10/16 bits read
• Sustained Reads 6G (up to): 550MB/s
• Sustained Writes 6G (up to): 530MB/s
• Random 4K Read: Up to 100,000 IOPS
• Random 4K Write: Up to 90,000 IOPS
• Warranty: 5-Year OWC Limited Warranty

Note about throughput:

• Mac Pro (2009-2010) - Installing Accelsior S into any open x4 or x16 PCIe 2.0 slot will deliver full throughput.
• Mac Pro (2008) - These models have two (2) PCIe 2.0 x16 slots, which enable Acceslsior S to deliver full throughput. Installing Accelsior S in one of the two (2) PCIe 1.0 x4 slots will result in Accelsior S being addressed as a first generation one-lane card and will limit performance to 190-200MB/s real world data rates.

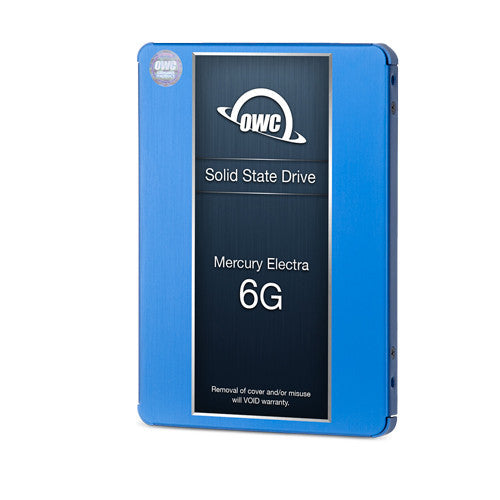

• Mac Pro (2006 - 2007) - These models have a PCIe 1.0 slot which cannot be configured to address Accelsior S as anything but as a first generation one-lane card, even with the Expansion Utility in OS X. As a result, Accelsior S performance will be limited to 190-200MB/s real world data rates. For maximum performance, we recommend installing a 2.5-inch OWC Mercury Electra 6G SSD in an open Mac Pro drive bay.
• PC - Use with a PCIe 2.0 x4 slot or better is recommended. Use with a PCIe 1.0 x4 slot will result in reduced performance.

• Mac Pro:
  • Mac Pro 2023 | Mac14,8 - A2786 - EMC8163 - M2 Ultra
  • Mac Pro Rack 2023 | Mac14,8 - A2787 - EMC8164 - M2 Ultra
  • Rack (Early 2020) (January 2020) Model ID: MacPro7,1 | 2.5GHz 28-Core
  • Rack (Early 2020) (January 2020) Model ID: MacPro7,1 | 2.7GHz 24-Core
  • Rack (Early 2020) (January 2020) Model ID: MacPro7,1 | 3.2GHz 16-Core
  • Rack (Early 2020) (January 2020) Model ID: MacPro7,1 | 3.3GHz 12-Core
  • Rack (Early 2020) (January 2020) Model ID: MacPro7,1 | 3.5GHz 8-Core
  • (Late 2019) (December 2019) Model ID: MacPro7,1 | 2.5GHz 28-Core
  • (Late 2019) (December 2019) Model ID: MacPro7,1 | 2.7GHz 24-Core
  • (Late 2019) (December 2019) Model ID: MacPro7,1 | 3.2GHz 16-Core
  • (Late 2019) (December 2019) Model ID: MacPro7,1 | 3.3GHz 12-Core
  • (Late 2019) (December 2019) Model ID: MacPro7,1 | 3.5GHz 8-Core
  • (Mid 2012) (June, 2012) Model ID: MacPro5,1 | 2.4GHz, 2.66GHz, 3.06GHz
  • 6-Core (Mid 2012) (June, 2012) Model ID: MacPro5,1 | 3.33GHz
  • 4-Core (Mid 2012) (June, 2012) Model ID: MacPro5,1 | 3.2GHz
  • 4-Core (Mid 2010) (July, 2010) Model ID: MacPro5,1 | 2.8GHz, 3.2GHz
  • 12-Core (Mid 2010) (July, 2010) Model ID: MacPro5,1 | 2.66GHz, 2.93GHz
  • 8-Core (Mid 2010) (July, 2010) Model ID: MacPro5,1 | 2.4GHz
  • 6-Core (Mid 2010) (July, 2010) Model ID: MacPro5,1 | 3.33GHz
  • 8-Core (Early 2009) (March, 2009) Model ID: MacPro4,1 | 2.26GHz, 2.66GHz, 2.93GHz
  • 4-Core (Early 2009) (March, 2009) Model ID: MacPro4,1 | 2.66GHz, 2.93GHz, 3.33GHz
  • 8-Core (Early 2008) (January, 2008) Model ID: MacPro3,1 | 2.8GHz, 3.0GHz, 3.2GHz
  • 4-Core (Early 2008) (January, 2008) Model ID: MacPro3,1 | 2.8GHz
  • 8-core (Early 2007) (April, 2007) Model ID: MacPro2,1 | 3.0GHz
  • 4-core (Mid 2006) (August, 2006) Model ID: MacPro1,1 | 2.0GHz, 2.66GHz, 3.0GHz
• Xserve:
  • (Late 2006) (August, 2006) Model ID: Xserve1,1 | dual 2.0GHz, dual 2.66GHz, dual 3.0GHz
  • (Early 2008) (January, 2008) Model ID: Xserve2,1 | 2.8GHz, dual 2.8GHz, dual 3.0GHz
  • Quad-Core (Early 2009) (April, 2009) Model ID: Xserve3,1 | 2.26GHz
  • 8-Core (Early 2009) (April, 2009) Model ID: Xserve3,1 | 2.26GHz, 2.66GHz, 2.93GHz
• PC Desktops: Compatible with Intel / AMD Process based PCs capable with the specifications listed above.
• PCIe capable servers: Compatible with PCIe expandable servers with the specifications listed above.
• OWC Mercury Helios: Thunderbolt PCIe expansion chassis
• NOT COMPATIBLE:
  • HP DL 380 G7
  • HP DL 380 G8
  • Dell PowerEdge R620
  • Dell PowerEdge T620
