Key Features
Compatibility
Product Description
Add up to an additional 2.0TB of internal storage. Add a Solid State Drive (SSD) for near-instantaneous boot and app load. Even create a RAID array! Includes bracket, 5 piece toolkit, screws, and detailed installation guide for complete all in one solution.

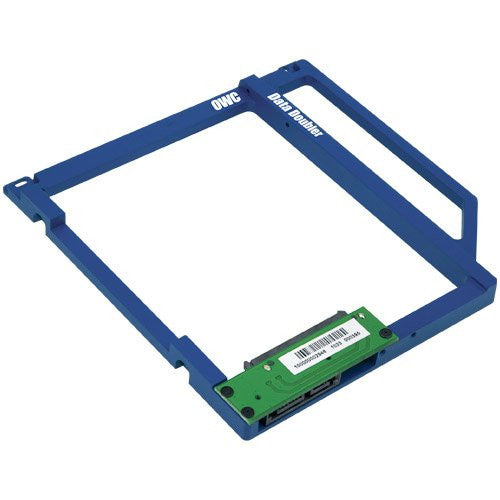

Configuration flexibility is yours when you replace your MacBook or MacBook Pro's internal SuperDrive with the OWC Data Doubler. This custom engineered blue anodized aluminum bracket with attached PCB circuit board comes ready to mount any 9.5mm tall 2.5" SATA hard disk drive and even Solid State Drives.
Then, just install the entire assembly into a MacBook or MacBook Pro 5.25" optical drive bay. OWC Data Doubler makes it easy to custom design how you want your internal storage to perform. Installed drives are recognized like any other high-speed SATA storage device and can be set up and partitioned using the Apple Disk Utility Program.
OWC Data Doubler DIY Kits: Everything you need in one package.
- Just a few of the configuration options you can enjoy with Data Doubler:
- Creating an individual volume with its own desktop icon.
- Combining a new drive with the existing internal drive for one larger volume (SPAN).
- Combining a new matching drive with existing internal for high-performance RAID-0 Stripe volume.
- Configuring a new drive as a Time Machine®
- backup drive.
- Formatting one drive for the Mac OS and the other dedicated for Windows.
- Power Tip
- Spin down hard drives sooner to save battery power. Running an extra hard drive in your laptop can drain battery power faster than a single drive. But you can tell your Mac to put hard drives to sleep sooner than normal to save power.
This is an advanced tip that requires working in a Terminal.
- Supports: SATA / SATA 3G / SATA 6G Interface 2.5" Drive or SSD (Solid State Drive) of up to 9.5mm (Super Slim) height.
- Dimensions: 5"(D) x 5"(W) x 03"(H) (12.7 x 12.7 x 7.6mm)
- Weight: 2.4oz. / 0.15lbs.
- OWC Data Doubler Installation Guide
- 1-Year OWC Brand Standard Limited Warranty

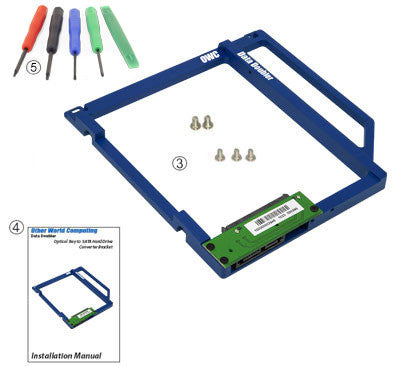

Includes:
- OWC Data Doubler Bracket
- Interposer Board
- Screws (5pcs, 3 x Phillips #00 2 x Phillips #1)
- Detailed Installation Guide with Model Specific Instructions/Step by Step Photos
- The toolkit includes everything you need to open your Mac and install the Data Doubler.
Specifications
- Interface: SATA III / SATA II
- Form Factor: 2.5 Inch
- Mechanisms Supported: Compatible with any 2.5" SATA hard drive or Solid State drive
- Color: Blue
- Material: Aluminum
- Dimensions: Height: 0.8 cm (0.3 in), Length: 12.7 cm (5.0 in), Width: 12.7 cm (5.0 in)
- Weight: 76.0 g (0.17 lbs)
- Supports: a SATA / SATA 3G / SATA 6G Interface 2.5-inch Drive or SSD (Solid State Drive) of up to 9.5mm (Super Slim) height.
Compatibility
- MacBook Pro:
- Late 2008/Early 2009 | MacBookPro5,1 - A1286 - EMC2255
- Early 2009 | MacBookPro5,2 - A1297 - EMC2272
- Mid 2009 | MacBookPro5,2 - A1297 - EMC2329
- Mid 2009 | MacBookPro5,3 - A1286 - EMC2325
- Mid 2009 | MacBookPro5,4 - A1286 - EMC2324
- Mid 2009 | MacBookPro5,5 - A1278 - EMC2326
- Mid 2010 | MacBookPro6,1 - A1297 - EMC2352
- Mid 2010 | MacBookPro6,2 - A1286 - EMC2353
- Mid 2010 | MacBookPro7,1 - A1278 - EMC2351
- Early 2011 | MacBookPro8,1 - A1278 - EMC2419
- Late 2011 | MacBookPro8,1 - A1278 - EMC2555
- Early 2011 | MacBookPro8,2 - A1286 - EMC2353
- Late 2011 | MacBookPro8,2 - A1286 - EMC2563
- Early 2011 | MacBookPro8,3 - A1297 - EMC2352
- Late 2011 | MacBookPro8,3 - A1297 - EMC2564
- Mid 2012 | MacBookPro9,1 - A1286 - EMC2556
- Mid 2012 | MacBookPro9,2 - A1278 - EMC2554
- MacBook:
- Late 2008 | MacBook5,1 - A1278 - EMC2254
- Late 2009 | MacBook6,1 - A1342 - EMC2350
- Mid 2010 | MacBook7,1 - A1342 - EMC2395
Notes
- Using this product with 6Gb/s SSDs in a 2011-2012 MacBook Pro (Non-Retina):
- MAIN BAY: A 6G SSD may be utilized in the main bay (move drive or second SSD into Optical Bay) for reliable SATA Revision 3.0 6Gb/s performance in excess of 500MB/s.
- OPTICAL BAY: Testing has demonstrated that Apple factory hardware does not reliably support a 6G (6Gb/s) Solid State Drive or Hard Disk Drive in the optical bay of 2011 and 2012 MacBook Pros (Model ID 8,1; 8,2; 8,3; 9,1; 9,2). If your OWC Data Doubler bundle comes with a 6G drive, you should ONLY install that drive in the main drive bay and utilize the Data Doubler to re-task your existing drive or install a new 3G SSD or HDD in the optical bay. PRE-2011 models can utilize a 6G drive in the optical bay, but will do so at a reduced 3G (3Gb/s) speed.
- MacBook Pro 13-inch models: Apple does not support the use of 6Gb/s drives in the optical bay. While we have observed a high rate of success using SATA 3.0 6Gb/s drives in Apple 13-inch bays where 6Gb/s link is present, some systems may not operate properly with this setup. For guaranteed reliability/compatibility, we suggest 6Gb/s drives be used in the main drive bay only, and 3Gb/s hard drives or SSDs be used in the optical bay when a two-drive configuration is desired. We cannot guarantee proper or successful 6Gb/s drive operation in the Apple MacBook Pro 13-inch optical bay.
- Apple's DVD Player application: Only works with an internal optical drive or Apple's external SuperDrive. To play DVDs with your removed optical drive after installing it in an external enclosure such as the OWC SuperSlim, we recommend the free VLC Player.
