OWC 'Data Doubler' SSD/2.5 Inch Hard Drive installation Kit for Mac mini 2011, 2012 & Later Models with Upper Drive Bay - ALT Bay

This item is for Mac mini (2011 - 2012) Models which have factory HDD/SSD installed into the Upper Bay.

OWC Data Doubler Kit for Mac mini (2011–2012)

Easily expand your Mac mini's internal storage with the OWC Data Doubler Kit. Install a second 2.5" SATA hard drive or SSD up to 9.5mm and boost performance or storage capacity. The kit includes all tools needed for installation, plus an instructional video to guide you. Ideal for upgrading Mac mini (2011–2012) models. 1-Year OWC Limited Warranty included.

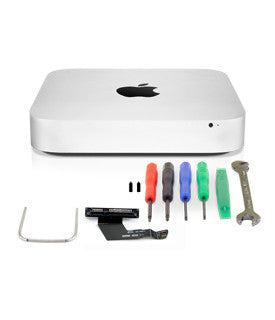

Includes:

(1) OWC Data Doubler for Mac mini
(1) Flex Cable for Mac Mini
(1) EFI Shielding Material for Mac mini (2012)
(2) Set Screws

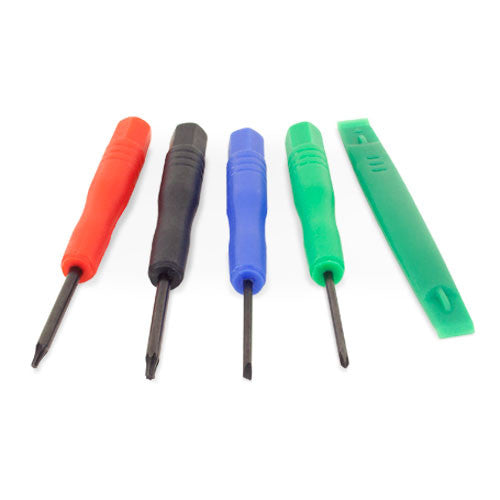

(1) OWC 5-Piece Mini Toolkit
(1) Logic Board Removal Tool
(1) 5mm Wrench
1 Year OWC Limited Warranty

Note:

A small number of 2011 - 2012 Mac mini units were shipped with the drive mounted in the upper drive bay rather than the more typical lower bay shown in the OWC Data Doubler install video for Mac mini (2011 - 2012). You will want to determine the configuration of your Mac mini's drives prior to ordering.
- To do this, open Applications/Utilities/Disk Utility.app and click on the gray drive icon at the left-edge of the window. If you see "Lower" after the "Connection ID" at the bottom-left corner of the window, you need only the standard OWC Data Doubler Hard Drive/SSD Mounting Solution for Mac mini (2011 - 2012). If you see "Upper" then you have a special configuration which will need the additional components that come with OWC Data Doubler Hard Drive/SSD Mounting Solution for Mac mini (2011 - 2012) with Upper Drive Bay Populated, and you will need to also refer to the Addendum video.
- To do this using OS X 10.11 or later: Open Applications/Utilities/Disk Utility.app and click on the grey drive icon at the left edge of the window. Next click the "Info" button on the toolbar. A window will open. Scroll to the "Location" item; if you see "Lower" you may proceed using the standard installation instructions. If it lists "Upper" then you have a special configuration which will need additional components, and you will need to also refer to the Addendum video.
