Kit with SSD, 2.5-inch external HDD enclosure and installation tools to service all Apple 21.5-inch iMac models from 2012 to 2019
Highlights
- Add a high-performance OWC 6G SSD to your iMac.
- Pocket-sized USB bus powered ventilated enclosure for your iMac's HDD.
- Backed by free DIY install videos and expert support.
- 5 Year OWC Limited Warranty
The complete solution for your 2012 and later 21.5" iMac
Experience the extreme performance of an OWC SSD upgrade with this easy DIY SSD and hard drive replacement kit. Add an SSD to your hard drive equipped iMac to experience faster booting, near instant application launches and data transfer speeds up over 500 MB/s.
Fast and reliable solid-state storage
Delivering the latest in flash NAND and controller technology, utilizing SLC and 3D NAND for long-lasting, power-efficient performance, the OWC Mercury 6G SSD line offers a powerful combination of performance and reliability for demanding everyday computer users.
A True DIY upgrade
This comprehensive kit has all the tools you need to replace your factory HDD with a high-performance SSD, bringing a complete DIY upgrade within your reach. Includes drivers, glass removal suction cups, and screen adhesive so you can get the job done yourself. The included OWC Express 2.5" USB 3.0 enclosure offers maximum mobile data storage/backup potential with a sleek, totally bus powered design. Just add your iMac's factory 2.5" hard drive or SSD and take your digital life with you wherever you roam!
Please note that before attempting to perform this installation, it is recommended that you watch the associated instructional video in its entirety to determine your ability to perform this complex procedure. OWC assumes no responsibility for damage that may occur during the installation.
Includes

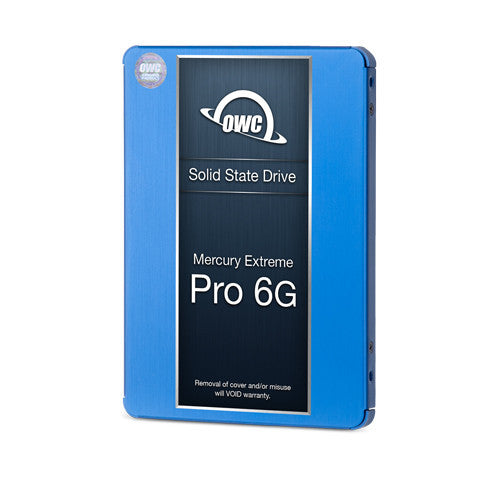

- (1) OWC Mercury Extreme Pro 6G SSD
- (1) OWC Express enclosure - black
- (2) OWC 2-1/4" Suction Cup
- (1) Torx T10 driver
- (1) 21.5" iMac Adhesive tape set for proper display resealing
- (1) Nylon Pry Tool (Spudger)
- (1) OWC Screen Removal Tool
- (1) OWC Blue Microfiber Screen Cleaning Cloth
NOTE: This kit contains consumable and/or one-time-use components and therefore is non-refundable if opened. If you have any concerns about your ability to perform the upgrade, you can return the unopened kit for a refund.
- Available capacities: 240GB/ 480GB/ 1TB/ 2TB/ 4TB
- Part numbers (kits): OWCK21IM12HP240/ OWCK21IM12HP480/ OWCK21IM12HP1TB/ OWCK21IM12HP2TB/ OWCK21IM12HP4TB
- Controller: Phison PS3112-S12 with 7% over-provisioning
- NAND: Synchronous Triple-Level Cell (TLC) 3D NAND Flash
- Form Factor: Standard 7mm 2.5-inch
- Capacity: 240GB/ 480GB/ 1TB/ 2TB/ 4TB
- Manufacturer part numbers (SSD): OWCS3D7P6G240/ OWCS3D7P6G480/ OWCS3D7P6G960/ OWCS3D7P6GS2.0/ OWCS3D7P6GS4.0
- Interface: SATA III 6Gb/s
- Tools: Yes
- RAID Support: Yes
- SMART Attributes: Standard
- Data Reliability: Built-in BCH ECC: Up to 66 bits correctable per 1024 bytes
- Security: Chip Based Data Encryption: 256-bit AES-compliant
- Nonrecoverable Read Errors: Less than 1 sector per 10/16 bits read
- Sustained Reads 6G (up to): 550MB/s
- Sustained Writes 6G (up to): 530MB/s
- Random 4K Read: Up to 100,000 IOPS
- Random 4K Write: Up to 90,000 IOPS
- Warranty: 5 Year OWC Limited Warranty

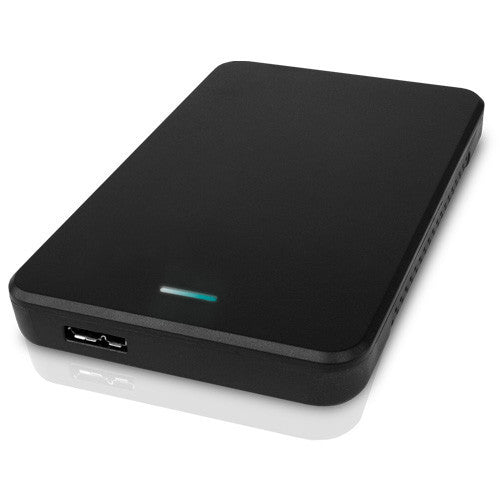

- 2.5-inch external USB enclosure specification:
- Compact and versatile – No AC Adapter Required! The OWC Express 2.5" USB 3.0 Enclosure offers maximum mobile data storage/backup potential with a sleek, totally bus powered design. Just add your own 2.5" Serial ATA (SATA) I/II/III hard drive or SSD up to 9.5mm height and take your digital life with you wherever you roam!
- Includes:
- OWC Express 2.5" SATA Hard Drive or Solid State Drive Enclosure
- High-Quality Double Shielded USB 3.0 connecting cable
- Printed Guide
- Carrying sleeve
- 1 Year OWC Enclosure Limited Warranty with 48-Hour Turnaround Time
- iMac w/Retina 4K display (21.5-inch Early 2019) (March 2019): Model ID:iMac19,2 - A2116 - EMC3195 | 3.6GHz i3, 3.0GHz i5, 3.2GHz i7
- iMac w/Retina 4K display (21.5-inch Mid 2017) (June 2017): Model ID:iMac18,2 - A1418 - EMC3069 | 3.0GHz i5, 3.4GHz i5, 3.6GHz i7
- iMac (21.5-inch Mid 2017) (June 2017): Model ID:iMac18,1 - A1418 - EMC3068 | 2.3GHz i5
- iMac w/ Retina 4K display (21.5-inch Late 2015) (October 2015): Model ID:iMac16,2 - A1418 - EMC2833 | 3.1GHz i5, 3.3GHz i7
- iMac (21.5-inch Late 2015) (October 2015): Model ID:iMac16,2 - A1418 - EMC2889 | 2.8GHz i5
- iMac (21.5-inch Late 2015) (October 2015): Model ID:iMac16,1 - A1418 - EMC2889 | 1.6GHz i5, 2.8GHz i5
- iMac (21.5-inch Mid 2014) (June 2014): Model ID: iMac14,4 - A1418 - EMC2805 | 1.4GHz i5
- iMac (21.5-inch Late 2013) (September 2013): Model ID: iMac14,3 - A1418 - EMC2742 | 2.9GHz i5 or 3.1GHz i7
- iMac (21.5-inch Late 2013) (September 2013): Model ID: iMaciMac14,1 - A1418 - EMC2638 | 2.7GHz i5
- iMac (21.5-inch Early 2013) (March 2013): Model ID: iMac13,1 - A1418 - EMC2545 | 3.3GHz i3
- iMac (21.5-inch Late 2012) (October 2012): Model ID: iMac13,1 - A1418 - EMC2544 | 2.7GHz i5 , 2.9GHz i5, 3.1GHz i7
