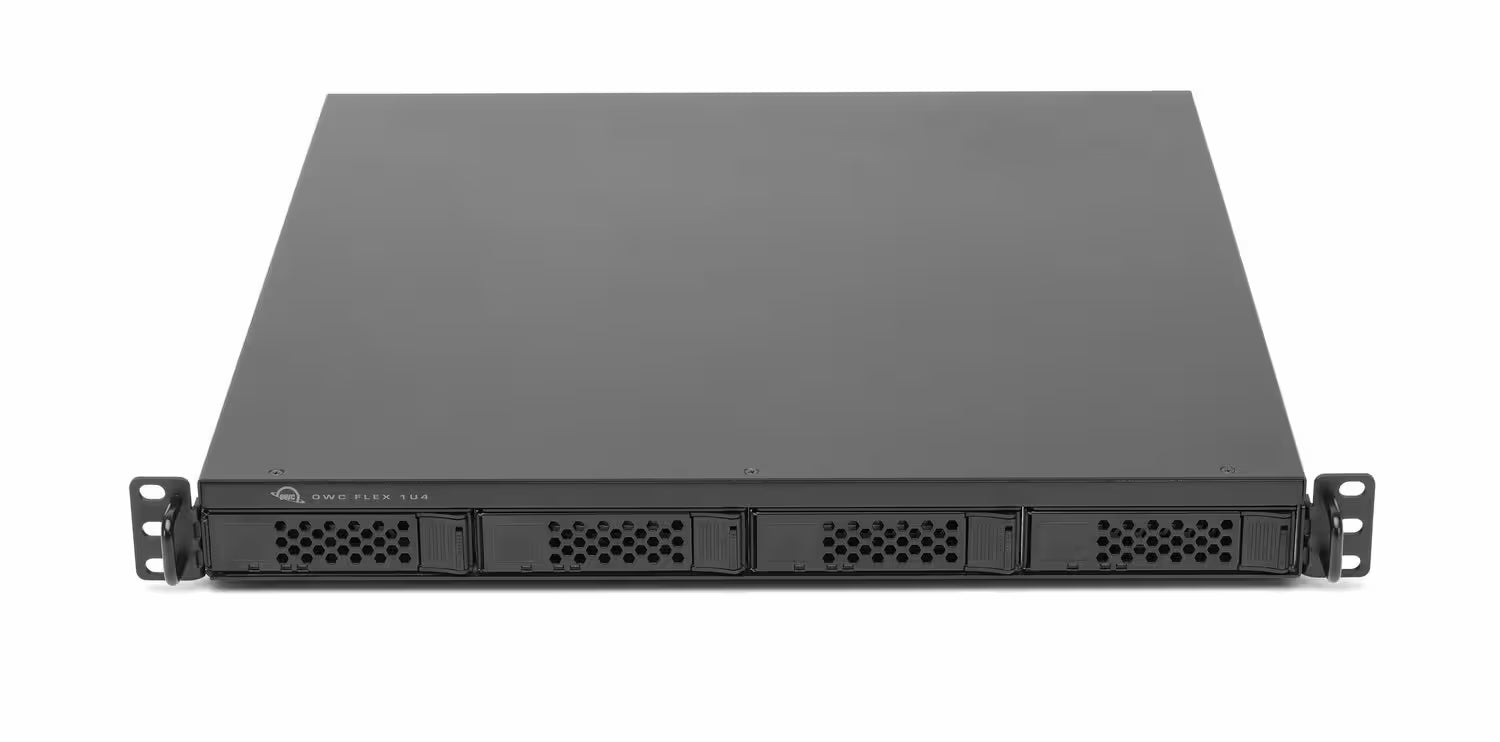

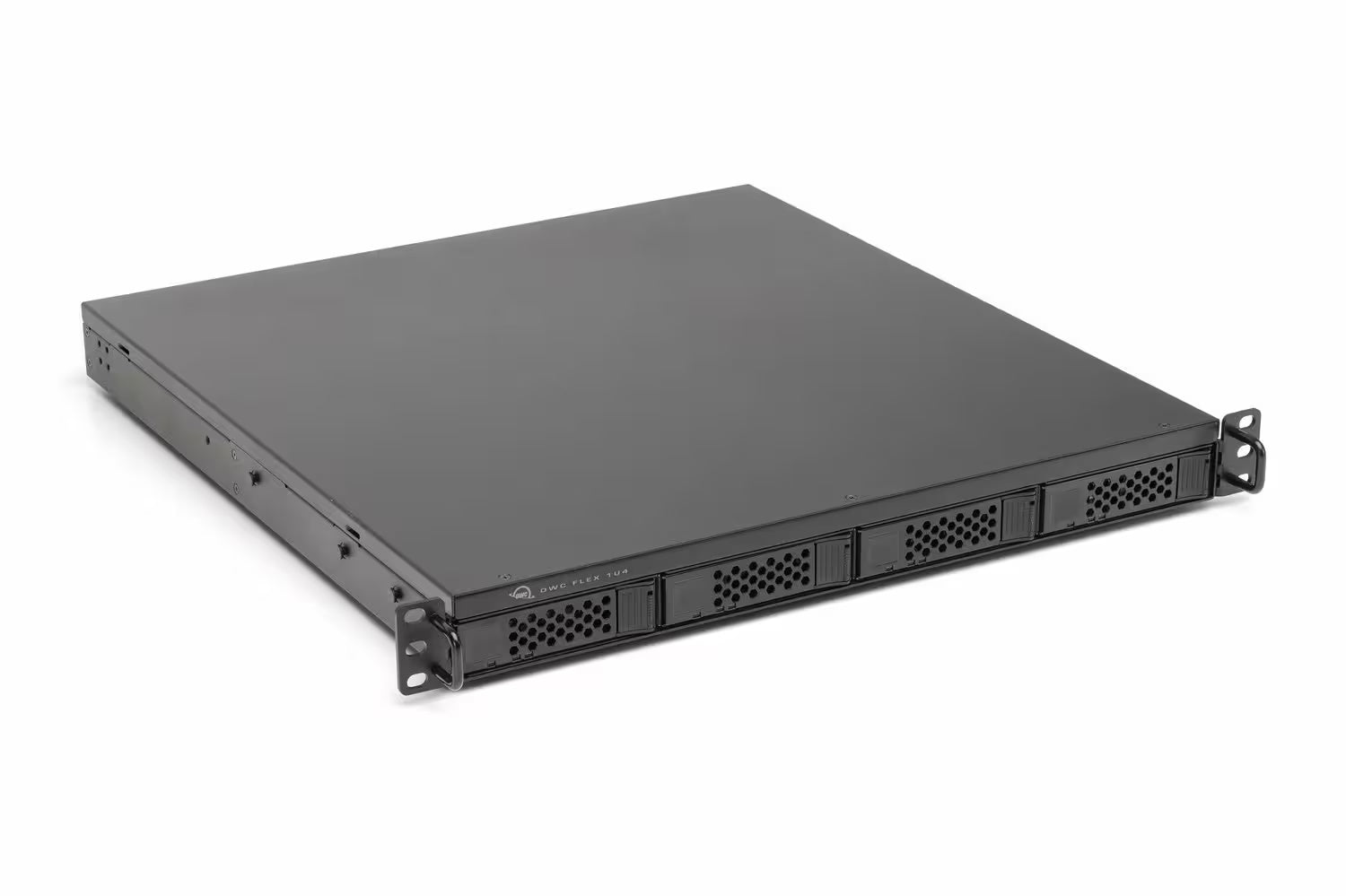

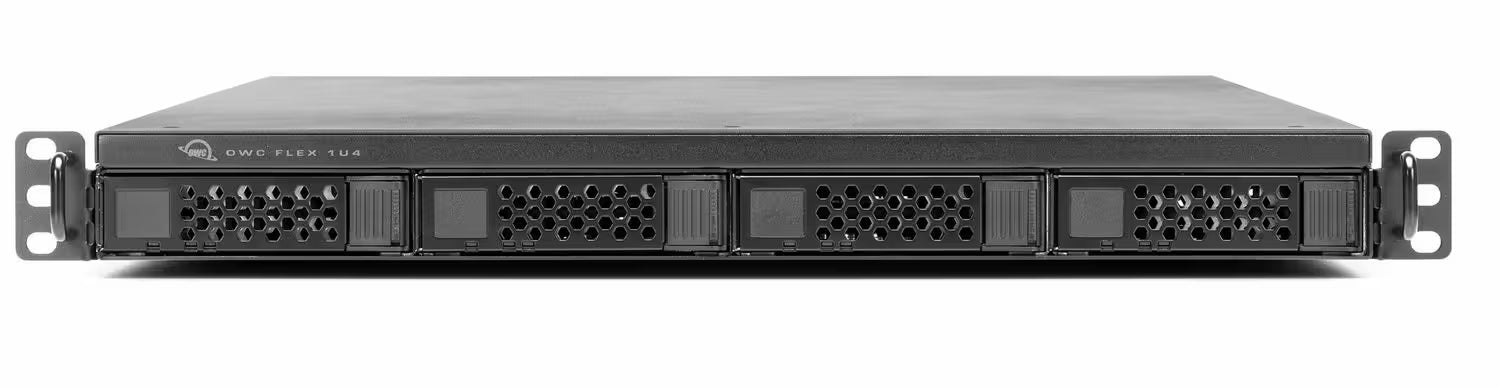

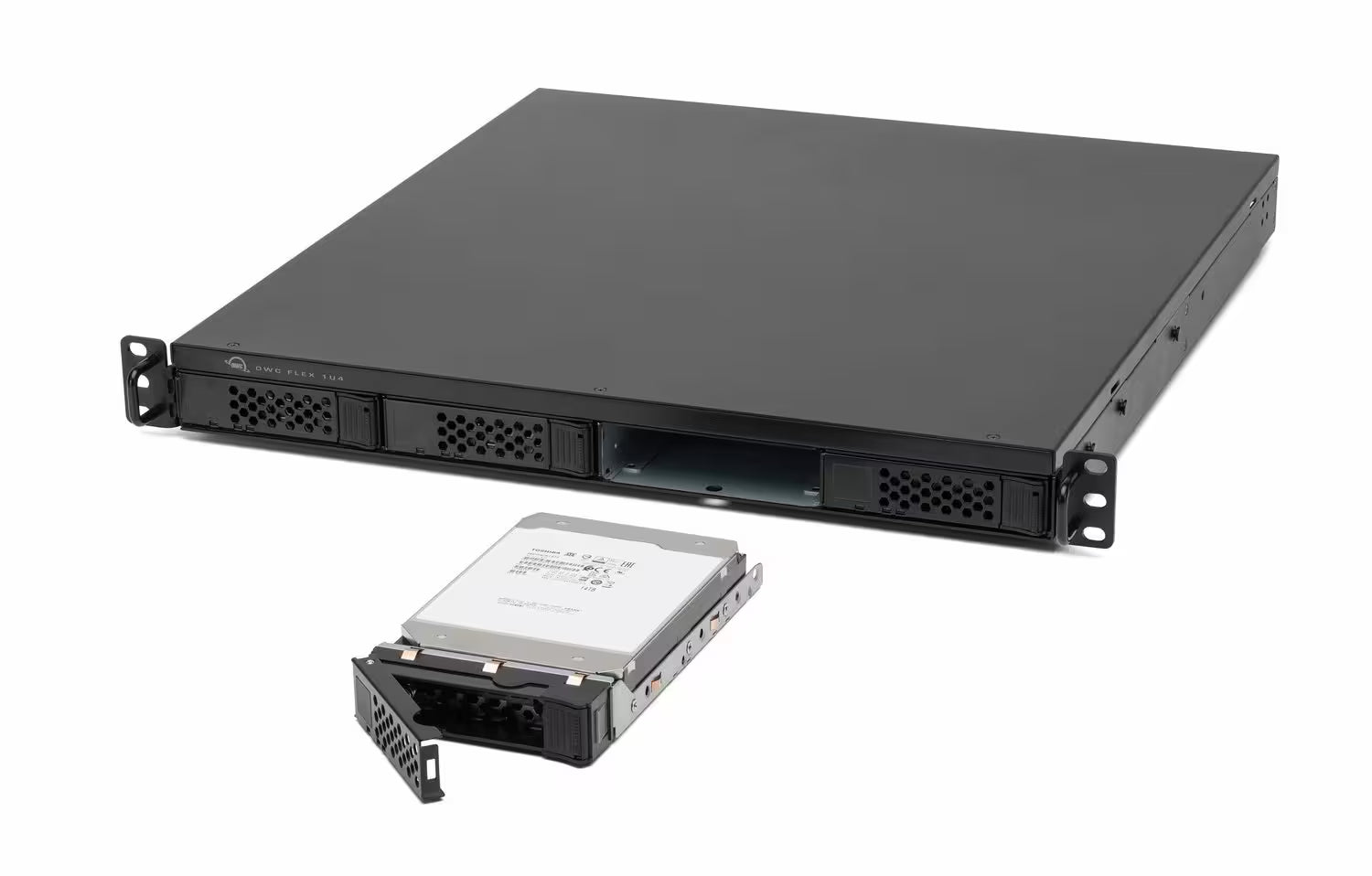

OWC Flex 1U4 Rackmount Thunderbolt Storage Enclosure with SoftRAID Up to 96TB

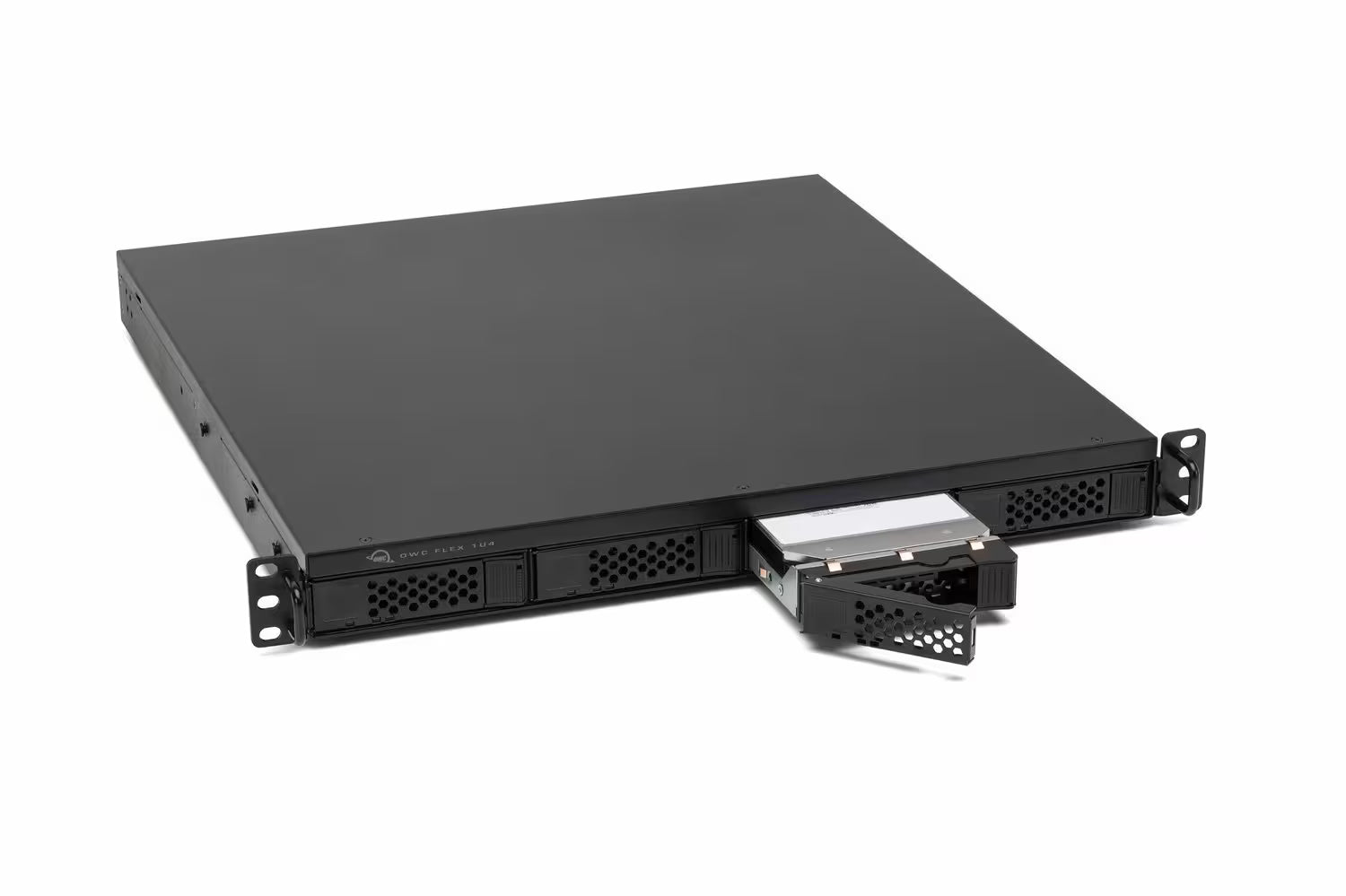

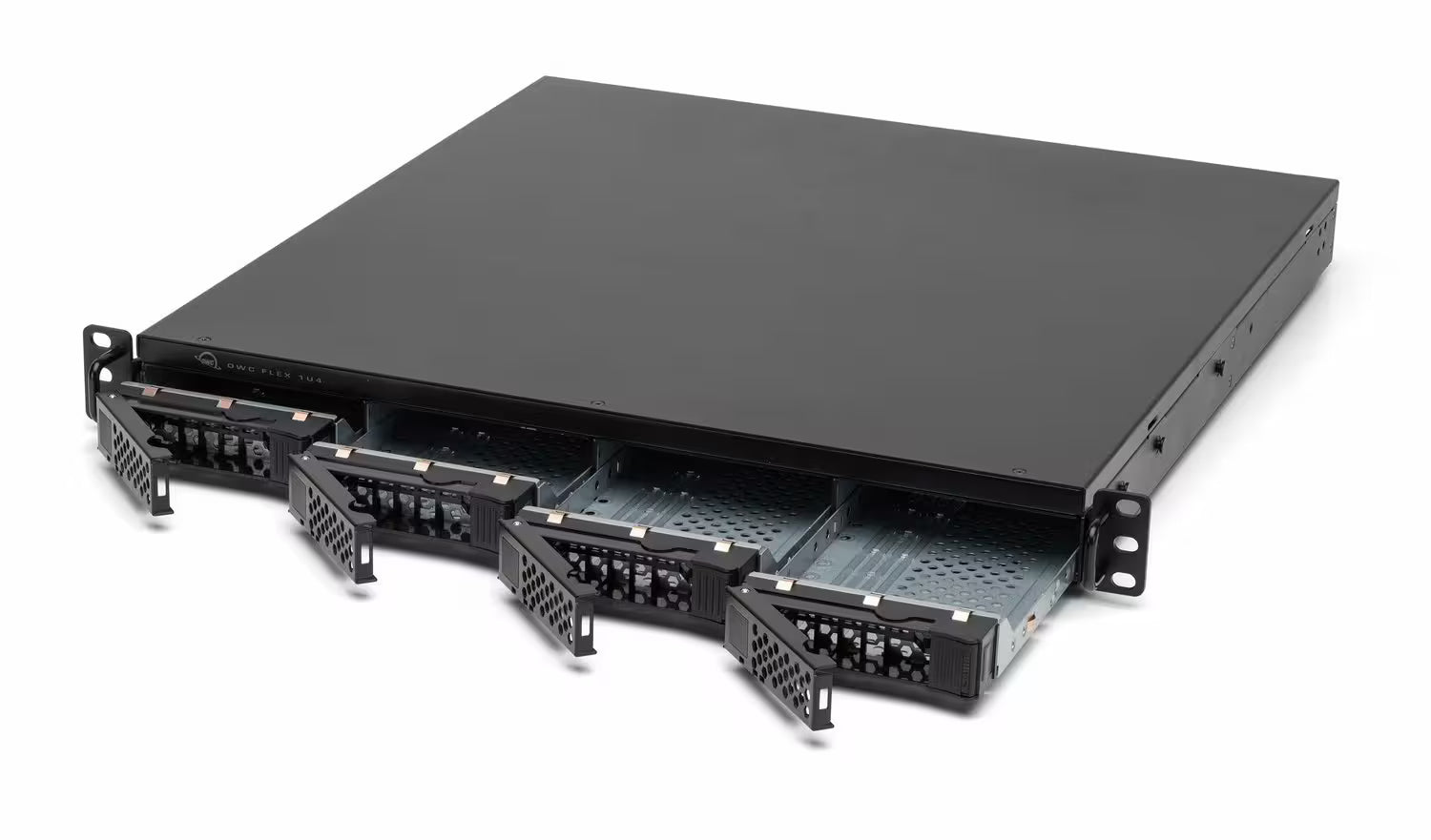

• Drive Bays
  4 bays supporting: 2.5-inch SATA HDDs, 2.5-inch SATA SSDs, 3.5-inch SATA HDDs, 3.5-inch SATA SSDs, 2.5-inch U.2 SSDs, 3.5-inch U.2 SSDs, M.2 SSDs (with M.2 to U.2 adapter), 2.5-inch SAS HDDs (with SAS drive controller card), 2.5-inch SAS SSDs (with SAS drive controller card), 3.5-inch SAS HDDs (with SAS drive controller card), 3.5-inch SAS SSDs (with SAS drive controller card)

  Bays 1-2 each support x4 lanes PCIe, bays 3-4 each support x1 lane PCIe
• Plug and Play
  Yes
• Hot Swap Support
  Yes
• Hot Plug Support
  Yes
• Boot Support
  Boot Camp is not supported.
• RAID Features
  Software RAID
• Expansion Slots
  (1) Full-height, half-length, single width PCIe 3.0 x16 slot (physical) at x4 speed

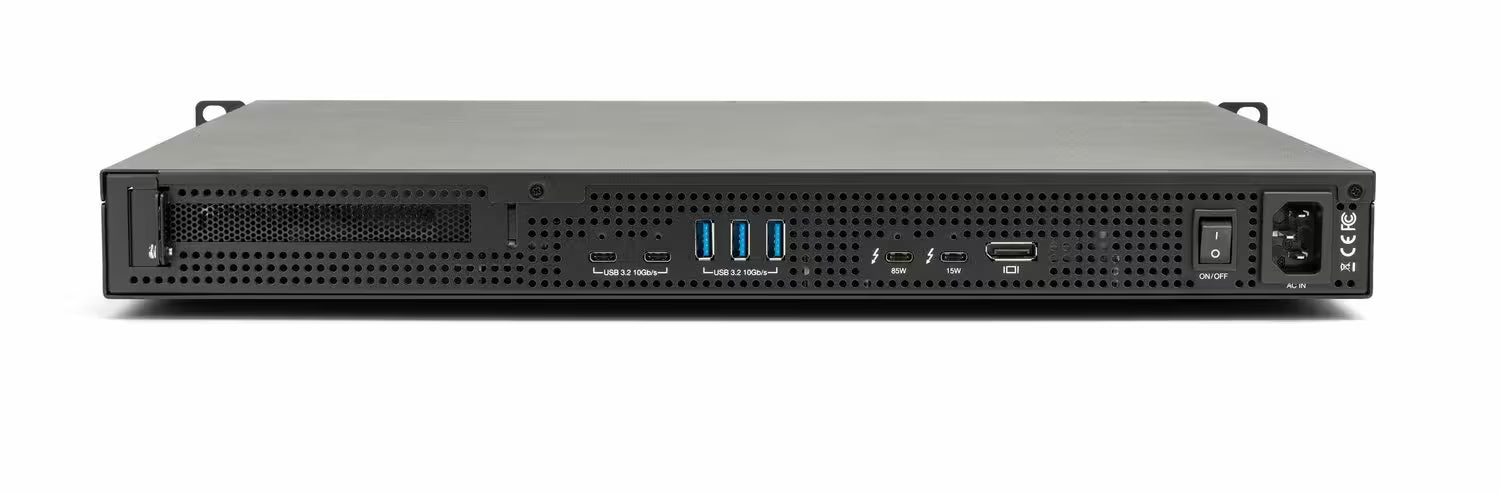

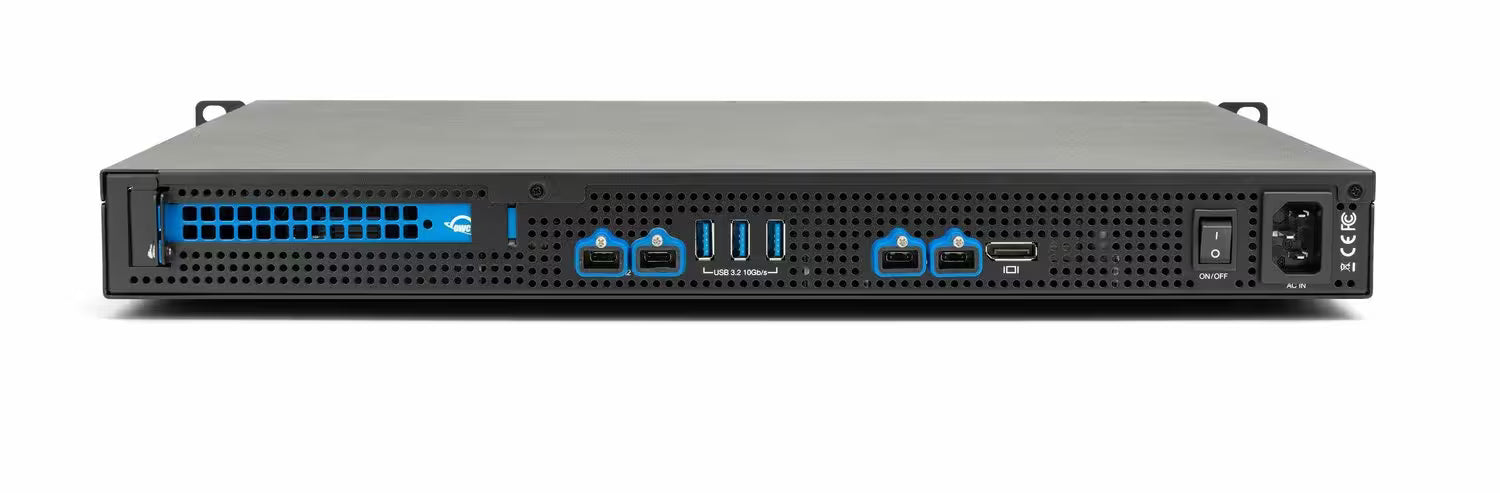

• Device Ports
  (1) Host Port - Thunderbolt 3 (USB-C) up to 40Gb/s (5000MB/s)
  (1) Thunderbolt 3 (USB-C) Port
  (2) USB 3.2 Gen 2 Type-C Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
  (3) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
  (1) DisplayPort Port
• Power Delivery
  One Thunderbolt 3 port with 85W power delivery
  One Thunderbolt 3 port with 15W power delivery
  Two USB-C ports with 15W power delivery
• UASP Support
  UASP (USB Attached SCSI Protocol) is supported
• Display Support
  Up to two 4K displays @ 60Hz,
  or one 8K display @ 60Hz,
  or one 4K display @ 120Hz,
  or one 5K display @ 60Hz
• Display Support by Port
  Thunderbolt 3 (Titan Ridge): Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 3 display or other display that supports USB-C connections and DisplayPort 1.4
  DisplayPort 1.4: Up to 8K @ 60Hz or 4K @ 120Hz
• Data Transfer Rate (Maximum)
  Thunderbolt 3 : Up to 40Gb/s (or 5000MB/s)
• Host Interface Requirements
  Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt1)
• Supports OWC ClingOn
  Yes (Learn More)
• External Power Adapter
  No
• Power Supply
  Internal UL-listed universal auto-switching power supply
• AC Input
  90-264V, 47-63Hz, 3.5A At 100V (Max.), 1.8A At 240V (Max.)
• DC Output
  +12V, 25A
• Wattage
  300W
• Fans
  (3) cooling fans
• Security Slot
  No
• Power Button
  Yes
• Housing Color
  Black
• Dimensions
  Height: 4.4 cm (1.7 in)
  Length: 45.6 cm (18.0 in)
  Width: 43.0 cm (16.9 in)
• Weight
  7.4 kg (16.31 lbs)
• Rack Space
  1U
• Certifications
  CE, FCC, VCCI, RCM, BSMI
• Ambient Temperature
  Operating: 50°F to 95°F (10°C to 35°C)
  Non-Operating: -40°F to 149°F (-40°C to 65°C)
• Humidity
  Operating: 8% to 90% non-condensing
  Non-Operating: 5% to 95% non-condensing
• Notes
  Users planning to install an OWC U2 Shuttle should note the device is designed so that only one LED illuminates, and that is drive bay SSD_D. The LED function associated with an OWC U2 Shuttle will be disabled and not function if drive bay SSD_D is absent of a M.2 SSD.

  Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (not included). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.

  Dual display support, including available resolution and refresh rates, is dependent on host hardware and drivers.
  - Apple silicon M1/M2/M3 Pro, M1/M2/M3 Max, and M1/M2 Ultra Mac models, Apple Intel-based Mac models, and Thunderbolt 4 PCs can support up to two displays at up to 4K @ 60Hz via Thunderbolt.
  - Apple silicon M1/M2/M3 Mac models can support one external display up to 4K @ 60Hz via Thunderbolt.
  The following Apple silicon M1/M2/M3 Mac models support a single display over a Thunderbolt port:
  - MacBook Pro (14-inch, M3, 2023)
  - MacBook Pro (13-inch, M1, 2020) - MacBookPro17,1
  - MacBook Pro (13-inch, M2, 2022) - Mac14,7
  - MacBook Air (M1, 2020) - MacBookAir10,1
  - MacBook Air (M2, 2022) - Mac14,2
  - Mac mini (M1, 2020) - Macmini9,1
  The following Mac models provide only partial support for DisplayPort 1.4, including limiting resolution to 5K or 6K at 60Hz. Please review Apple's display specifications for your specific Mac to determine the maximum supported resolution and color depth:
  - MacBook Pro (15-inch, 2018) - MacBookPro15,1
  - MacBook Pro (13-inch, 2018, Four Thunderbolt 3 ports) - MacBookPro15,2
  - MacBook Pro (13-inch, 2019, Four Thunderbolt 3 ports) - MacBookPro15,2
  - MacBook Pro (15-inch, 2019) - MacBookPro15,1 and MacBookPro15,3
  - MacBook Pro (13-inch, 2019, Two Thunderbolt 3 ports) - MacBookPro15,4
  - MacBook Pro (16-inch, 2019) - MacBookPro16,1 and MacBookPro16,4
  - MacBook Pro (13-inch, 2020, Four Thunderbolt 3 ports) - MacBookPro16,2
  - MacBook Pro (13-inch, 2020, Two Thunderbolt 3 ports) - MacBookPro16,3
  - MacBook Air (Retina, 13-inch, 2018) - MacBookAir8,1
  - MacBook Air (Retina, 13-inch, 2019) - MacBookAir8,2
  - MacBook Air (Retina, 13-inch, 2020) - MacBookAir9,1
  - iMac (Retina 5K, 27-inch, 2019) - iMac19,1
  - iMac (Retina 4K, 21.5-inch, 2019) - iMac19,2
  - iMac (Retina 5K, 27-inch, 2020) - iMac20,1 and iMac20,2
  - Mac mini (2018) - Macmini8,1
  - Mac Pro (2019) - MacPro7,1
  - Mac Pro (Rack, 2019) - MacPro7,1
  SoftRAID works with macOS 10.14 or later, Windows 10 or later, and Windows Server 2019 or later. Your purchase includes SoftRAID Premium (licensed per computer). Additional Premium seats can be purchased anytime, or use the limited free SoftRAID Standard version for basic volume access.

Other useful notes:

1. SAS drives are supported with SAS drive controller card (available separately).
2. Up to four U.2 drives are supported. M.2 drives are also supported with M.2 to U.2 adapter such as the OWC U2 Shuttle and OWC U2 ShuttleOne (available separately).
3. Full DisplayPort 1.4 capabilities depends on host computer support of DisplayPort 1.4 specification through its Thunderbolt 3 connection, host computer GPU capabilities, and connecting cable capabilities.
4. Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (not included). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
5. Select SSDs have been tested by OWC and shown to be incompatible with Mac systems running macOS 10.14 'Mojave' and later regardless of how they are connected to the host computer. Please consult the article "Incompatible SSD List: macOS 10.14 'Mojave' and Later" for a list of affected SSDs.

• Mac OS Compatibility
  macOS 10.15 Catalina
  macOS 11.x Big Sur
  macOS 12.x Monterey
  macOS 13.x Ventura
  macOS 14.x Sonoma
  macOS 15.x Sequoia
  macOS 26.x Tahoe
• PC OS Compatibility
  Not compatible with Windows PCs
• Mac Compatibility
  MacBook Pro late 2016 to newer
  MacBook Air 2018 and newer
  iMac 2017 and newer
  Mac Pro 2019 and 2023
  Mac Studio 2022 and newer
  Mac mini 2018 and newer
