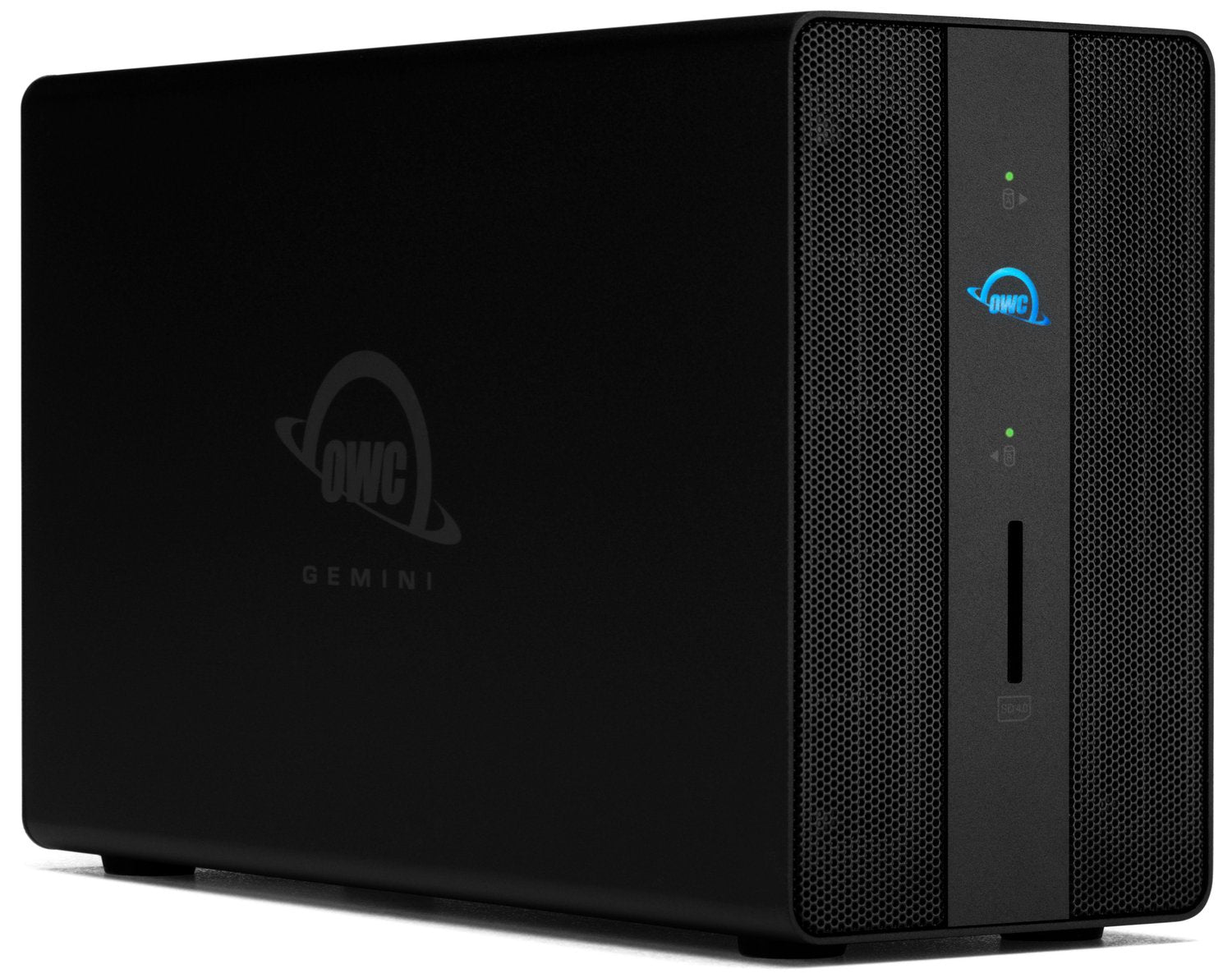

OWC Gemini Thunderbolt Dock and RAID Storage — front view

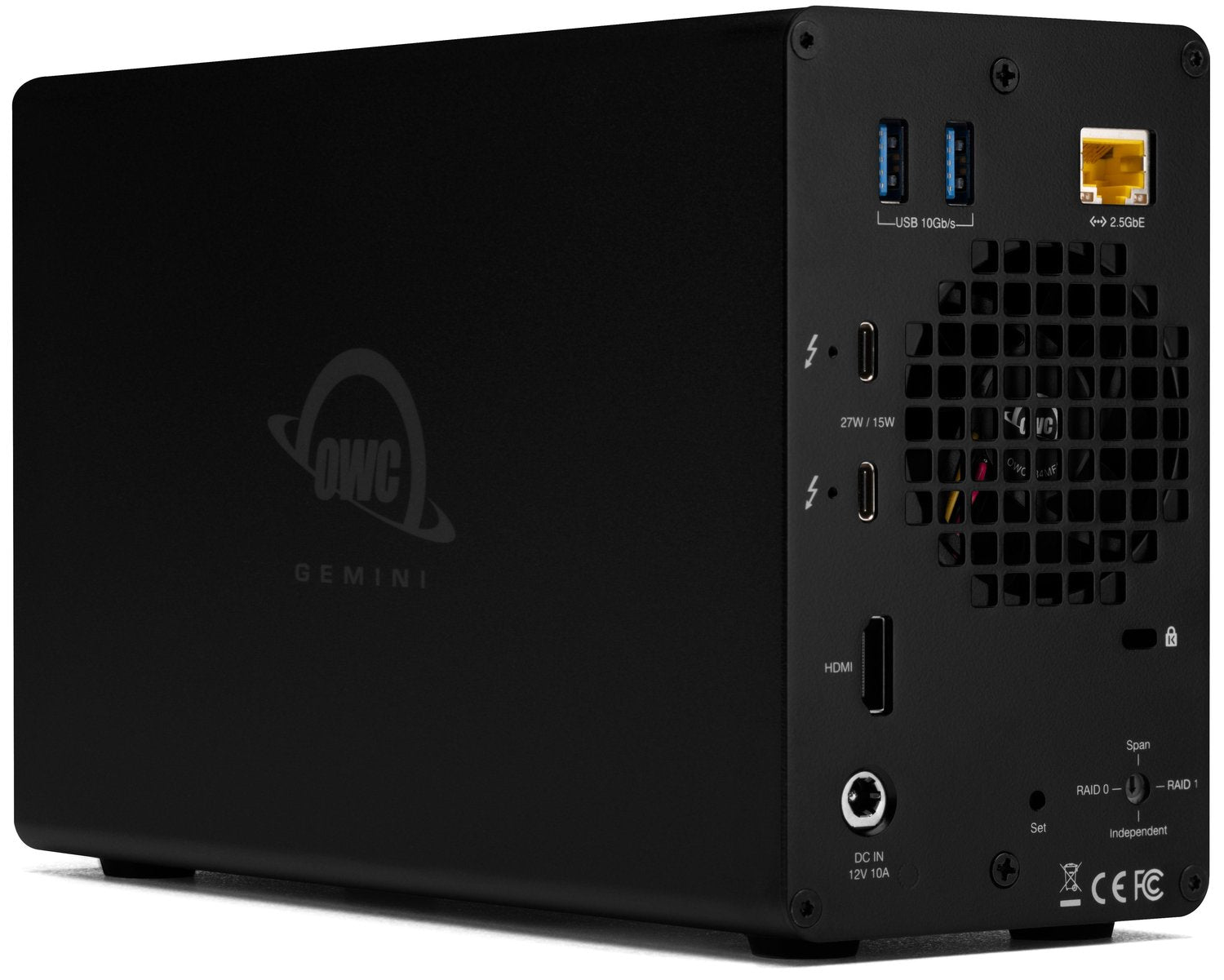

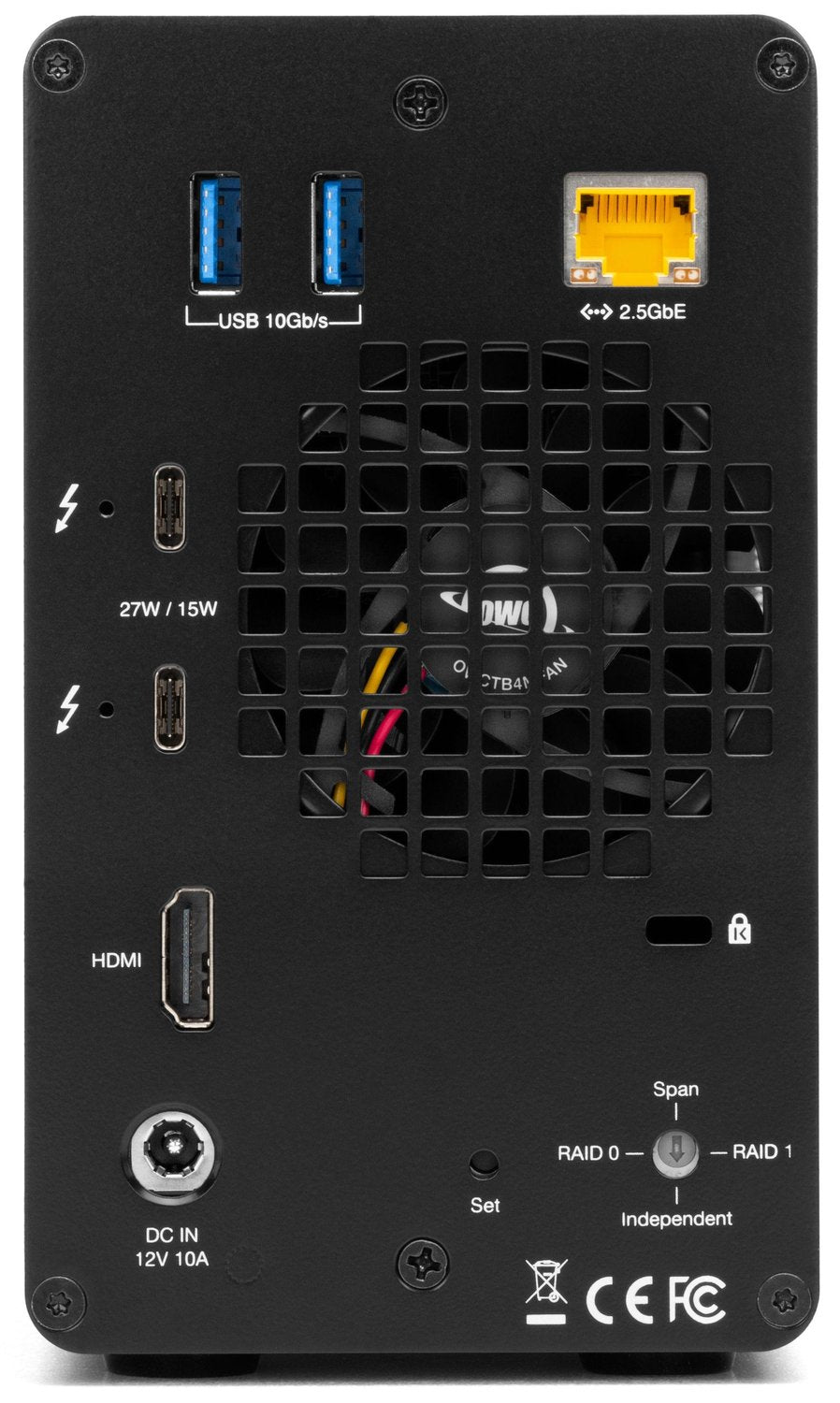

OWC Gemini — rear ports and connections
OWC Gemini — drive bay interior

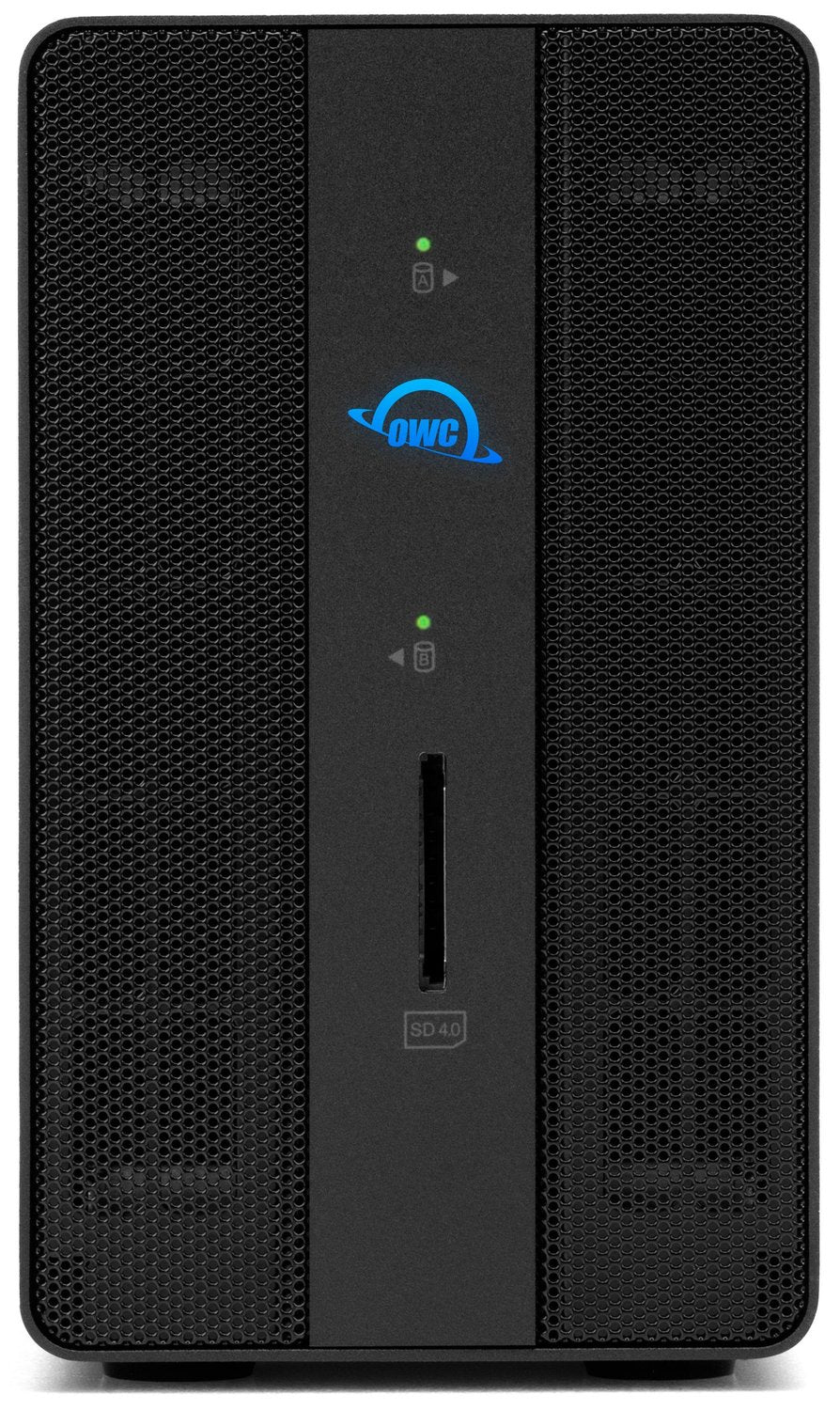

OWC Gemini — front panel with SD card reader
OWC Gemini — side view
OWC Gemini — in use on desk
OWC Gemini Thunderbolt Dock and RAID Storage — front view
OWC Gemini — rear ports and connections
OWC Gemini — drive bay interior
OWC Gemini — front panel with SD card reader
OWC Gemini — side view
OWC Gemini — in use on desk
OWC

OWC Gemini Dual-Drive Thunderbolt Dock & RAID External Storage with HDD

Product SKU: OWCTB3GM000H08
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
£781.00
Storage Capacity
Want it delivered by
  • Description
  • Specifications
  • Compatibility
  • Product Videos

The OWC Gemini is a dual-bay Thunderbolt 3 dock and hardware RAID storage solution built for photographers, videographers, and content creators who need serious capacity, serious speed, and a clean desk. With two 3.5-inch drive bays and a hardware RAID controller on board, you get up to 562MB/s in RAID 0 without leaning on your Mac's CPU — and you can reconfigure between RAID 0, RAID 1, Span, or JBOD at any time to match how you work. Pre-configured in RAID 0 out of the box.

Beyond the storage, Gemini is a proper Thunderbolt 3 dock. The front-facing SD 4.0 (UHS-II) card reader handles fast media ingests from cameras and drones. Two USB-A ports cover your peripherals. A 2.5GbE Ethernet port keeps you on a fast wired network. And an HDMI 2.1 port supports an 8K display — so you can add a large monitor and keep your laptop's Thunderbolt port free. Up to 27W of power delivery means your notebook or iPad stays charged while you work.

Available in seven capacities from 8TB to 48TB, all with enterprise-class 3.5-inch 7,200RPM Toshiba hard drives pre-installed and ready to go. Backed by a 3-year OWC limited warranty and lifetime customer support. Includes OWC Dock Ejector software to safely eject all drives in one click, and a 0.7M Thunderbolt cable in the box.

Key Features

  • Thunderbolt 3 dock and dual-bay hardware RAID storage in one unit
  • Up to 562MB/s in RAID 0 — hardware RAID 0, RAID 1, Span and JBOD supported
  • Available from 8TB to 48TB with enterprise 3.5-inch 7,200RPM Toshiba drives pre-installed
  • Frontside SD 4.0 (UHS-II) card reader for fast camera and drone media ingest
  • HDMI 2.1 port — supports up to 8K @ 120Hz external display
  • 2.5GbE Ethernet — up to 2.5x faster wired network transfers
  • 2x USB 3.2 Gen 2 (10Gb/s) Type-A ports
  • 27W power delivery via Thunderbolt 3 to charge notebooks and iPad Pro
  • Thunderbolt 3 backward compatible with Thunderbolt 2/1 (adapter required)
  • Aluminium housing for heat dissipation — hot plug supported
  • Includes 0.7M OWC Thunderbolt cable and OWC Dock Ejector software
  • 3-year OWC limited warranty and lifetime customer support

What's in the Box

  • OWC Gemini Thunderbolt Dock and Storage
  • Pre-installed 3.5-inch 7,200RPM enterprise hard drives (capacity as ordered)
  • 0.7M OWC Thunderbolt (USB-C) cable
  • External power supply and power cable
  • Quick start guide

Product Q&A

Q: Does the OWC Gemini work with Apple Silicon Macs?

A: Yes. The OWC Gemini is compatible with all current Apple Silicon Macs — MacBook Pro, MacBook Air, Mac mini, Mac Studio, iMac, and Mac Pro — via their Thunderbolt ports. It is also compatible with Thunderbolt-equipped Windows PCs and iPad Pro models.

Q: What RAID modes are supported?

A: The Gemini supports RAID 0 (maximum speed — pre-configured out of the box), RAID 1 (mirrored for data protection), Span (combined capacity as one volume), and JBOD/Independent (two separate drives). RAID is handled in hardware so performance is not impacted by your operating system.

Q: Can I use this with a Thunderbolt 2 Mac?

A: Yes, with Apple's certified Thunderbolt 3 (USB-C) to Thunderbolt 2 adapter and a Thunderbolt 2 cable (both sold separately). Data transfer will be limited to 20Gb/s and notebook charging is not supported in this configuration.

Q: Does it work with Windows?

A: Yes — Windows 10 and Windows 11 are supported on PCs with a Thunderbolt port. Note that the 2.5GbE Ethernet requires an Intel network adapter driver download for Windows. If you need to share drives between Mac and Windows, OWC's MacDrive software (sold separately) is recommended.

Q: Can I replace or upgrade the drives later?

A: Yes. The Gemini supports 2.5-inch and 3.5-inch SATA HDDs and SSDs, as well as U.2 SSDs (with an optional OWC U2 Shuttle adapter). You can swap or upgrade the drives yourself at any time.

Specification Detail
Interface Thunderbolt 3 (USB-C) — 40Gb/s host port + 1x Thunderbolt 3 daisy-chain port
Drive Bays 2 × 3.5-inch / 2.5-inch SATA (HDD or SSD)
RAID Levels RAID 0, RAID 1, Span, JBOD/Independent — hardware RAID controller
Max Performance Up to 562MB/s (RAID 0, HDD) / up to 956MB/s (RAID 0, SSD)
SD Card Reader SD 4.0 (UHS-II) — frontside
USB Ports 2 × USB 3.2 Gen 2 Type-A (10Gb/s)
Display Output HDMI 2.1 — up to 8K @ 120Hz
Thunderbolt Display Up to 8K @ 60Hz or 4K @ 120Hz via Thunderbolt 3 / DisplayPort 1.4
Ethernet 2.5GbE RJ45 (2.5Gb/s / 1Gb/s / 100Mb/s / 10Mb/s)
Power Delivery Up to 27W via Thunderbolt 3
Power Supply External 120W (100–240V, 50–60Hz) universal auto-switching
Chipset Thunderbolt: Intel JHL7440 | Ethernet: Intel i226 | SATA: ASMedia ASM-1352R
Security Slot Yes
Hot Plug Yes
Boot Support Yes (Boot Camp not supported)
Housing High-quality aluminium — Black
Dimensions 14.7 cm (H) × 23.8 cm (L) × 8.5 cm (W)
Weight 1.6 kg (enclosure only, without drives)
Noise 19.3 dB
Certifications CE, FCC, VCCI, BSMI, RCM, Thunderbolt Certified, RoHS
Warranty 3-year OWC limited warranty

Download OWC Gemini Support Manual (PDF)

Requires a Thunderbolt (USB-C) port. Compatible with Thunderbolt 2/1 Macs using Apple's certified Thunderbolt 3 to Thunderbolt 2 adapter (sold separately).

Mac

  • MacBook Pro (2016 and later)
  • MacBook Air (2020 and later)
  • iMac (2017 and later)
  • iMac Pro (2017)
  • Mac Pro (2019 and later)
  • Mac Studio (2022 and later)
  • Mac mini (2018 and later)
  • Mac models with Thunderbolt 2 (with adapter)

iPad

  • iPad Pro (all Thunderbolt models)

PC

  • Windows 10 / 11 PCs with Thunderbolt port
  • Linux and Chrome OS compatible

Operating Systems

  • macOS 12 Monterey, 13 Ventura, 14 Sonoma, 15 Sequoia, 26 Tahoe
  • Windows 10 (64-bit), Windows 11, Windows Server 2016/2022
  • Linux, Chrome OS (107 or later)
  • iPadOS 15 and later
