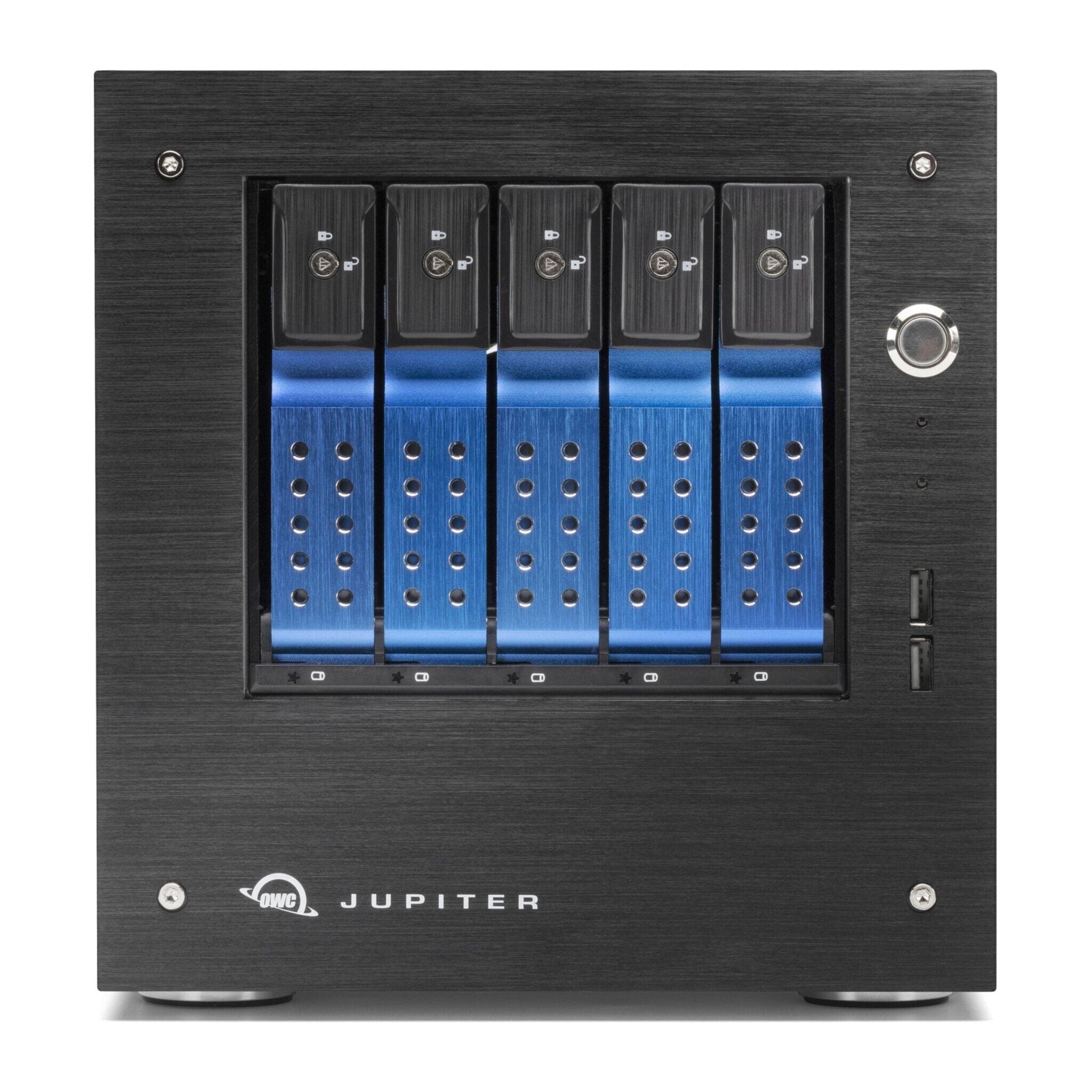

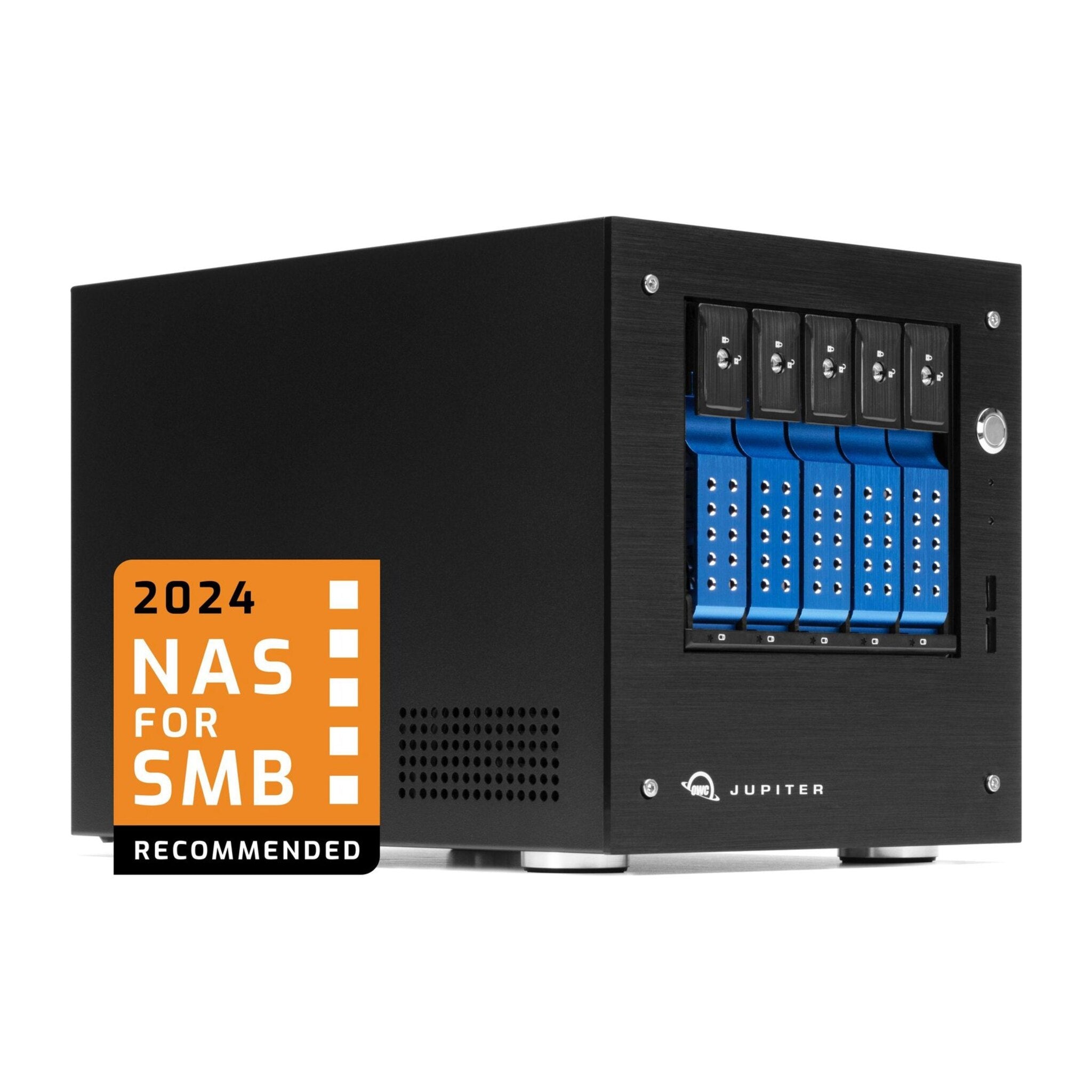

The OWC Jupiter Mini is a complete, pre-configured 5-bay desktop NAS built for small businesses, workgroups, and creative teams that need centralized, high-performance file storage without the cost or complexity of rack-mounted enterprise gear.
Every Jupiter Mini ships fully assembled with enterprise-class hard drives already installed and RAID-configured, running TrueNAS SCALE, the world's number 1 open-source NAS operating system. With dual 10 Gigabit Ethernet ports, an Intel Xeon processor, and 32GB of ECC RAM, it supports 50+ simultaneous users without slowdown, all backed by a 3-year OWC Enterprise Limited Warranty covering both the system and the drives.
Key Features

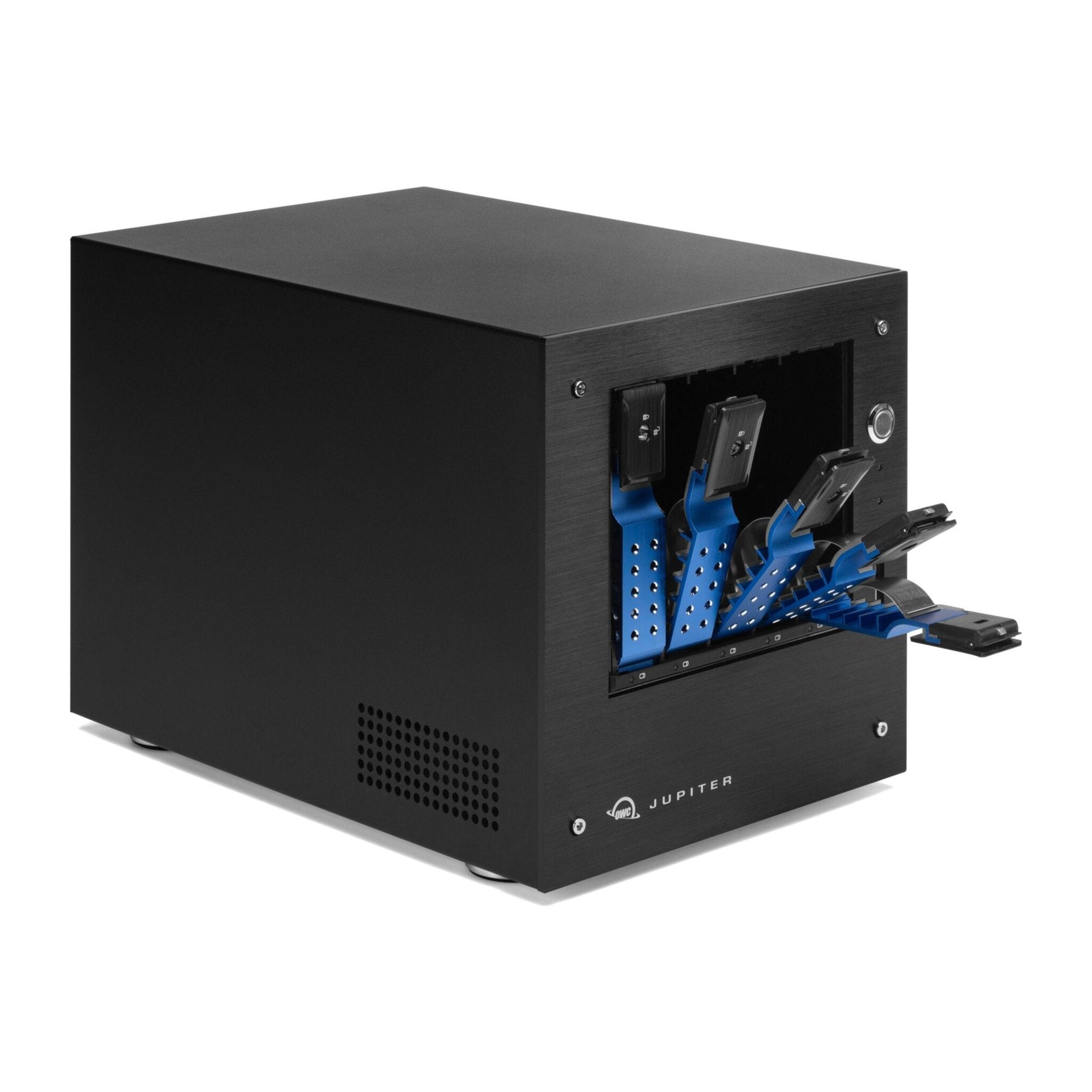

- 5 hot-swappable drive bays with enterprise-class 7,200RPM SATA hard drives pre-installed and RAID-configured

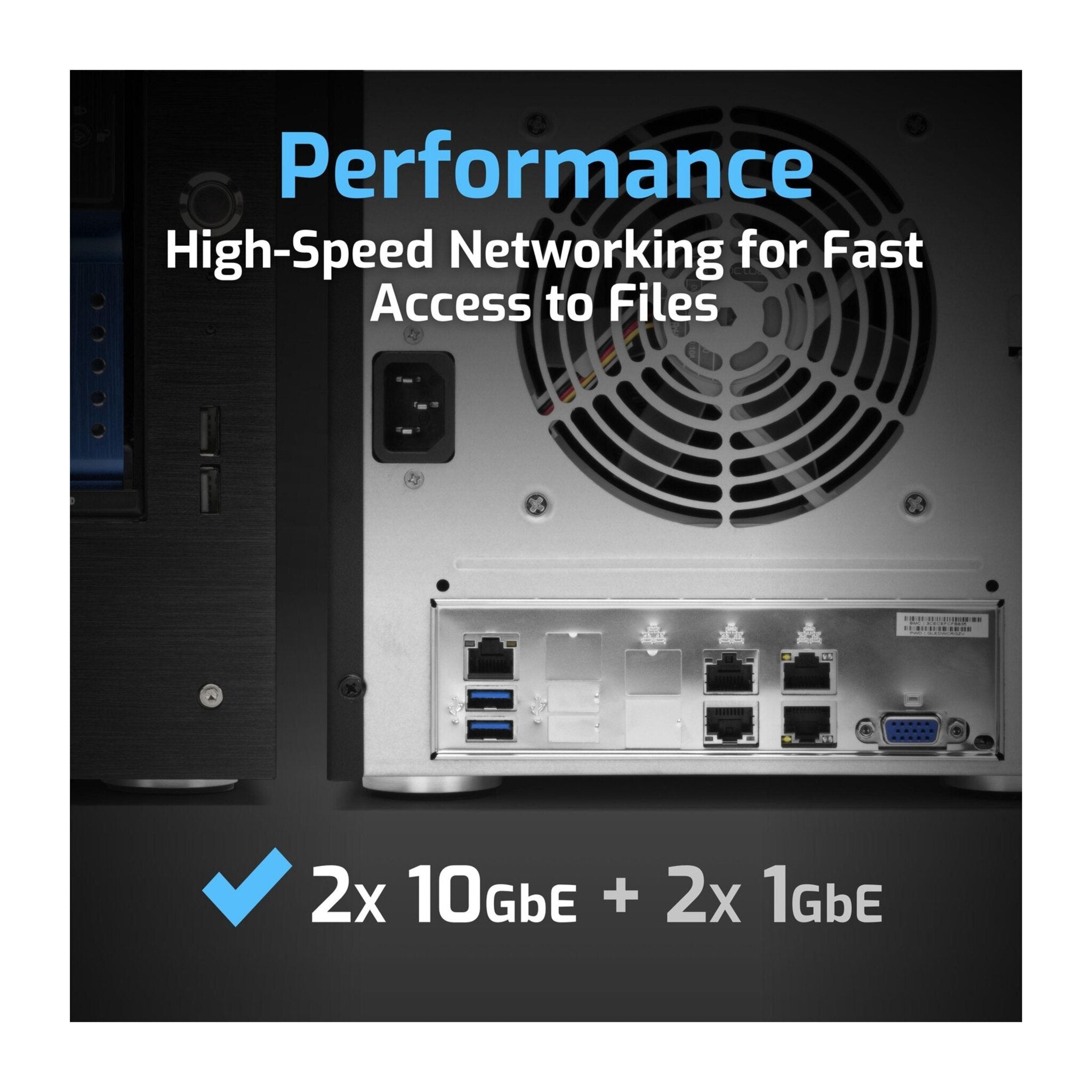

- 2 x 10 Gigabit Ethernet ports plus 2 x 1 Gigabit Ethernet ports for fast, flexible networking
- Intel Xeon D-1518 4-core (8-thread) processor with 32GB ECC RDIMM DDR4 RAM for reliable multi-user performance

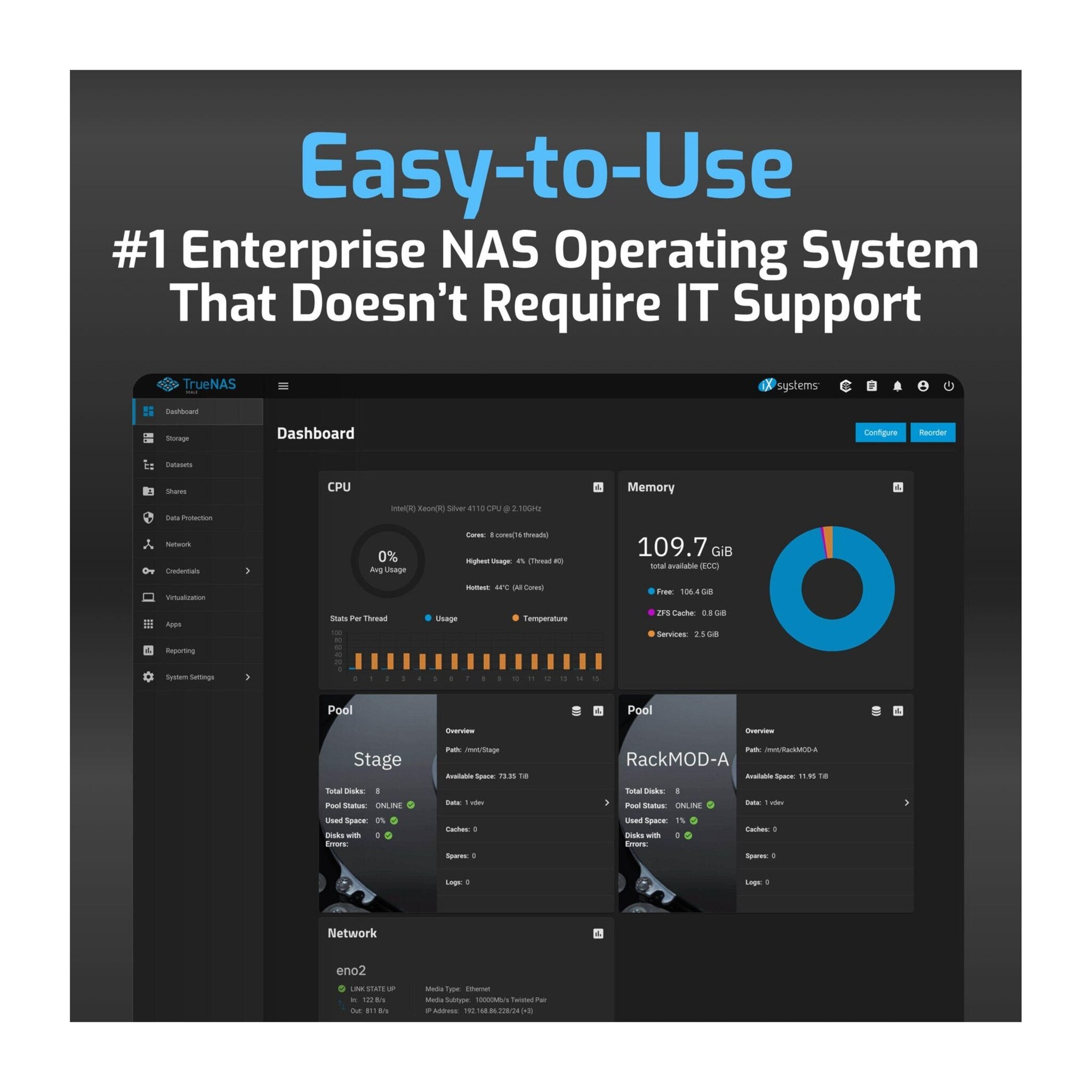

- Pre-loaded TrueNAS SCALE operating system, the number 1 open-source NAS OS, with ZFS RAID for automatic data protection
- Supports RAID-Z0, RAID-Z1, RAID-Z2, RAID-Z3, and mirrored configurations
- Connects seamlessly to macOS, Windows, Linux, UNIX, iOS and Android devices
- Supports 50+ users without slowdown, ideal for small business and workgroup file sharing
- Built-in cloud sync with Dropbox, Google Cloud, Microsoft OneDrive and other cloud services
- Fully tested and certified before shipping, backed by a 3-year OWC Enterprise Limited Warranty covering system and drives

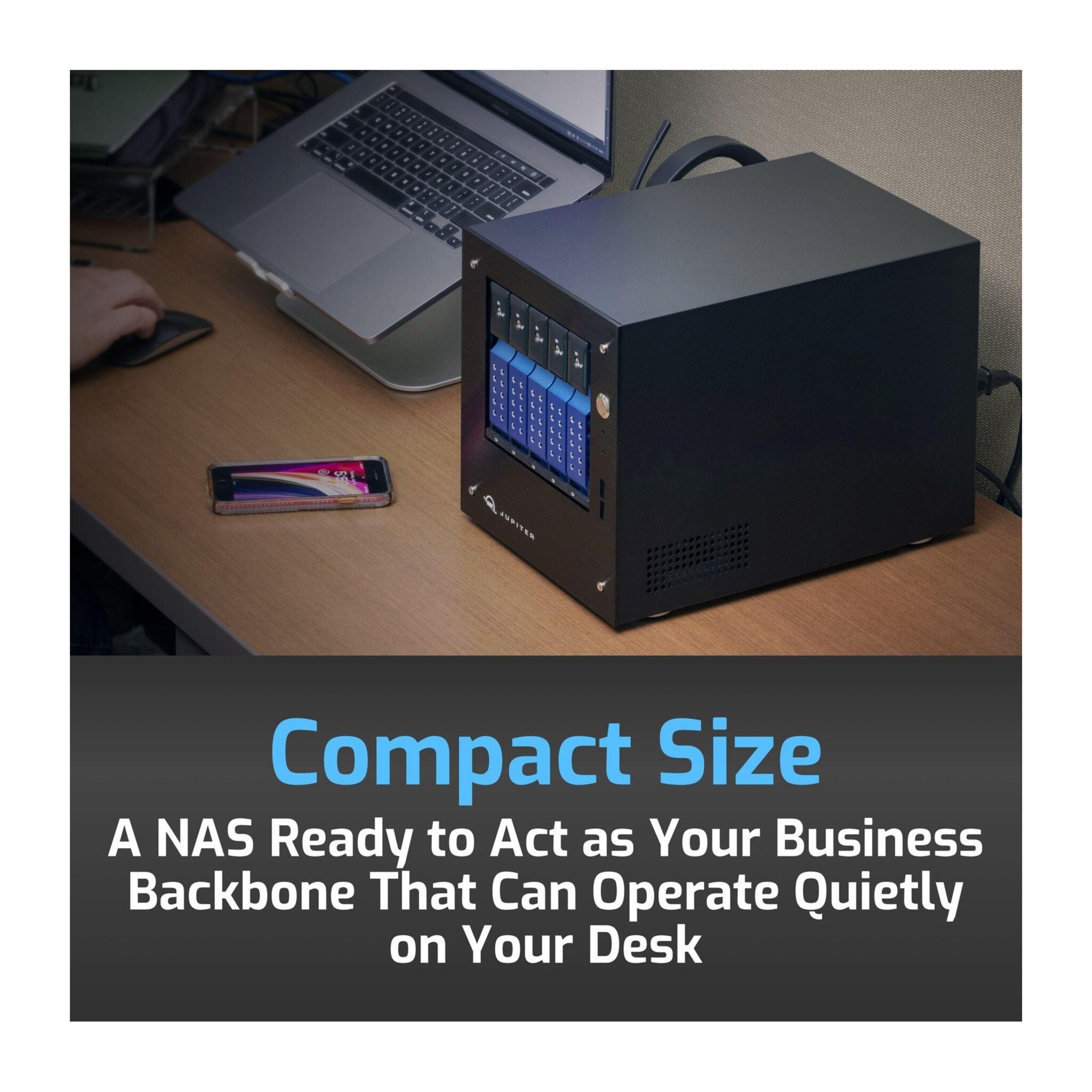

- Compact desktop footprint despite enterprise-grade hardware and capacity
What's in the Box
- OWC Jupiter Mini 5-bay NAS with drives pre-installed
- Power cable
- 2 security keys for drive bay lock
- Getting Started QR card
What capacities is the Jupiter Mini available in?
The Jupiter Mini is available in 20TB, 40TB, 80TB, 100TB and 120TB, using enterprise-class Toshiba or Seagate drives depending on capacity. All capacities share the same chassis, processor, RAM, and networking hardware.
Do I need IT experience to set up and run the Jupiter Mini?
No. The Jupiter Mini arrives pre-configured with drives installed and RAID already set up. TrueNAS SCALE handles data integrity checks automatically in the background, and the dashboard can be accessed from any browser on macOS, Windows, Linux, iOS or Android.
Can I access my Jupiter Mini remotely, outside the office?
Yes. The Jupiter Mini supports remote access through services such as OpenVPN, ZeroTier, or standard firewall port-forwarding, so your team can reach shared files from anywhere.
What happens if a hard drive fails?
The Jupiter Mini uses ZFS RAID, an enterprise-grade file system that keeps your data available even if a drive fails. Drive bays are hot-swappable, so a failed drive can be replaced without shutting the system down, and ZFS automatically repopulates the data onto the new drive.
Can multiple people access the Jupiter Mini at the same time?
Yes. The Jupiter Mini is built to support 50+ users simultaneously without slowdown, thanks to its Xeon processor, 32GB of ECC RAM, and dual 10GbE networking, making it well suited to small business and workgroup environments.
Specifications
| Processor | Intel Xeon D-1518, 2.20GHz, 4-core (8-thread), 6MB cache |
| Memory | 32GB ECC RDIMM DDR4 2666MHz |
| Operating System | TrueNAS SCALE (pre-installed) |
| Drive Bays | 5 bays, hot-swappable, supports 3.5-inch SATA HDDs and SSDs |
| Storage Interface | SATA 6.0Gb/s |
| RAID Support | ZFS Stripe (RAID-Z0), ZFS Mirror, RAID-Z1, RAID-Z2, RAID-Z3 (default: RAID-Z1) |

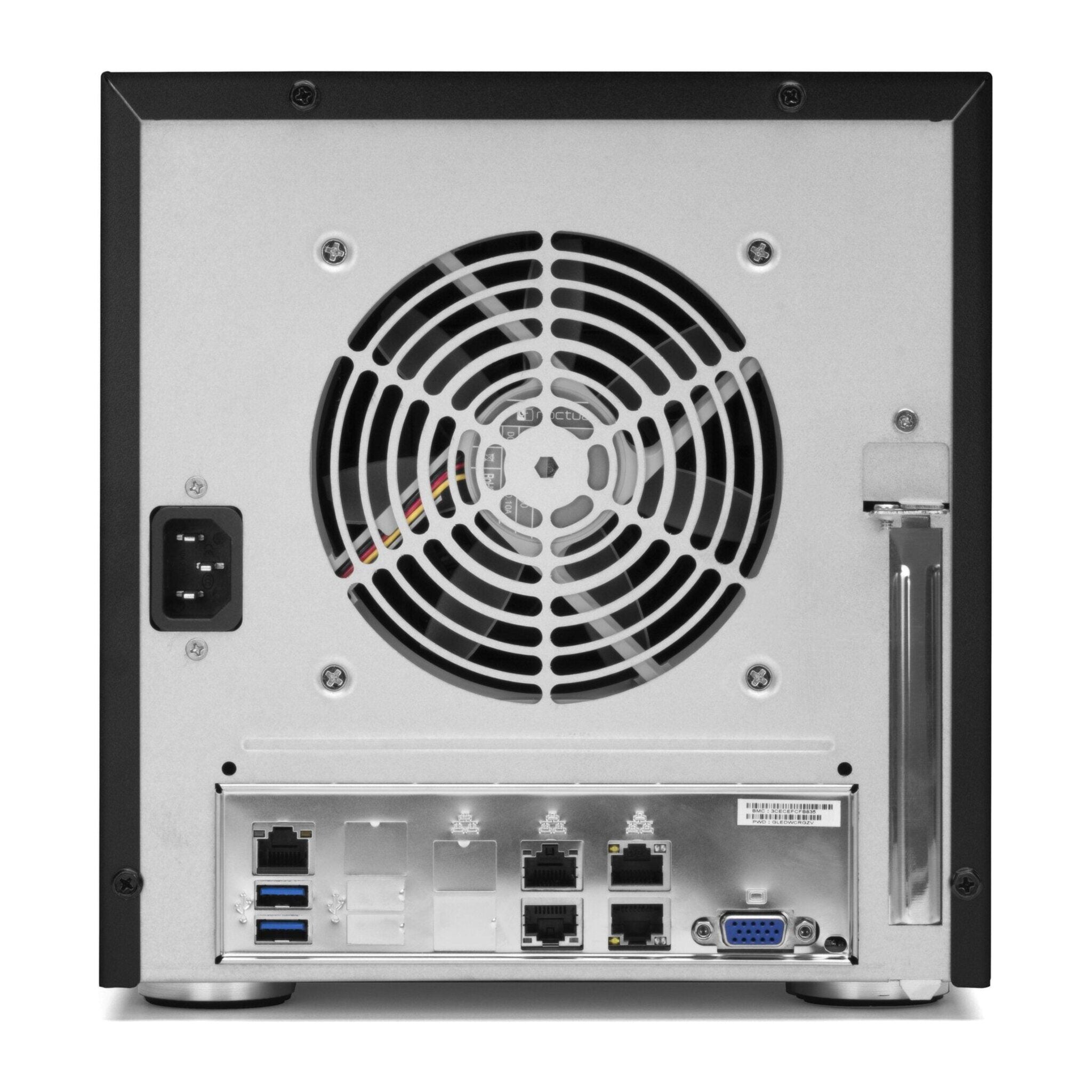

| Networking | 2 x 10GbE RJ45, 2 x 1GbE RJ45, 1 x 1GbE IPMI port |
| Additional Ports | 1 x VGA, 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| Protocol Support | CIFS/SMB, iSCSI, NFS, SFTP/TFTP, WebDAV |
| File System Support | ZFS, UFS, FAT, NTFS, EXT2 |
| Expansion | 1 x PCIe 3.0 x16 slot for optional 12Gb/s SAS HBA storage expansion |
| Security | Password authentication, user/group access control, Windows Active Directory support, physical drive bay locks |
| Dimensions | 22.6 x 32.4 x 22.1 cm (H x L x W) |
| Weight | 20TB/40TB: 15.8kg · 80TB/100TB: 15.9kg · 120TB: 15.7kg |
| Warranty | 3-year OWC Enterprise Limited Warranty (system and drives), extendable to 5 years |
| Drives by Capacity | 20TB: 5 x 4TB Toshiba MG08-D · 40TB: 5 x 8TB Toshiba MG08-D · 80TB: 5 x 16TB Toshiba MG09 · 100TB: 5 x 20TB Toshiba MG10 · 120TB: 5 x 24TB Seagate Exos X24 OWC reserves the right to replace or upgrade to equivalent or better components. |
Compatibility
| Operating Systems | macOS, Windows 10/11, Windows Server 2003-2022, Linux, UNIX, FreeBSD, Solaris, Chrome OS |
| Mobile Access | iOS and Android via TrueNAS SCALE web dashboard |
| Networking | Any device with Gigabit or 10 Gigabit Ethernet; supports network switches, subnetting, link aggregation and failover |
| Cloud Services | Dropbox, Google Cloud, Microsoft OneDrive, and other cloud sync-compatible services |
| Remote Access | OpenVPN, ZeroTier, or firewall port-forwarding |
