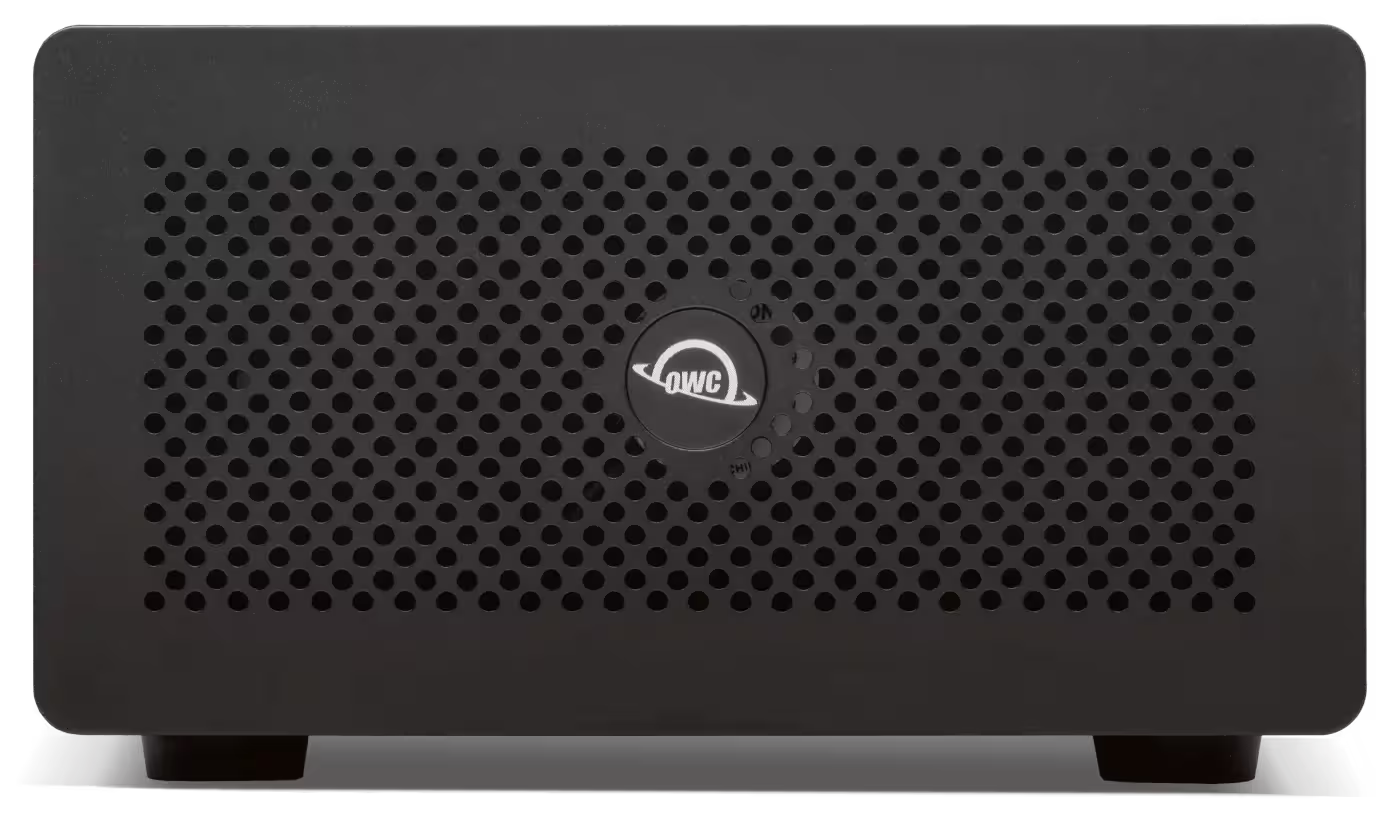

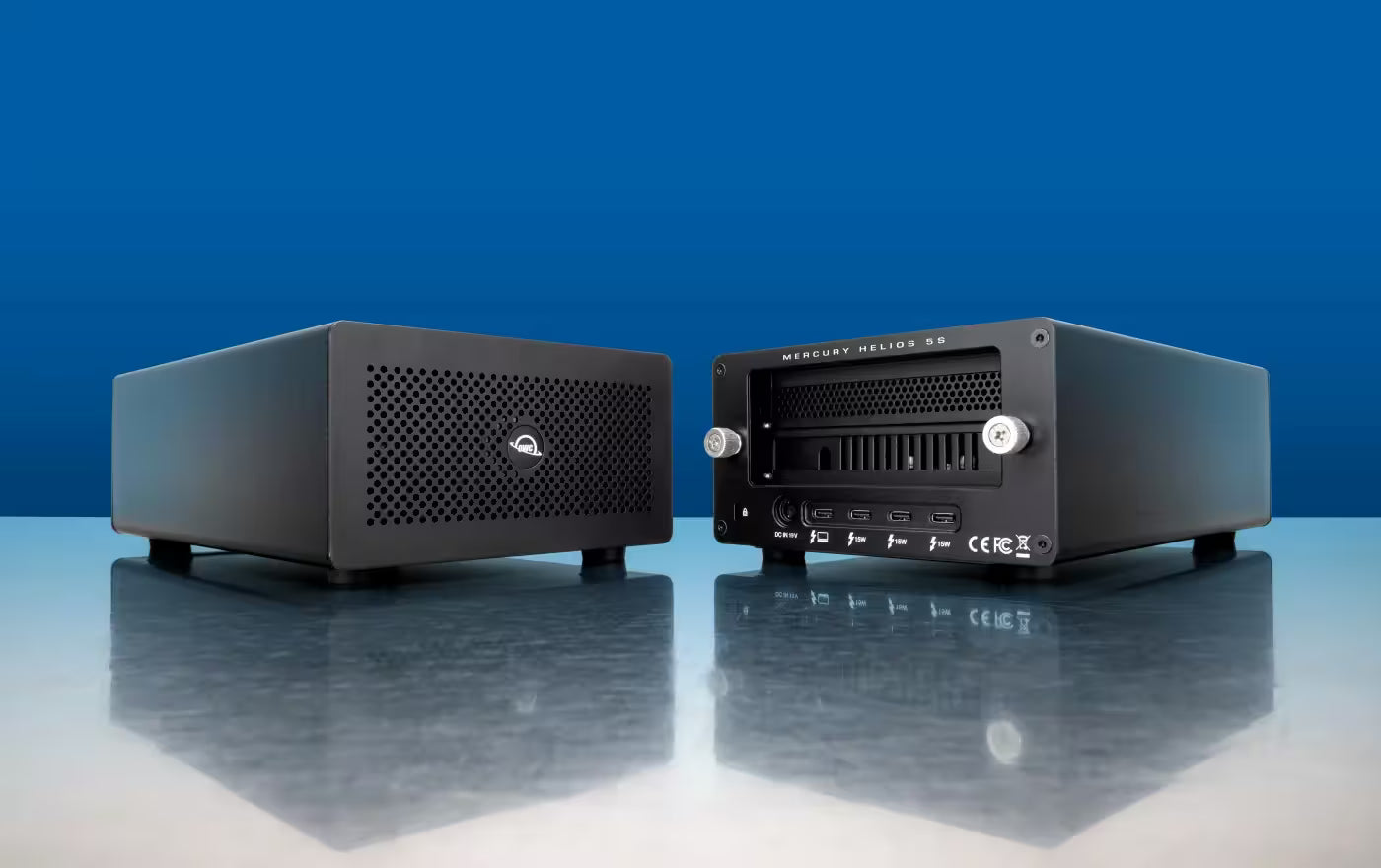

OWC Mercury Helios 5S Thunderbolt 5 PCIe Expansion Chassis

OWC Mercury Helios 5S Thunderbolt 5 (80Gb/s) PCIe Expansion Solution

OWC Mercury Helios 5S Thunderbolt 5 (80Gb/s) PCIe Expansion Solution delivers pro-grade PCIe expansion to thin notebooks, Mac Studio, small form factor PCs, and other machines that lack an internal PCIe slot. Connect with a single Thunderbolt or USB4 cable to run NVMe RAID storage, 8K capture cards, audio DSP, or high-speed networking at workstation-class speed — up to 6000MB/s of internal bandwidth — while adding three additional Thunderbolt 5 80Gb/s ports for next‑gen connectivity. Tool-free card installs, captive thumb screws, an aircraft-grade aluminum chassis, and a whisper-quiet adjustable fan make it simple to expand performance without bulky desktops or complicated setup. The Helios 5S is engineered for professionals who demand full-size PCIe card compatibility and a compact, dependable external solution.

Features and Benefits

• Up to 6000MB/s internal bandwidth for simultaneous read/write workloads.
• Single PCIe 4.0 x4 (x16 mechanical) slot supporting half-length, full-height, single- or double-width cards (including some with daughterboards).

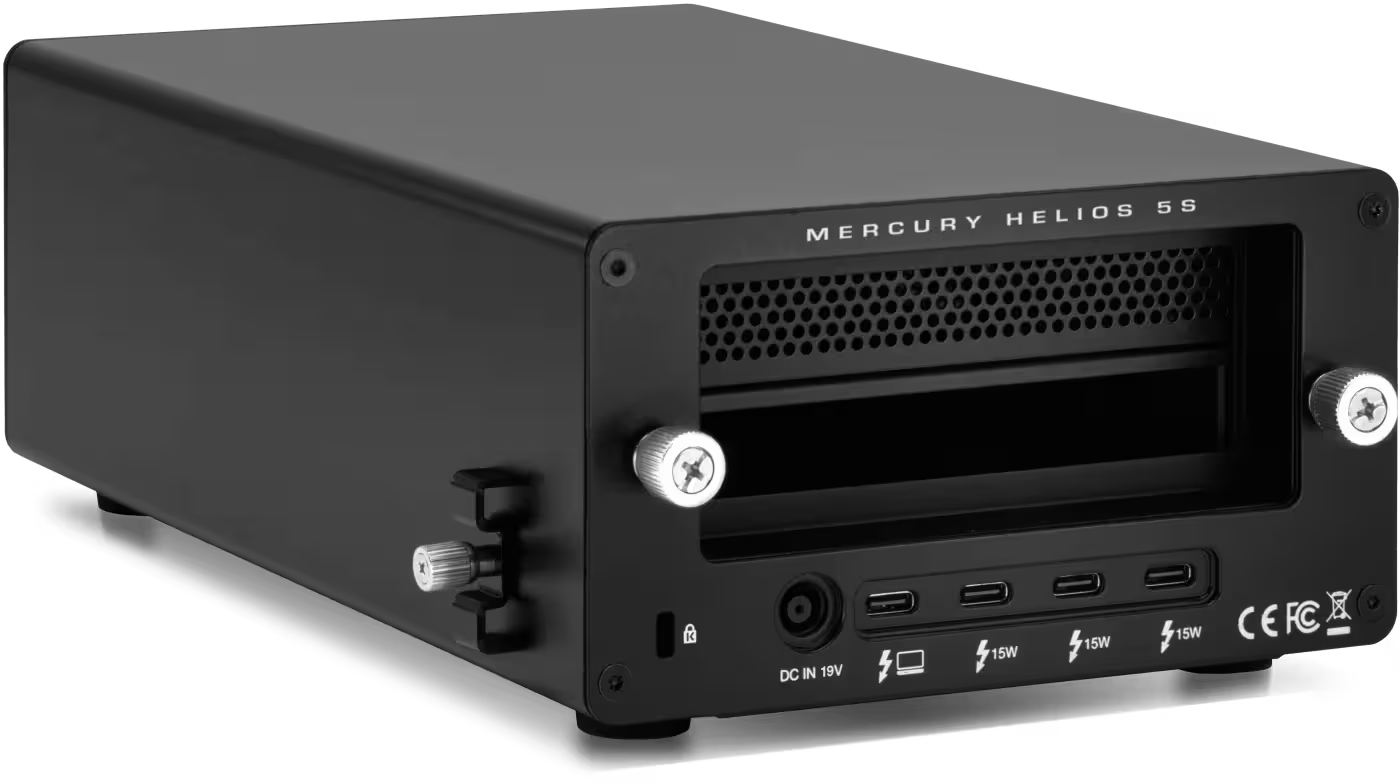

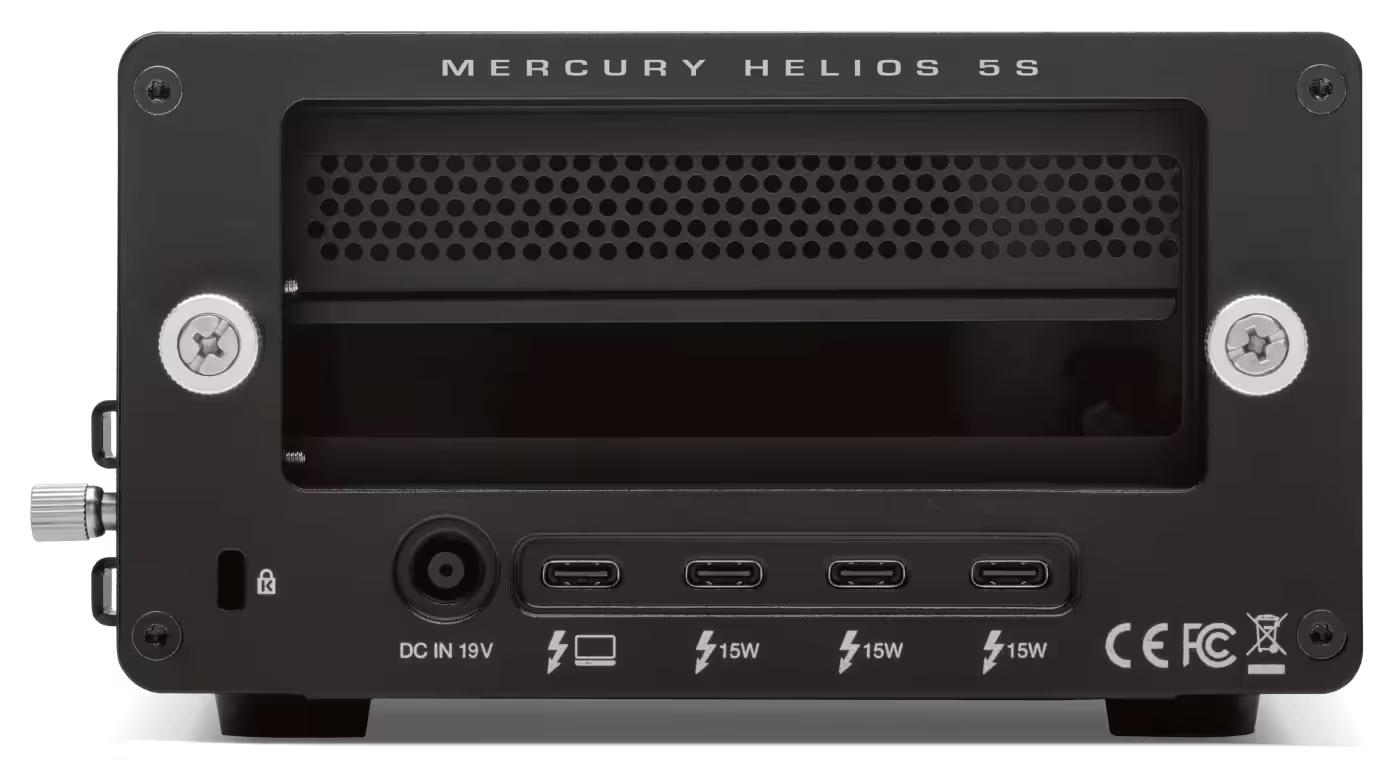

• Three Thunderbolt 5 (USB-C) ports — 80Gb/s each — with 15W power delivery for devices and daisy‑chaining.
• Includes a certified 0.7m OWC Thunderbolt 5 (USB-C) 80Gb/s cable and power cord retainer; auto power on/off with host computer.

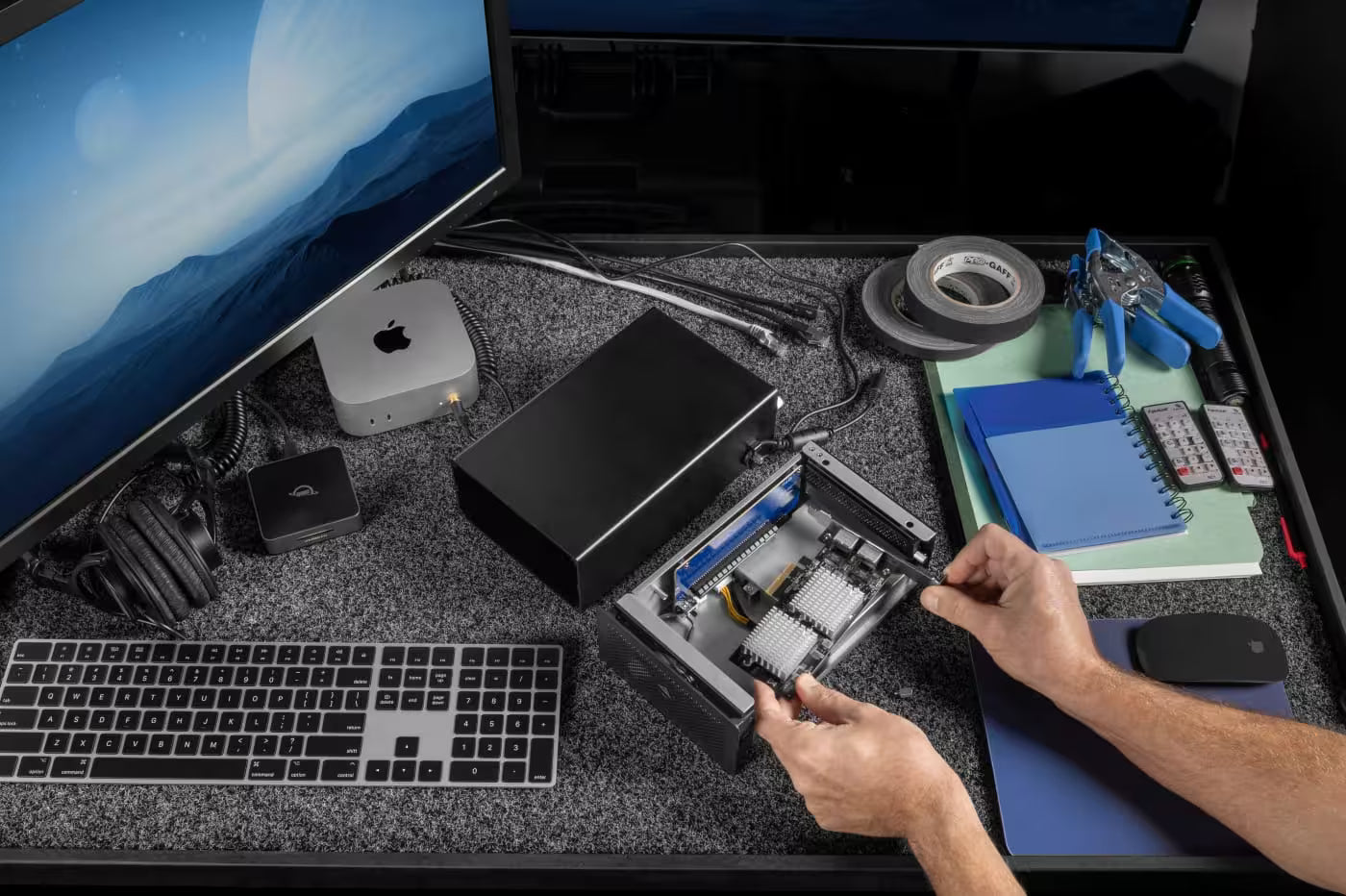

• Tool-free installation with captive thumb screws; removable mesh panel to accommodate double-width cards or daughterboards.

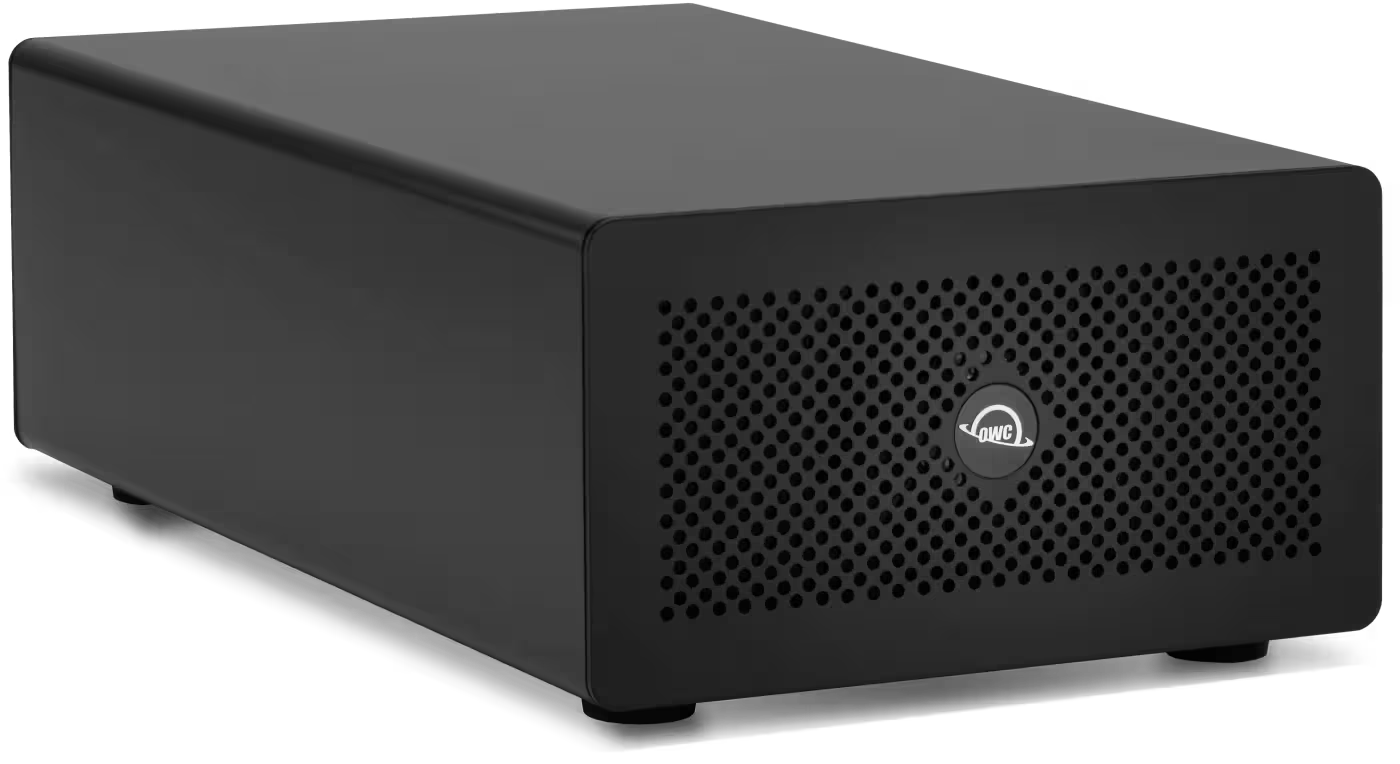

• Aircraft-grade aluminum housing with adjustable-speed fan for cool, near‑silent operation.

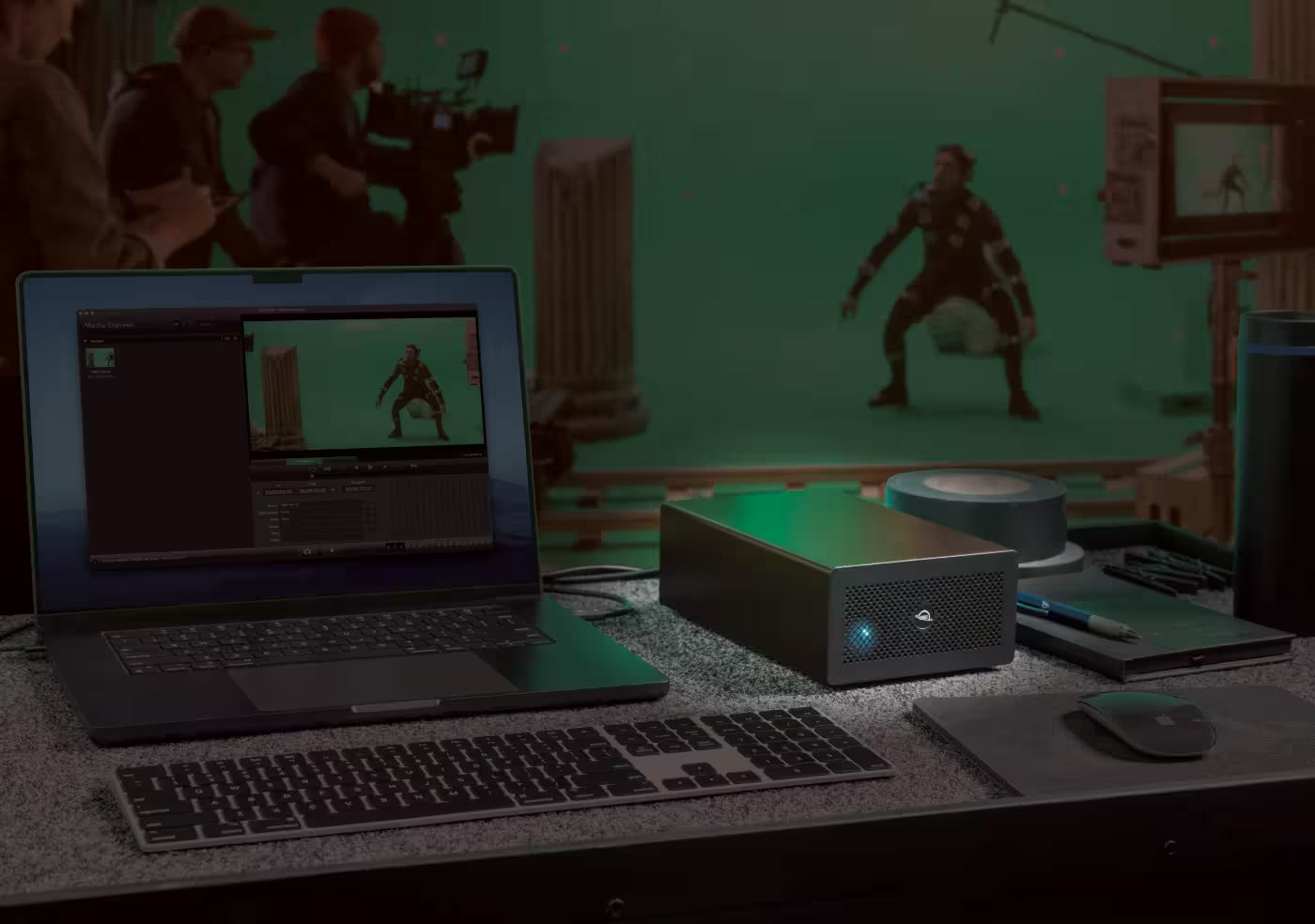

• Ideal for NVMe RAID, 8K video capture, high-speed Ethernet/fiber adapters, audio interfaces, and other pro PCIe cards.
• Notes card/power limits: cards requiring x8 lanes or more, or cards drawing more than 75W, are not supported; GPUs are not supported.

What's in the box

• OWC Mercury Helios 5S enclosure
• 0.7 m OWC Thunderbolt 5 (USB-C) 80Gb/s cable
• Power cord retainer
• Power cord
• 90W External Power Supply
• 1.8M (70.9") Power Cable
• Support Manual for OWC Mercury Helios 5S (digital)
• 3 Year OWC Limited Warranty

Product Q&A

• Q: Which cards can I install in the Mercury Helios 5S?
  A: The Helios 5S accepts half-length, full-height, single- or double-width PCIe cards (x16 mechanical slot) and supports PCIe 4.0 cards operating at x4 lanes. Removeable mesh and captive thumb screws make installs tool-free. Note that cards requiring x8 lanes or >75W are not supported and GPUs are explicitly not supported.
• Q: What connectivity and performance can I expect?
  A: The unit provides up to 6000MB/s internal bandwidth and three external Thunderbolt 5 (USB-C) ports, each rated at 80Gb/s and supplying 15W power delivery, enabling high-speed drives, displays, and daisy-chaining of Thunderbolt devices.
• Q: Will it work with my MacBook or Mac Studio?
  A: Yes — it is designed to expand Thunderbolt/USB4 Macs and small form factor Macs (MacBook family, Mac Studio, Mac mini) by providing external PCIe expansion via a single Thunderbolt/USB4 connection. Follow your PCIe card vendor’s driver instructions if a driver is required.
• Q: Is installation difficult or noisy?
  A: No — installation is tool-free with captive thumb screws and the unit is built with an aircraft-grade aluminum chassis and an adjustable-speed cooling fan for quiet, efficient operation.
• Q: What are important limitations to know before buying?
  A: Do not use GPUs with this enclosure. Do not install cards that require x8 PCIe lanes or draw more than 75W. If a card needs a vendor driver, install the driver per the card manufacturer’s instructions.
