OWC StudioStack Thunderbolt 5 Storage Hub – Configurable HDD & NVMe (Up to 24TB + 8TB NVMe)

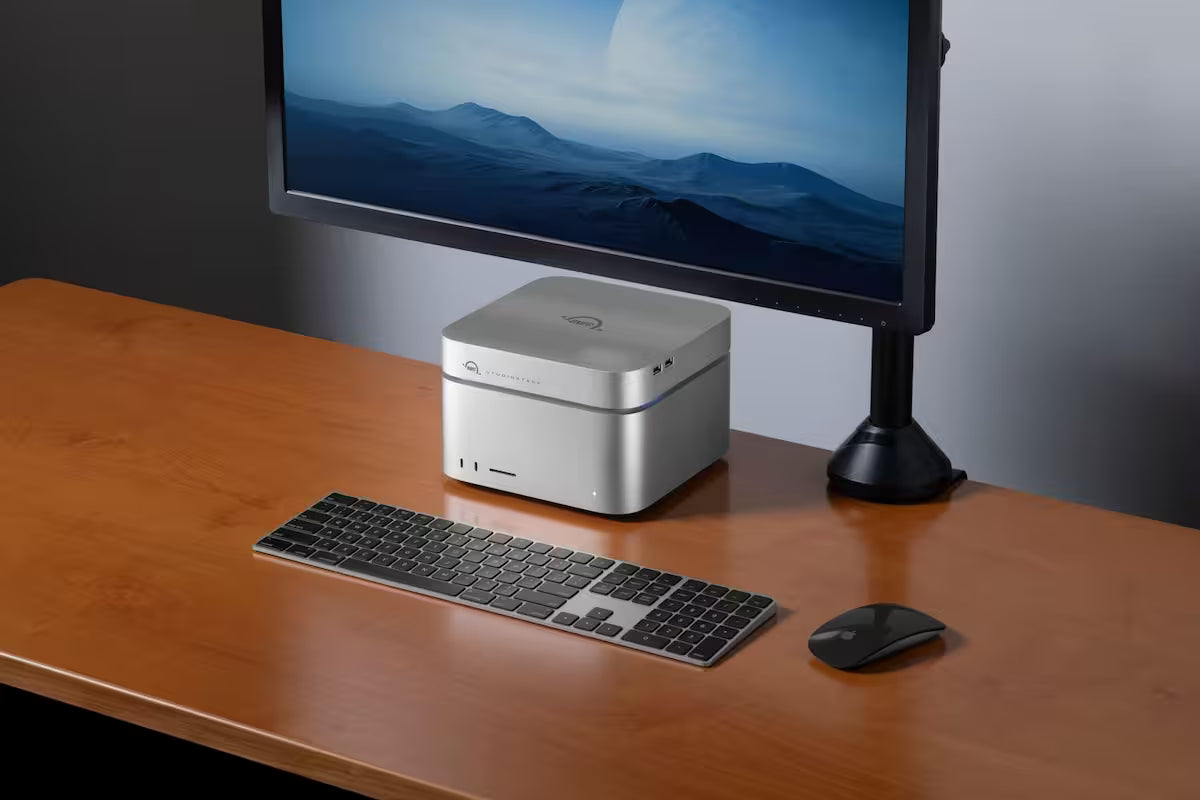

The OWC StudioStack is a powerful Thunderbolt 5 desktop storage and expansion hub designed to sit perfectly beneath your Mac Studio or modern Mac or PC setup. This configurable solution allows you to choose high-capacity enterprise HDD storage, ultra-fast NVMe SSD storage, or combine both for the ultimate performance and capacity balance.
Whether you need massive archival storage (16TB, 20TB, 24TB HDD), high-speed NVMe performance (2TB, 4TB, 8TB), or a hybrid configuration for editing, production, and professional workflows, StudioStack delivers exceptional flexibility in a compact aluminum enclosure. For enclosure only without storage, please Check Here.
Built for creative professionals, studios, and demanding users, StudioStack combines Thunderbolt 5 performance, USB expansion, daisy-chaining capability, and independent bootable volumes in one elegant, stackable design.
Key Features
- Configurable storage: choose 16TB, 20TB or 24TB HDD
- Optional NVMe M.2 SSD: 2TB, 4TB or 8TB ultra-fast storage
- A Combination of both, HDD plus NVME SSD
- Thunderbolt 5 connectivity up to 80Gb/s

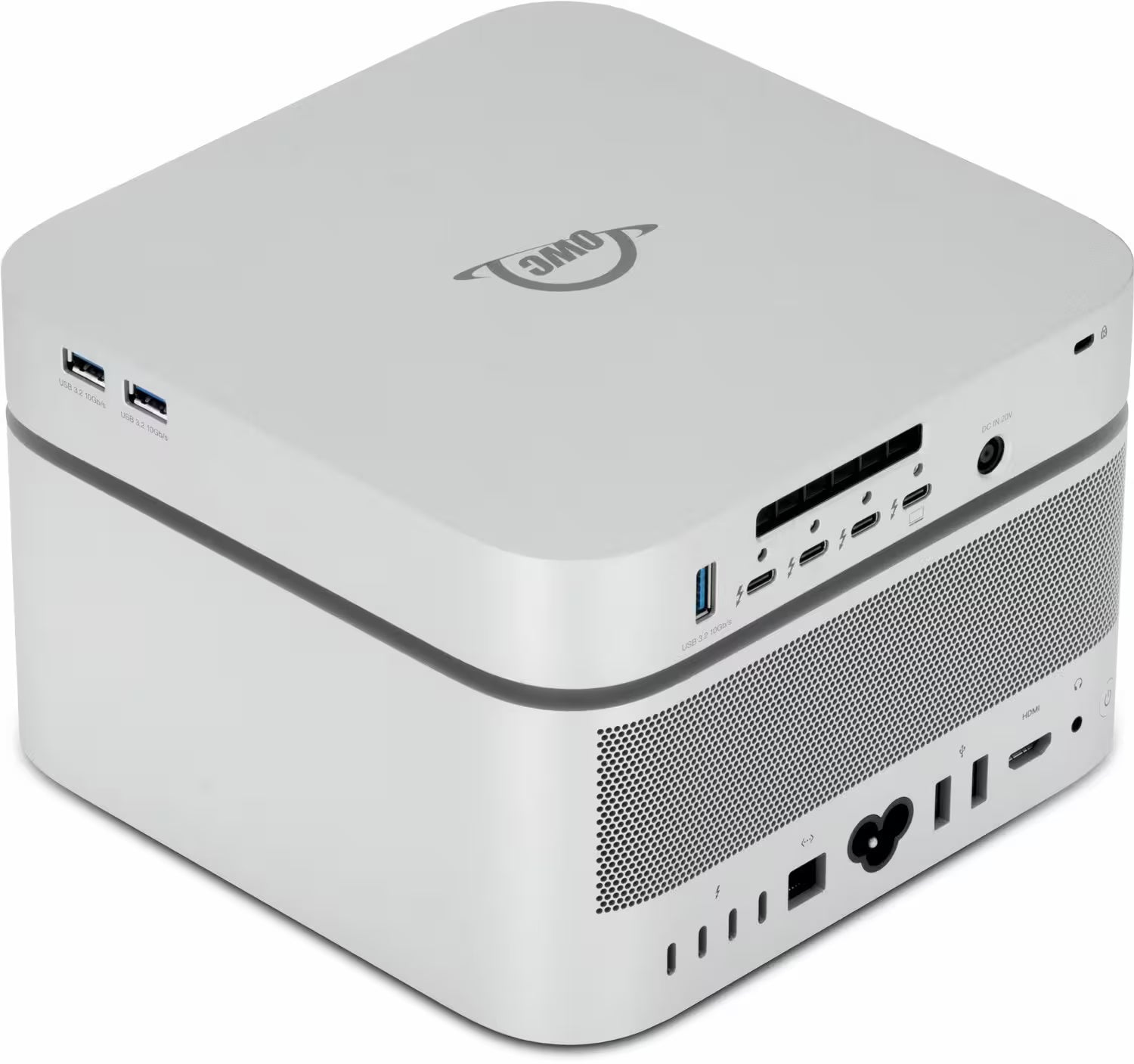

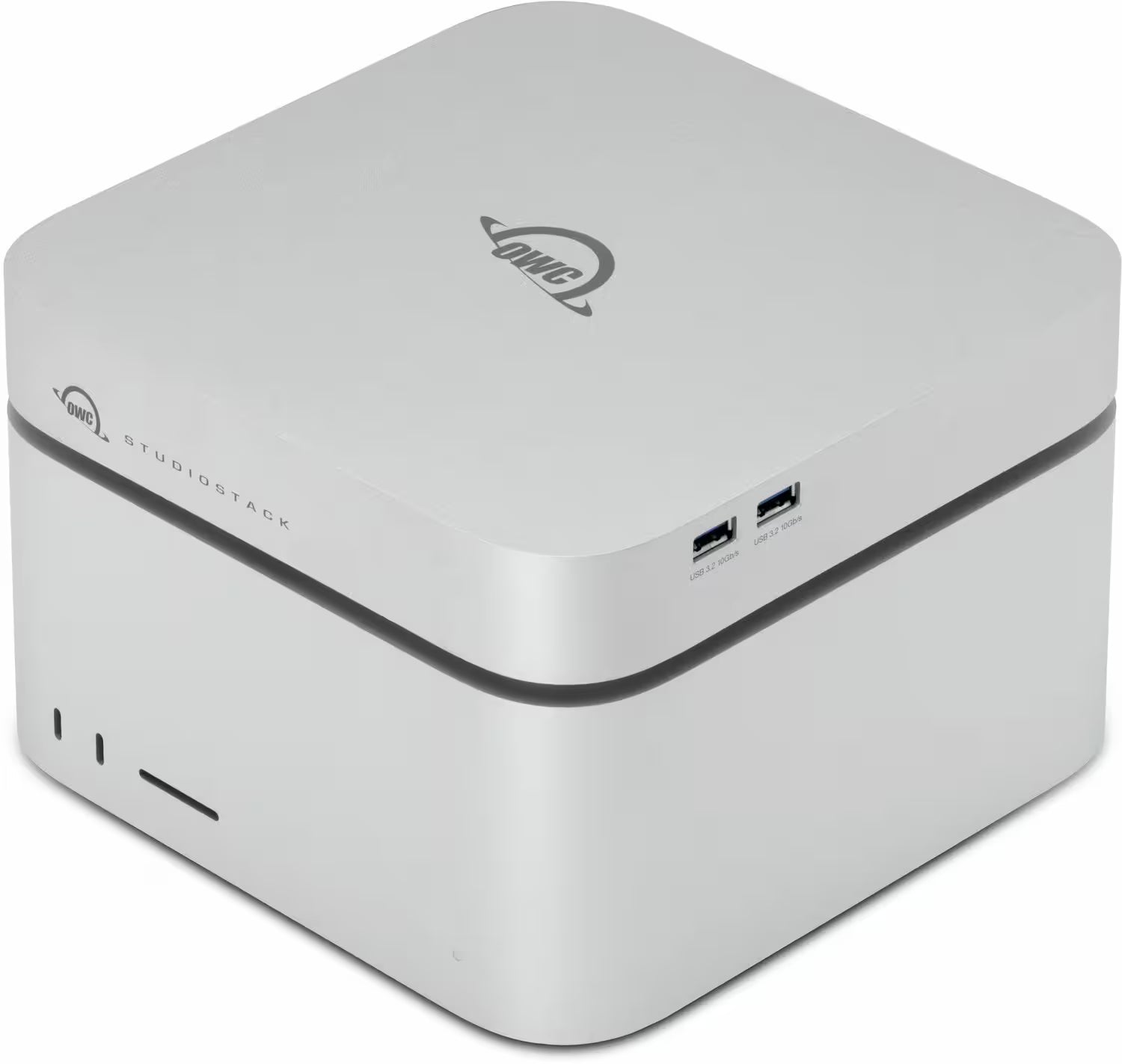

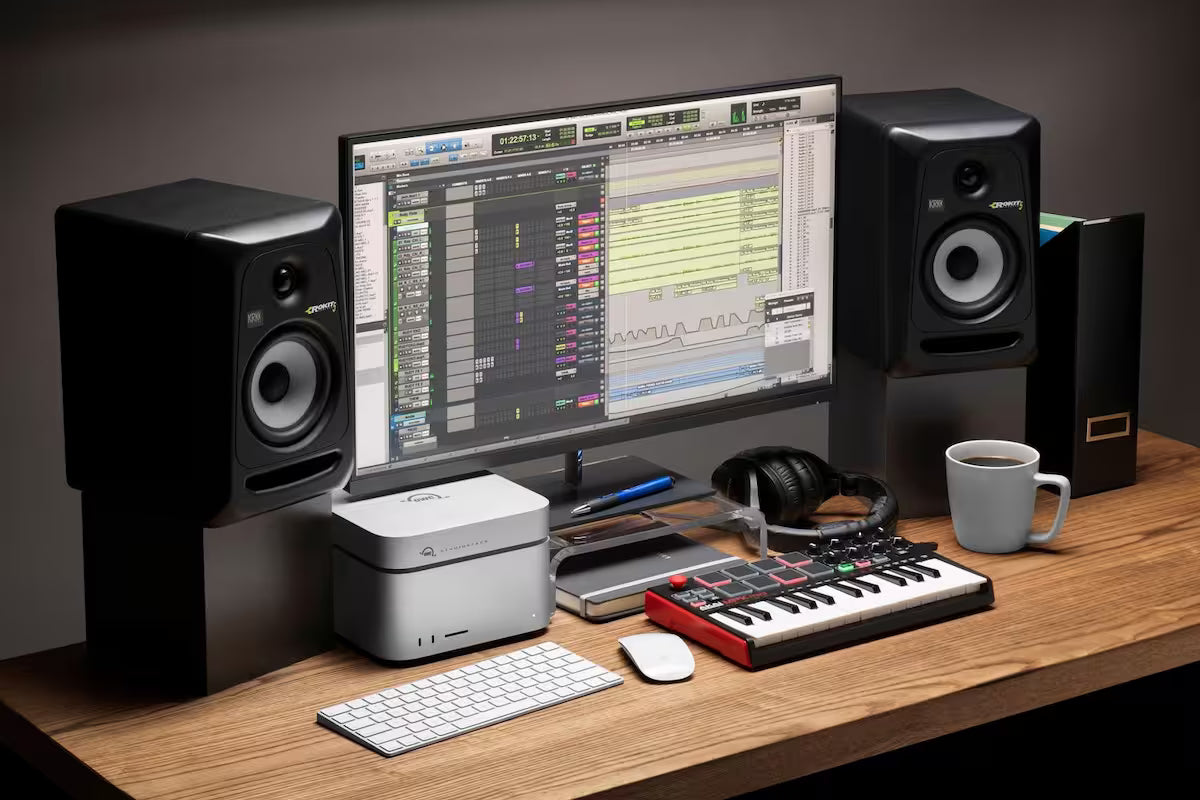

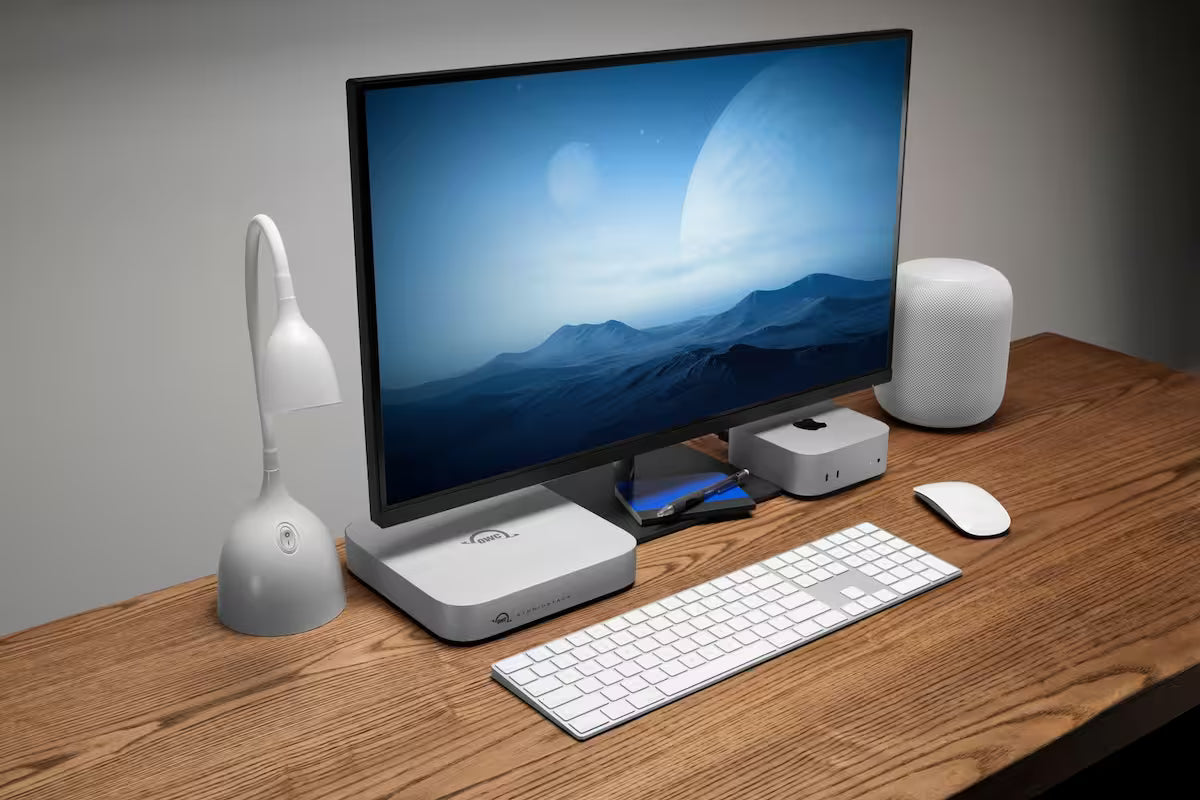

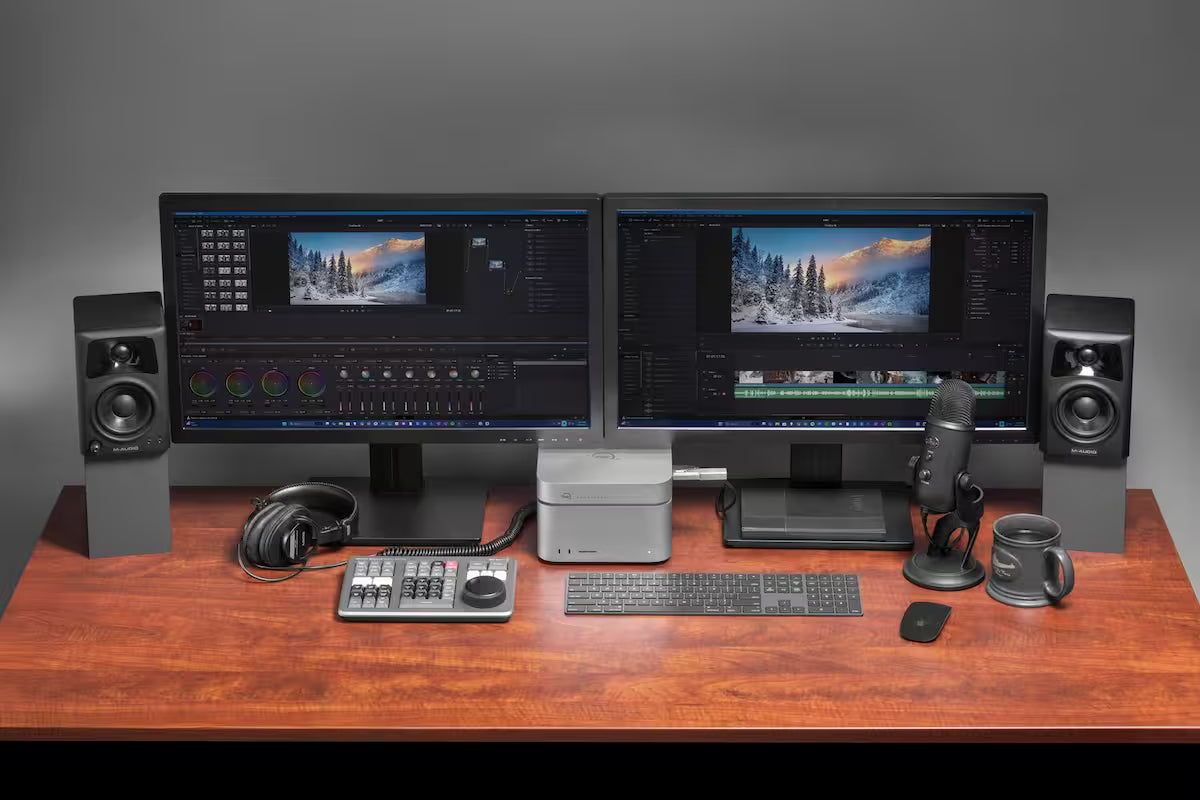

- Stackable design ideal for Mac Studio setups
- Bootable independent volumes in macOS
- Additional Thunderbolt and USB expansion ports built-in
Included
- OWC StudioStack enclosure
- Installed HDD (if selected)
- Installed NVMe SSD (if selected)
- External power supply (180W)
- Thunderbolt cable
- Documentation
Product Q&A
Q: Can I install both an HDD and NVMe SSD in this system?
A: Yes. The OWC StudioStack supports one SATA drive (3.5-inch or 2.5-inch) and one M.2 NVMe 2280 SSD simultaneously, allowing you to combine high-capacity HDD storage with high-speed NVMe performance.
Q: Are the drives bootable?
A: Yes. Independent volumes are bootable in macOS when used with a Mac system. Boot Camp is not supported.
Q: Can I use an NVMe SSD with a heatsink?
A: No. NVMe SSDs with heatsinks are not supported and will not fit inside the M.2 slot.
Q: Is this compatible with Apple Silicon Macs?
A: Yes. The StudioStack is fully compatible with Apple Silicon Macs including M1, M2, M3, M4 and M5 systems running supported macOS versions.
Q: Does this device work with Windows PCs?
A: Yes. Windows PCs with a compatible Thunderbolt port and Windows 11 (version 22H2 or later) are supported.
Specifications
Drive Bays
1 bay supporting: M.2 SSDs
Supports single-sided and double-sided M.2 2280 "M Key" drives
NVMe SSDs with a heatsink will not fit and are not supported.
1 bay supporting: 3.5-inch SATA HDDs, 3.5-inch SATA SSDs, 2.5-inch SATA HDDs, 2.5-inch SATA SSDs
SATA drives connect via USB protocol.
Total Capacity
Up to 24.0TB (HDD) + up to 8TB NVMe (depending on configuration)
Total Solution Cache Size
1024 MB
Drive Mechanism
(1) Toshiba MG11 Series 7,200RPM Enterprise Capacity Hard Disk Drive with 1024 MB cache
(1) OWC Aura Ultra IV NVME SSD
*OWC reserves the right to replace or upgrade to equivalent or better components.
Plug and Play
Yes
Boot Support
Independent volumes bootable in macOS. Mac only. Boot Camp is not supported.

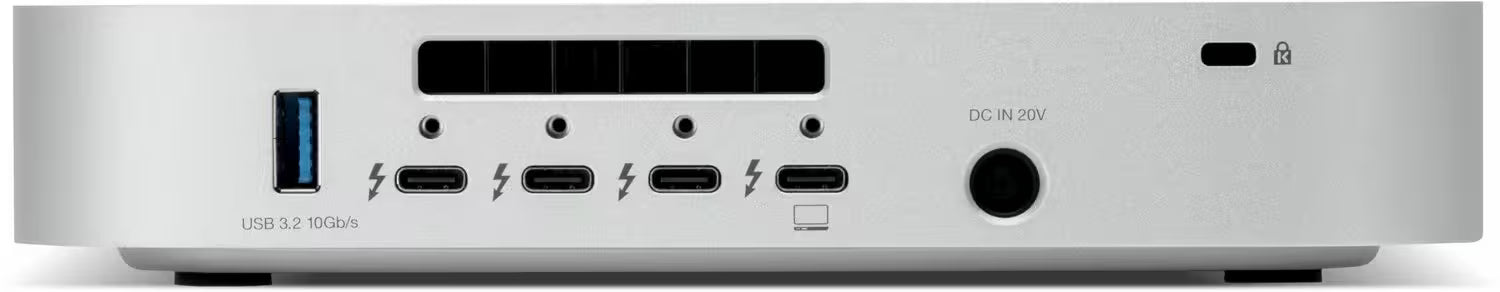

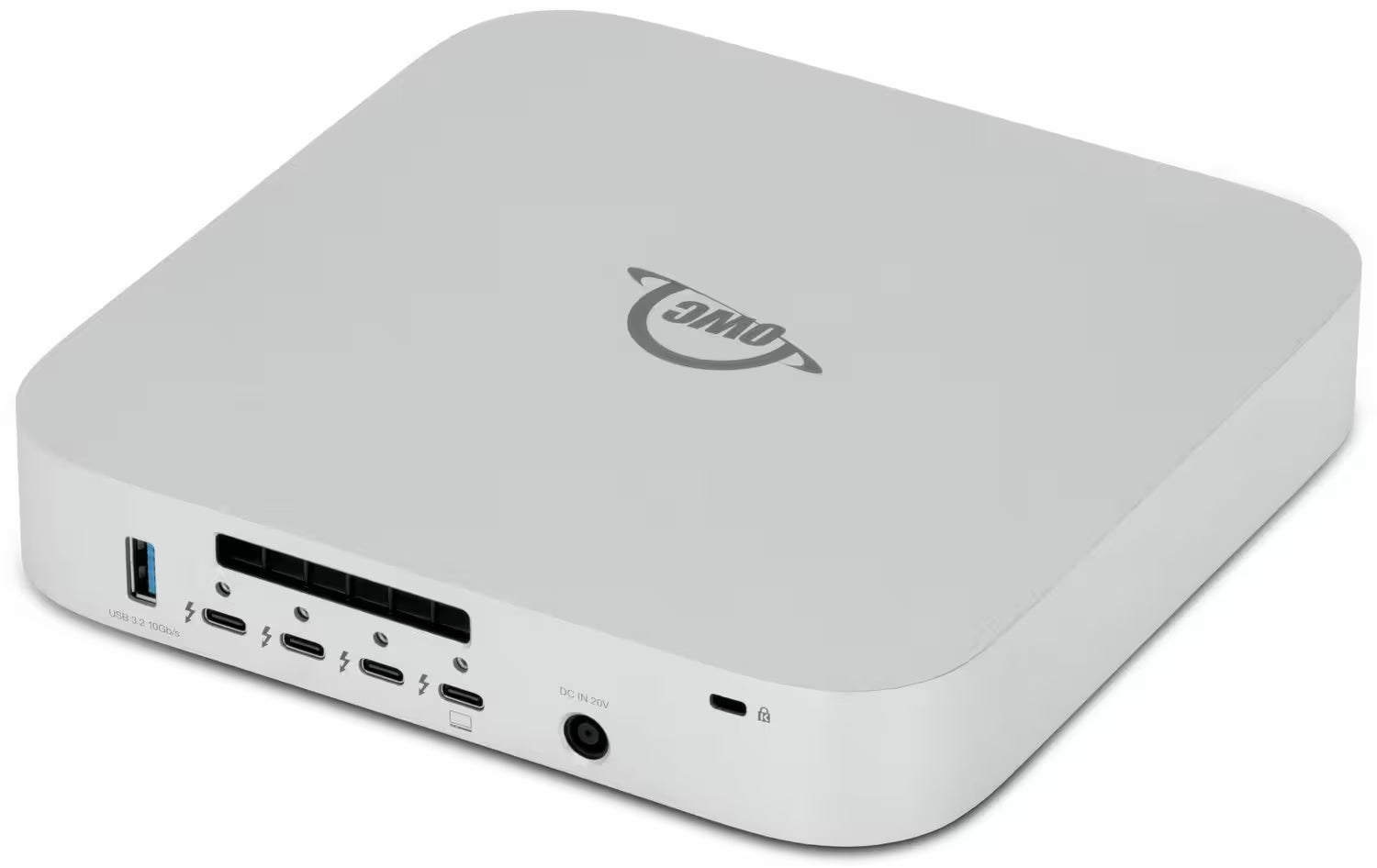

Device Ports
(1) Host Port - Thunderbolt 5 (USB-C) up to 80Gb/s bi-directional data speed and up to 120Gb/s display bandwidth
(3) Thunderbolt 5 (USB-C) Ports
(3) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
Power Delivery
60W
Data Transfer Rate (Maximum)
Thunderbolt 5 : Up to 80Gb/s
USB4 : Up to 40Gb/s (or 5000MB/s)
Chipset / Controller
Thunderbolt: Barlow Ridge JHL9480
USB: Fresco Logic FL5801 & Genesys GL3590
Host Interface Requirements
Thunderbolt 5 port
Thunderbolt 4 port
Thunderbolt 3 port (Mac Only)
USB4 port
Mac OS Compatibility
macOS 14.x Sonoma
macOS 15.x Sequoia
macOS 26.x Tahoe
PC OS Compatibility
Windows 11
Linux OS Compatibility
Yes
Mobile OS Compatibility
iPadOS 17
iPadOS 18
iPadOS 26
Other OS Compatibility
Chrome OS
Driver Required
No
Power Supply
External power supply
AC Input: 100-240V, 50-60Hz, 2.5A
DC Output: ++20V, 9A
Wattage: 180W
Cooling
(1) 40mm cooling fan
Housing
Aluminum, Silver
Dimensions
Height: 3.7 cm (1.5 in)
Length: 19.7 cm (7.8 in)
Width: 19.7 cm (7.8 in)
Weight
1530.0 g (3.37 lbs)
Notes:
1. 6302MB/s sequential read/write peak speed based on testing an 8TB OWC Aura Ultra IV SSD equipped StudioStack connected to a Mac Studio M3 Ultra running AJA System Test (4K-Full resolution, 64GB file size, 16bit RGBA codec, single file test). Actual performance may vary depending on the installed drive and the application used.
2. Thunderbolt 5 can support up to three displays from a single computer host port dependent on the host computer's capability. This includes up to three 6K or lower resolution displays, three 8K displays @ 60Hz, or two 8K displays @ 120Hz. Presently, Apple has enabled support for a maximum of two native displays per connected Apple Mac Thunderbolt host port. Software driver based technologies, such as DisplayLink (as supported by the OWC USB-C Dual HDMI 4K Display Adapter), may enable additional display support.
Compatibility
Mac Compatible
- MacBook Pro (2018 – newest)
- MacBook Air (2020 – newest)
- iMac (2017 – newest)
- Mac Pro (2019 – newest)
- Mac Studio (2022 – newest)
- Mac mini (2018 – newest)
- M Series Macs: M1, M2, M3, M4, M5
iPad Compatible
Apple iPad Pro (2022 – newest)
PC Compatible
PC must have a compatible Thunderbolt port
