- OWC Thunderbolt 5 Dock – 11-Port Hub with 140W Charging, 8K Display, SD 4.0, 2.5Gb Ethernet OWC Thunderbolt 5 Dock – 11-Port Hub with 140W Charging, 8K Display, SD 4.0, 2.5Gb Ethernet
- Description
- Specifications
- Compatibility
- Reviews
Experience the future of connectivity with the OWC 11-Port Thunderbolt 5 Dock — the ultimate expansion hub for creators, professionals, and power users. Whether you’re working on a 4K video project, managing large data sets, or just want to simplify your desk setup, this dock gives you everything you need in one sleek, fanless aluminum unit.
Featuring three high-performance Thunderbolt 5 ports, this dock unlocks the full potential of your Mac, PC, Chromebook, or tablet. Connect legacy devices, the latest Thunderbolt 5 SSDs, or even daisy chain up to three sets of devices with total bandwidth efficiency. Transfer large files in seconds, edit directly from external drives, and enjoy seamless workflows.
Visual power meets versatility — connect up to three 8K HDR monitors (Windows) or dual 6K displays (Mac), and experience crisp, detailed visuals like never before. With 140W of total power delivery, you can keep your laptop fully charged while powering your entire workspace.
Need speed? The dock includes SD 4.0 and microSD UHS-II slots for rapid offloading of media from cameras and drones, and a 2.5Gb Ethernet port to take your online gaming, cloud access, and remote collaboration to the next level — up to 2.5x faster than standard Ethernet.
With 11 versatile ports, silent operation, and future-proof compatibility with Thunderbolt 5/4/3, USB4, and USB-C, the OWC Dock is the all-in-one hub that keeps up with your ambition.
Highlights
- 11-port expansion with Thunderbolt 5 speed and USB-C compatibility
- Up to three 8K displays or dual 6K displays on Mac
- 140W power delivery charges your notebook while connected
- SD 4.0 & microSD UHS-II slots for rapid media offloads
- 2.5Gb Ethernet for ultra-fast, stable networking
- Fanless aluminum enclosure keeps things cool and silent
- Supports daisy chaining multiple Thunderbolt or USB devices
Includes
(1) OWC 11-Port Thunderbolt 5 Dock
(1) 1.0M (39") Thunderbolt 5 Cable
(1) External Power Supply and Power Cable
(1) Support Manual for OWC 11-Port Thunderbolt 5 Dock (digital)
(1) OWC Dock Ejector for Mac and Windows (digital download)
(1) User Guide for OWC Dock Ejector (digital)
OWC Innergize for Mac (digital download)
OWC Innergize for Windows (digital download)
2 Year OWC Limited Warranty
- IEEE Specification Support: 802.1AB, 802.1Qav

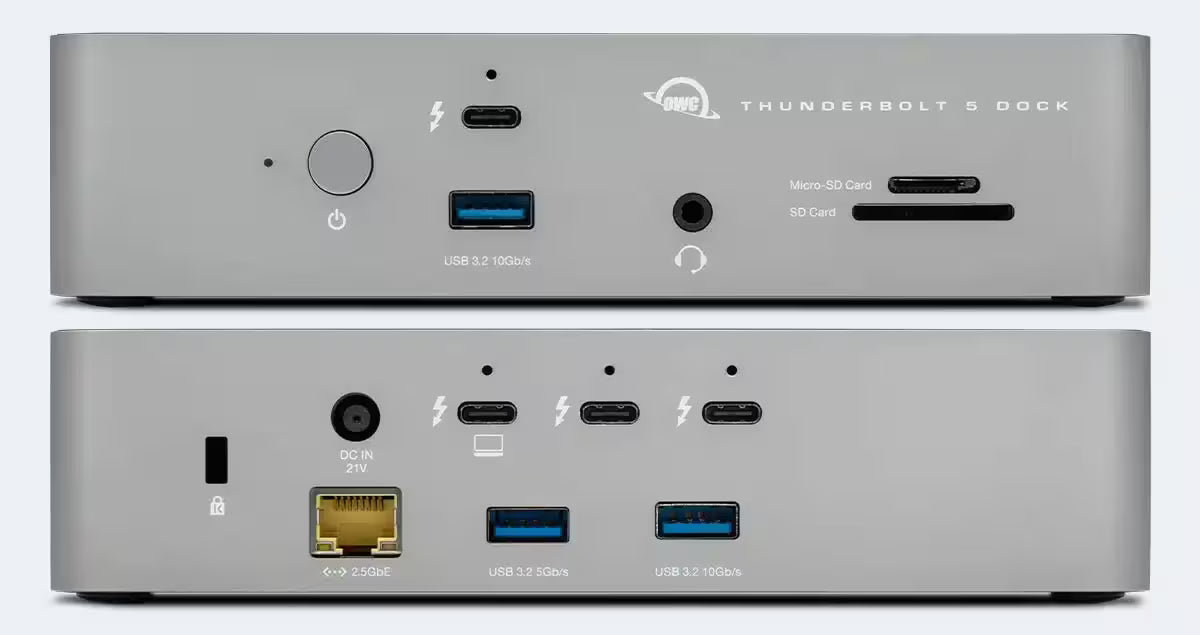

- Device Ports:
- • (1) Host Port - Thunderbolt 5 (USB-C), up to 80Gb/s data and 120Gb/s display bandwidth
- • (3) Thunderbolt 5 (USB-C) ports
- • (2) USB 3.2 Gen 2 Type-A ports, up to 10Gb/s
- • (1) USB 3.2 Gen 1 Type-A port, up to 600MB/s
- • (1) 2.5Gb Ethernet (RJ45)
- • (1) 3.5mm Stereo Audio Input/Output combo port
- Memory Card Slots:
- • (1) microSDXC UHS-II (312MB/s)
- • (1) SDXC UHS-II (312MB/s)
- Power Delivery:
- • 140W to host via Thunderbolt 5
- • 15W to Thunderbolt devices
- • 7.5W to USB devices
- Display Support: Up to 3 × 8K @ 60Hz or 2 × 8K @ 120Hz
- Display Support by Port: Thunderbolt 5 with DSC: 3 × 8K @ 60Hz or 2 × 8K @ 120Hz; without DSC: reduced refresh rates
- Ethernet Speeds (RJ45):
- • 10GbE (10GBASE-T)
- • 5GbE (5GBASE-T)
- • 2.5GbE (2.5GBASE-T)
- • 1GbE (1000BASE-T)
- • 100MbE (100BASE-T)
- Data Rate: Thunderbolt 5 up to 80Gb/s bi-directional, 120Gb/s for video
- Chipsets / Controllers:
- • Thunderbolt: Barlow Ridge (JHL-9480)
- • USB: VIA Lab (VL822-Q7T), Fresco Logic (FL5801)
- • Ethernet: RealTek RTL-8156B
- • SD Reader: GL-3231S
- Host Interface Requirements:
- • Thunderbolt 5
- • Thunderbolt 4
- • Thunderbolt 3 (Mac only)
- • USB4
- • USB-C
- Mac OS Compatibility:
- • macOS 14.x Sonoma
- • macOS 15.x Sequoia
- PC OS Compatibility:
- • Windows 10 (64-bit)
- • Windows 11
- • Windows Server 2016 / 2019 / 2022
- Other OS Compatibility:
- • Chrome OS
- • iPadOS (latest)
- • Ubuntu (latest)
- Drivers Required: Yes – OWC Dock Ejector and OWC Innergize
- Included Software: Dock Ejector, Innergize, My OWC for iOS
- Power Supply: 140W external (21V, 8.58A), 100–240V input
- Security Slot: Yes
- Power Button: Yes
- Housing Color: Space Gray
- Material: Aluminum chassis, polycarbonate covers
- Dimensions: 17.8 × 7.8 × 4.2 cm
- Weight: 530g (1.17 lbs)
- Certifications:
- • CE
- • FCC
- • ICES
- • RCM
- • VCCI
- • UKCA
- RoHS / REACH Compliant: Yes
- Environmental Conditions:
- • Operating Temperature: 0°C to 30°C (32°F to 86°F)
- • Non-Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- • Operating Altitude: -1,000 ft to 10,000 ft
- • Non-Operating Altitude: -1,000 ft to 40,000 ft
- • Operating Humidity: 8% to 90% non-condensing
- • Non-Operating Humidity: 5% to 95% non-condensing
- Supports OWC ClingOn: Yes
- Mac Compatibility:
- • MacBook Pro (late 2016 and newer)
- • MacBook Air (late 2018 and newer)
- • iMac (mid 2017 and newer)
- • Mac mini (late 2018 and newer)
- • Mac Studio
- • Mac Pro (2019 and newer)
- PC Compatibility: PCs with Thunderbolt 5 or 4 ports; Thunderbolt 3 support is Mac-only
- Mobile & Other OS: Compatible with Chrome OS, iPadOS (latest), Ubuntu (latest)
- Notes: UltraStudio Recorder 3G not supported; Apple Pro Display XDR should be connected directly to Mac. Apple SuperDrive may require direct Mac connection or driver support.
