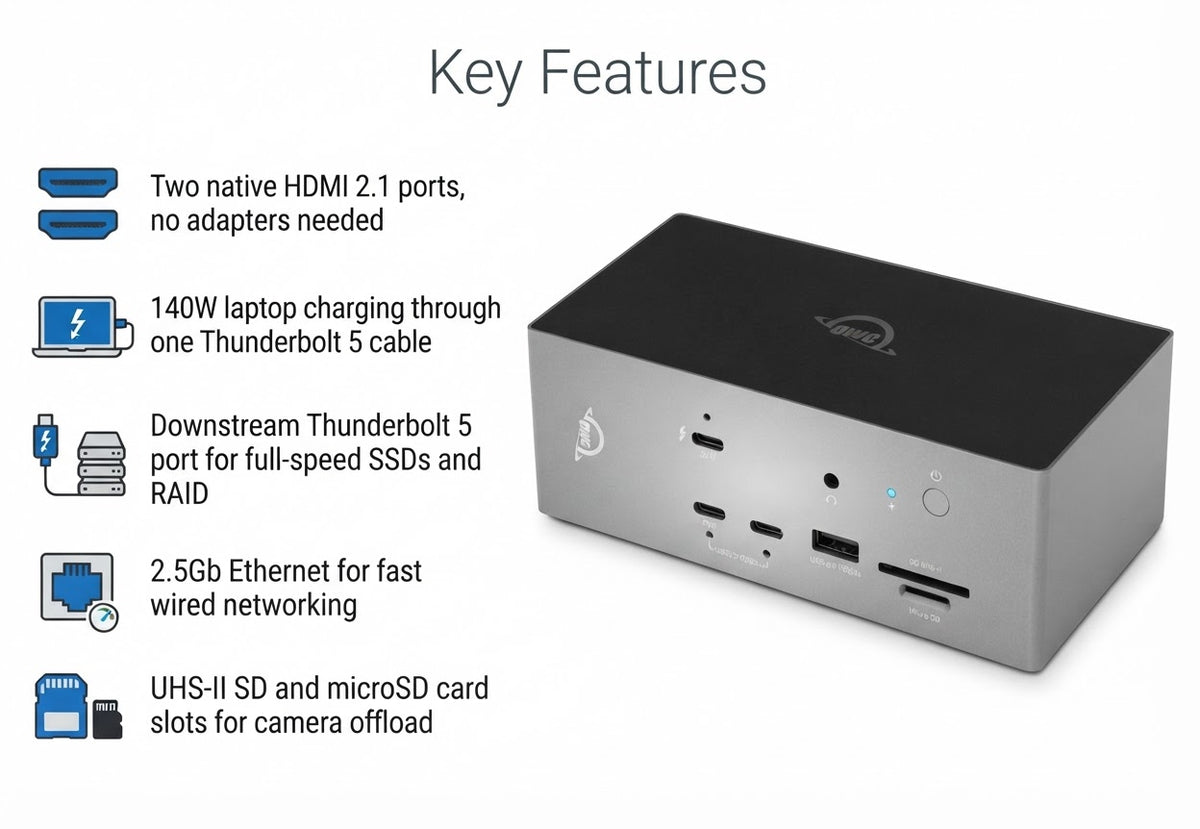

Key Features
Compatibility
Product Description
The OWC Thunderbolt 5 Dock with Dual HDMI puts two native HDMI 2.1 ports right on the dock, so any HDMI monitor plugs in directly with no adapters, DisplayPort conversion, or version confusion. One Thunderbolt 5 cable delivers dual displays, wired networking, high-speed storage expansion, memory card offload, up to 140W of laptop charging, and up to 30W of fast charging for a mobile device on the front USB-C port.
The downstream Thunderbolt 5 port keeps external SSDs and RAID enclosures running at their full rated speed, so the dock is never the bottleneck. A 2.5GbE port handles NAS workflows and corporate networking without Wi-Fi latency or dropped connections, and UHS-II SD and microSD slots pull footage directly from camera cards.
Configuration and safe removal are handled through OWC Dock Ejector, which unmounts every connected drive in a single click, while OWC Innergize monitors the health, performance, and firmware of OWC Atlas SD memory cards used with the dock's card reader. The dock supports both horizontal and vertical desk placement, and runs silently with a fanless passive heat dissipating design.
Product Q&A
Q: Can I run dual 8K displays at the same time?
A: Yes, with a Thunderbolt 5 host you can run dual 8K displays at 60Hz, using either both HDMI ports or one HDMI port plus the second Thunderbolt 5 port.
Q: Can I connect three displays?
A: Yes. A Thunderbolt 5 host drives all three display outputs, HDMI 1, HDMI 2, and the Thunderbolt 5 port together, at 6K @ 60Hz or 4K @ 144Hz per display.
Q: Will this work with my Thunderbolt 4 or USB4 laptop?
A: Yes. The dock works with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 (Mac only), USB4, and USB-C hosts, with the exact display output depending on what each host supports.
Q: Does my laptop stay charged while running two displays and storage?
A: Yes, the Thunderbolt 5 host port delivers up to 140W to the laptop even while displays, storage, and other peripherals connected to the dock are all running.
Q: Will external SSDs and RAID arrays run at full speed through this dock?
A: Yes. The downstream Thunderbolt 5 port supports up to 80Gb/s bidirectional bandwidth (up to 120Gb/s in Thunderbolt 5 display boost mode), so external storage runs at its full rated speed with no bottleneck.
Specifications
| SKU | OWCTB5DHDOCK |

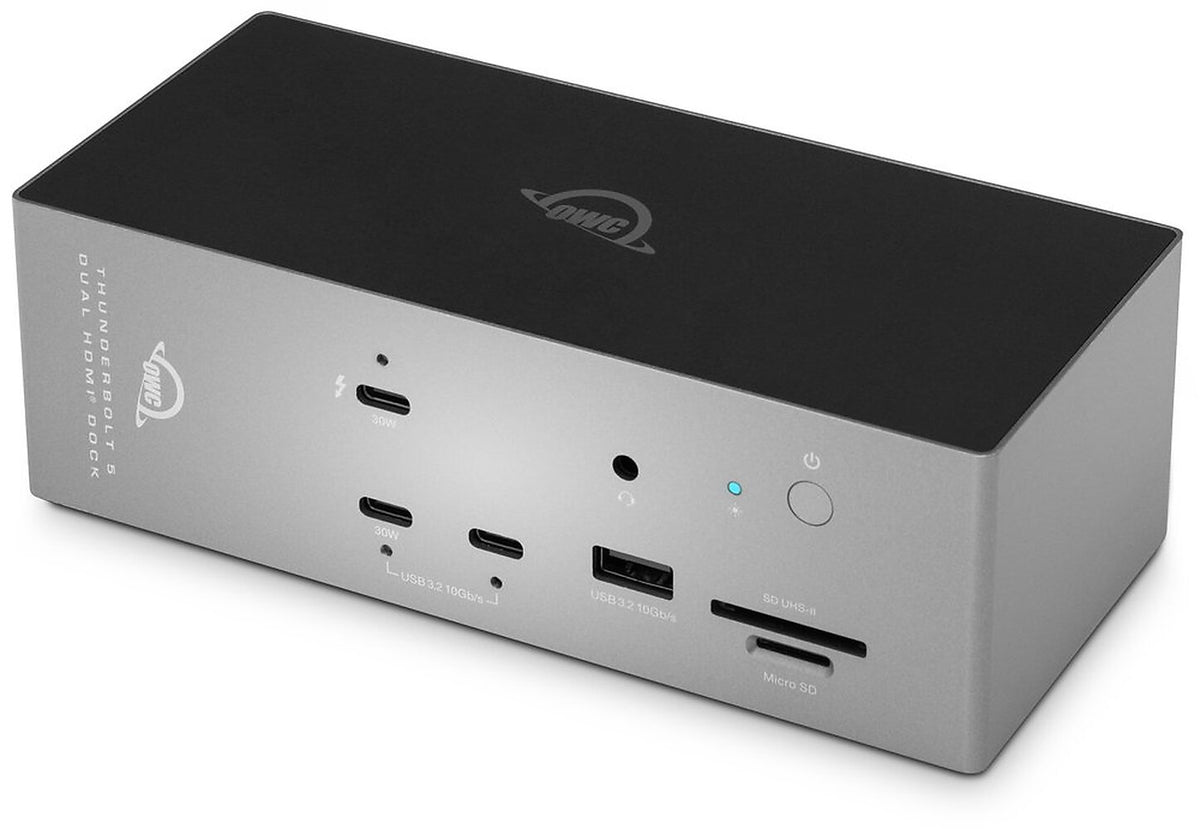

| Front Connectivity | 1x Thunderbolt 5 (USB-C) 80/120Gb/s downstream port, 1x USB-A 10Gb/s port, 2x USB-C 10Gb/s ports, 1x 3.5mm stereo audio input/output combo port |

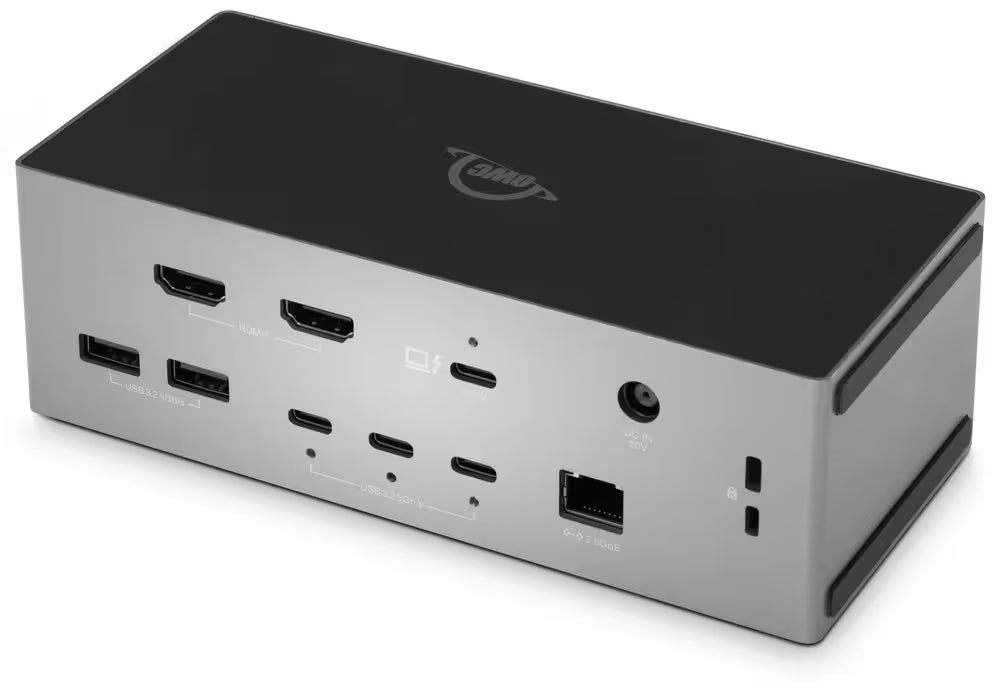

| Rear Connectivity | 1x Thunderbolt 5 (USB-C) 80/120Gb/s host port, 2x HDMI 2.1 display ports, 2x USB-A 5Gb/s ports, 3x USB-C 5Gb/s ports, 1x 2.5Gb Ethernet (RJ45) port |
| Total Port Count | 16 |
| Memory Card Slots | 1x UHS-II SD card reader (front), 1x UHS-II microSD card reader (front) |
| Display Support | Thunderbolt 5 host: up to 3 displays (single 8K @ 60Hz, dual 8K @ 60Hz, or triple 6K @ 60Hz / 4K @ 144Hz). Thunderbolt 4 host: up to one 8K @ 60Hz, one 4K @ 120Hz, two 5K @ 60Hz, or two 4K @ 60Hz. Thunderbolt 3 host: up to one 8K @ 60Hz, one 5K @ 60Hz, one 4K @ 120Hz, or two 4K @ 60Hz. USB4/USB-C host: up to two 8K @ 60Hz |
| Data Transfer Rate | Up to 80Gb/s bidirectional (up to 120Gb/s with Thunderbolt 5 display boost mode) |
| Chipset / Controller | Thunderbolt: Intel Barlow Ridge JHL9480. USB: VIA Labs VL822-Q8, 2x VL817-Q7. Ethernet: Realtek RTL8156B. SD Reader: Realtek RTS5350 |
| Host Interface Requirements | Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 (Mac only), USB4, USB-C |
| Power Delivery | Thunderbolt 5 host port: up to 140W to host. Thunderbolt 5 downstream port: 30W to external drives/devices. Front USB-C port: up to 30W fast charging. USB ports: up to 7.5W for bus-powered drives/charging |
| Power Supply | External UL-listed universal auto-switching, 180W, 100-240V AC input, 50-60Hz, +20V DC output |
| Smart Power Management | Yes, dynamic power allocation across ports |
| Cooling | Fanless passive heat dissipating design |
| Security Slot | Yes (Kensington Lock slot, rear) |
| Power/Activity LED | Blue LED, on when the dock is powered on |
| Housing | Chassis: Space Gray aluminum. Covers: Black polycarbonate |
| Form Factor | Horizontal and vertical desk placement supported |
| Certifications | Thunderbolt, CE, FCC, ICES, RCM, VCCI, UKCA |
| Dimensions | 16.5 x 5.6 x 7.5cm (W x H x D) |
| Weight | 1.04kg (2.29 lbs) |
| Operating Temperature | 0 to 35°C (32 to 95°F) |
| Non-Operating Temperature | -20 to 60°C (-4 to 140°F) |
| Humidity | Operating: 10% to 90% non-condensing. Non-operating: 5% to 90% non-condensing |
| Included Accessories | 1M Thunderbolt 5 cable, 180W external power supply, AC power cord, OWC Dock Ejector (digital), OWC Innergize (digital) |
| Warranty | 3 Year OWC Limited Warranty (with product registration) |

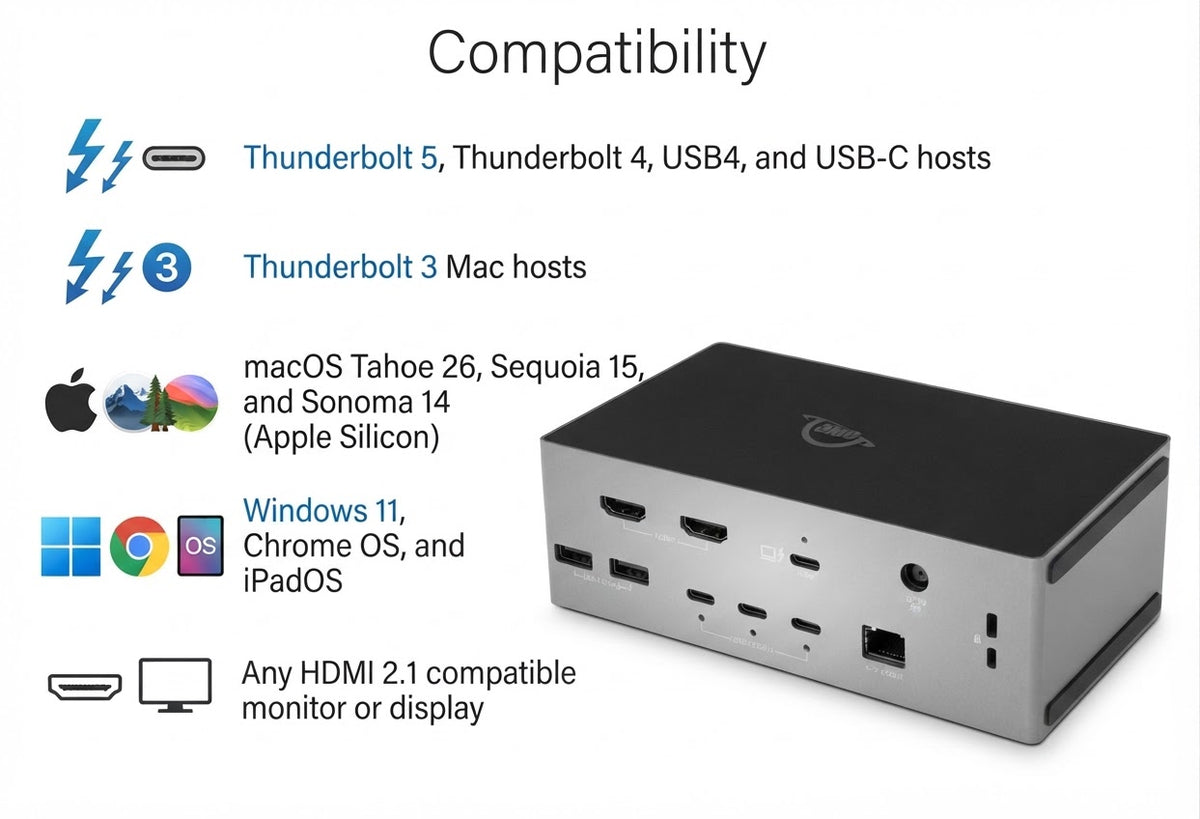

Compatibility
Works with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 (Mac only), USB4, and USB-C hosts across Mac and Windows environments, with display output dependent on host system specifications.
| Mac OS Compatibility | macOS 26 Tahoe, macOS 15 Sequoia, macOS 14 Sonoma (Apple Silicon only) |
| PC OS Compatibility | Windows 11 |
| Other OS Compatibility | Chrome OS, iPadOS |
| Host Interface Compatibility | Thunderbolt 5, Thunderbolt 4, Thunderbolt 3 (Mac only), USB4, USB-C |
| Display Compatibility | Any HDMI 2.1 compatible monitor or display; Thunderbolt/USB-C displays via the downstream port |
| Memory Card Compatibility | UHS-II SD and microSD cards; OWC Atlas SD cards supported by OWC Innergize (Atlas microSD not supported by Innergize) |
