OWC Thunderbolt 5 Dual 10GbE Network Dock – 2.5GbE, 3× TB5, 4× USB 10Gb/s

IEEE Specification Support
802.1AB
802.1Qav

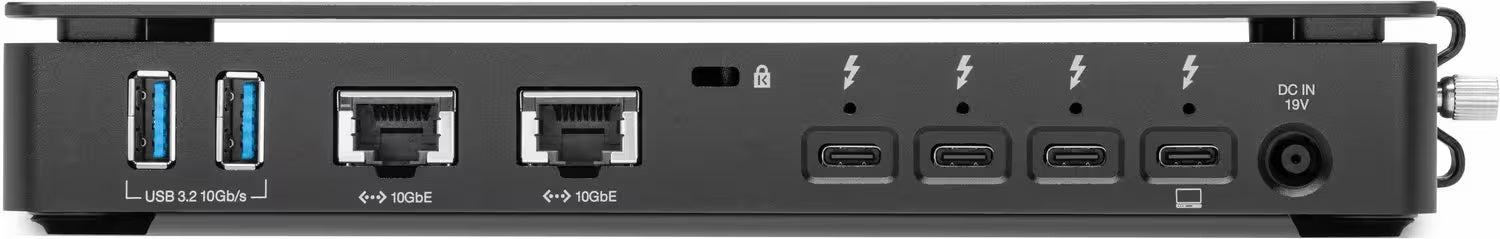

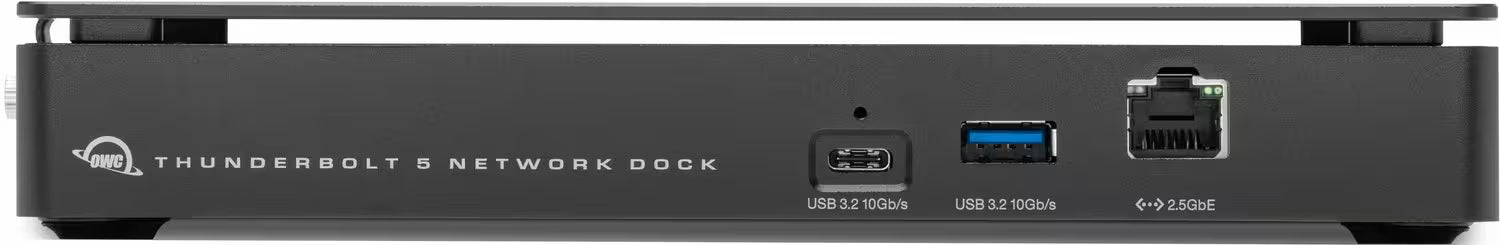

Device Ports
(1) Host Port - Thunderbolt 5 (USB-C) up to 80Gb/s bi-directional data speed and up to 120Gb/s display bandwidth
(3) Thunderbolt 5 (USB-C) Ports
(1) USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
(3) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
(2) 10 Gigabit Ethernet (10GbE) RJ45 Ports
(1) 2.5 Gigabit Ethernet (2.5GbE) RJ45 Port

Power Delivery
Thunderbolt 5 device ports (for external drives and other devices) each provide 15W of power.

Display Support
Up to three 8K displays @ 60Hz,
or two 8K displays @ 120Hz,
or three 4K displays @ 144Hz

Display Support by Port
Thunderbolt 5 up to two 8K @ 120Hz or three 4K @ 144Hz via a native Thunderbolt 5 display or other displays that support USB-C connections and DisplayPort 2.1

Ethernet Speeds (RJ45)
10Gb/s (10GBASE-T)
5Gb/s (5GBASE-T)
2.5Gb/s (2.5GBASE-T)
1Gb/s "Gigabit" (1000BASE-T)
100Mb/s (100BASE-T)

Data Rate
Thunderbolt 5: up to 80Gb/s bi- directional data speed and up to 120Gb/s display bandwidth

Chipset / Controller
Thunderbolt: Barlow Ridge (JHL-9480)
USB 3.2: (GL3590)
USB 2.0: Fresco Logic (FL5801)
10GbE Ethernet: Marvell (AQC113)
2.5GbE Ethernet: Realtek (RTL8156B)

Host Interface Requirements
Thunderbolt 5
Thunderbolt 4
Thunderbolt 3 (Mac Only)
USB4

Driver Required
Mac Users: To enable high-power USB support for the Apple Super Drive, Apple USB Keyboard, and charging for iPad 1/2/3 generation devices, please install OWC Dock Ejector for Mac - http://download.owcdigital.com/dockejector/mac. This application includes a driver that enables support for these devices and charging functions.

Windows & Linux Users: Downloading and installing a Marvell driver and Realtek driver is required for enabling proper network function. Additional information available in the OWC Thunderbolt 5 Dual 10GbE Network Dock Driver Support Article - https://eshop.macsales.com/manuals/owc-thunderbolt-5-dual-10gbe-network-dock-driver-support-article

Other Requirements
Thunderbolt 5 Mac systems require macOS 15.3.x or later.
Intel based systems require macOS 15.x or later.
Thunderbolt 3 support is Mac only and requires macOS 15.x or later.
Linux systems require the latest version of Ubuntu.

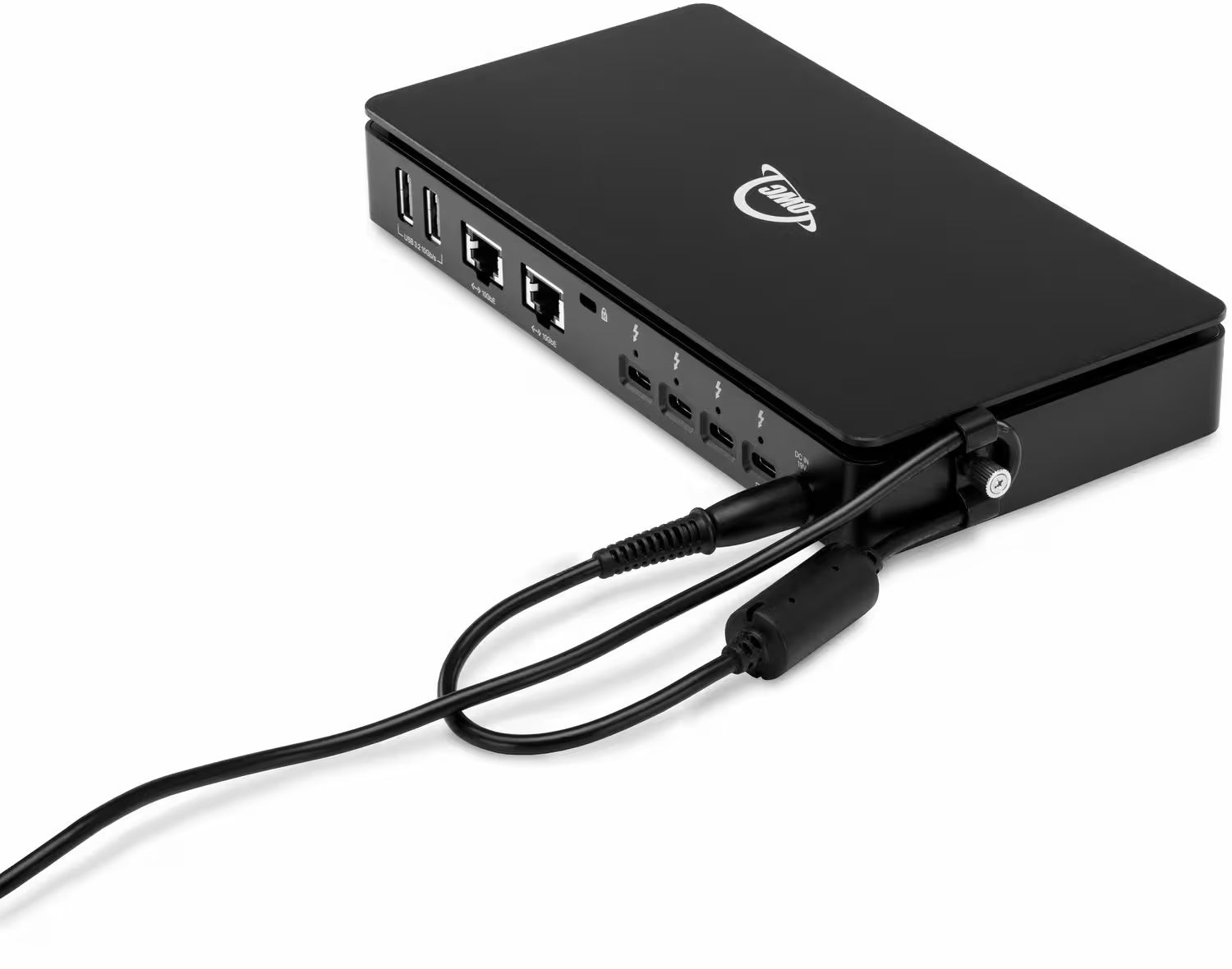

Supports OWC ClingOn
Yes

External Power Adapter
Yes

Power Supply
External UL-listed universal auto-switching power supply

AC Input
100-240V, 50-60Hz, 1.5A

DC Output
+19V, 4.74A

Wattage
90W

Security Slot
Yes

Housing Color
Black

Housing Material
Aluminum

Dimensions
Height: 3.5 cm (1.4 in)
Length: 21.2 cm (8.3 in)
Width: 10.8 cm (4.3 in)

Weight
900.0 g (1.98 lbs)

Certifications
CE
FCC
RCM
VCCI
UKCA
IC
Thunderbolt

RoHS Compliant
Yes

Ambient Temperature
Operating: 32°F to 86°F (0°C to 30°C)
Non-Operating: -4°F to 140°F (-20°C to 60°C)

Altitude
Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

Humidity
Operating: 8% to 90% non-condensing
Non-Operating: 5% to 95% non-condensing

Important Notes
Fully compatible with 20V 90W (4.5A) power supply units.
Connected Thunderbolt and USB connected external drive solutions may remain powered on for a short duration of up to 10 minutes when the host system is asleep/powered off or when the dock/hub is physically disconnected from a system. Connected external drive solutions may get warm as they remain powered on. The temperature remains within a normal operation range and has no short or long-term effects on the device or drive.
OWC Envoy Pro Elektron and OWC Envoy Pro FX devices remain powered on when the host system is asleep/powered off or when the dock/hub is physically disconnected from a system. These devices may get warm as they remain powered on however, the temperature remains within a normal operation range and has no short or long-term effects on the device, drive, or performance.

Mac OS Compatibility
macOS 14.x Sonoma
macOS 15.x Sequoia
macOS 26.x Tahoe

PC OS Compatibility
Windows 11

Other OS Compatibility
Linux

Driver Required
Mac Users: To enable high-power USB support for the Apple Super Drive, Apple USB Keyboard, and charging for iPad 1/2/3 generation devices, please install OWC Dock Ejector for Mac - http://download.owcdigital.com/dockejector/mac. This application includes a driver that enables support for these devices and charging functions.

Windows & Linux Users: Downloading and installing a Marvell driver and Realtek driver is required for enabling proper network function. Additional information available in the OWC Thunderbolt 5 Dual 10GbE Network Dock Driver Support Article - https://eshop.macsales.com/manuals/owc-thunderbolt-5-dual-10gbe-network-dock-driver-support-article

Other Requirements
Thunderbolt 5 Mac systems require macOS 15.3.x or later.
Intel based systems require macOS 15.x or later.
Thunderbolt 3 support is Mac only and requires macOS 15.x or later.
Linux systems require the latest version of Ubuntu.

Host Interface Requirements
Thunderbolt 5
Thunderbolt 4
Thunderbolt 3 (Mac Only)
USB4

MacBook Pro - MacBook Pro mid 2018 to newest M series
MacBook Air - MacBook Air early 2020 to newest M series
iMac Pro - iMac Pro 2017
iMac - iMac early 2019 to newest M series
Mac Pro - Mac Pro 2019 to newest M series
Mac Studio - Mac Studio early 2022 to newest
Mac mini - Mac mini 2018 to newest M series

PC Compatible - PC must have a compatible Thunderbolt port
