- OWC Thunderbolt 4 to 10G Ethernet Adapter – High-Speed, Bus-Powered Network for Mac, PC & Linux OWC Thunderbolt 4 to 10G Ethernet Adapter – High-Speed, Bus-Powered Network for Mac, PC & Linux
- Description
- Specifications
- Compatibility
- Reviews

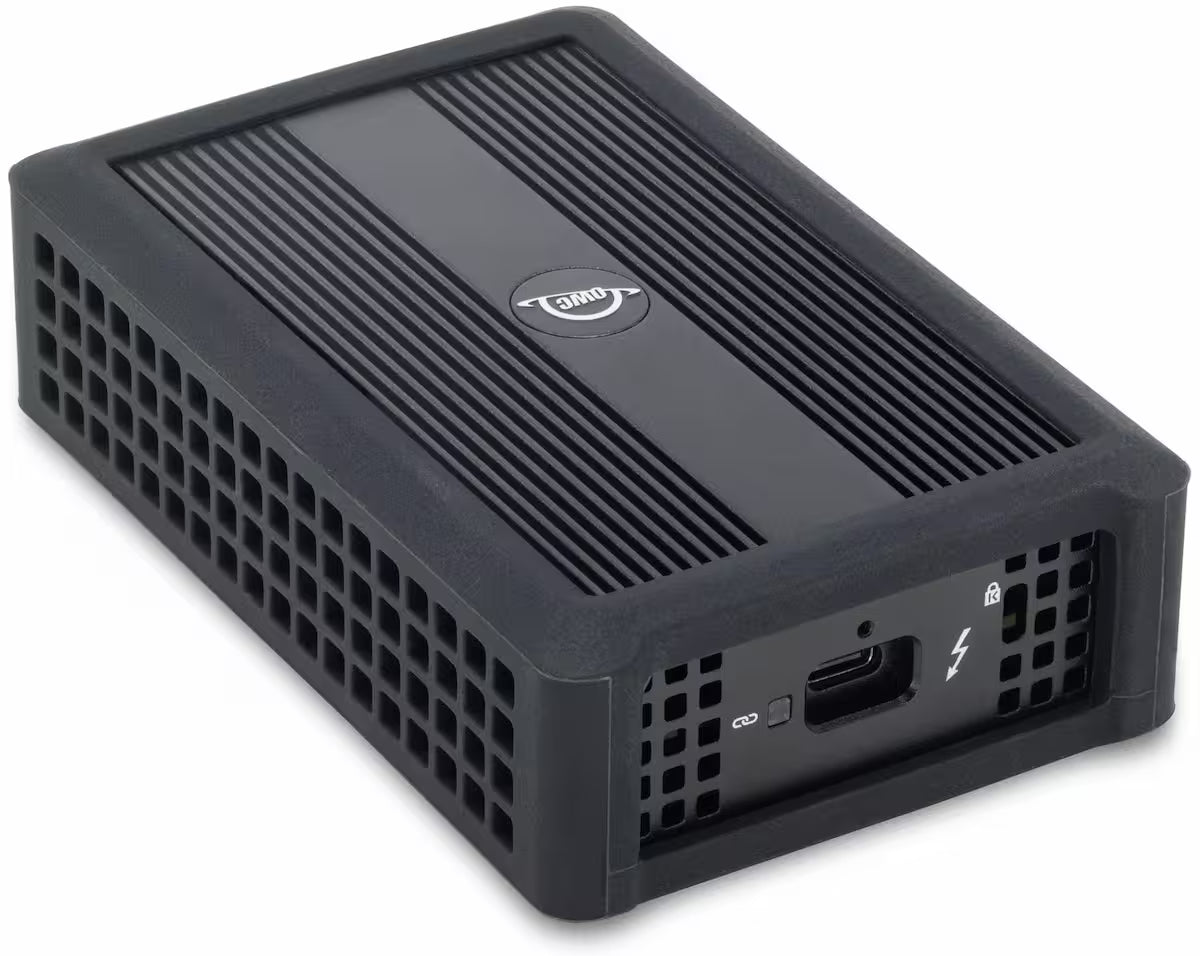

Unlock blazing-fast file transfers and smooth network collaboration with the OWC Thunderbolt to 10G Ethernet Adapter. Designed for modern creative workflows, this compact adapter connects via Thunderbolt 3, 4, 5, or USB4 and delivers real-world transfer speeds of up to 900MB/s — perfect for editing large media files, connecting to NAS systems, or working directly from shared RAID storage without delay.
It’s not just fast — it’s efficient. With native support for 10GBASE-T plus full backwards compatibility with 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-Tx, it works with your existing network cabling and gear. Built-in AVB support ensures low-latency audio and video streaming for pro AV setups, and Wake-on-LAN capability means you can remotely wake up your system when needed.
The rugged aluminum chassis doubles as a silent heat sink, eliminating the need for noisy fans. Compact and bus-powered, it’s made for portability — no bulky power adapter required. Whether you’re maximizing ROI on older Cat 5e/6 infrastructure or building a next-gen setup with 10GbE switches, this adapter’s got you covered.
It even includes a certified 0.3M Thunderbolt 4 (USB-C) cable and rubber sleeve for added durability. Whether you're at a workstation, on the go, or managing a multi-user post-production team, the OWC Thunderbolt to 10G Ethernet Adapter delivers uncompromising speed, stability, and convenience.
Highlights

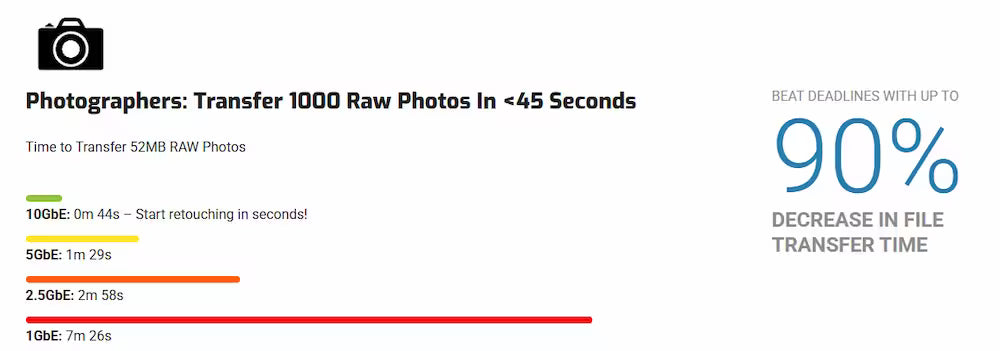

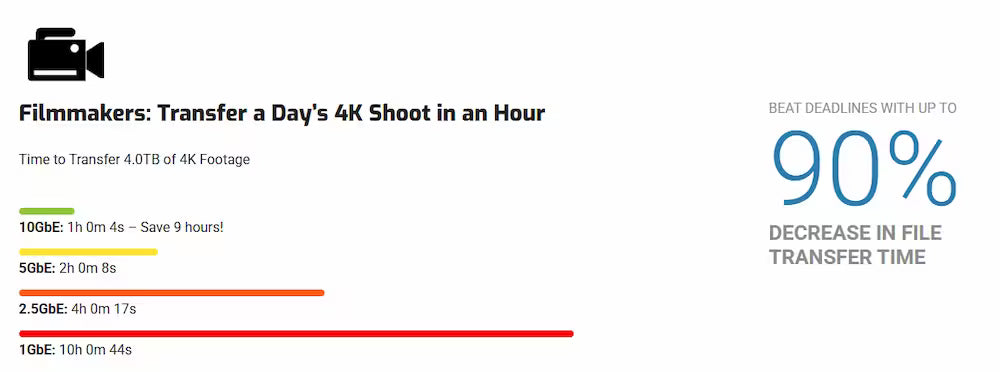

- Ultra-Fast 10G Networking: Achieve up to 900MB/s transfer speeds for seamless file access, editing, and sharing.
- Bus-Powered & Fanless: No power adapter needed. Stays cool with passive thermal design and no fan noise.
- Pro AV Ready: Supports AVB (Audio Video Bridging) for real-time, low-latency data delivery across your network.
- Max Compatibility: Works with Thunderbolt 3/4/5 and USB4 ports on Mac, Windows, and Linux systems.
- Durable & Portable: Rugged aluminum body with rubber sleeve for protection — ideal for travel or tight studio spaces.
Includes
(1) OWC Thunderbolt 4 10G Ethernet Adapter
(1) 0.3M (12") Thunderbolt 4 (USB-C) Cable
(1) Getting Started Insert for OWC Thunderbolt 10G Ethernet Adapter
(1) Support Manual for OWC Thunderbolt 4 10G Ethernet Adapter (Digital) - PDF
1 Year OWC Limited Warranty
Standards Supported:
10GBASE-T
5GBASE-T
2.5GBASE-T
1000BASE-T
100BASE-T
Ethernet Speeds (RJ45):
10Gb/s (10GBASE-T)
5Gb/s (5GBASE-T)
2.5Gb/s (2.5GBASE-T)
1Gb/s "Gigabit" (1000BASE-T)
100Mb/s (100BASE-T)
10Mb/s (10BASE-T)
Jumbo Frame Support: Yes
Receive/Transmit Buffer Size: 320/160 KB per port
Chipset / Controller:
Thunderbolt 4: Intel JHL9440
Ethernet: Aquantia AQC113
External Power Adapter: No
Power Supply: Bus-powered
Wattage: 8.2W
Supports OWC ClingOn: Yes
Security Slot: Yes
Housing Material: Aluminum with protective rubber sleeve
Color: Black
Dimensions:
Height: 3.8 cm (1.5 in)
Length: 12.6 cm (5.0 in)
Width: 8.0 cm (3.1 in)
Weight: 453 g (1.00 lbs)
LED Indicators: Power, Link, Speed

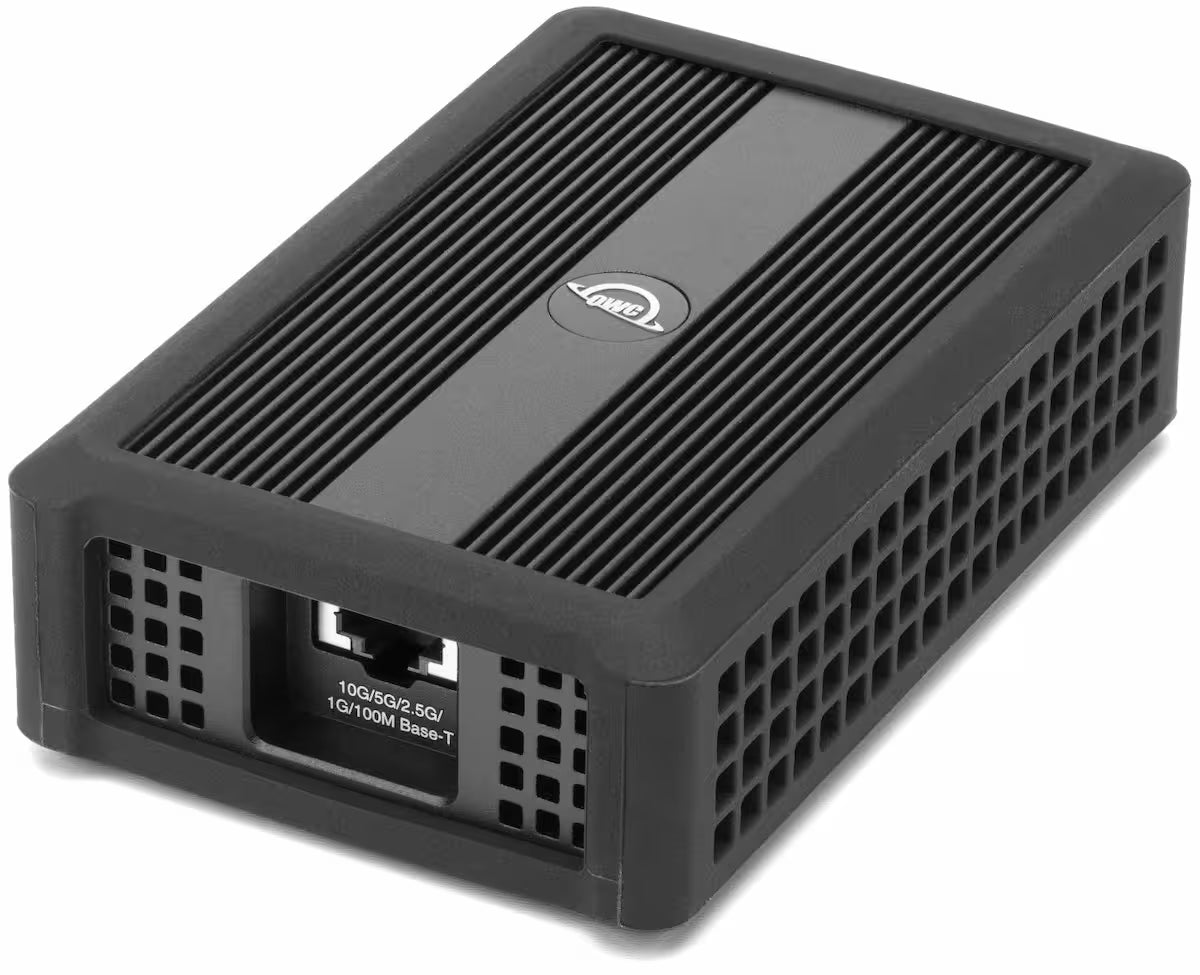

Input Connection: RJ-45 (10GBase-T) Ethernet

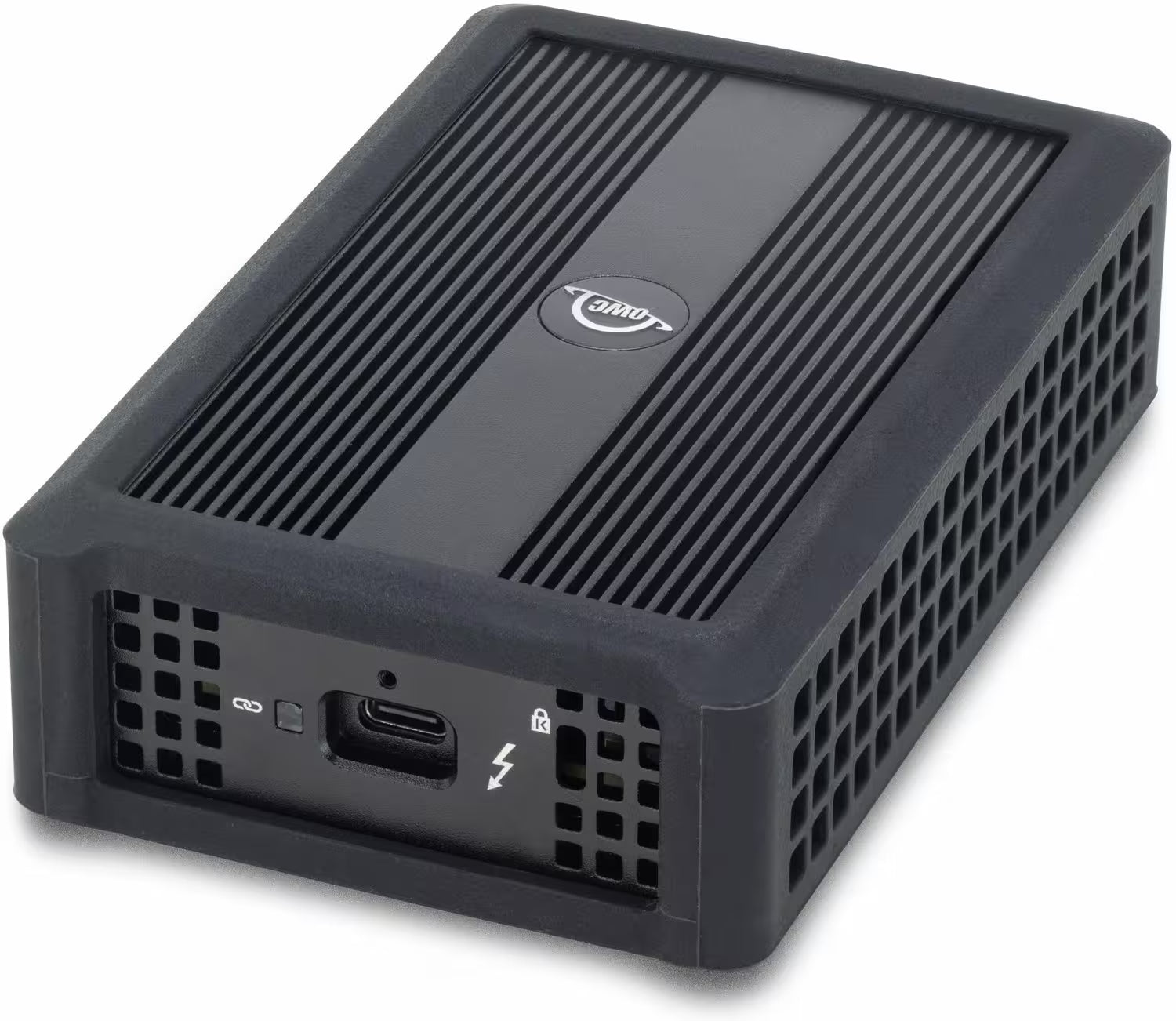

Output Connection: Thunderbolt 4
Certifications: CE, FCC, VCCI, RCM, ICES, UKCA
RoHS Compliant: Yes
Reach Certification: Yes
Ambient Temperature:
Operating: 41°F to 95°F (5°C to 35°C)
Notes:

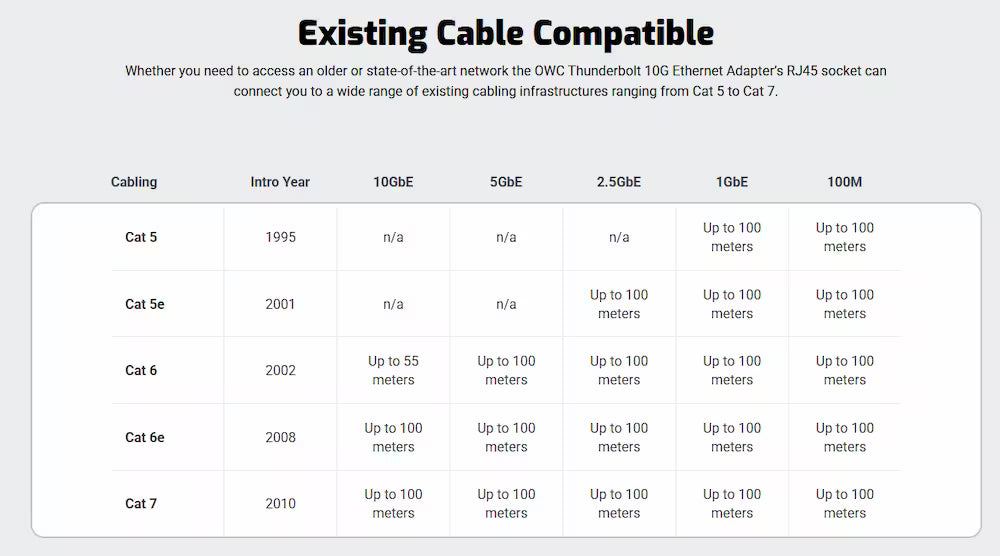

- For distances over 55 meters, high quality CAT-6A cables are recommended for all speeds.
- For distances up to 55 meters, CAT-6 supports up to 10G, CAT-5e supports up to 5G.
- Windows or Linux systems require Marvell AQtion ethernet driver – Driver Download - Marvell AQtion
Mac Compatibility:
MacBook Pro Retina (Late 2016 and newer)
MacBook Air (Late 2018 and newer)
MacBook (Early 2015 and newer)
iMac (Mid 2017 and newer)
Mac Pro (Late 2019 and newer)
Mac Studio
Mac mini (Late 2018 and newer)
Mac OS Compatibility:
macOS 12.x Monterey
macOS 13.x Ventura
macOS 14.x Sonoma
macOS 15.x Sequoia
PC Compatibility:
Requires Thunderbolt 3 or newer port
PC OS Compatibility:
Windows 10 32-bit Edition
Windows 10 64-bit Edition
Windows 11
Windows Server 2019
Windows Server 2022
Other Requirements:
Apple silicon Macs require macOS 12.x or later
Intel Macs require macOS 15.x or later
Windows systems require Thunderbolt 4, 5, or USB4 port
Windows/Linux systems require driver – Driver Support
