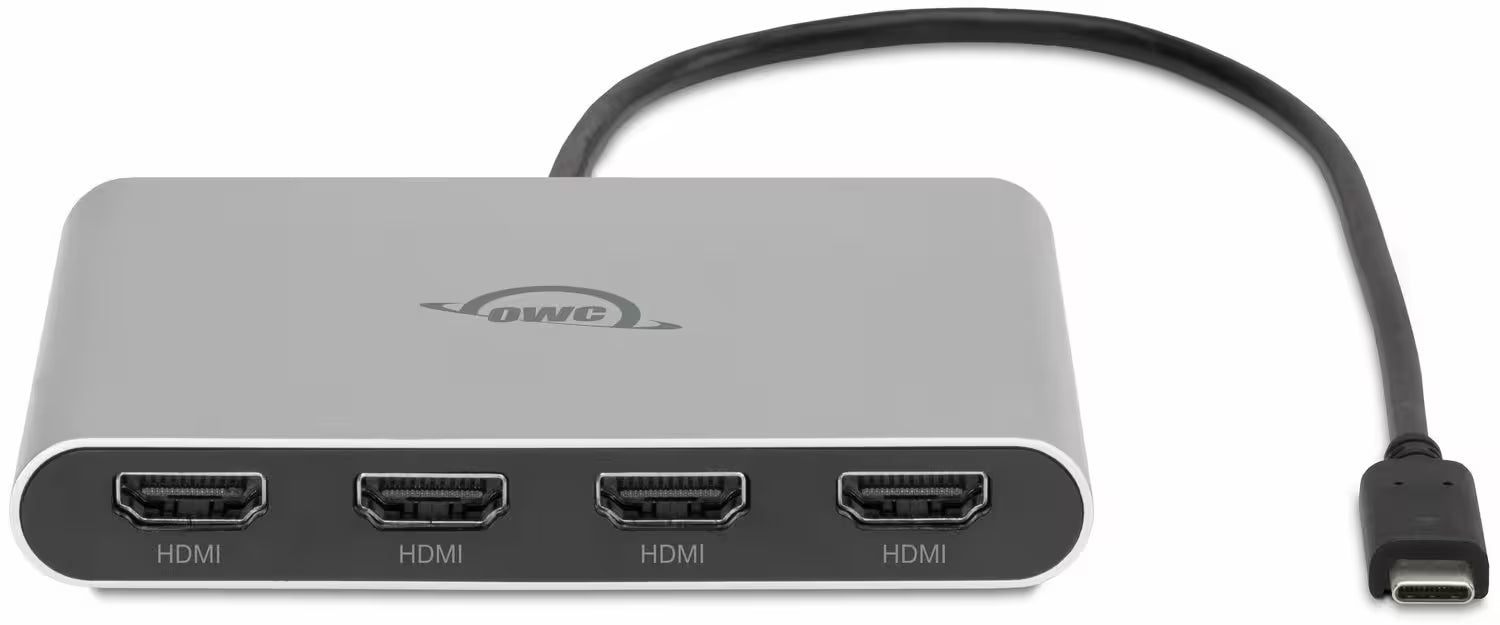

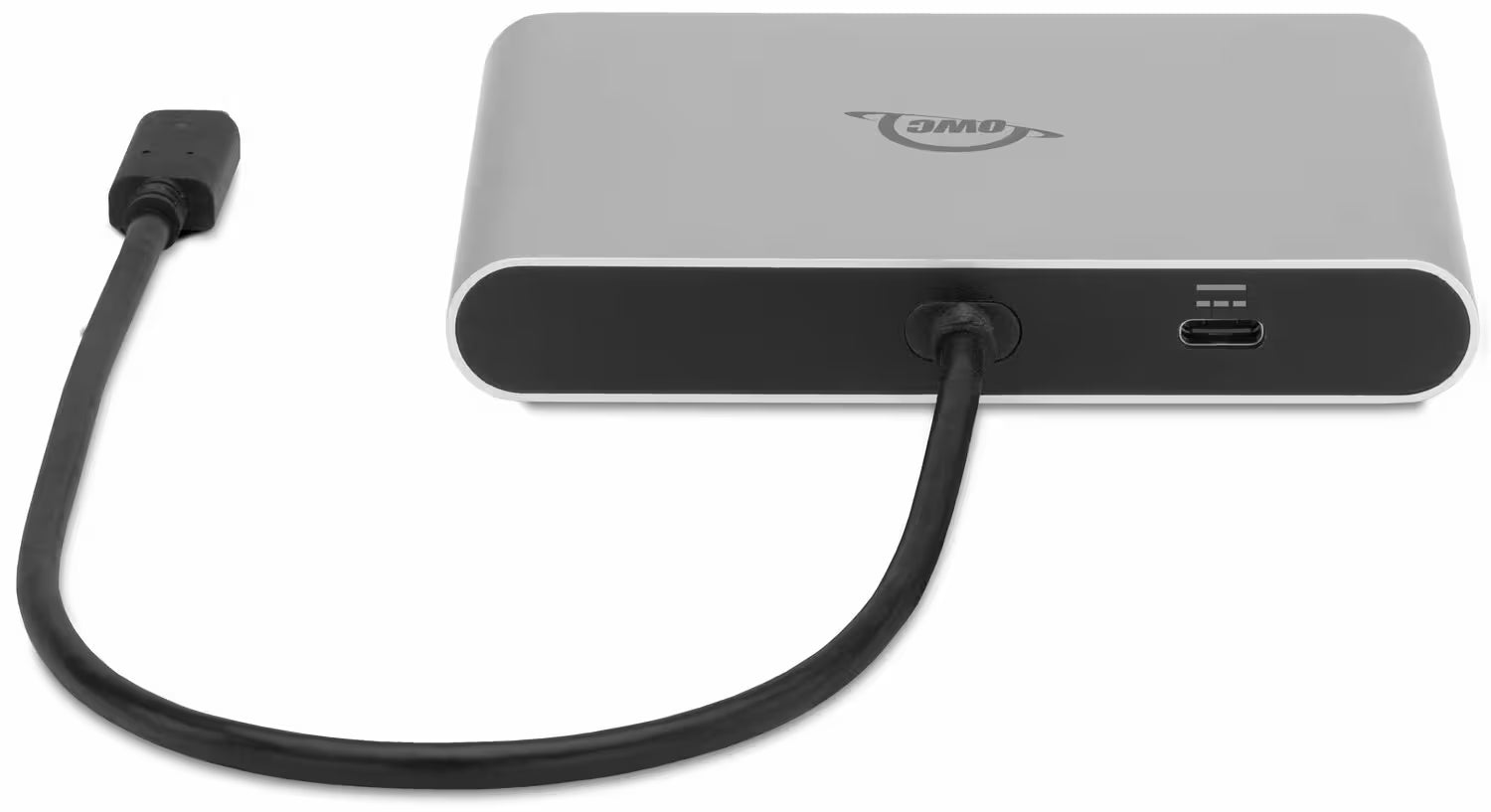

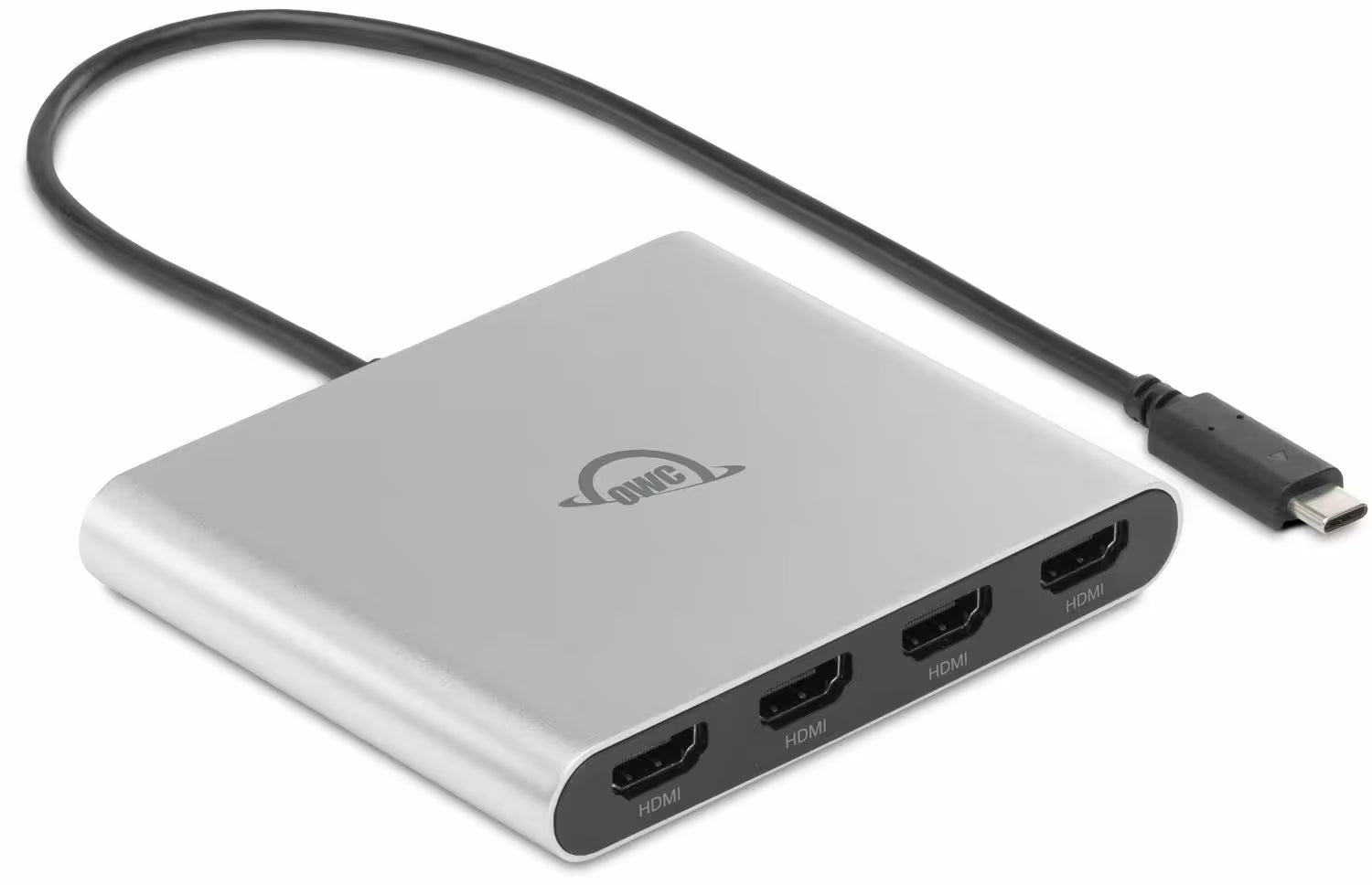

OWC USB‑C Quad HDMI 4K Display Adapter with DisplayLink - 4×4K Displays, 90W PD, Bus‑Powered

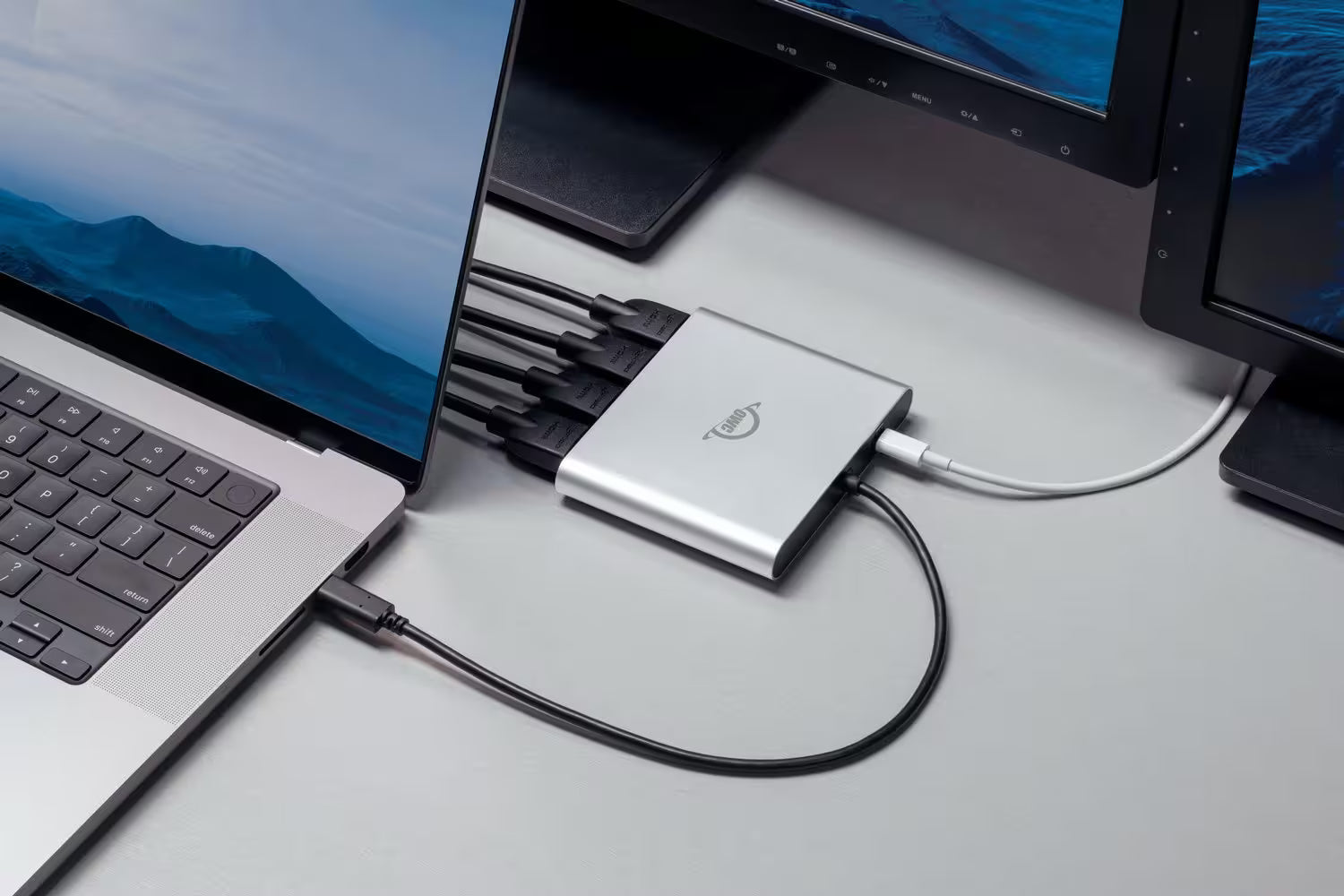

Multiply your workspace from a single port. The OWC USB‑C Quad HDMI 4K Display Adapter with DisplayLink turns one Thunderbolt, USB4, or USB‑C connection into four 4K HDMI outputs with synchronized audio. It’s the simple, reliable way to overcome external display limits on Apple silicon MacBooks and add serious screen real estate to any Mac, PC, or Chromebook. Powered by DisplayLink Pro, it delivers smooth Extended or Mirror setups while reducing load on your CPU, interface bandwidth, and battery versus juggling multiple dongles. Use it anywhere bus‑powered via the integrated 11.8" USB‑C cable, or connect a USB‑C power adapter for up to 90W pass‑through charging so your notebook stays topped up while you run all four displays. With HDMI audio pass‑through, your connected screens handle sound as cleanly as the picture. Just connect, install the DisplayLink app/driver, and get the panoramic workspace that keeps traders, developers, creators, and WFH pros in flow — without the mess or cost of multiple adapters.
Highlights

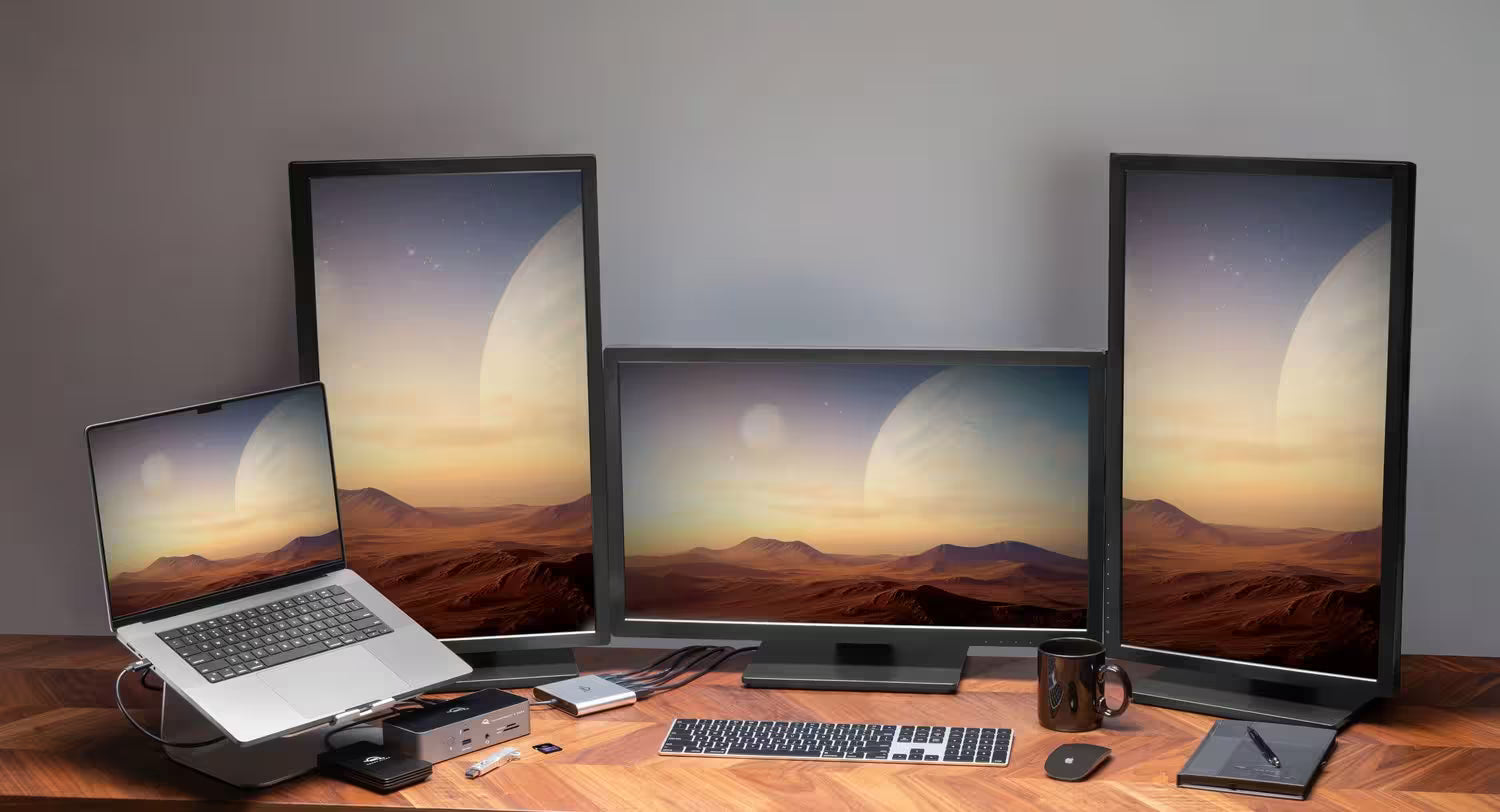

- Quad 4K from one port: drive up to four 4K HDMI displays from a single Thunderbolt/USB4/USB‑C port
- Apple silicon solution: bypasses built‑in external display limits on MacBook/MacBook Pro
- Flexible modes: choose Extended or Mirror on macOS/Windows/ChromeOS
- Resource‑efficient: lowers CPU, bandwidth, and battery demand vs multiple separate adapters
- Portable power: bus‑powered via 11.8" integrated USB‑C cable for on‑the‑go setups
- Charge while you work: up to 90W USB‑C pass‑through power (with compatible charger)
- All‑in‑one simplicity: one compact adapter replaces a pile of dongles and cables
- HDMI audio pass‑through: routes audio to connected displays/TVs/projectors
- Warranty: 1 Year OWC Limited Warranty
What’s in the Box
- (1) OWC USB‑C Quad HDMI 4K Display Adapter

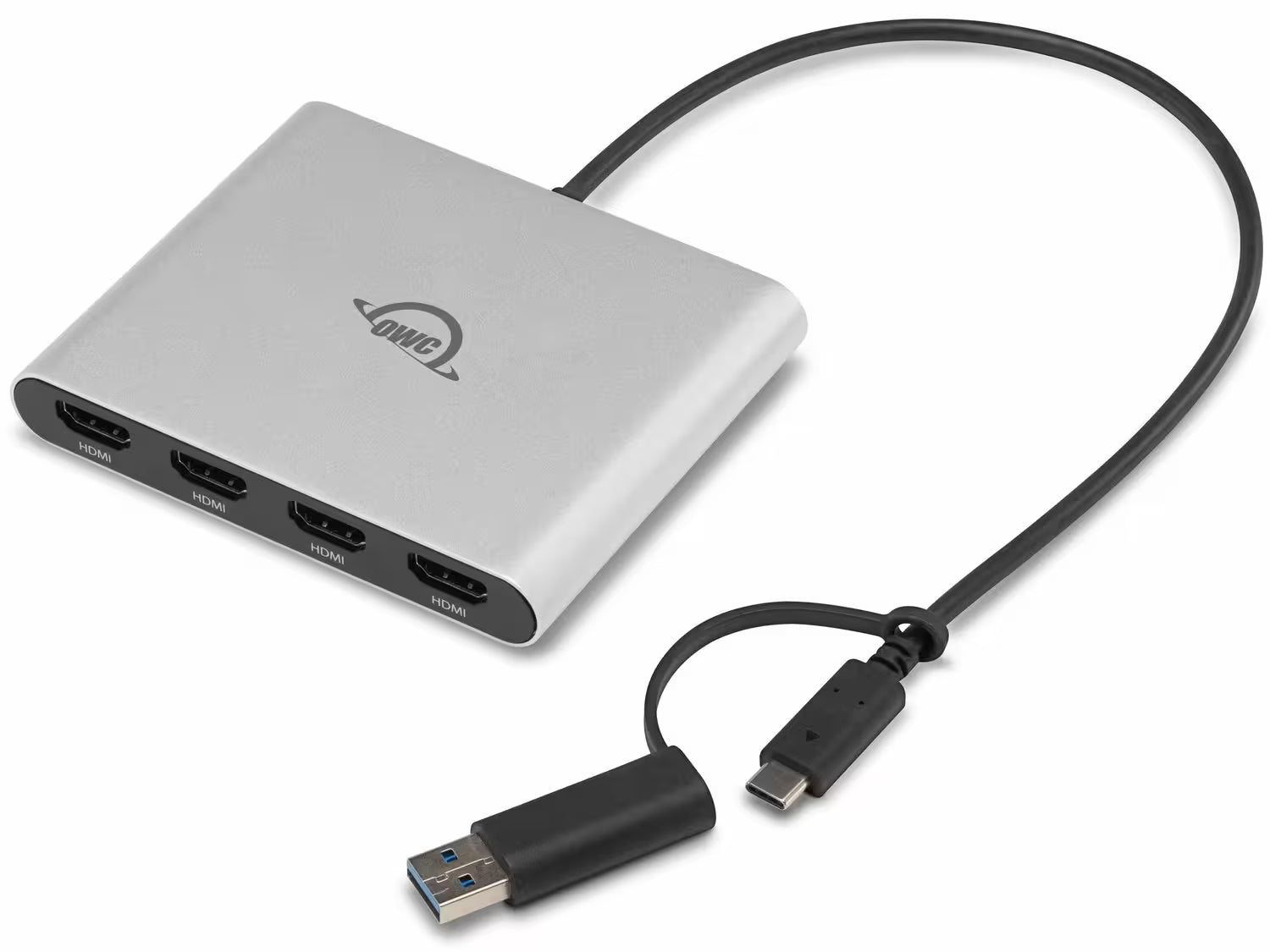

- (1) Tethered USB‑C to USB‑A Adapter
- (1) Quick Start Guide for OWC USB‑C Quad HDMI 4K Display Adapter
- (1) Support Manual
- 1 Year OWC Limited Warranty
- Cable Type Video
- Resolution (4) External Displays - 4K @ 60Hz (3840 x 2160)
- Refresh Rate 60Hz
- Display Support Up to four 4K displays @ 60Hz
- Display Support by Port HDMI 2.0: Up to 4K @ 60Hz
- Chipset / Controller DisplayLink DL-7400
- macOS 10.15 and later requires downloading the DisplayLink Manager application
- Windows requires downloading the DisplayLink driver
- macOS requires you to permit "Screen Recording" for DisplayLink Manager driver to work properly. See user manual on how to select this setting.
- Power Supply Bus-powered
- Power Pass-Through Yes
- Housing Color Silver
- Housing Material Aluminum with plastic end-caps
- Color Silver/Black
- Dimensions Height: 1.6 cm (0.6 in) | Length: 10.8 cm (4.3 in) | Width: 8.8 cm (3.5 in)
- Cable Length 30.00 cm (11.8 in.)
- Weight 184.0 g (0.41 lbs)
- LED Indicators Power
- Input Connection USB-C
- Output Connection (4) HDMI
- HDMI pass through Supported allowing audio signals to pass through
- Certifications CE, FCC
- Reach Certification Yes
- Ambient Temperature Operating: 32°F to 104°F (0°C to 40°C)
-
Mac OS Compatibility
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
- macOS 14.x Sonoma
- macOS 15.x Sequoia
-
PC OS Compatibility
- Windows 10 32-bit Edition
- Windows 10 64-bit Edition
- Windows 11
-
Other OS Compatibility
- Ubuntu 20.04 or later
- Chrome OS (latest recommended)
-
MacBook Pro
- Retina Mid 2012 to Mid 2017 (Mid 2012–2015 requires USB-C to USB-A adapter)
- Touch Mid 2017 to Late 2020
- Late 2021 to Late 2024
-
MacBook Air
- Mid 2012 to Early 2025 (Mid 2012–2017 requires USB-C to USB-A adapter)
- MacBook Early 2015 to Mid 2017
- iMac Late 2012 to Late 2024
- iMac Pro Late 2017
- Mac Pro Late 2013 to Mid 2023 (Late 2013 requires USB-C to USB-A adapter)
- Mac Studio Early 2022 onward
- Mac mini Late 2012 to Late 2024
- PC Compatible Requires USB-C or Thunderbolt port
