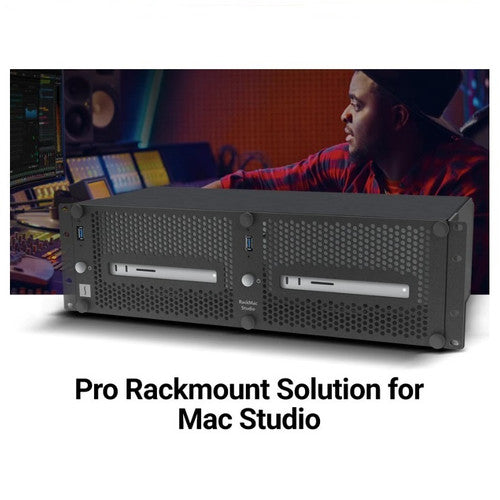

3U Pro Rackmount Enclosure to Install and Secure One or Two Mac Studio Computers in a Standard 19-inch Rack. Sonnet RackMac Studio integrates Mac Studio computers into a compact rackmount enclosure for diverse audio and video application needs.
Designed for professional workflows
Audio | Video | Color Grading | Photography | DITs | Event Productions | Broadcasts

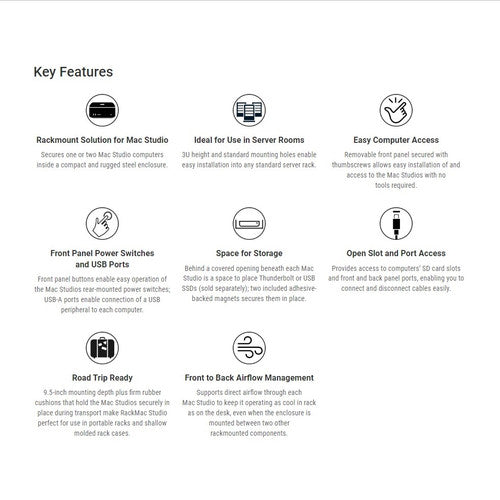

Key Features
- Rackmount Solution for One or Two Mac Studio Computers
- Compact and Rugged Steel Enclosure
- Easy Computer Access – Removable Front Panel
- Front Panel Power Switches and USB Ports
- Space for Storage – Install up to Three USB or Thunderbolt SSDs (Sold Separately) Beneath Each Mac Studio Computer; An Included Adhesive-based Magnet Secures Them In Place
- Open Slot and Port Access to Mac Studio Computers
- Front-to-Back Airflow Management
- Ideal for Use in Server Rooms, DITs, Portable Racks, and Shallow Molded Rack Cases
- Mac Studio Compatible
- Free Lifetime Customer Technical Support
- Designed and Manufactured in the USA

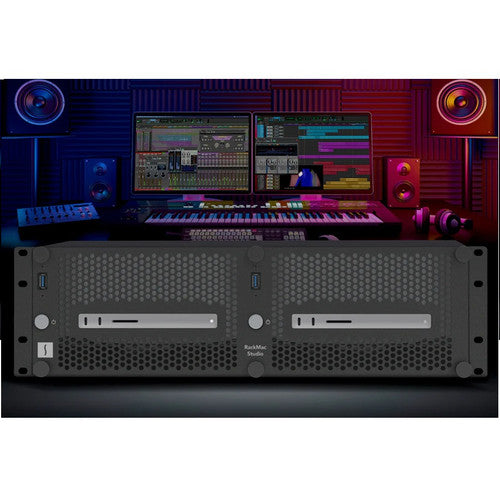

Control and Connect – Easy Access to Mac Studio Computers

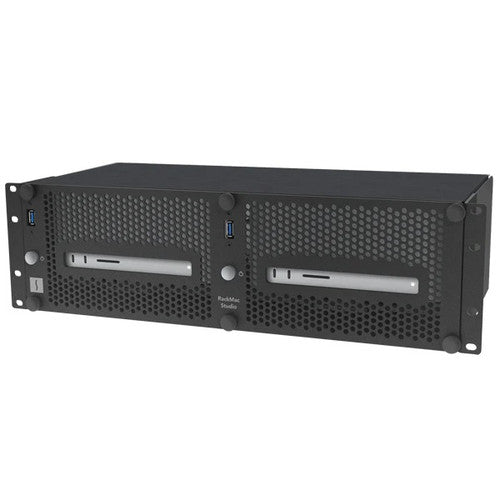

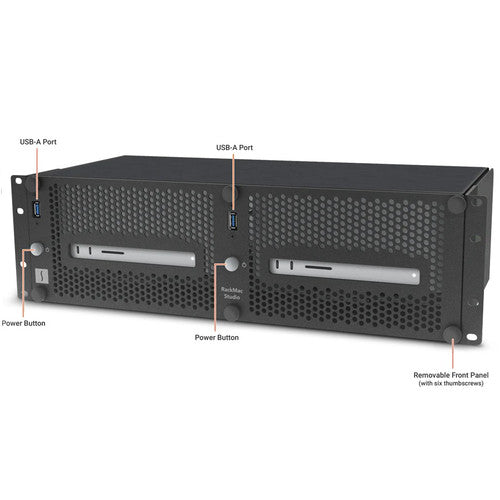

RackMac Studio is a rugged steel 3U rackmount enclosure for securing one or two Mac Studio computers in a rack, placing them behind a quick and easy to remove front panel. Convenient front panel operation allows you turn Mac Studio computers on with their own dedicated front power buttons, connect USB devices through passthrough USB-A ports, and access the computers’ front ports and SD card slots. RackMac Studio’s design enables you to connect and disconnect cables easily without needing to remove the computers from the enclosure.
Openings on top of RackMac Studio ensure hindrance-free wireless signal access. The RackMac Studio is designed to allow normal WiFi and Bluetooth wireless operation in most configurations (depending on rack type and position in rack), so you can use wireless devices and iOS® device control apps.

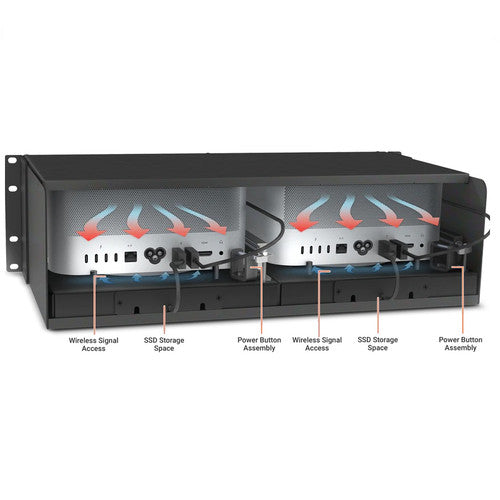

Go with the Airflow – Supports Mac Studio's Thermal Design
RackMac Studio secures your Mac Studios without trapping them in recirculating hot rack air, supporting their thermal design to keep them as cool in a rack as out on a desk. Ventilation holes on the enclosure’s front panel plus an enclosed chamber beneath each computer ensure the computers’ ability to draw in cool air through their bases, while a completely open back enables them to expel warm air out the back unimpeded.

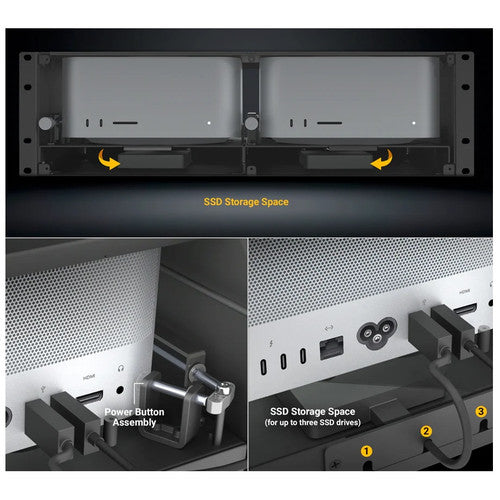

Space for SSD Drives – Secure up to Three Thunderbolt or USB SSD Drives Under Each Mac Studio Computer
RackMac Studio provides space beneath each Mac Studio computer to house up to three Thunderbolt or USB SSDs (sold separately) up to 3.2 inches wide by 0.75 inch tall. Simply remove the rear access panel, apply the supplied adhesive-backed magnet to the bottom of the SSD, insert the SSD and connect it to the computer, and then reinstall the panel. The space is also suitable for other thin, bus-powered devices.

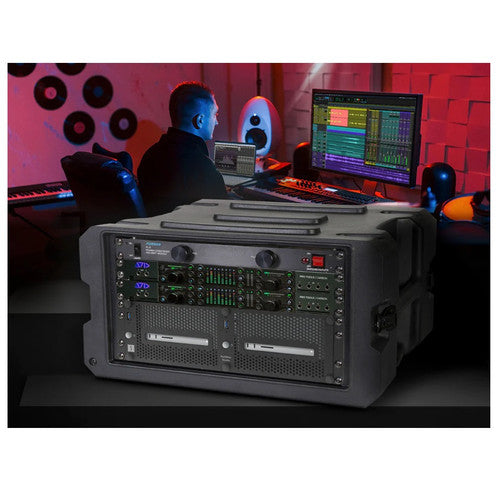

Road Trip Ready – Workflows on the Go
Do you need to take your workflow on the road? The RackMac Studio is a perfect travel solution. Its 9.5-inch mounting depth – plus firm rubber cushions that securely hold your Mac Studios in place during transport – make RackMac Studio ideal for use in shallow molded rack cases from Gator Cases, fly racks from SKB Cases, or most any travel rack.
- Part Number: RACK-STD-2X
- Warranty: 2-year
- Form Factor: 3U rackmount enclosure
- External Connectors: Two USB-A port extensions (one for each installed computer)
- Dimensions (WxDxH): 19 x 9.5 x 5.2 in. (48.3 x 24 x 13.3 cm)
- SSD Maximum Height: 0.7 in. (18 mm) inserted from rear; 0.9 in. (23 mm) inserted from front
- Weight: 8.6 lbs. (3.9 kg); Complete Package: 10.1 lbs. (4.6 kg)
- Compliance: RoHS 3 (Directive 2015/863)
- Package Contents: RackMac Studio enclosure; Two adhesive-backed magnets; Documentation
- Mac Studio
