OWC DIY bundle to Replace your iMac DVD Drive with SSD on selected 27-inch 2009,2010 and 2011 iMacs
The complete solution for your 27-inch 2009, 2010 and 2011 iMac
Configuration flexibility is yours when you replace your iMac's internal SuperDrive with an OWC SSD using the Data Doubler. Boost your storage capacity by adding additional storage, and enjoy near-instantaneous boot and app loading times thanks to the performance of an OWC 6G SSD.
Starts fast, stays fast
Even though many SSDs use low cost, less robust components in their design, they can still offer enticing short term bust speeds which are perfectly suitable for light duty uses. However, those drives are not designed to deliver consistent sustained speeds over their capacity rating, which results in a dramatic slowdown to even hard drive speeds under demanding use.

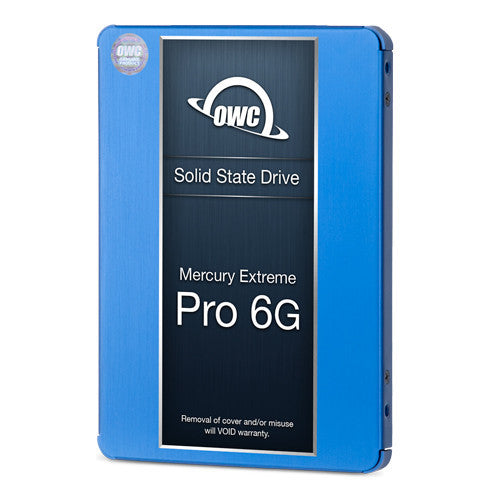

The fifth generation of Mercury Extreme Pro 6G SSD was built to start fast and stay fast at over 500MB/s sustained. Its development began with using the best flash storage components and technology available. Next, after being nearly completely filled to capacity with data, it had to deliver the same high speed as if it were empty. This drive doesn’t flinch at any time or capacity level and drop read/write speeds like other drives do…it easily handles the most extreme, mission-critical uses you can throw at it.
Upgrade Your iMac with Confidence.

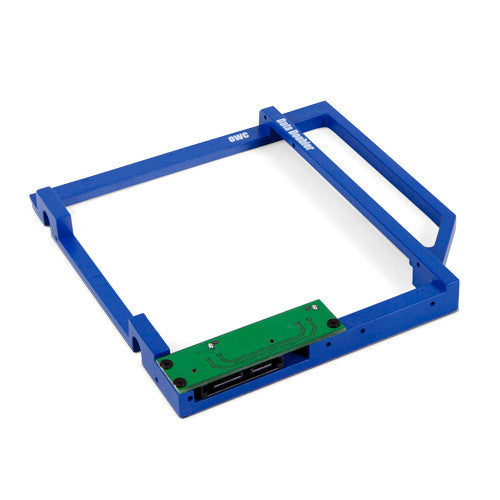

OWC's custom-engineered Data Doubler bracket comes ready to mount any 2.5" SATA drive up to 12.5mm in height. Data Doubler also comes backed by OWC's award-winning U.S.A. based technical support team which is readily available to assist you with your upgrade should you have any questions.
Please note, that before attempting to perform this installation, it is recommended you watch the associated instructional video in its entirety to determine your ability to perform this complex procedure. OWC assumes no responsibility for damage that may occur during the install.

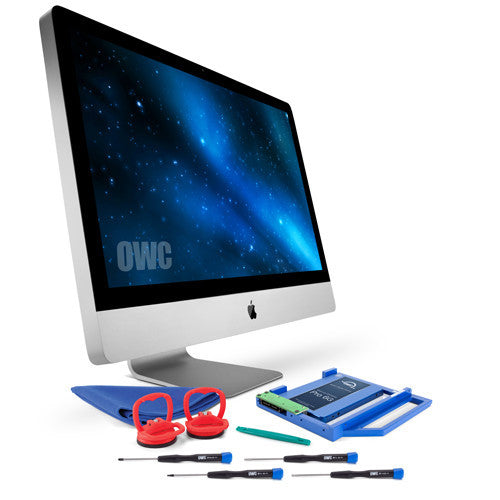

Includes
- (1) OWC Mercury Extreme Pro 6G SSD
- (1) OWC Data Doubler Optical Bay Mounting Solution
- (2) OWC 2-1/4" Suction Cup
- (1) Torx T10 driver
- (1) Torx T8 driver
- (1) Torx T6 driver
- (1) Phillips #00 Driver
- (1) Nylon Pry Tool (Spudger)
- (1) OWC Blue Microfiber Screen Cleaning Cloth
NOTE: This kit contains consumable and/or one-time-use components and is non-refundable if opened. If you have concerns about your ability to perform the upgrade, you can return the unopened kit for a refund.
- Controller Phison PS3112-S12 with 7% over-provisioning
- NAND Synchronous Triple-Level Cell (TLC) 3D NAND Flash
- Form Factor Standard 7mm 2.5-inch
- Tools Yes
- Capacity 240GB/ 480GB/ 1TB/ 2TB/ 4TB
- Manufacturer part numbers (SSD) OWCS3D7P6G240/ OWCS3D7P6G480/ OWCS3D7P6G960/ OWCS3D7P6GS2.0/ OWCS3D7P6GS4.0
- Manufacturer part numbers (bundles) OWCK27IM09OP240/ OWCK27IM09OP480/ OWCK27IM09OP1TB/ OWCK27IM09OP2TB/ OWCK27IM09OP4TB
- Interface SATA III 6Gb/s
- RAID Support Yes
- SMART Attributes Standard
- Data Reliability Built-in BCH ECC: Up to 66 bits correctable per 1024 bytes
- Security Chip Based Data Encryption: 256-bit AES-compliant
- Nonrecoverable Read Errors Less than 1 sector per 10/16 bits read
- Sustained Reads 6G (up to) 550MB/s
- Sustained Writes 6G (up to) 530MB/s
- Random 4K Read Up to 100,000 IOPS
- Random 4K Write Up to 90,000 IOPS
- Warranty 5 Year OWC Limited Warranty
Notes
- OWC Data Doubler specification
- Supports: SATA / SATA 3G / SATA 6G Interface 2.5" Drive or SSD (Solid State Drive) of up to 9.5mm (Super Slim) height.
- Dimensions: 5"(D) x 5"(W) x 03"(H) (12.7 x 12.7 x 7.6mm)
- Weight: 2.4oz. / 0.15lbs.
- OWC Data Doubler Installation Guide
- 1 Year OWC Brand Standard Limited Warranty
- Includes
- OWC Data Doubler Bracket
- Interposer Board
- Screws (5pcs, 3 x Phillips #00 2 x Phillips #1)
- Detailed Installation Guide with Model Specific Instructions/Step by Step Photos
- The toolkit includes everything you need to open your Mac and install the Data Doubler.
- iMac (27-inch Mid 2011) (May 2011) Model ID: iMac12,2 - A1312 - EMC - 2429 | 2.7GHz i5, 3.1GHz i5, 3.4GHz i7
- iMac (27-inch Mid 2010) (July 2010) Model ID: iMac11,3 - A1312 - EMC - 2390 | 3.2GHz i3, 2.8GHz i5, 3.6GHz i5, 2.93GHz i7
- iMac (27-inch Late 2009) (October 2009) Model ID: iMac11,1 - A1312 - EMC - 2374 | 2.66GHz i5, 2.8GHz i7
- iMac (27-inch Late 2009) (October 2009) Model ID: iMac10,1 - A1312 - EMC - 2309 | 3.06GHz, 3.33GHz
