Samsung NVMe SSD powered by V-NAND technology. Up to 7,000 MB/s sequential read and 5,000 MB/s write
Next-level SSD performance
Unleash the power of the Samsung PCIe 4.0 NVMe™ SSD 980 PRO for your next-level computing. Leveraging the PCIe 4.0 interface, the 980 PRO delivers double the data transfer rate of PCIe 3.0 while being backward compatible for PCIe 3.0 for added versatility.
Maximum speed
Powered by Samsung in-house controller for PCIe 4.0 SSD, the 980 PRO is optimised for speed. It delivers read speeds up to 7,000 MB/s, making it 2 times faster than PCIe 3.0 SSDs and 12.7 times faster than SATA SSDs. The 980 PRO achieves max speeds on PCIe 4.0 and may vary in other environments.
A winning combination
Designed with hardcore gamers and tech-savvy users in mind, the 980 PRO offers high-performance bandwidth and throughput for heavy-duty applications in gaming, graphics, data analytics, and more. It's fast at loading games so you can play more and wait less.
Efficient M.2 SSD
The 980 PRO comes in a compact M.2 2280 form factor, which can be easily plugged into desktops and laptops for maximum board design flexibility. The drive is suitable for building high-performance computing systems due to its optimised power efficiency.
Reliable thermal control

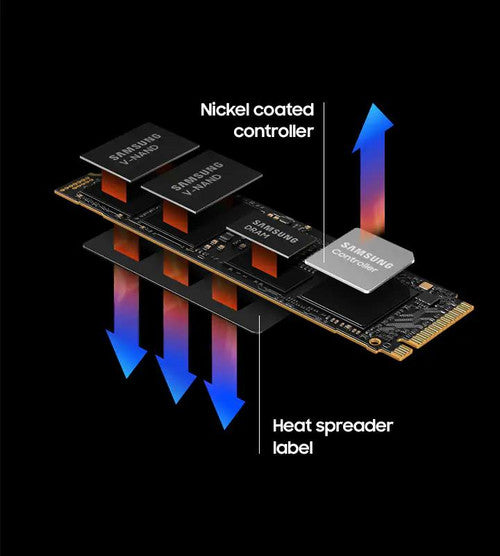

High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 PRO uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.
Smart thermal solution
Embedded with Samsung's cutting-edge thermal control algorithm, the 980 PRO manages heat on its own to deliver durable and reliable performance. To minimize performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980 PRO's temperature at optimal levels.
Samsung Magician software
Unlock the full power of the 980 PRO with Samsung Magician's intuitive yet advanced optimization tools. Monitor drive health, optimise performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.
World's No. 1 Flash Memory
Experience superior performance and reliability that you can only get from the world's number one brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.
- Application: Client PCs
- Interface: PCIe Gen 4.0 x4, NVMe 1.3c
- Dimension (WxHxD): 80.15 x 22.15 x 2.38 (mm)
- Weight: Max 9.0 g
- Sequential Read: Up to 6,400 MB/s * Performance may vary based on system hardware
- Sequential Write: Up to 2,700 MB/s * Performance may vary based on system hardware
- General Feature
- Application: Client PCs
- Form Factor: M.2 (2280)
- Dimension (Pack: WxHxD): 80.15 x 22.15 x 2.38 (mm)
- Storage Memory: Samsung V-NAND 3-bit MLC
- Cache Memory: Samsung 512MB Low Power DDR4 SDRAM
- Interface: PCIe Gen 4.0 x4, NVMe 1.3c
- Weight: Max 9.0 g
- Controller: Samsung in-house controller
- Special Feature
- TRIM Support: Supported
- GC (Garbage Collection): Auto Garbage Collection Algorithm
- WWN Support: Not supported
- S.M.A.R.T Support: Supported
- Encryption Support: AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive)
- Device Sleep Mode Support: Yes
- Performance
-
Sequential Read:
- 500GB - Up to 6,400 MB/s
- 1TB & 2TB - Up to 7,000 MB/s
- * Performance may vary based on system hardware & configuration
-
Random Read (4 KB, QD32):
- 500GB - Up to 800,000 IOPS
- 1TB & 2TB - Up to 1,000,000 IOPS
- * Performance may vary based on system hardware & configuration
- Random Read (4 KB, QD1): Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
- Sequential Write: 500GB & 1TB - Up to 5,000 MB/s * Performance may vary based on system hardware & configuration
- Random Write (4KB, QD32): Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration
- Random Write (4 KB, QD1): Up to 60,000 IOPS * Performance may vary based on system hardware & configuration
- Environment
-
Average Power Consumption (system level):
- 500GB - *Average: 5.9 W *Maximum: 7.4 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
- 1TB - *Average: 6.2 W *Maximum: 8.9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
- 2TB - *Average: 6.1 W *Maximum: 7.2 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
- Allowable Voltage: 3.3 V ± 5 % Allowable voltage
- Operating Temperature: 0 - 70 ℃ Operating Temperature
- Power consumption (Idle): Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
- Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
- Shock: 1,500 G & 0.5 ms (Half sine)
- Accessories
- Installation Kit: Not Available
- Software
- Management SW: Magician Software for SSD management
- Compatible with computers equipped with M.2 2280 length SSD bay and supporting NVME protocol. Also can be used with desktop computers without M.2 slots via PCIe compatible cards.
