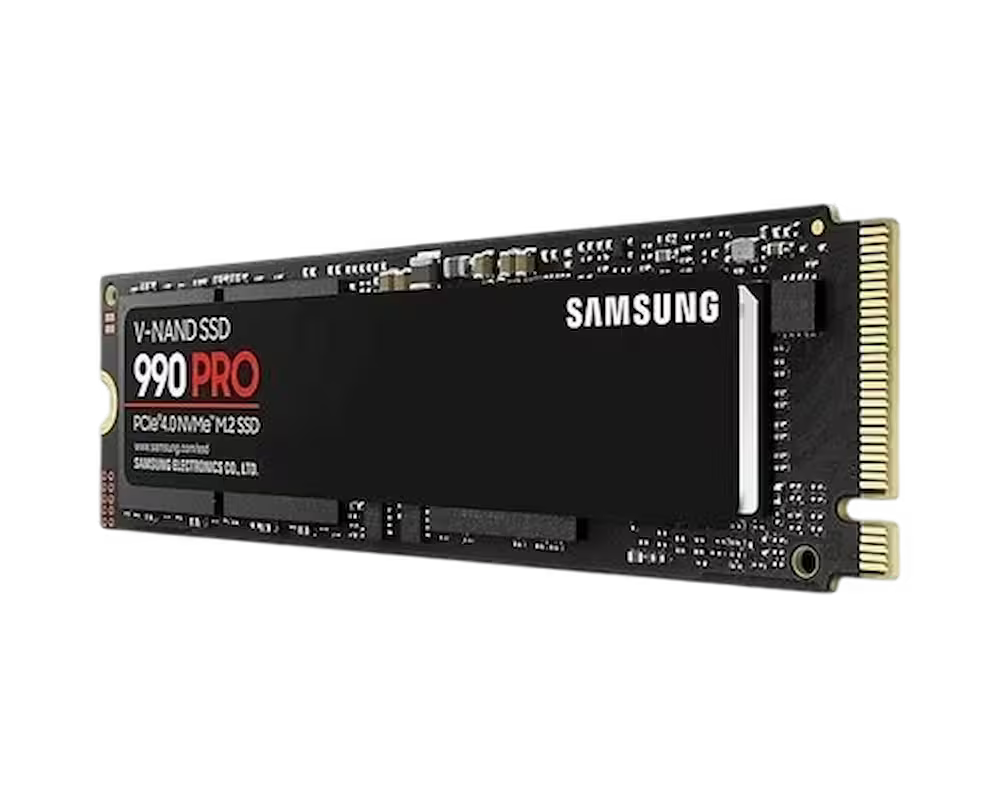

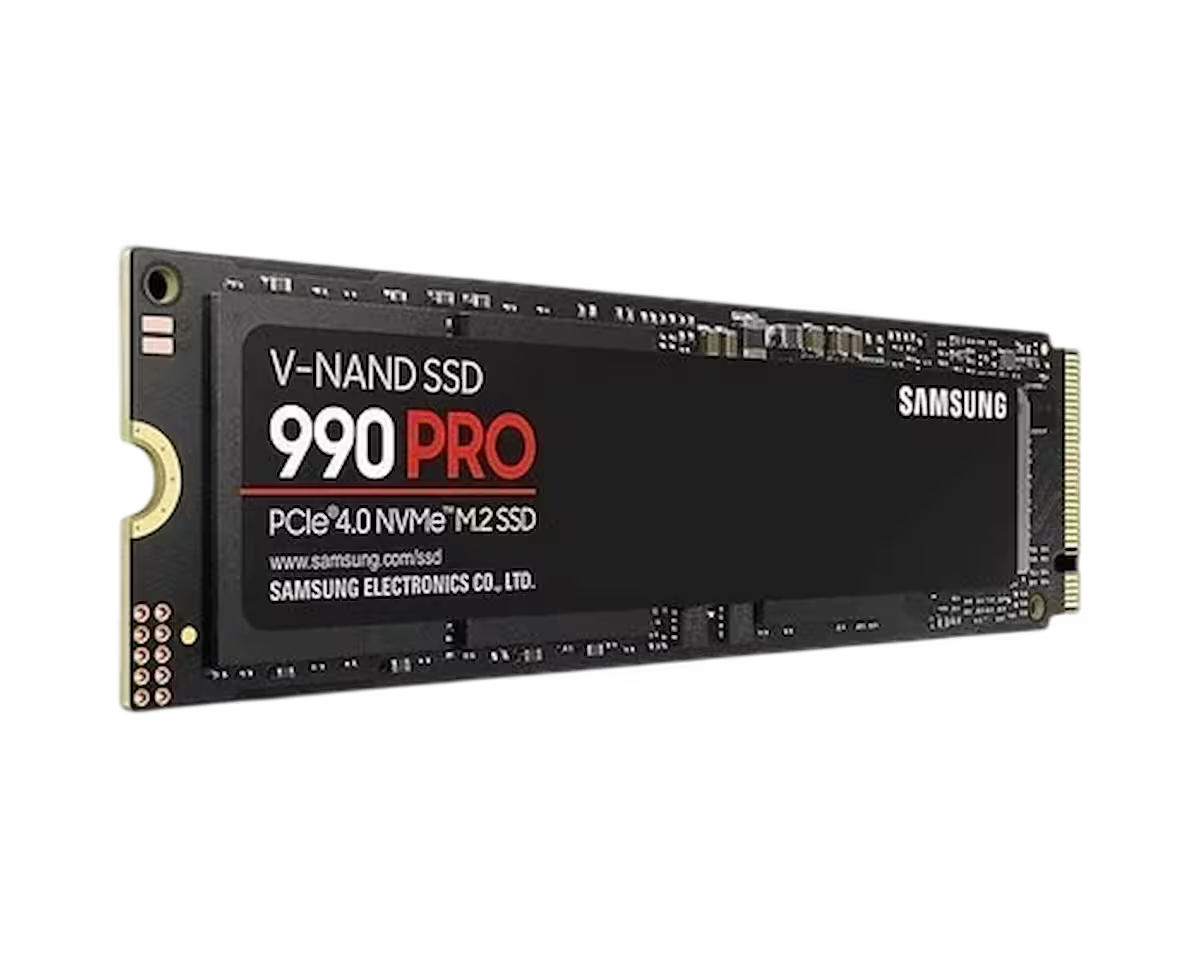

Samsung 990 PRO PCIe 4.0 NVMe M.2 solid state drive - SSD
Features
Superb SSD for gaming enthusiasts
Reach max performance of PCIe® 4.0.
Experience longer-lasting, opponent-blasting speed.
The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, so you can stay at the top of your game.
PCIe 4.0 speed maximised
Huge speed boost.
40% and 55% faster random read/write speeds than 980 PRO - up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe® 4.0. Fly high in gaming, video and 3D editing, data analysis, and more.
Breakthrough power efficiency
More power-efficient performance.
Higher performance usually consumes more power. But, 990 PRO uses less power with over 50% improved performance per Watt over 980 PRO. This low-power design makes max PCIe® 4.0 performance possible with optimal power efficiency.
Smart thermal solution
Speed beyond the heat.
The nickel-coated controller and cutting-edge thermal control algorithm manage heat for unwavering performance. The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures optimal.
Game like a pro
Secure victory with 990 PRO's expanded 4TB capacity, empowering you with a random read speed of up to 1,600.000 IOPS. Witness faster loading times on your PC and PlayStation® 5, as it breathes life into your games.
Samsung Magician software
Unlock the full power of 990 PRO.
Samsung Magician software's user-friendly suite of optimisation tools always gets you the best SSD performance. Protect data, get firmware updates and monitor the drive’s health.
Your personal SSD toolkit.
World's No.1 Flash Memory
Experience superior performance and reliability you only get from the world's No.1 flash memory brand since 2003. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.
- Application: Client PCs, Game Consoles
- Form Factor: M.2 (2280)
- Dimension (WxHxD): 80 x 22 x 2.3 mm
- Storage Memory: Samsung V-NAND 3-bit MLC
- Cache Memory: Samsung 1GB Low Power DDR4 SDRAM, Samsung 2GB Low Power DDR4 SDRAM, Samsung 4GB Low Power DDR4 SDRAM
- Capacity: 1,000GB, 2,000GB, 4,000GB (1GB=1 Billion byte by IDEMA)
- * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
- Interface: PCIe Gen 4.0 x4, NVMe 2.0
- Weight: Max 9.0g
- Controller: Samsung in-house Controller
- TRIM Support: Supported
- GC (Garbage Collection): Auto Garbage Collection Algorithm
- WWN Support: Not supported
- S.M.A.R.T Support: Supported
- Encryption Support: AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive)
- Device Sleep Mode Support: Yes
- Sequential Read: Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
- Sequential Write: Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
- Random Read (4 KB, QD32): 1GB - Up to 1,200,000 IOPS, 2GB - Up to 1,400,000 IOPS, 4GB - Up to 1,600,000 IOPS * Performance may vary based on system hardware & configuration
- Random Write (4KB, QD32): Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
- Random Read (4 KB, QD1): Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
- Random Write (4 KB, QD1): Up to 80,000 IOPS * Performance may vary based on system hardware & configuration
- Average Power Consumption (system level): 1GB - *Average: 5.4 W, *Maximum: 7.8 W (Burst mode); 2GB - *Average: 5.5 W, *Maximum: 8.5 W (Burst mode); 4GB - *Average: 6.5 W, *Maximum: 8.6 W (Burst mode)
- * Actual power consumption may vary depending on system hardware & configuration
- Allowable Voltage: 3.3 V ± 5 % Allowable voltage
- Operating Temperature: 0 - 70 ℃
- Power consumption (Idle): 1GB - Max. 50 mW, 2GB & 4GB - Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration
- Reliability (MTBF): 1.5 Million Hours
- Installation Kit: Not Available
- Management SW: Magician Software for SSD management
- 1TB: 5-Year Limited Warranty or 600 TBW Limited Warranty
- 2TB: 5-Year Limited Warranty or 1200 TBW Limited Warranty
- 4TB: 5-year Limited Warranty or 2400 TBW Limited Warranty
- Compatible with computers and motherboards supporting M.2 NVME SSD
