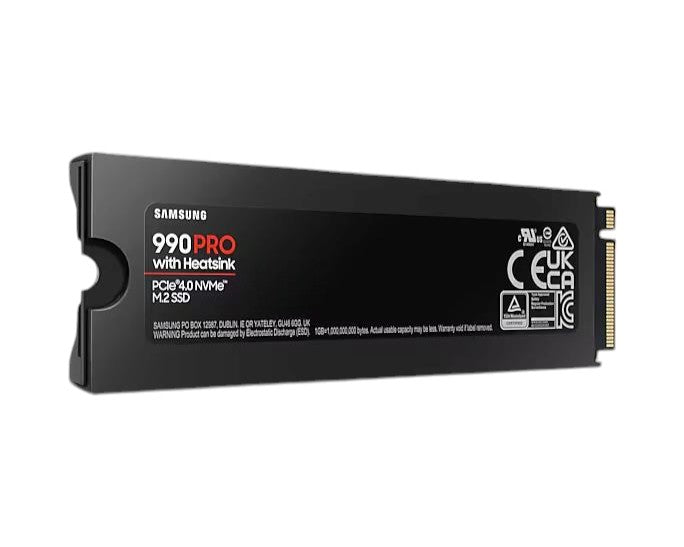

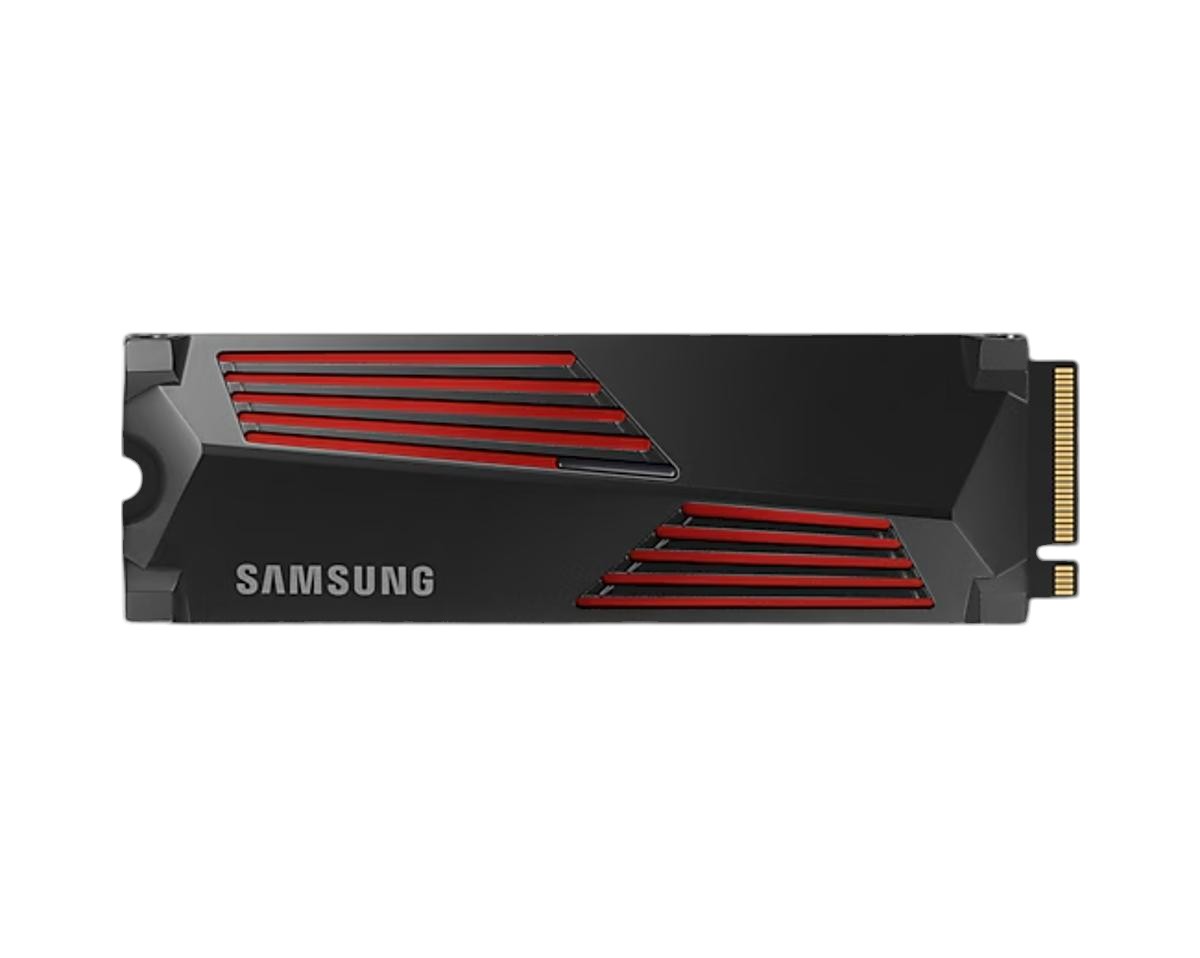

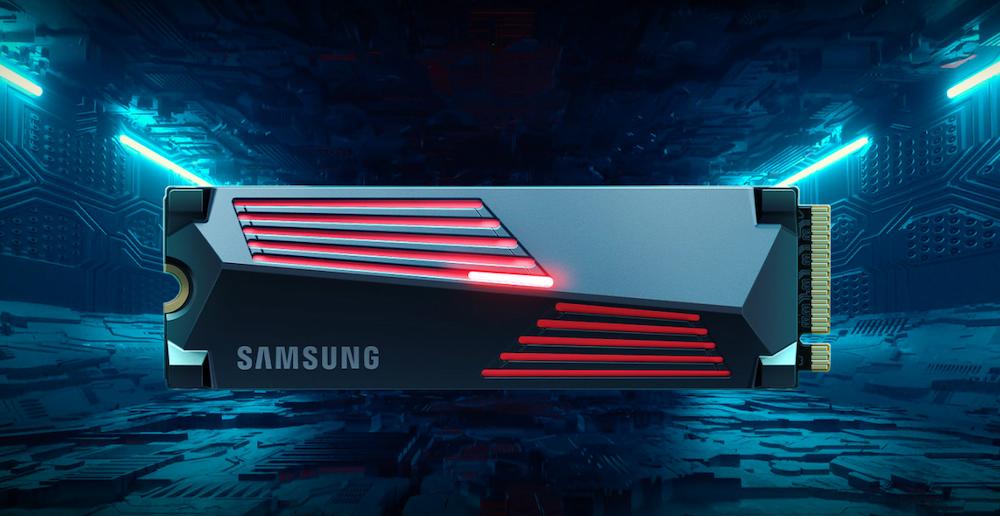

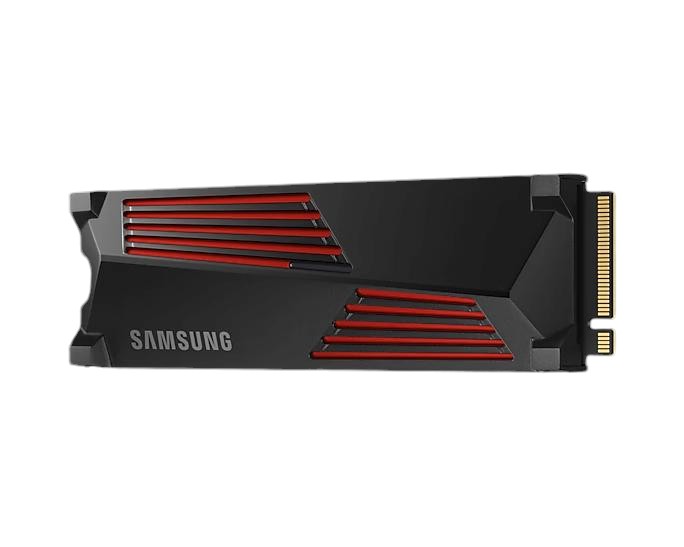

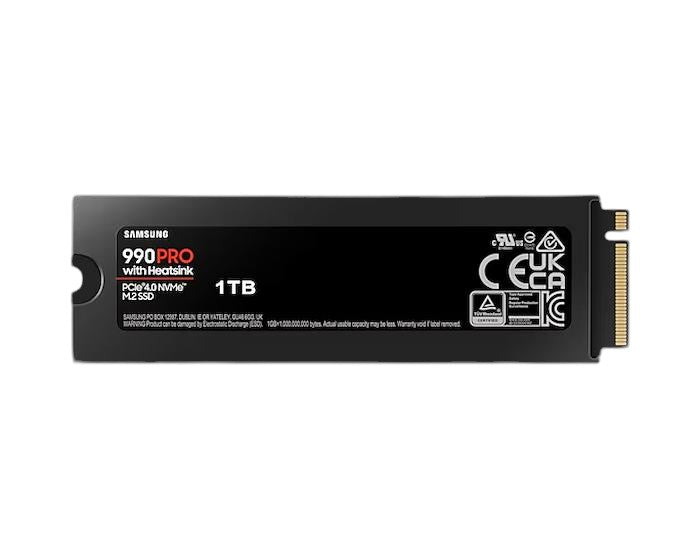

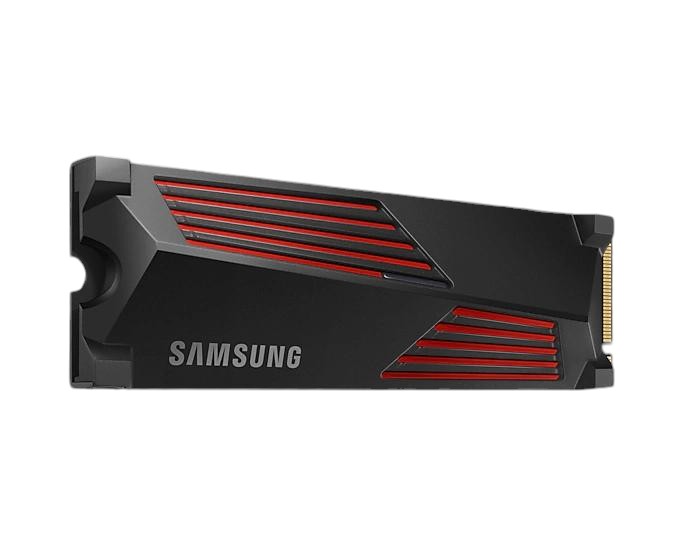

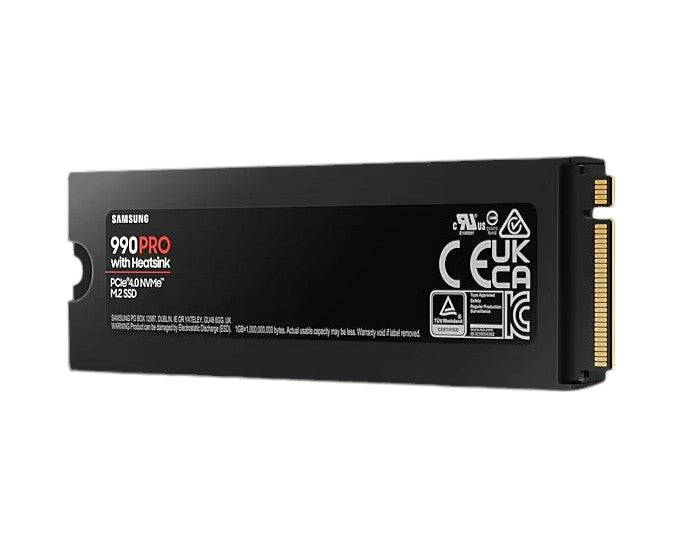

Samsung 990 PRO NVMe M.2 SSD with Heatsink – Blazing Fast PCIe 4.0 Speeds

• Application: Client PCs, Game Consoles

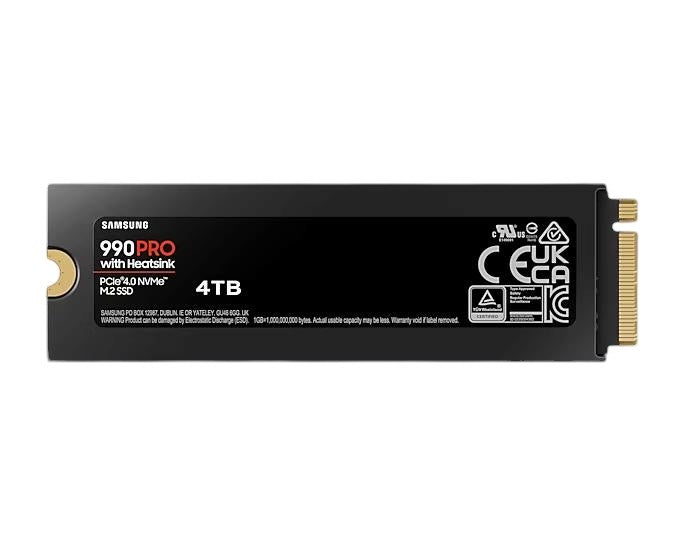

• Capacity: 4TB / 2TB / 1TB
• Form Factor: M.2 (2280)
• Interface: PCIe Gen 4.0 x4, NVMe 2.0
• Dimension (WxHxD): Max 80.15 x Max 25 x Max 8.88mm (with heatsink)
• Weight: Max 28.0g
• Storage Memory: Samsung V-NAND TLC
• Controller: Samsung in-house Controller
• Cache Memory: Samsung 4GB Low Power DDR4 SDRAM

• TRIM Support: Supported
• S.M.A.R.T Support: Supported
• GC (Garbage Collection): Auto Garbage Collection Algorithm
• Encryption Support: AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
• WWN Support: Not supported
• Device Sleep Mode Support: Yes

• Sequential Read: Up to 7,450 MB/s
• Sequential Write: Up to 6,900 MB/s
• Random Read (4KB, QD32): Up to 1,600,000 IOPS
• Random Write (4KB, QD32): Up to 1,550,000 IOPS
• Random Read (4KB, QD1): Up to 22,000 IOPS
• Random Write (4KB, QD1): Up to 80,000 IOPS

• Average Power Consumption (system level): Average: 6.5 W, Maximum: 8.6 W (Burst mode)
• Power Consumption (Idle): Max. 55 mW
• Allowable Voltage: 3.3 V ± 5 %
• Reliability (MTBF): 1.5 Million Hours
• Operating Temperature: 0 - 70 ℃
• Shock Resistance: 1,500 G & 0.5 ms (Half sine)

• Management Software: Samsung Magician Software for SSD management

• 5-year Limited Warranty or 2400 TBW Limited Warranty

• Desktop PCs: The 990 PRO SSD is ideal for desktop PCs that support PCIe 4.0 or PCIe 3.0 interfaces, with easy installation in M.2 2280 slots for enhanced performance.
• Gaming Laptops: Compatible with high-performance gaming laptops that have an M.2 NVMe slot, delivering fast data transfer for gaming and intensive tasks.

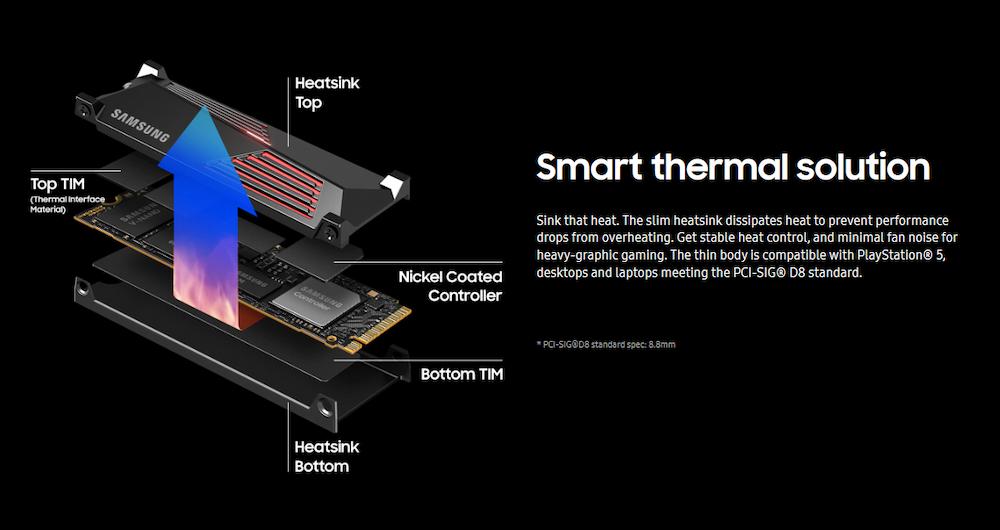

• Workstations: Excellent for workstations used for content creation, 3D rendering, and video editing, with the heatsink providing stable performance.
• PlayStation 5: Meets the specifications required for PS5 storage upgrades, enhancing gaming load times with its slim heatsink design.
• Ultra-thin Laptops: Suitable for ultra-thin laptops needing a compact, high-performance storage solution.

Important Notes: PCIe 3.0 Compatibility: While optimized for PCIe 4.0, the 990 PRO is also backward-compatible with PCIe 3.0 slots. For the PlayStation 5 installation, ensure the console's firmware is up to date to optimize SSD performance.
