Product Description

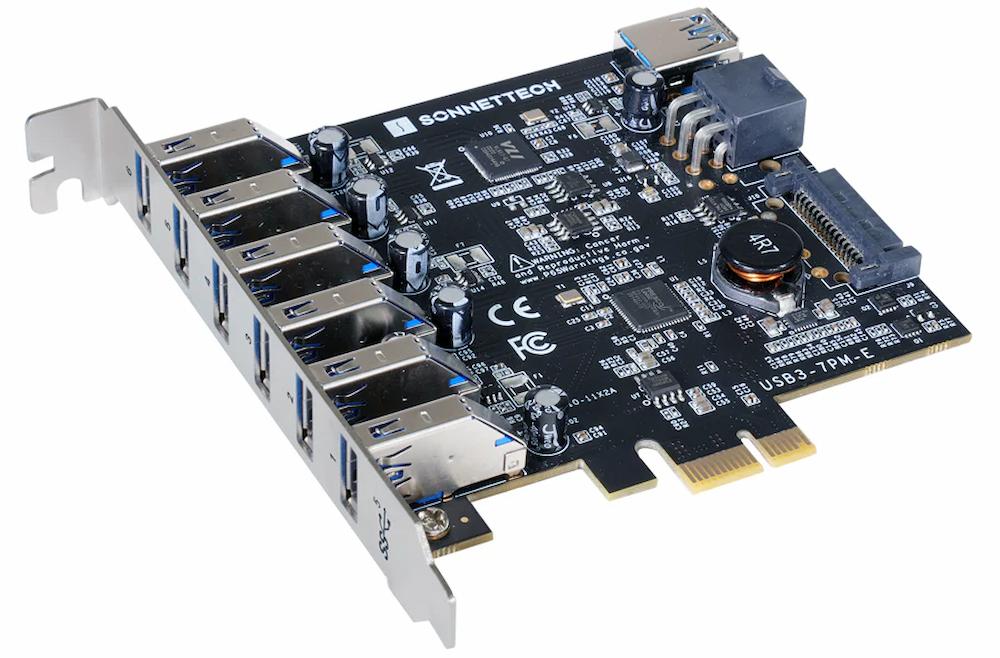

The Sonnet Allegro 7-Port USB 3.2 Gen 1 Type-A PCIe Card (USB3-7PM-E) is the ultimate solution for expanding USB connectivity on your Mac Pro, Windows, or Linux system. Engineered as a powered USB PCIe card, this high-performance adapter transforms a single PCIe slot into seven high-speed USB-A ports, each supporting data transfer rates up to 5Gbps.
Ideal for connecting multiple USB 3.2/3.1/3.0 devices, including external drives, audio interfaces, video capture devices, and more, this card is fully powered, ensuring stable connections without needing additional USB hubs.
Whether you're searching for the best 7-port USB-A PCIe card, a USB-A card for Mac Pro, or a PCIe USB 3.0 card with 7 ports, the Sonnet Allegro delivers unmatched performance and versatility. It's fully compatible with Windows, Linux, and macOS, making it a go-to solution for any desktop workstation.

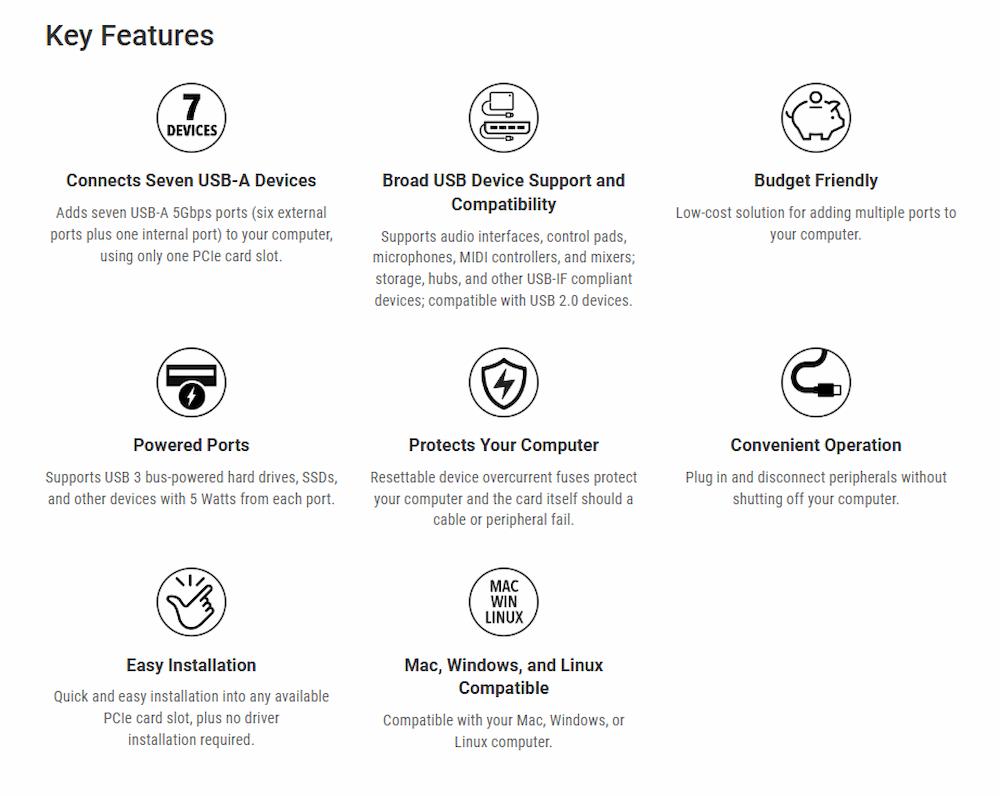

Key Features:
-
7-Port USB 3.2 Gen 1 (USB 3.0/3.1 Compatible) – Connect up to seven USB-A devices with 5Gbps data transfer speeds.
-
Powered USB PCIe Card – Each port provides independent power for stable, high-speed device operation.
-
Wide OS Compatibility – Fully compatible with macOS, Windows, and Linux systems.
-
Ideal for Mac Pro Workstations – Adds USB-A ports to Mac Pro (Intel® and Apple M-Series with PCIe expansion chassis).
-
PCIe to USB 3.2/3.1/3.0 Expansion – Fits any x4 or larger PCIe slot in desktop computers.
-

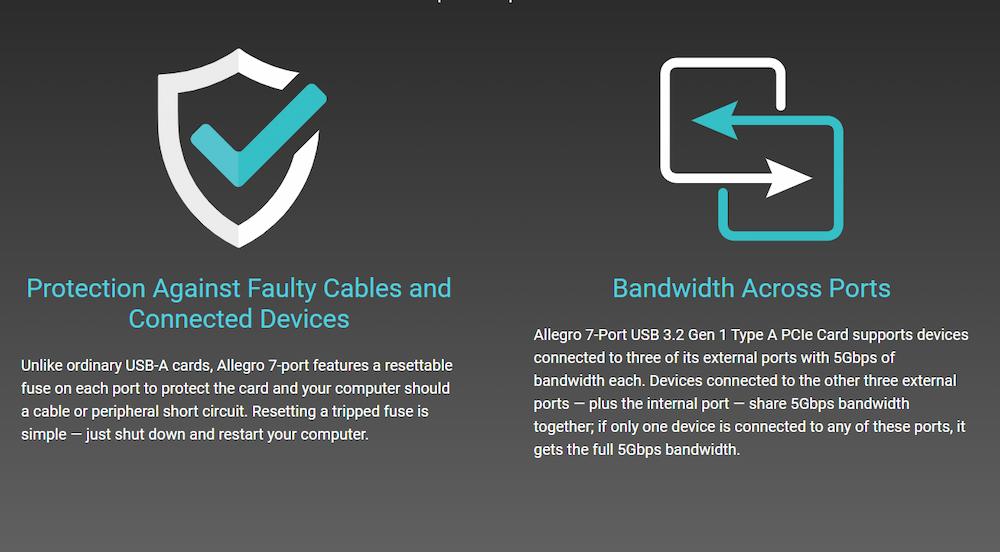

Supports Simultaneous Use – Connect and use all 7 ports simultaneously without bandwidth loss.
-
Perfect for Professional Setups – Designed for audio, video, storage, and peripheral-heavy workflows.
-
Driver-Free Installation – Native OS support, no additional drivers needed on most systems.
- Warranty – 2-Year Manufacturer Warranty – Full coverage against defects and hardware issues.

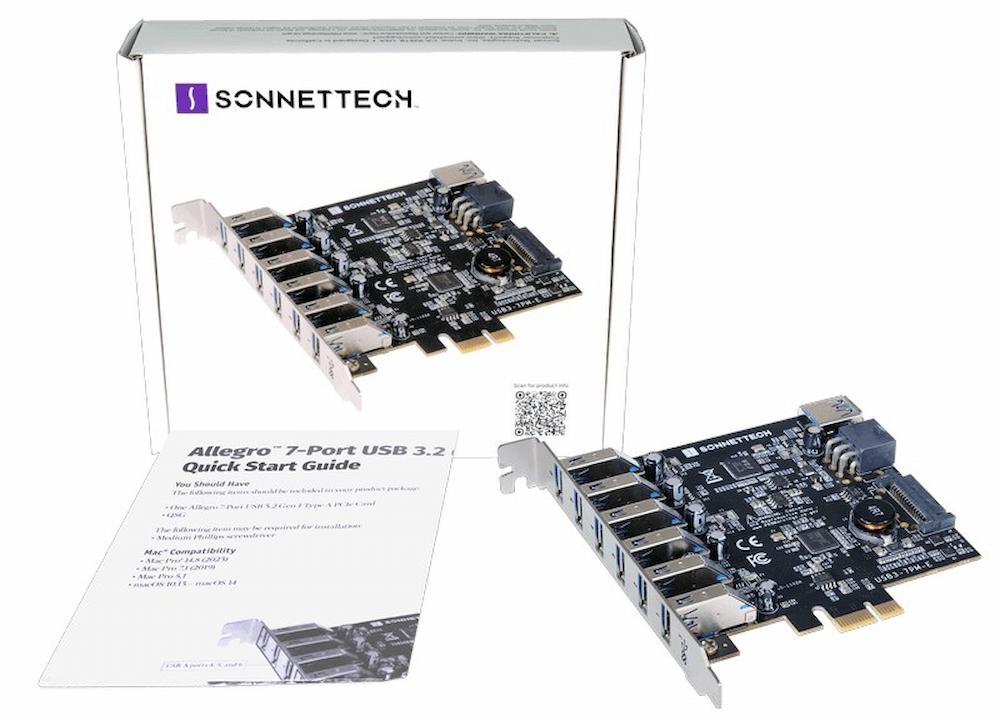

What’s in the Box?
1 × Sonnet Allegro 7-Port USB 3.2 Gen 1 Type-A PCIe Card (USB3-7PM-E)
1 × User Manual




Specifications
- Part Number: USB3-7PM-E
- Warranty: 2-year
- Form Factor: Full-height PCIe computer card
- Bus Interface: PCI Express 2.1 x1
- External Connectors: Six USB 3.2 Gen 1 Type-A ports

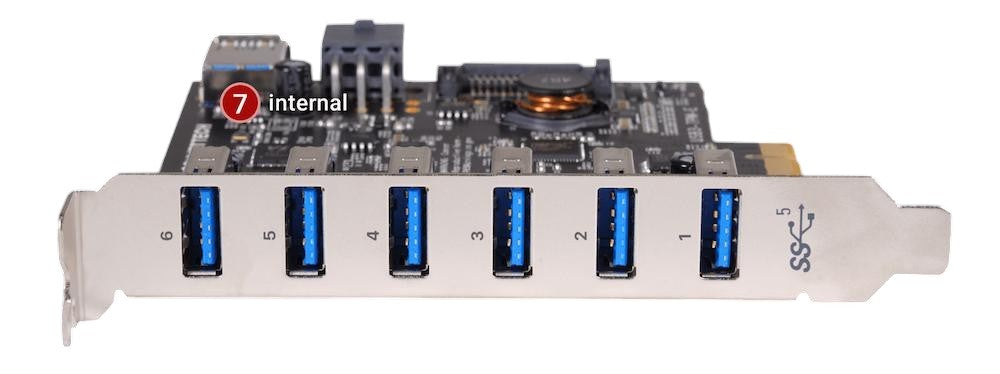

- Internal Connector: One USB 3.2 Gen 1 Type-A port
- Peripherals Supported: Industry standard USB 3.2 Gen 1 & 2, 3.1 Gen 1 & 2, 3.0, 2.0, and 1.1
- Bus-powered Peripherals Supported: HD, SSD, etc. (0.5W per port for operation)
- Cables Supported: USB 3 with Standard-A male connector; USB 2.0 with Standard-A male connector
- Chipset: Fresco Logic FL1100EX
- USB Standard: Complies with OHCI, EHCI, and xHCI standards
- UASP: USB Attached SCSI Protocol supported under macOS, Windows 11 and 10
- Hot Plug: Supports hot-pluggable and hot-swappable device connection
- Boot Support: Computers do not support booting from any USB 3 PCIe cards
- Operating Temperatures: 0ºC to 35ºC (32ºF to 95ºF)
- Compliance: RoHS 3 (Directive 2015/863), IEC62368-1 and IEC62368-2 Safety
- Product Manual: Download PDF
Compatibility
-
Mac Compatibility:
- Mac Pro 14,8 (2023)
- Mac Pro 7,1 (2019)
- Mac Pro 5,1
- macOS 10.12+
- macOS Sequoia compatible -
Windows Compatibility:
- Windows computer with available full-height PCIe slot
- Windows 11 and 10 -
Linux Compatibility:
- Linux computer with available full-height PCIe slot
- Linux Kernel 5.4.0+
