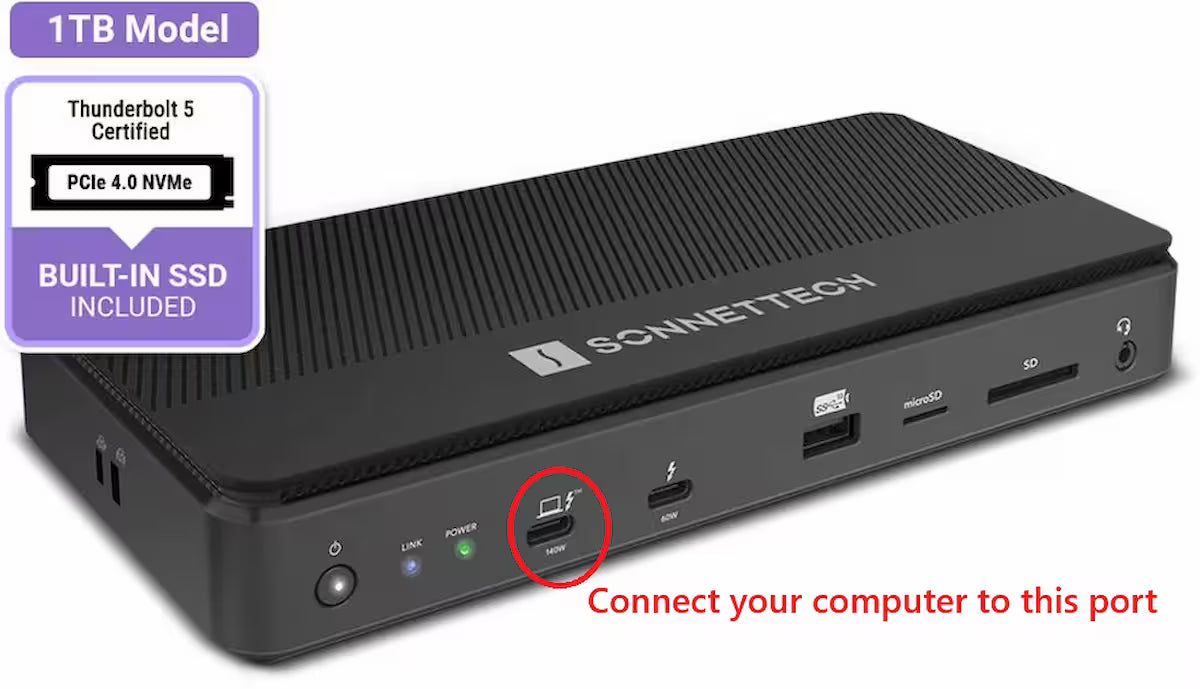

Sonnet Echo 13 Thunderbolt 5 Dock with SSD Storage (1TB-4TB), 140W Power, Mac/Windows/iPad Pro Compatible
Product SKU: ECHO-DK13-1TB5
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
£465.49
Want it delivered by
The Sonnet Echo™ 13 Thunderbolt™ 5 SSD Dock sets a new standard for professional docking solutions, delivering ultra-fast internal SSD storage, versatile connectivity, and industry-leading performance. With up to 4TB of built-in Thunderbolt-certified storage, this dock offers seamless one-cable connectivity to streamline your workspace while powering your laptop and connecting multiple high-resolution displays.
Whether you’re a content creator, professional, or tech enthusiast, the Echo 13 simplifies your setup and maximises your productivity.
Key Features
- Thunderbolt 5 Dock with Ridiculously Fast Internal SSD Storage: Includes pre-installed Kingston® PCIe 4.0 NVMe SSDs available in 1TB, 2TB, or 4TB capacities. Certified for Thunderbolt 5.
- One-Cable Peripheral Connection: Easily access all peripherals with the included Thunderbolt 5 cable.
- Twelve External Interfaces: Four Thunderbolt 5 ports, three USB 3.2 Gen 2 Type-A charging ports, one USB 3.2 Gen 1 Type-A port, one 2.5Gb Ethernet port, one 3.5mm combo audio jack, and SD/microSD card slots.
- High-Performance Thunderbolt Ports: Connect up to three Thunderbolt 5, USB4 V2, USB4, or USB3 devices with 40Gbps speeds.
- Powerful USB Type-A Ports: Three USB 3.2 Gen 2 ports deliver up to 10Gbps speeds and 7.5W power each for high-speed peripherals.
- Multiple Display Support: Connect up to three 4K displays @144Hz, two 6K/8K displays, or a single 8K display @240Hz using Thunderbolt and USB-C connections (adapters sold separately).
- Power Delivery: Provides up to 140W to charge and power your laptop via a single cable.
- Card Reader Compatibility: Supports SD/microSD cards of all types with up to 320MB/s read speeds.
- Kensington Lock Slots: Equipped with both Kensington Security and Nano Security slots for added security (locks sold separately).
- Universal Compatibility: Works seamlessly with Mac (M-series and Intel), Windows, Chromebooks, and iPad Pro devices.
Package Includes
- Sonnet Echo™ 13 Thunderbolt™ 5 SSD Dock with pre-installed Kingston M.2 NVMe SSD.
- Power adapter and region-specific cable (US, EU, UK, and more).
- 0.8-metre Thunderbolt 5 cable.
- Documentation and setup guide.
-
Part Number:
- ECHO-DK13-1TB5 (with 1TB SSD)
- ECHO-DK13-2TB5 (with 2TB SSD)
- ECHO-DK13-4TB5 (with 4TB SSD)
-
Warranty:
- 2-year warranty
-
Form Factor:
- Thunderbolt dock
-
Internal Built-in SSD Storage:
- Thunderbolt 5 certified Kingston PCIe 4.0 NVMe SSD
- Configured with 1TB, 2TB, or 4TB module
-
External Connectors:
- Four Thunderbolt 5 ports
- Three USB 3.2 Gen 2 (10Gbps) Type-A charging ports
- One USB 3.2 Gen 1 (5Gbps) Type-A port
- RJ45 2.5 Gigabit Ethernet port
- 3.5mm combination audio headphone/microphone jack
- UHS-II SD card slot
- UHS-II microSD card slot
- Power connector
- Thunderbolt 5 Computer Port:
- Power Delivery: Provides laptop charging up to 140W.
- Cables Supported: Any Thunderbolt 5 cable (0.8-meter included).
- Thunderbolt 5 Peripheral Ports:
- Connectivity: With USB-C connector.
- Peripherals Supported:
- Thunderbolt 5
- Thunderbolt 4
- Thunderbolt 3
- USB4 v2
- USB4
- All USB 3, 2.0, and 1.1 devices
- USB hubs
- Thunderbolt 4, Thunderbolt 3, and USB-C monitors
- DisplayPort and HDMI monitors (1)
- Charging (Front Panel Peripheral Port):
- 60W capacity to fast charge iPad, iPhone, or other device
- USB Type-C charging
- Supports simultaneous charging and syncing
- Charging (Back Panel Peripheral Ports):
- 15W capacity each to charge iPad, iPhone, or other device
- USB Type-C charging
- Supports simultaneous charging and syncing
- USB 3.2 Gen 2 Type A Ports:
- Connectivity: With USB Type-A connector.
- Peripherals Supported:
- USB 3, 2.0, and 1.1 devices
- USB hubs
- Data Transfer Rate: USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps.
- Charging:
- 7.5W capacity to charge iPad, iPhone, or other devices
- USB Battery Charging 1.2–compliant
- Supports simultaneous charging and syncing
- USB 3.2 Gen 1 Type A Port (Rear Panel):
- Connectivity: With USB Type-A connector.
-
Peripherals Supported:
- USB 3, 2.0, and 1.1 devices
- USB hubs
- Data Transfer Rate: USB 3.2 Gen 1 (previously USB 3.1 Gen 1, USB 3.0): 5Gbps.
- RJ45 (Ethernet) Port:
- Network Support: Supports 2.5GBASE-T, 1000BASE-T, and 100BASE-TX network speeds and Auto-MDI/MDI-X.
- Standard: Compliant with 802.3bz-2016 and 10/100/1000 IEEE 802.2 specifications.
- Packets: Maximum packet size: 9000 bytes (Jumbo packets) (2).
- Chip: Realtek RTL8156B.
- SD and microSD Card Slots:
- Cards Supported:
- SD, SDHC, SDXC
- microSD, microSDHC, and microSDXC
- Power Delivery:
- Provides laptop charging up to 140W.
- Power Adapter:
- Universal 180W, 100-240V AC, 50-60 Hz.
- Operating Temperatures:
- 0˚C to 35˚C (32˚F to 95˚F).
- Dimensions (WxDxH):
- Dock: 8.7 x 3.8 x 1.3 in. (22.0 x 9.7 x 3.4 cm).
- Power Supply: 3.2 x 6.6 x 1 in. (8.2 x 16.8 x 2.6 cm).
- Weight:
- Dock and Power Supply: 1.75 lbs (0.8 kg).
- Complete Package: 2.65 lbs (1.2 kg).
- Compliance:
- RoHS 3 (Directive 2015/863).
- IEC62368-1 and IEC62368-2 Safety.
- VCCI-B certified.
- FCC Part 15, Subpart B.
- CISPR 32 / EN 55032.
- Power Supply (PSE certified; UL certified).
- Package Contents:
- Echo 13 Thunderbolt 5 SSD Dock with 1TB, 2TB, or 4TB SSD.
- Power adapter.
- Region-specific power cable (US, Australia, Europe, Japan, Switzerland, or UK).
- 0.8-meter Thunderbolt 5 cable.
- Documentation.
- Technical Notes:
- Thunderbolt-compatible adapter required (sold separately).
- macOS maximum packet size: 1500 bytes.

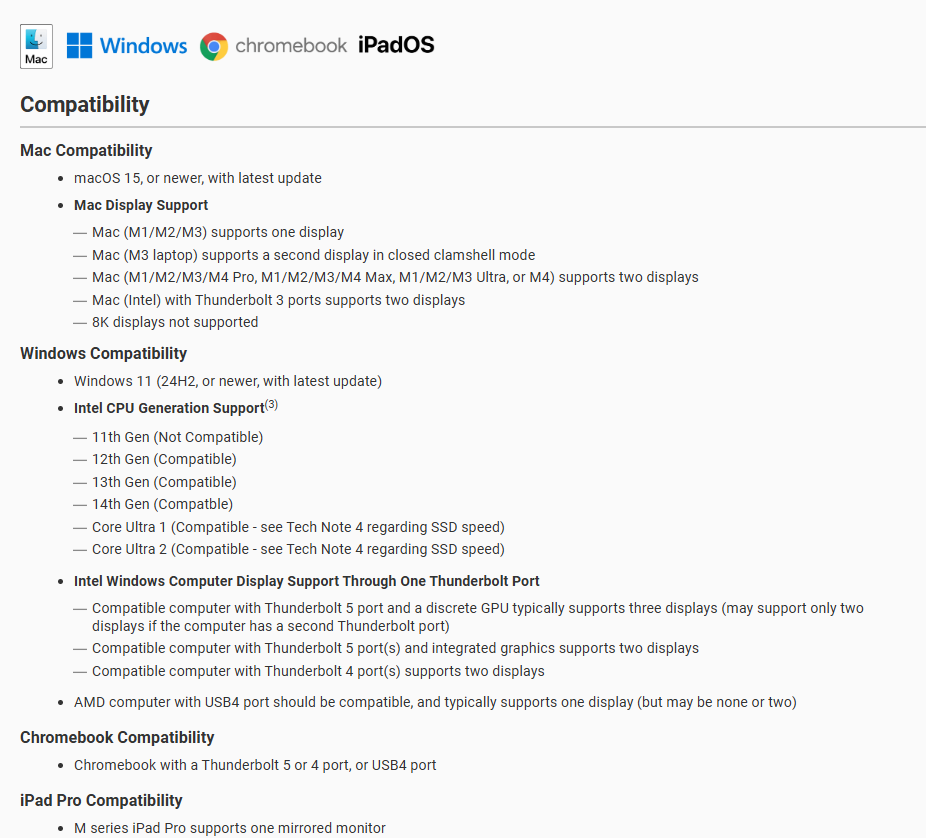

- Mac Compatibility:
- Mac (M1/M2/M3) supports one display.
- Mac (M3 laptop) supports a second display in closed clamshell mode.
- Mac (M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max, M1/M2 Ultra, or M4) supports two displays.
- Mac (Intel) with Thunderbolt 3 ports supports two displays.
- macOS 15+.
- macOS Sequoia compatible.
- 8K displays not supported.
- Windows Compatibility:
- Windows computer with a Thunderbolt 5 port.
- Windows computer with a Thunderbolt 4 port (Intel CPU with integrated Thunderbolt controller, typically 12th Gen processor or newer).
- Windows computer with a USB4 port.
- Windows 11 (23H2 or later).
- Chromebook Compatibility:
- Chromebook with a Thunderbolt 5 or 4 port, or USB4 port.
- iPad Pro Compatibility:
- M series iPad Pro supports one mirrored monitor.
- HDR Compatibility:
- See Apple Support Note for Mac HDR information.
- If your Windows computer supports HDR, see this Microsoft Support Note for Windows HDR information.
