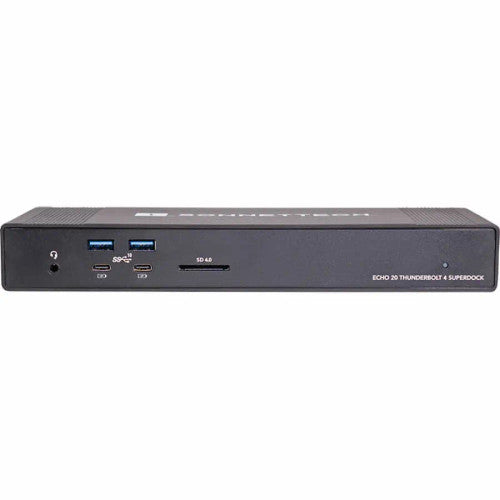

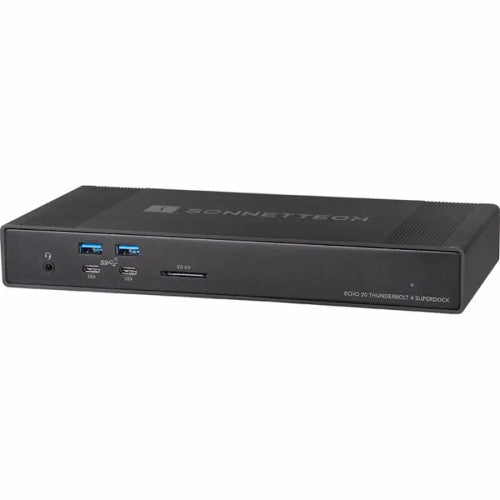

- Sonnet Echo 20 Thunderbolt 4 SuperDock with NVME SSD installed Sonnet Echo 20 Thunderbolt 4 SuperDock with NVME SSD installed
Sonnet Echo 20 Thunderbolt 4 SuperDock with NVME SSD installed
- Description
- Specifications
- Compatibility
- Product videos
- Reviews
Universal Thunderbolt 4 Dock with Three Thunderbolt 4 Ports, M.2 SSD Slot, HDMI 2.1 Port, 2.5Gb Ethernet Port, Eight 10Gbps Ports, and More!
More connections than you expect from a Thunderbolt™ dock – NVMe SSD storage capability, an HDMI port, ultra-fast 2.5 Gigabit Ethernet support, and more! With this superdock, a single cable connects your computer to your digital world. The Sonnet Echo™ 20 Thunderbolt 4 SuperDock is your universal docking station for today and tomorrow. Compatible with Apple M series Macs; Thunderbolt™ 3 Intel Macs; Thunderbolt 3 and 4 Windows computers; Thunderbolt 4/USB4 Chromebook; and M series iPad Pro.
Plug In Your Peripherals and Power Your Computer with One Cable
Connect your Thunderbolt devices, monitor(s), USB peripherals, powered speakers, and Ethernet cable to the dock and then link them all to your computer with a single Thunderbolt cable. Got a laptop computer? You can keep its power adapter in your bag because Echo 20 Thunderbolt 4 SuperDock will power it with up to 100W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your computer, and go.

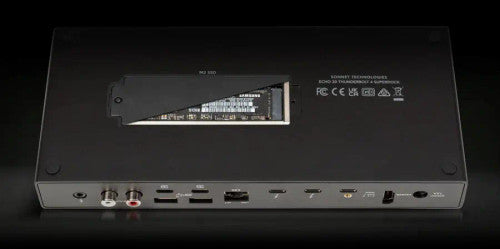

Internal SSD Expansion Slot – Add Up to 8TB of NVMe SSD Storage
The built-in M.2 NVMe SSD slot enables you to add up to 8TB of SSD storage (SSD sold separately) to your system without connecting a storage device to the Echo dock or the computer.

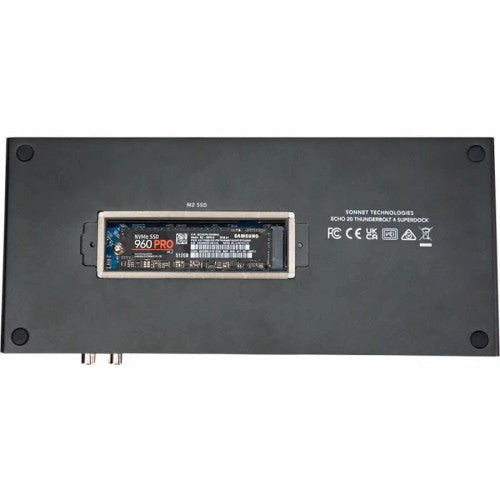

SSD installation is an easy task – simply remove the two screws securing a bottom panel cover, insert the SSD, and reinstall and secure the bottom cover. Transfer and access data at up to 800 MB/s, and effortlessly store large files, media libraries, or your Time Machine® backups.
For latest SSD compatibility information, see NVMe SSD Compatibility PDF.
SSD sold separately

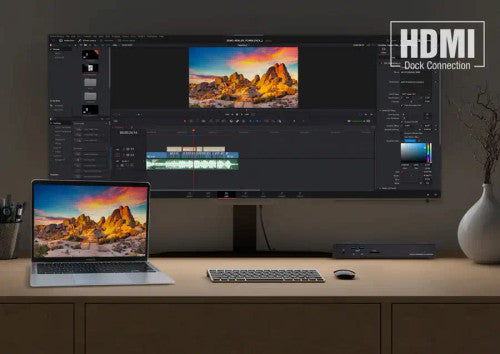

Onboard HDMI Display Support – No HDMI Adapter Required
Echo 20 Thunderbolt 4 SuperDock features a built-in HDMI port, enabling you to plug in an HDMI display directly to the dock.

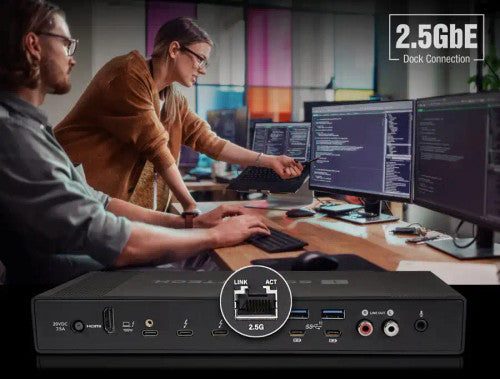

Faster Ethernet Transfers Across Existing Cabling – 250% the Speed of Gigabit Ethernet
Featuring 2.5 Gigabit Ethernet, Echo 20 Thunderbolt 4 SuperDock supports a 2.5 Gb/s link speed over common Cat 5e (or better) cabling when used with a compatible Ethernet switch or NAS with 2.5Gb Ethernet support, saving you the cost of another adapter. You can get great performance gains – 250 percent the speed of Gigabit Ethernet – without rewiring! Need to connect to a switch without 2.5Gb Ethernet support? The Sonnet dock also supports 1Gb/s and 100Mb/s link speeds.
Dual Downstream Thunderbolt Ports – Simple Comprehensive Connectivity for Work and Play
Echo 20 Thunderbolt 4 SuperDock features three Thunderbolt 4 ports: one for connection/power to your computer – ideal for Mac and Windows laptop computers with only one or two Thunderbolt ports because you can connect and charge on the same port – plus two for directly connecting Thunderbolt peripheral devices.
The Thunderbolt peripheral ports also support USB4 and USB 3 peripherals, and even provide 15W power each to support the most demanding bus-powered Thunderbolt and USB peripherals. If your computer supports it, you can even connect another display.

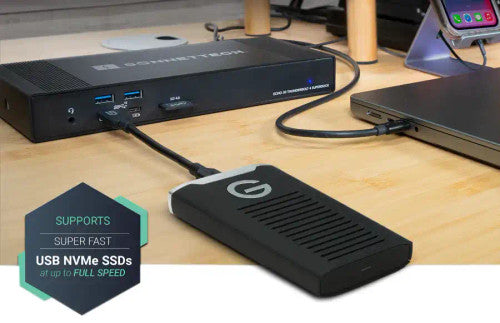

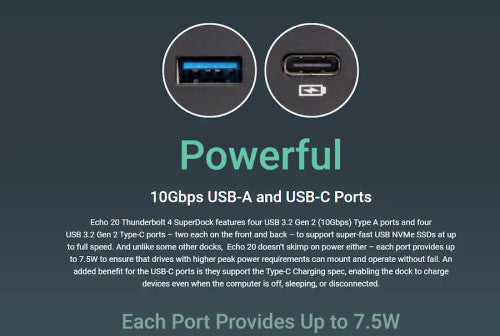

Powerful 10Gbps USB-A and USB-C Ports
Echo 20 SuperDock features four USB 3.2 Gen 2 (10Gbps) Type A ports and four USB 3.2 Gen 2 Type-C ports – two each on the front and back – to support super-fast USB NVMe SSDs at up to full speed. And unlike some other docks, Echo 20 doesn’t skimp on power either – each port provides up to 7.5W to ensure that drives with higher peak power requirements can mount and operate without fail. An added benefit for the USB-C ports is they support the Type-C Charging spec, enabling the dock to charge devices even when the computer is off, sleeping, or disconnected.
Thunderbolt Certified for Mac, Windows, Chromebook, and iPad Pro
Echo 20 Thunderbolt 4 SuperDock is certified for use with Apple M series Macs; Thunderbolt 3 Intel Macs; Thunderbolt 4 or USB4 Windows computers; Thunderbolt 3 Windows computers with an Intel 8th Gen (2018) or newer CPU; Thunderbolt 4/USB4 Chromebook; and M series iPad Pro. See Tech Specs for current computer and OS compatibility information.

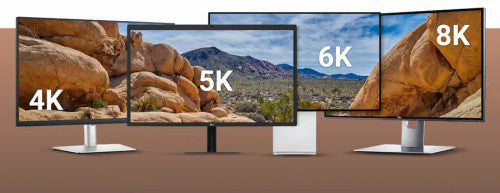

Single 8K or Dual 6K 60Hz Displays
Depending on your computer’s video capability and whether you’ve connected a monitor to the built-in HDMI port, the Echo dock’s Thunderbolt ports can support one (always 4K, 5K or 6K, up to 8K) monitor, or up to two 6K monitors; see Tech Specs. You can plug in Thunderbolt 3 or 4, or USB-C monitors directly. Or, you may connect other display types (HDMI, DisplayPort, etc.) by using a Thunderbolt-compatible adapter (sold separately).
For the latest display compatibility information, see Displays Compatibility PDF.

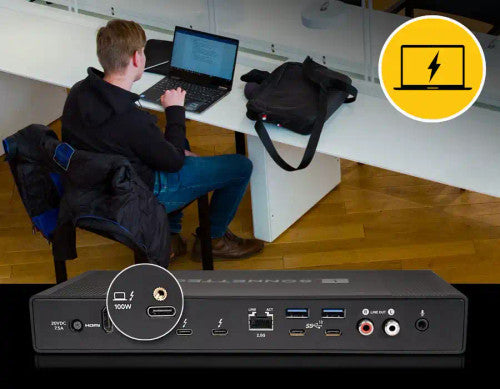

Charge On and Leave the Charger In Your Backpack – 100W Charging Power Delivery
Connected to your laptop computer with the included Thunderbolt 4 cable, Echo 20 Thunderbolt 4 SuperDock provides up to 100W of power (Power Delivery) from its rear-mounted Computer/Charging port, meaning it can power and charge your computer while connected, even when not in use, allowing you to leave your computer’s power adapter packed away.

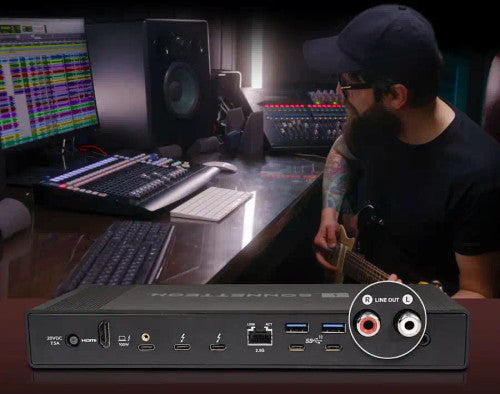

Dedicated RCA Audio Outputs
Echo 20 Thunderbolt 4 SuperDock features stereo RCA connections. RCA outputs provide consistent line-level audio, connecting your sweet music library to your pair of powered speakers. RCA outputs are also ideal for direct connection to a receiver, power amplifier, or mixer.

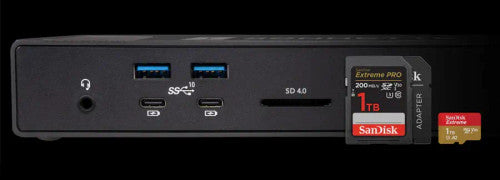

Media Reader – Fast UHS-II SD 4.0 Card Reader
The included SD card slot is compatible with SD™, SDHC™, and SDXC™ memory cards, and supports 320 MB/s read speeds with UHS-II SDXC cards to quickly offload images and video. microSD cards are also supported when used with adapters commonly included with the cards.
Security – Thunderbolt 4 Cable and ThunderLok 4 Included. Kensington Lock Ready.
Thunderbolt 4 Cable and ThunderLok 4 – Sonnet includes a Thunderbolt cable and security clip with the Echo 20 SuperDock. The Thunderbolt cable supports Thunderbolt’s full 40Gbps bandwidth and 100W power charging capability. ThunderLok™ 4 Thunderbolt connector retainer clip prevents accidental cable disconnections by sliding easily over one end of the cable and securing directly to the dock with a thumbscrew. Because of its unique design, ThunderLok remains on the cable, so it won’t get lost when not in use.
Kensington Lock Ready – Lock your dock and keep it secure. With up to 8TB of valuable data inside, you may want to secure the Echo dock with a Kensington® Lock (sold separately).

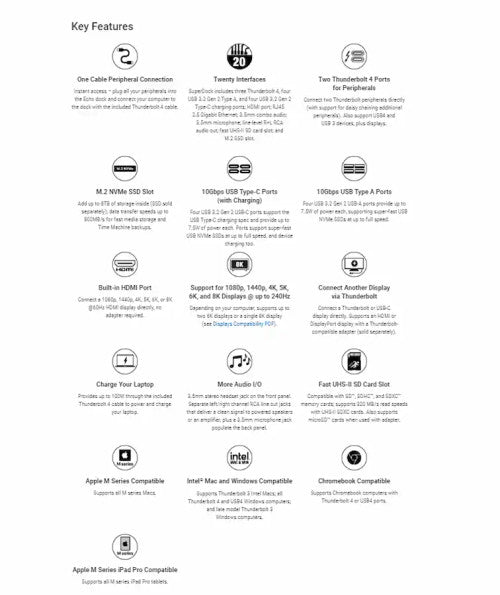

Key Features
- Ultimate Docking Station at an Amazing Value – Thunderbolt 4 SuperDock with Pro Ports + M.2 SSD Storage

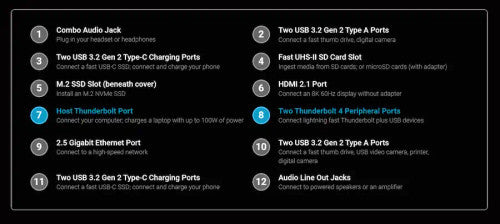

- Twenty interfaces
- Three Thunderbolt 4 Ports (One Computer/100W Charging Port for Host
- Computer and Two Thunderbolt 4 Peripheral Ports)
- M.2 NVMe SSD Slot – Add Up to 8TB of Storage Inside (SSD Sold Separately)
- Four USB 3.2 Gen 2 (10Gbps) Type-C Charging Ports
- Four USB 3.2 Gen 2 (10Gbps) Type A Ports
- HDMI 2.1 Port (Supports 60Hz HDMI Display)
- RJ45 2.5 Gigabit Ethernet port
- 3.5mm Combination Headphone/Microphone Jack (On the Front Panel)
- Two (Right and Left Channels) Line Out RCA Jacks (On the Back Panel)
- 3.5mm Microphone Jack (On the Back Panel)
- Fast UHS-II SD Card Slot
- Includes 0.7-meter Thunderbolt 4 Cable
- Includes ThunderLok 4 Thunderbolt Connector Retainer Clip (to Prevent Accidental Cable Disconnections)
- Kensington Lock ready
- Support for 1080p, 1440p, 4K, 5K, 6K, and 8K Displays @ Up to 240Hz (for Latest
- Compatibility Details, See Displays Compatibility PDF)
- Charge Your Laptop – Provides Up to 100W Power Delivery
- Compatible with Apple M series Macs; Thunderbolt 3 Intel Macs; Thunderbolt 3/4 and USB4 Windows computers; Thunderbolt 4 and USB4 Chromebook; and M series iPad Pro. For Complete Computer and OS Compatibility Details, See This Product’s Tech Specs page.
- 2-year product warranty
- Free Lifetime customer technical support
- Designed In the USA
- Part Number: ECHO-DK20-T4
- Warranty: 2-year
- Form Factor: Thunderbolt dock
- Connectors:
- Three Thunderbolt 4 ports
- Four USB 3.2 Gen 2 (10Gbps) Type A ports
- Four USB 3.2 Gen 2 (10Gbps) Type-C charging ports
- HDMI 2.1 Port @60Hz
- RJ45 2.5 Gigabit Ethernet port
- 3.5mm combination headphone/microphone jack
- 3.5mm microphone jack
- Two (right and left channels) line out RCA jacks
- UHS-II SD card slot
- M.2 SSD slot
- Power connector
- Thunderbolt 4 Computer Port:
- Power Delivery: Provides laptop charging up to 100W(1)
- Cables Supported: Any Thunderbolt 4 cable (0.7-meter included), 100W 0.2, 0.5, 0.7, 0.8-meter Thunderbolt 3 cables
- Cables Not Supported: 60W Thunderbolt 3 cables, 1.0, 1.5, 1.8, 2.0-meter Thunderbolt 3 cables
- Thunderbolt 4 Peripherals Ports:
- Connectivity: With USB-C connector
- Peripherals Supported: Thunderbolt 3, Thunderbolt 2(2) (macOS), USB4, USB 3, 2.0 and 1.1 devices, Thunderbolt 4, Thunderbolt 3, and USB-C monitors, DisplayPort and HDMI monitors(3)
- USB 3.2 Gen 2 Type A Ports:
- Connectivity: With USB Type A connector
- Peripherals Supported: USB 3, 2.0 and 1.1 devices(5)
- Data Transfer Rate: USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps
- USB 3.2 Gen 2 Type-C Ports:
- Connectivity: With USB Type-C connector
- Peripherals Supported: USB 3, 2.0 and 1.1 devices(5)
- Data Transfer Rate: USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps
- Charging: 1.5A per port advertised using USB Type-C Charging, 7.5W per port for operation or charging, Supports simultaneous charging and syncing
- RJ45 (Ethernet) Port:
- Network Support: Supports 2500 Mb/s, 1000 Mb/s, and 100 Mb/s network speeds and Auto-MDI/MDI-X
- Standard: Compliant with 802.3bz-2016 and 10/100/1000 IEEE 802.2 Specifications
- Network: 2.5 Gigabit Ethernet (2.5GBASE-T, 1000BASE-T, 100BASE-TX)
- Packets: Maximum packet size: 9000 bytes (Jumbo packets)
- Chip: Realtek RTL8156
- SD Card Slot:
- Fast UHS-II SD Card Reader
- Cards Supported: SD, SDHC, SDXC, microSD, microSDHC, and microSDXC cards when used with adapter (sold separately)
- Audio Line Out:
- Connectivity: RCA R+L connectors
- Internal Slot:
- NVMe M.2 slot: (connected at PCIe x1)
- Power Delivery: Provides laptop charging up to 100W(1)
- Kensington Security Slot™: Supports Standard, MicroSaver®, and MicroSaver 2 Locks
- Power Adapter: Universal 150W, 100-240V AC, 50-60 Hz
- Operating Temperatures: 0˚C to 35˚C (32˚F to 95˚F)
- Dimensions (WxDxH): Dock: 9.6 x 4.2 x 1.3 in. (24.3 x 10.6 x 3.3 cm), Power Adapter: 2.6 x 5.4 x 0.9 in. (6.6 x 13.7 x 2.2 cm)
- Weight: Dock and Power Supply: 2.55 lbs (1.16 kg), Complete Package: 3.55 lbs (1.51 kg)
- Compliance: RoHS 3 (Directive 2015/863), IEC62368-1 and IEC62368-2 Safety, VCCI-B certified, FCC Part 15, Subpart B, CISPR 32 / EN 55032, Power Supply (PSE certified; UL certified)
- Package Contents:
- Echo 20 Thunderbolt 4 SuperDock
- Power adapter
- Power cord
- 0.7-meter Thunderbolt 4 cable
- ThunderLok 4 Thunderbolt connector retainer clip(6)
- Documentation
- Product Manual: PDF
- Technical Notes:
- Charging rate varies according to overall power usage and battery level. When sleeping, any connected computer that supports Thunderbolt charging will be charged to 100% by the dock.
- Thunderbolt 2 and Thunderbolt 1 devices are supported by macOS when used with the Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter (sold separately).
- Thunderbolt compatible adapter required (sold separately).
- When connected to a USB4 Windows or Chromebook host, the downstream TB4 ports become USB4 ports with the same functionality as the host computer USB4 port — which may support one display or two; which may connect at 20Gbps or 40Gbps; and/or which may or may not support PCIe tunneling.
- The USB 3 specification limits the total number of USB 3 hubs, which, because of Thunderbolt USB architecture, is reached in the Echo 20 SuperDock. An external USB 3 hub (including devices with an internal hub, such as KVM switch, or keyboard with mouse connector) needs to be connected to a Thunderbolt port.
- ThunderLok 4 compatible specifically with Sonnet 0.7-meter Thunderbolt 4 cables.
- Mac Compatibility:
- Mac (M1/M2/M3) supports one display
- Mac (M1/M2/M3 Pro, M1/M2/M3 Max, and M1/M2 Ultra) supports two displays, including two Apple Pro Display XDRs
- Mac (Intel) with Thunderbolt 3 ports supports two displays, up to two 6K
- macOS 11+
- macOS Sonoma compatible
- Windows Compatibility:
- Windows computer with a Thunderbolt 4 port or USB4 port(4)
- Windows computer with a Thunderbolt 3 port and an Intel 8th Gen (2018) or newer CPU
- Windows 11 and 10
- Chromebook Compatibility:
- Chromebook with a Thunderbolt 4 port or USB4 port(4)
- iPad Pro Compatibility:
- M1/M2 iPad Pro supports one mirrored monitor
- Displays Compatibility: For computers and displays compatibility information, see the following PDF
- HDR Compatibility:
- See Apple Support Note - Note for Mac HDR information
- If your Windows computer supports HDR, see this Microsoft Support Note - Note for Windows HDR information
- NVMe SSDs Compatibility: For a list of compatible NVMe SSDs, see the following PDF
