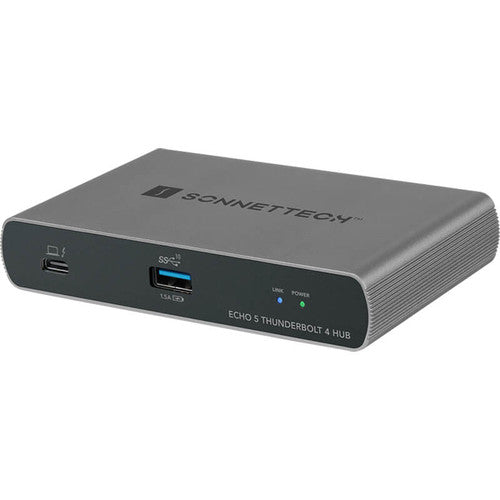

Sonnet Echo 5 Thunderbolt 4 Hub - Four Thunderbolt 4 Ports, USB 3.2 and 8K Display Support

• Part Number: ECHO-HB5-T4
• Warranty: 2-year
• Form Factor: Thunderbolt hub

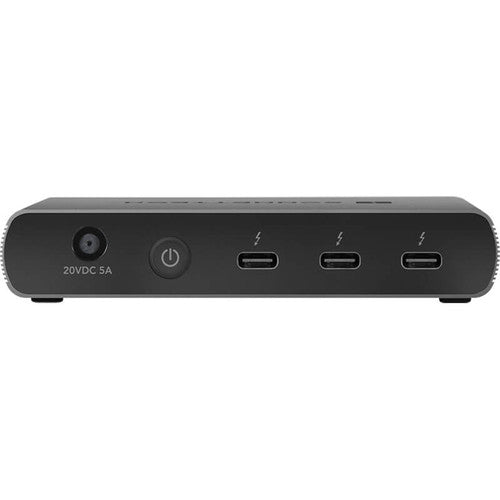

• External Connectors:
  • Four Thunderbolt 4 ports
  • USB 3.2 Gen 2 (10Gbps) Type A charging port
  • Power connector
• Thunderbolt 4 Computer Port
• Power Delivery: Provides laptop charging up to 85W(1)
• Cables Supported:
  • Any Thunderbolt 4 cable (0.7-meter cable included)
  • 100W ≤ 0.8-meter 40Gbps Thunderbolt cables
• Cables Not Supported:
  • 60W 40Gbps Thunderbolt cables
  • ≥ 1.0-meter 40Gbps Thunderbolt cables
• Thunderbolt 4 Peripherals Ports
• Connectivity: With USB-C connector
• Peripherals Supported:
  • Thunderbolt 4
  • Thunderbolt 3
  • Thunderbolt 2 (macOS[2])
  • USB4
  • USB 3, 2.0, and 1.1 devices
  • Thunderbolt 3 and USB-C monitors
  • DisplayPort and HDMI monitors(3)
• Charging: 15W capacity to charge iPad, iPhone, or other device supporting PD charging. Supports simultaneous charging and syncing.

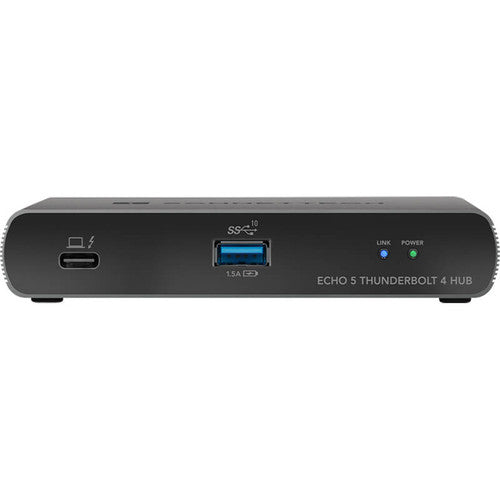

• USB 3.2 Gen 2 Type A Port
• Connectivity: With USB Type A connector
• Peripherals Supported: USB 3, 2.0 and 1.1 devices
• Data Transfer Rate: USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps
• Charging: 7.5W capacity to charge iPad, iPhone, or other device. USB Battery Charging 1.2–compliant. Supports simultaneous charging and syncing.
• Power Adapter: Universal 100W, 100-240V AC, 50-60 Hz
• Power Delivery: Provides laptop charging up to 85W(1)
• Operating Temperatures: 0˚C to 35˚C (32˚F to 95˚F)
• Dimensions (WxDxH):
  • Hub: 5.1 x 2.8 x 0.9 in. (12.9 x 7.2 x 2.16 cm)
  • Power Supply: 2.2 x 5.8 x 1.3 in. (5.6 x 14.8 x 3.2 cm)
• Weight:
  • Hub and Power Supply: 1.35 lbs (0.61 kg)
  • Complete Package: 2.30 lbs (1.04 kg)
• Compliance:
  • RoHS 3 (Directive 2015/863)
  • IEC62368-1 and IEC62368-2 Safety
  • FCC Part 15, Subpart B
  • CISPR 32 / EN 55032
  • UKCA
  • Power Supply (PSE certified; UL certified; VCCI certified)
• Product Manual: PDF
• Notes:
  • Charging rate may vary because Sonnet Hub Smart Power Controller directs power to where it is needed the most. When sleeping, any connected computer that supports Thunderbolt charging will be charged to 100% by the hub.
  • Thunderbolt 2 and Thunderbolt 1 devices are supported by macOS when used with the Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter (sold separately).
  • Thunderbolt compatible adapter required (sold separately).
  • When connected to a USB4 Windows or Chromebook host, the downstream TB4 ports become USB4 ports with the same functionality as the host computer USB4 port — which may support one display or two; which may connect at 20Gbps or 40Gbps; and/or which may or may not support PCIe tunneling.

Mac Compatibility

• Mac (M1/M2/M3) supports only one display
• Mac (M1/M2/M3 Pro, M1/M2/M3 Max, or M1/M2 Ultra) supports two displays, including two Apple Pro Display XDRs
• Mac (Intel) with Thunderbolt 3 ports supports two displays, up to two 6K
• macOS 11+
• macOS Sonoma compatible

Windows Compatibility

• Windows computer with Thunderbolt 4 ports (supports two displays)
• Windows computer with a Thunderbolt 3 port and an Intel 8th Gen (2018) or newer CPU
• Windows computer with a USB4 port(4)
• Windows 11 and 10

Chromebook Compatibility

• Chromebook with a Thunderbolt 4 port or USB 4 port(4)

iPad Pro Compatibility

• M1/M2 iPad Pro supports only one mirrored display

Displays Compatibility

• For computers and displays compatibility information, see the following PDF

HDR Compatibility

• See Apple Support Note for Mac HDR information
• If your Windows computer supports HDR, see this Microsoft Support Note for Windows HDR information
